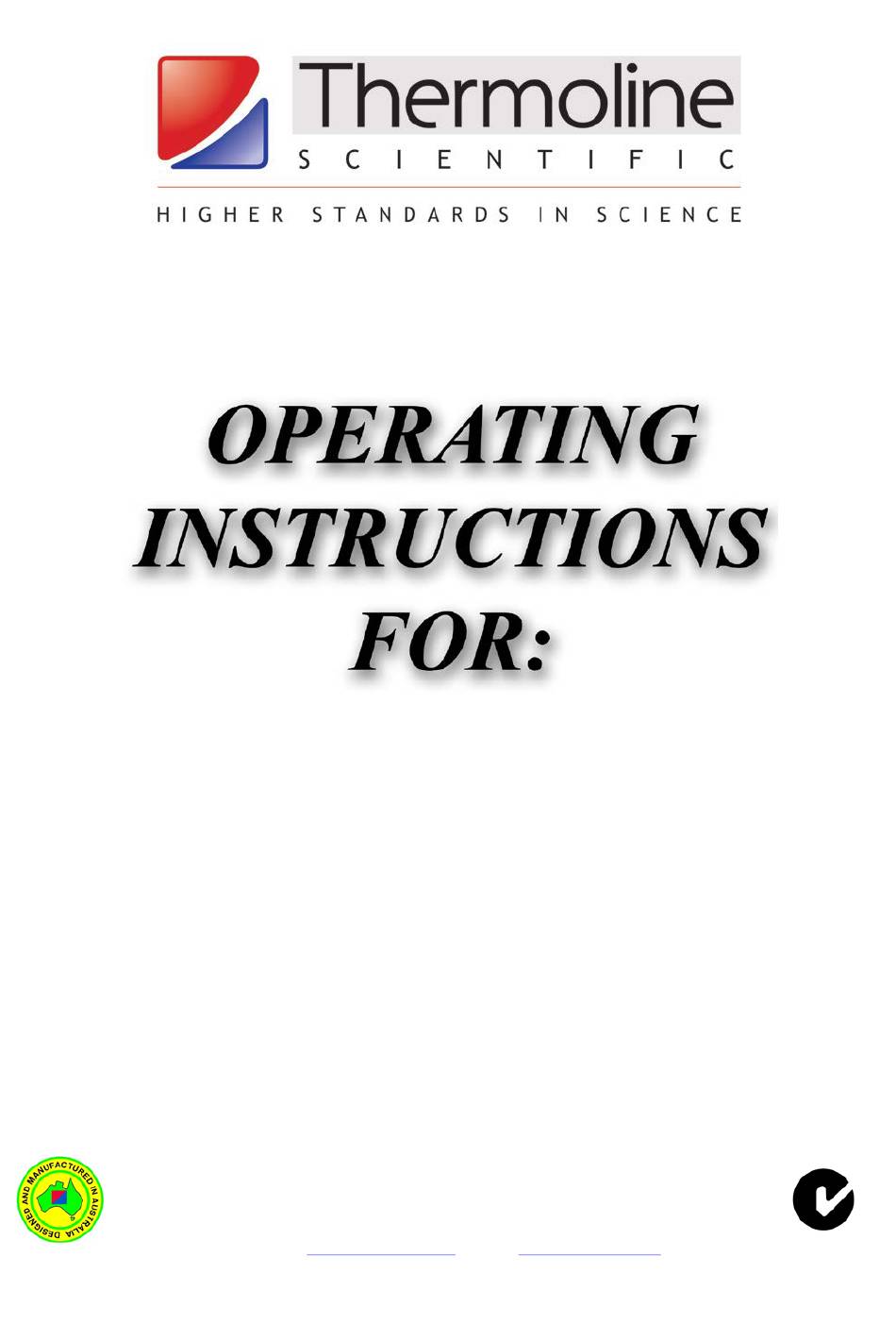

TEMPERATURE AND HUMIDITY
CHAMBERS
MODELS INCLUDE:
TCH-150
TCH-460
WITH EUROTHERM 3216 CONTROL
Thermoline Scientific Equipment Pty. Ltd.
T/A
Thermoline Scientific
ABN 80 000 859 129
10-12 Ross Place. Wetherill Park. N.S.W. 2164. Australia.
P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia.
Phone: (02) 9604 3911. International: 61 2 9604 3911.
Fax (02) 9725 1706. International: 61 2 9725 1706.
Email:
sales@thermoline.com.au
Web:
www.thermoline.com.au
Advertisement
Table of Contents
Summary of Contents for Thermoline Scientific Equipment TCH-150
- Page 1 CHAMBERS MODELS INCLUDE: TCH-150 TCH-460 WITH EUROTHERM 3216 CONTROL Thermoline Scientific Equipment Pty. Ltd. Thermoline Scientific ABN 80 000 859 129 10-12 Ross Place. Wetherill Park. N.S.W. 2164. Australia. P.O. Box 6862, Wetherill Park Delivery Centre, N.S.W. 1851. Australia. Phone: (02) 9604 3911. International: 61 2 9604 3911.
-
Page 2: Table Of Contents
EXPLANATION OF CONTROLS: • CONTROL PANEL LAYOUT (Figure 2): Page 10 • MAIN SWITCH: Page 11 • TEMPERATURE CONTROL: Page 11 • HUMIDITY CONTROL: Page 11 • OVER TEMP LIGHT: Page 11 • HUMIDITY SWITCH: Page 11 18-5-10 TCH-150 & 460... - Page 3 Page 18 • WATER TROUGH: Page 18 • WATER FLOW ADJUSTMENT: Page 19 SPARE PARTS LIST: Page 20 TECHNICAL ASSISTANCE: Page 20 OPTIONS: • RETRANSMISSION: Page 21 • CHART RECORDER: Page 21 • ALARMS: Page 21 18-5-10 TCH-150 & 460...
-
Page 4: Product Warranty
When making a claim for repairs under warranty please state the model number and serial number. These are printed on the compliance sticker, normally found on the front of the cabinet. Our records will show when the cabinet was despatched and if the warranty claim is valid. 18-5-10 TCH-150 & 460... -
Page 5: Introduction
Remove the equipment from the packing material, and check that the delivery is complete. Delivery should include the following: • 1 x Temperature and humidity cabinet. • Stainless steel open wire type shelves (TCH-150 = 2 shelves, TCH-460 = 4 shelves). • 1 x Hose connection fitting. • 1 x Operating manual. -
Page 6: Location
240 volts 50Hz Note: Only the TCH-150 model plugs into a standard 10 amp power point (otherwise known as a general purpose outlet or gpo). The TCH-460 requires a 15 amp power point. You will notice that the plug has a large earth pin and will not plug into a standard 10 amp power point. -
Page 7: Drain
Note: Gravity fed water tank should be at least 1 metre above the ground, to provide a suitable head for the water to flow properly. • Once the cabinet is in position with all of the services connected, use the lock-down levers on the castor wheels to prevent the cabinet from moving. 18-5-10 TCH-150 & 460... -
Page 8: Installation: Pages 6, 7
If a town water supply is used it may be necessary to adjust the water pressure regulator. See the section in “maintenance” regarding adjustment of the pressure regulator. Photo 3: Access to drain valve. 18-5-10 TCH-150 & 460... -
Page 9: Function
P a g e • Plug the cabinet into the power point. Note: only the TCH-150 model can plug into a standard 10 amp, 240 volt power point, the TCH-460 requires a 15 amp, 240 volt power point. • You are now ready to use the cabinet! -
Page 10: C-Tick
The air is humidified by a heating element in the water trough in the bottom of the cabinet at the back. The air is dehumidified by the addition of fresh ambient air through the air inlet on top of the cabinet. The humidity controller cycles the trough element on and off to maintain stable humidity. 18-5-10 TCH-150 & 460... -
Page 11: Section Of Side View (Figure 1)
P a g e | 10 Figure 1: Section side view of cabinet, showing air flow: EXPLANATION OF CONTROLS: Figure 2: Control Panel Layout. 18-5-10 TCH-150 & 460... -
Page 12: Main Switch
Air Heating Element Safety: (Non Operator Adjustable): This thermostat is factory set to turn off the air heating element if the circulating fan stops. Humidity Heating Element Safety: (Non Operator Adjustable). This thermostat is factory set to protect the humidity trough element from over heating due to lack of water. 18-5-10 TCH-150 & 460... -
Page 13: Electrical - Power Lead
ELECTRICAL - POWER LEAD Model TCH-150: A mains power lead with a three pin plug and right angle IEC socket is supplied for connection between the male IEC socket located on the side of the cabinet and a 10 amp general purpose outlet (power point). -
Page 14: Changing The Set Value: Pages
Thermoline product, the alarm will switch off all forms of heating if the actual temperature exceeds the set temperature by 2.0°C. This will be indicated by a red flashing indicator and a scrolling message of ‘Over Temperature’ on the bottom display of the controller. 18-5-10 TCH-150 & 460... -
Page 15: Adjusting The Vents: Pages 14
See the graph on page 16 as a rough guide to the humidity levels that can be achieved with vents open or vents closed. Photo 4: Air inlet and exhaust vents on top of the cabinet. 18-5-10 TCH-150 & 460... - Page 16 P a g e | 15 18-5-10 TCH-150 & 460...
-
Page 17: Operating The Cabinet: Pages 12 To
Using the temperature control as an example, let us assume that the top display (PV operating temperature), is reading 37.0ºC, and your reference instrument is reading 37.2ºC. That is a calibration error of +0.2ºC. 18-5-10 TCH-150 & 460... -
Page 18: Adjusting The Calibration Offset
CAUTION: The Offset value with few exceptions is between –0.5 and +1.5. The need to use a value outside this range should be carefully considered. If in doubt, return the value to zero and recalculate the offset value. 18-5-10 TCH-150 & 460... -
Page 19: Maintenance
After flushing the trough it will take a while for the water to heat back up again and for the temperature and humidity to stabilise. You should perform this procedure every 3 months if town water is used, less often if distilled water is used. 18-5-10 TCH-150 & 460... -
Page 20: Water Flow Adjustment
• Pull the water regulator knob towards you and turn it anti-clockwise until the float switch “bounce” is reduced. Note: If you turn the regulator fully anti-clockwise the water supply will be turned off. 18-5-10 TCH-150 & 460... -
Page 21: Spare Parts List
3-129 Mean Well DR4524 power supply. 3-104 DC input, 40 amp output, solid state relay. Air element: TCH-150: 800 watts, 240 volts TCH-460: 1500 watts, 240 volts Water element: TCH-150: 1200 watts, 240 volts TCH-460: 1700 watts, 240 volts 3-97 Float switch. -
Page 22: Options
A socket for connection of the alarms can be provided for in house monitoring, usually on the side of the cabinet. Contact your Thermoline representative for details on all options available. 18-5-10 TCH-150 & 460...
