  • Page 1 Q Colour HEX User Manual Order code: LEDJ211...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Q Colour HEX User Manual...

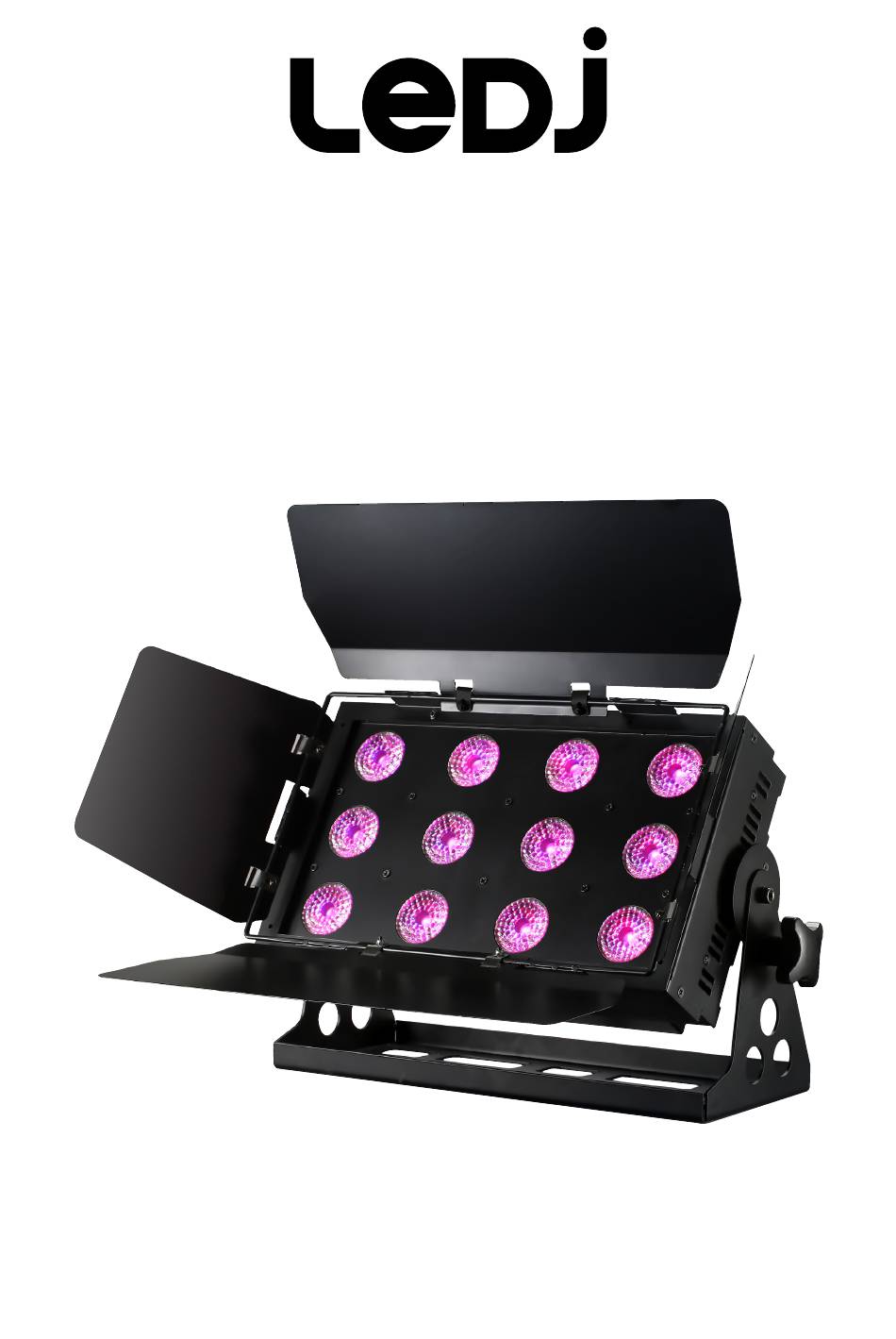

  • Page 3 Product overview & technical specifications Q Colour HEX Utilising LED technology the Q Colour HEX adds intense colour to stages and performers. The fixture has a slim rugged chassis and provides exceptional quality, coverage and ease of use. With the ability to run built-in programs and perform full RGBWAUV colour mixing with or without DMX control the fixture is perfect for a host of applications.
  • Page 4 04 - 5-Pin DMX output 09 - Fan 1 x power cable 05 - PowerCON input 10 - Hanging/floor bracket & 1 x user manual 06 - PowerCON output 11 - Bracket adjustable knobs www.prolight.co.uk Q Colour HEX User Manual...
  • Page 5 Master Dimmer Sound Mode (This takes priority Sound over the program speed when on) Sense 001-100 (80) Sound Sensitivity Setting BlackOut Hold DMXFail DMX Fail Setting Program Linear Square DimCurve Dimming Curve Settings InSquare S-curve www.prolight.co.uk Q Colour HEX User Manual...
  • Page 6 000-255 Red (0-100%) 128-159 Pulse strobe (slow-fast) 000-255 Green (0-100%) 160-191 Open 000-255 Blue (0-100%) 192-223 Random strobe (slow-fast) 000-255 White (0-100%) 224-255 Open 000-255 Amber (0-100%) 000-255 Master dimmer (0-100%) 000-255 UV (0-100%) www.prolight.co.uk Q Colour HEX User Manual...
  • Page 7 113-116 Colour Macro 29 128-159 Pulse strobe (slow-fast) 117-120 Colour Macro 30 160-191 Open 121-124 Colour Macro 31 192-223 Random strobe (slow-fast) 125-128 Colour Macro 32 224-255 Open 129-132 Colour Macro 33 000-255 Master dimmer (0-100%) www.prolight.co.uk Q Colour HEX User Manual...
  • Page 8 160-178 Program 9 (RGBW fade in/out) 179-197 Program 10 (RGBA fade in/out) 198-216 Program 11 (RGBUV fade in/out) 217-235 Program 12 (RGBWAUV fade in/out) 236-255 Program 13 (12 colour fade in/out) 000-255 Program speed (slow-fast) www.prolight.co.uk Q Colour HEX User Manual...

  • Page 9: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Q Colour HEX User Manual...

  • Page 10: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Q Colour HEX User Manual...
  • Page 11 Please note: Caution should be used when power linking other fixtures to the Q Colour HEX as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 12: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Q Colour HEX User Manual...
