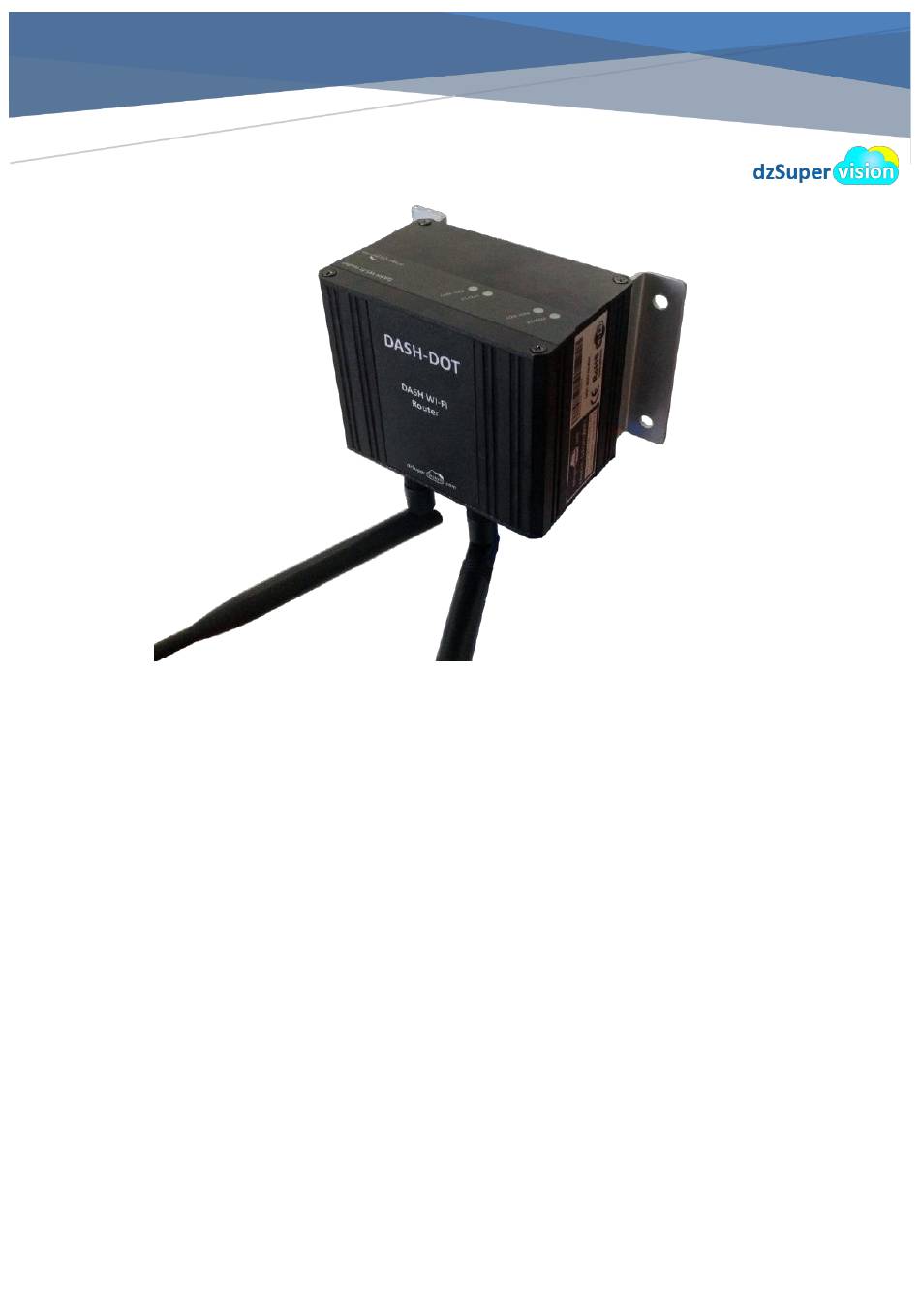

- Page 1 DASH V3.X SERIES Technical Manual Brief DASH V3.0 is the smart device that acts as a wireless gateway between one or more DOTs and the server. Store and forward technology built into DASH allows seamless communication even on poor wireless coverage areas.
- Page 2 DASH 3.x Series DASH V3.X SERIES Features Internal 4GB memory for store and forward buffer. Remote configuration and control. Upgradeable firmware 100 – 240 VAC powered. Available in Wi-Fi and GPRS versions. IP 64 enclosure.
- Page 3 DASH 3.x Series Contents Overview Specifications Electrical Characteristics Mounting and Installation Physical Dimensions Panel Mounting Example Installation Instructions Relevant Information Led Signal Code Descriptive Label Basic Troubleshooting Recommendations, Warnings and Restrictions Warranty Information Manufacturer http://www.dzsupervision.com...
-
Page 4: Specifications
DASH 3.x Series Specifications Parameter Conditions Type Units WIFI Frequency Band GPRS 850 / 900 / 1800 / 1900 Reconnection Time(*) After power down Sec. DOTs supported Maximum sampling DOTs simultaneously rate Note: Reconnection time depends on the configuration and WIFI quality. Electrical Characteristics Parameter Units... -
Page 5: Physical Dimensions
DASH 3.x Series Physical Dimensions Dimensions are in millimeters. http://www.dzsupervision.com... - Page 6 DASH 3.x Series Panel Mounting Example http://www.dzsupervision.com...
-
Page 7: Installation Instructions
DASH 3.x Series Installation Instructions Day zero configuration provides a comprehensive interface to make the installation process in four easy steps. 1° Mount according to the drawing in page 4. Make sure that it has WIFI or GPRS reception (depending on the DASH version). - Page 8 DASH 3.x Series Led Signal Code RSSI-WIFI(red) STATUS(white) RSSI-DOT(blue) POWER(green) DASH on Blinks. If packets of data Packet received from DOT. are received continuously, this led may stay on. Blinks for 1 second Setting IP (DHCP). every 2 seconds. IP configured. Wi-Fi configuration setup failed.
-
Page 9: Product Code
DASH 3.x Series Descriptive Label On the right side of the housing is a silver-black label. This label contains relevant information about the device. DASH model Product code Certifications DASH ID http://www.dzsupervision.com... -
Page 10: Basic Troubleshooting
DASH 3.x Series Basic Troubleshooting Symptoms Posible Reasons Solutions Connect the DASH to a power supply (100-240 The device is disconnected. DASH is not VAC). responding. No led activity. Power cable is damaged. Replace the interlock power cable. Check that the antennas are well screwed. If Wi-Fi signal quality is not strong they are, try replacing them. - Page 11 Antennas not listed in the table must be tested to comply with FCC Section 15.203 (Unique Antenna Connectors) and Section 15.247 Emissions). Australtek does not carry all of these antenna variants. Contact Australtek for available antennas. RF Antennas approved for use with the DASH 3.x Series (Cable loss is not required).
- Page 12 DASH 3.x Series Wi-Fi Antennas approved for use with the DASH 3.x Series. DIPOLE ANTENNAS Minimum Cable Loss/Power/Reduction/ Attenuation Required Part Number Type(Description) Gain b mode g mode n mode Separation Dipole (Half-wave 2.1 dBi A24-HASM-450 20 cm Articulated RPSMA-4.5") 2.1 dBi A24-HABSM Dipole (Articulated RPSMA)
- Page 13 DASH 3.x Series PANEL CLASS ANTENNAS Minimum Cable Loss/Power/Reduction/ Attenuation Required Part Number Type(Description) Gain b mode g mode n mode Separation A24-P8SF Flat Panel 5.96 10.04 A24-P8NF Flat Panel 5.96 10.04 A24-P13NF Flat Panel 13.0 10.46 14.54 A24-P14NF Flat Panel 14.0 11.46 dB 15.54 dB...
- Page 14 DASH 3.x Series Wi-Fi Antennas approved for use with the DASH 3.x Series (Channels 11 ‐ 25). YAGI CLASS ANTENNAS Minimum Cable Loss/Power/Reduction/ Attenuation Required g mode n mode Part Number Type(Description) Gain b mode Separation A24-Y6NF Yagi (6-element) 2.58 7.52 A24-Y7NF Yagi (7-element)
-
Page 15: Warranty Information
Australtek will repair or replace the defective product. For warranty service, return the defective product to Australtek, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of Australtek's warranties regarding the product. Repair or replacement at Australtek's option is the exclusive remedy. - Page 16 DASH 3.x Series Manufacturer Australtek Argentina Office: Cuidad de la Paz 1965 3°D Buenos Aires, Argentina. Phone: +54 (11) 5263-0222 Fax: +54 (11) 5263-0222 info@australtek.com USA Office: 800 Old Pond Road - Suite 706K Bridgeville, PA 15017 USA Phone: (412)257-2377 Fax : (412)257-2388 info@australtek.com...
