Note: When several instruments try to connect at the same time, the Instrument_Listener application
will open multiple NSRT_Server windows.

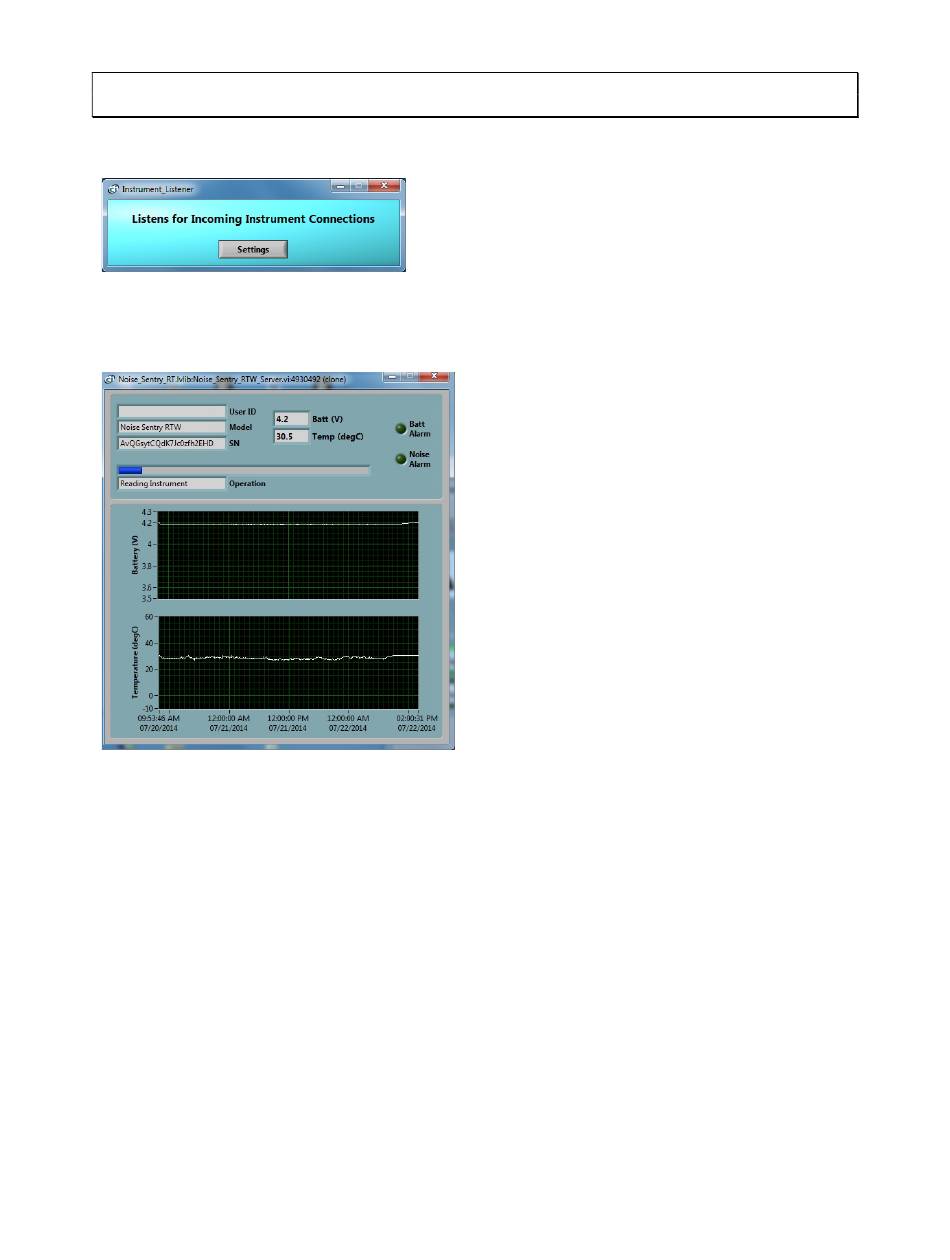

Figure 13 Instrument_Listener Application
Figure 14 NSRTW_Server Window
The NSRTW_Server window performs the following operations:
•
If data is in the instrument, it creates a .wlg file to hold that data, or appends the data to the file
if one has already been created.
•
If the instrument is not currently recording, it then erases the instrument's memory, adjusts the
time, and starts recording. If the instrument is recording it closes as is and lets the recording
continue.
8.1

File Storage

The .wlg files that
C:\Users\username\Documents\Convergence_Instruments\All_Instruments\Records\NSRTW_mk3,
where username is the name of the user currently logged. In the context of a particular user's account,
this folder is normally designated:
Libraries\Documents\My Documents\Convergence_Instruments\All_Instruments\Records\NSRTW_mk
3
NSRTW_mk3 User's Manual
are created by the NSRTW_Server are stored in
