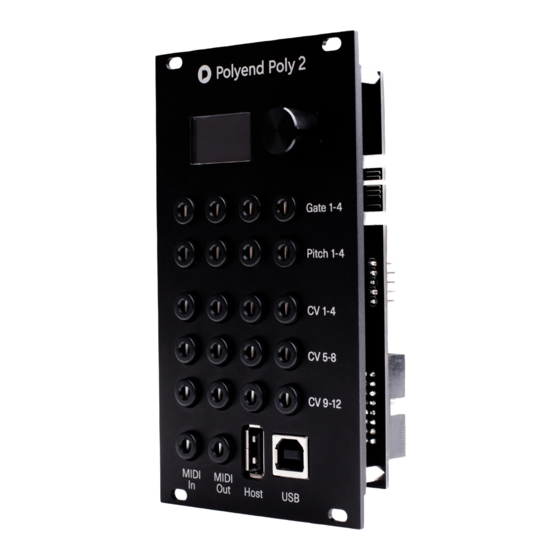

Polyend Poly 2

MIDI to CV Converter

Need help?

Do you have a question about the Poly 2 and is the answer not in the manual?

Page 1 Polyend Poly 2 MIDI to CV Converter Made in Poland...
Page 2 Host Voices Poly 2 can handle up to 8 voices, which are CV Gate and Pitch pairs. If the number of total voices is higher than 4, then CV1 becomes the 5th Gate and CV5 becomes the 5th Pitch. Analogically CV2 is Gate 6th, CV6 is Pitch 6th, etc.
Page 3 The Next mode works as voices do in most polyphonic synthesisers. When MIDI note is sent, then the system looks for next non-occupied voice and Note: Set CC to Voice when you want to use Poly 2 with MPE compatible devices.
Page 4 Ranges from C3 to C6 and allows you to choose the middle C note convention. Store and recall all your user settings made for different setups and different If Poly 2 is converting the incoming MIDI Notes to a different octave than the scenarios.
Page 5: Important Note
Use acoustic drums to trigger your modules • USB type-B. Connect drum triggers to your kit. Connect the kit to Poly 2 with USB or MIDI cable. Set Play mode to Notes. Set custom CVs to Velocity. Now connect the Outputs module outputs with your Eurorack drum (or non-drum) modules.
Page 6 Can Poly 2 power my device via host? Yes, it can. If the device is power hungry, you need to switch the jumper on the back of the unit to EXT. Then Poly 2 draws +5V from your Eurorack power supply.
