Eurotherm Invensys PG6 Manual

Tel +1 (703) 724-7300
Fax +1 (703) 724-7301

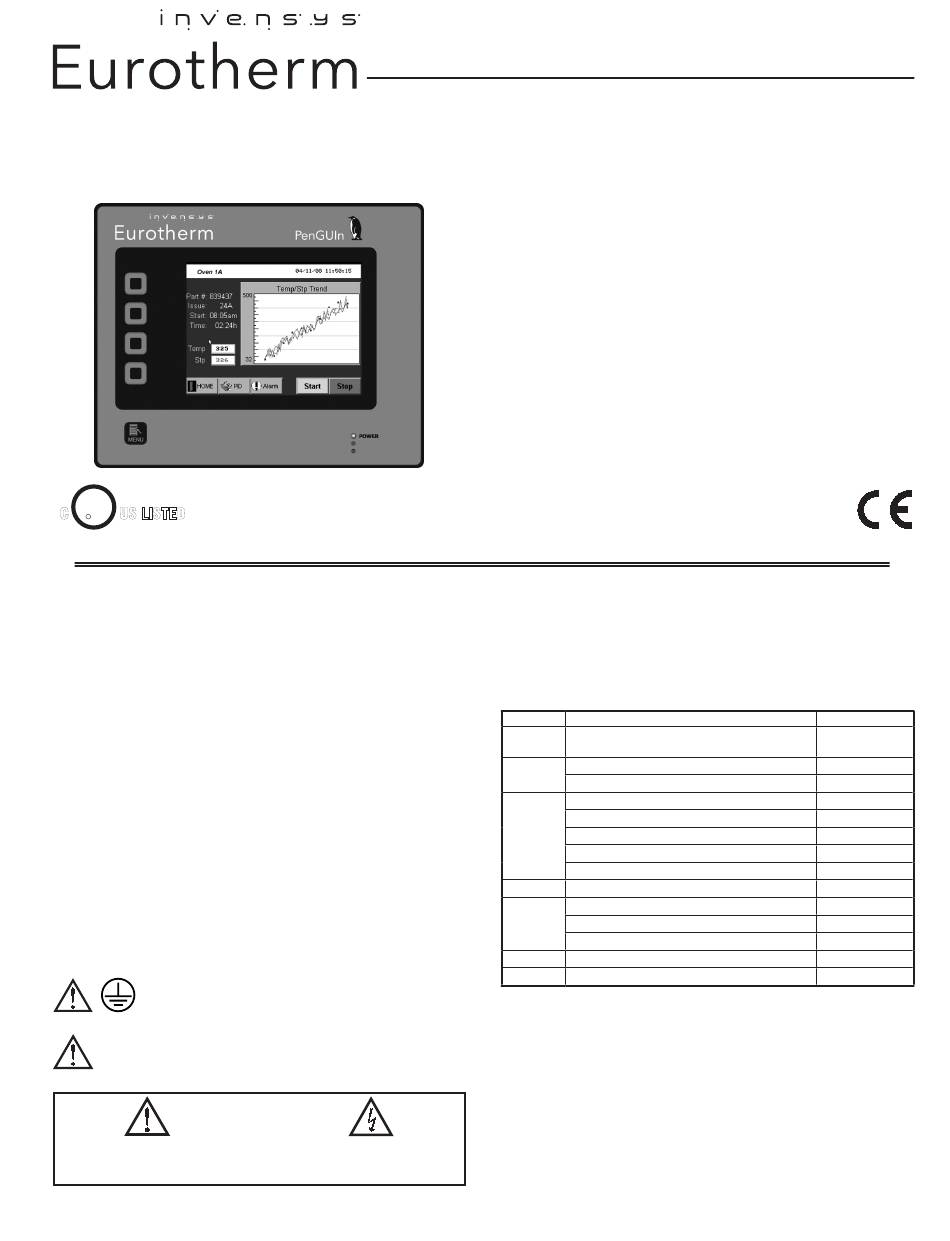

MODEL PG6 - GRAPHIC COLOR LCD OPERATOR INTERFACE TERMINAL
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US LISTED
Class I, Division 2, Groups A, B, C, and D
R
43NH
PROCESS CONTROL EQUIPMENT
GENERAL DESCRIPTION
The PG6 Operator Interface Terminal combines unique capabilities normally
expected from high-end units with a very affordable price. It is built around a
high performance core with integrated functionality. This core allows the PG6
to perform many of the normal features of the Paradigm range of Operator
Interfaces while improving and adding new features.
The PG6 is able to communicate with many different types of hardware using
high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100
Base-TX communications. In addition, the PG6 features USB for fast downloads
of configuration files and access to trending and data logging. A CompactFlash
socket is provided so that Flash cards can be used to collect your trending and data
logging information as well as to store larger configuration files.
In addition to accessing and controlling of external resources, the PG6 allows
a user to easily view and enter information. Users can enter data through the
touchscreen and/or front panel 5-button keypad.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
CompactFlash is a registered trademark of CompactFlash Association.
WITH TFT QVGA DISPLAY AND TOUCHSCREEN
CAUTION: Risk of electric shock.
CONFIGURED USING GUIcon SOFTWARE

UP TO 5 RS-232/422/485 COMMUNICATIONS PORTS

(2 RS-232 AND 1 RS-422/485 ON BOARD, 1 RS-232 AND 1
RS422/485 ON OPTIONAL COMMUNICATIONS CARD)
10 BASE T/100 BASE-TX ETHERNET PORT TO NETWORK UNITS

AND HOST WEB PAGES
USB PORT TO DOWNLOAD THE UNIT'S CONFIGURATION FROM

A PC OR FOR DATA TRANSFERS TO A PC
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE

MEMORY (8 MBYTE FLASH)
®
COMPACTFLASH SOCKET TO INCREASE MEMORY CAPACITY

5.7-INCH TFT ACTIVE MATRIX 256 COLOR QVGA 320 X 240

PIXEL LCD W/LED BACKLIGHT
5-BUTTON KEYPAD FOR ON-SCREEN MENUS

THREE FRONT PANEL LED INDICATORS

POWER UNIT FROM 24 VDC ±20% SUPPLY

RESISTIVE ANALOG TOUCHSCREEN

CONTENTS OF PACKAGE
- PG6 Operator Interface.
- Panel gasket.
- Template for panel cutout.
- Hardware packet for mounting unit into panel.
- Terminal block for connecting power.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
Operator Interface for indoor applications,
PG6
textured finish with embossed keys
1 GB CompactFlash Card
PGX-N
2 GB CompactFlash Card
RS 232/485 Optional Communication Card
CANopen Optional Communication Card
PGX DeviceNet Optional Communication Card
Profibus DP Optional Communication Card
GSM/GPRS Modem Option Card
3
GUIcon 1.0
RS-232 Programming Cable
CBL USB Cable
Communications Cables
Replacement Battery
Protective Films
1
Industrial grade two million write cycles.
2
Antenna (QANT0000) is NOT included with the card. Must be purchased
separately if needed.
3
Download for free from www.eurotherm.com
4
Contact your Invensys/Eurotherm distributor or visit our website for complete
selection.
5
Battery type is lithium coin type CR2025.
1
Bulletin No. PG6-X
Drawing No. LP0848
Effective 08/10
PART NUMBER
PG6-SE1QA
1
PGX-N01
1
PGX-N02
PGX-RS
PGX-CAN
PGX-DNET
PGX-PBUS
2
PGX-GSM
CBL01500
CBL01900
4
CBLxxxxx
5
PGX-BNL20000
PG6-FILM
