Turner DataBank Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
December 14, 2018
Revision L
Turner Designs
st
1995 N. 1
Street
San Jose, CA 95112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataBank and is the answer not in the manual?

Questions and answers

Summary of Contents for Turner DataBank

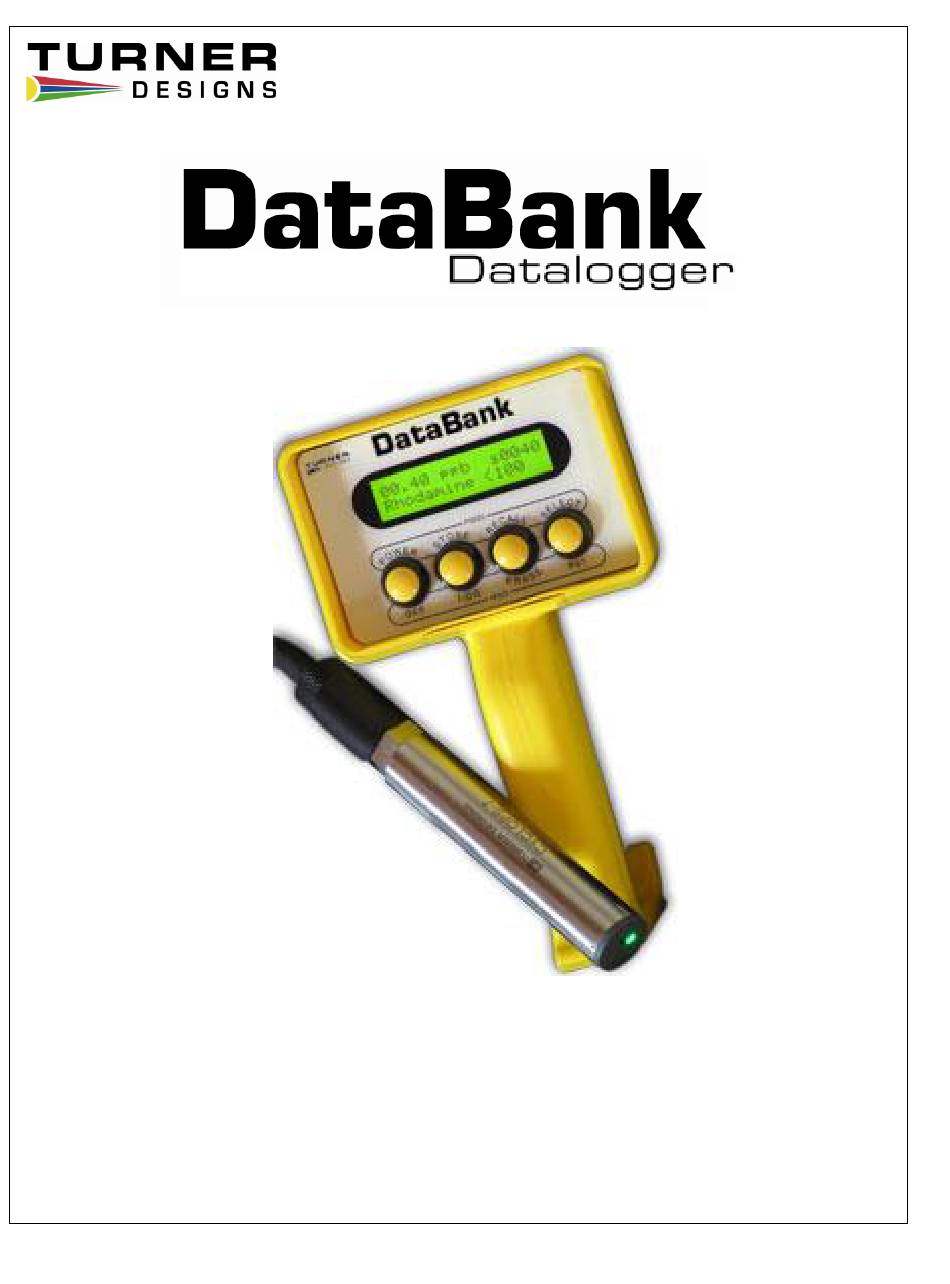

  • Page 1 December 14, 2018 Revision L Turner Designs 1995 N. 1 Street San Jose, CA 95112...

  • Page 2: Table Of Contents

    3.3.1 File Naming 3.3.2 If File Exists 3.3.3 File Content 3.3.4 File Descriptor Setting DataBank from a File Updating the DataBank’s Operating System Save DataBank Records Tab Download DataBank’s Records 3.6.1 Delete DataBank’s Records 3.6.2 Calibration and Auto Gain 3.7.1 Quick Calibration 3.7.2...
  • Page 3 Table of Contents cont. Recharging When Not Enough Charge When to Charge the Battery When the Battery Does Not Charge Normally Battery Life Estimate Warranty Terms Warranty Service Out of Warranty Service Appendix Specifications Setting up Window’s HyperTerminal Using HyperTerminal to Download Data Files 998-2900 Rev L...
  • Page 4 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE Turner Designs is in the business of designing and selling products that benefit the well- being of our environment. Accordingly, we are concerned with preserving the surroundings wherever our instruments are used and happy to work with customers by complying with the WEEE Directive to reduce the environmental impact resulting from the use of our products.

  • Page 5: Introduction

    The DataBank is designed for Interpretive Metering and Data Collection from Turner Designs’ Cyclops Submersible Sensors integrated with GPS location data. Used in conjunction with a PC, the DataBank software allows for easy setup, calibration and data retrieval. Note: All units with serial numbers before S/N 2900545 are not equipped with internal GPS.

  • Page 6: Button Description And Operation

    2.1 Power Button The Power button is used to:  Turn the DataBank on and off Press the Power button to turn the DataBank on. Hold the Power button to turn the DataBank off.  Toggle the backlight Press the Power button to toggle the LCD’s backlight on and off while the unit is turned on.

  • Page 7: Recall Previous Records Stored

    Pressing all 4 buttons simultaneously will result in a hardware reset of the DataBank. This is used in the event that the computer locks up preventing a normal power down of the DataBank. This can also be used after updating the DataBank’s operating system.

  • Page 8: Flash Programming Mode

    2.5.3 Flash Programming Mode This mode is used to update the DataBank’s operating system. Updates are made using the standard USB DataBank cable. An RS232 serial cable connection is available as an option. See Section 3.5 “updating the DataBank’s operating system”.

  • Page 9: Graphical User Interface

    Graphical User Interface DataBank GUI software runs in Microsoft Windows and is used for communicating with and configuring the DataBank. 3.1 Connection Requirements  DataBank must be connected to a computer using the provided interface cable.  DataBank must be turned on.

  • Page 10: Setup Options Tab

    If you click Retry, then the GUI again tries to find the DataBank. If you click Cancel, then the GUI software will shut down and you must re-start the GUI. Once communication has been established, the main screen will display the DataBank’s information in the upper left hand corner and the “Talking with DataBank”...

  • Page 11: Backlight Operation

    High – uses 30 mA power consumption Low – uses 15 mA power consumption 3.2.4 Display Mode Date & Time – DataBank will display the date & time during normal operation Example: #01 04/06 10:32. Title – DataBank will display the title of your current selection.

  • Page 12: File Naming

    If a file path and filename are not entered or an already existing file is not selected, the setting file will be saved to the DataBank GUI folder found in the Programs Files folder within the C drive. From there it can be moved to a different location as specified by the end user.

  • Page 13: File Descriptor

    3.4 Setting DataBank from a File The DataBank can be set using a previously saved file which includes settings and/or calibration data. 1) Use the Browse button to navigate to an already existing file that contains settings and/or calibration data.
  • Page 14 For example, DB3xx.hex is a valid Hex file that can be used to update the DataBank’s operating system to version 3.xx After a Hex file is chosen, click OK again to go to the Initialize DataBank for Upgrade screen. If a valid file is chosen then the screen below will appear.
  • Page 15 Notes  If you fail an upgrade attempt, press all four buttons simultaneously and release them to reset the DataBank. Then turn the DataBank on and repeat the above procedure.  In case of serious failure where the DataBank will no longer power up normally,...

  • Page 16: Save Databank Records Tab

    If File Exists – choose to either add downloaded data to an existing file using the Append option or replace it entirely using the Replace option. Records to Download – choose the method for downloading data from the DataBank in the order they were stored, sequentially, or from a selected group. ...

  • Page 17: Delete Databank's Records

    3.6.2 Delete DataBank’s Records Click on the Delete DataBank’s Records to open the following screen: You will need to confirm the deletion of all DataBank Records before the operation will begin. Click Cancel Deletion to cancel your request and keep DataBank’s Records intact.

  • Page 18: Calibration And Auto Gain

    There are numerous ways to calibrate sensors using DataBank software, so it is up to the user to determine which calibration method should be used for their sampling protocol.

  • Page 19: Advanced Calibration

    13) The following screen will appear when finalizing calculations has completed. 14) Click OK. 15) The DataBank is now ready for use and you may begin measuring samples. Values are reported as Blank Corrected Raw Fluorescence Units (RFUB). Two point Calibration (Direct Concentration) 1) Follow steps 1-11 from Single Point Calibration Section.
  • Page 20 Title – is what will be displayed for the selected parameter group when the DataBank is set to Title Mode instead of Date & Time Mode. Users can set this title to either describe the formula used in the calibration or the parameter group being calibrated.

  • Page 21: Collect Data And Create New Equation

    mV or mA – Only mV can be chosen for the Cyclops sensors. Dec. or S.N. – allows users to choose either decimal or scientific notation as the numeric format for displaying the equations. 3.7.3 Collect Data and Create New Equation This calibration generates an interpretation equation using multiple data points.

  • Page 22: View Graph

    Accept Equation – click the Accept Equation button to accept the calibration and store calibration data for that parameter group in the DataBank’s memory. Upon clicking this button you will be returned to the Equation Groups and Calibration Screen.
  • Page 23 ADDITIONAL GRAPH FEATURES Move the mouse pointer over the plotted line and/or data point and the (x,y) values will be displayed. Delete Data Point – move the mouse pointer over the data point you wish to delete and click the mouse button. Verify the value you wish to delete is displayed in the box to the left of the graph.

  • Page 24: Sensors And Cables

    This section discusses the sensors and cables for the DataBank. 4.1 Sensors The DataBank can be configured to work with Turner Designs Cyclops Sensors. For information on how to configure the DataBank to work with Cyclops visit the following web address: DataBank with Cyclops Sensors http://docs.turnerdesigns.com/t2/doc/manuals/998-2901.pdf...

  • Page 25: Batteries & Charging

    Batteries & Charging 5.1 Low Battery When the DataBank’s battery is low, “Low Battery” will be displayed for a second, every 4 seconds until the battery is either recharged or gets too low for continued use. Note: At first indication of a low battery, assisted GPS power is discontinued.

  • Page 26: Amp/Hour Gauge

    5.6 When the Battery Does Not Charge Normally If the DataBank has been stored for a long period of time and the battery is exhausted, attaching the charger may appear to have no effect. Without sufficient battery power the DataBank will not start up normally, however the battery does receive a pulse of charge upon connection.

  • Page 27: Battery Life Estimate

    5.7 Battery Life Estimate Below is an estimate of battery life for the DataBank Handheld Datalogger with and without the internal GPS turned on using the Cyclops 7F sensors. Note: This is a rough calculation and the recommended best estimate is to test for your specific parameters prior to deployment.

  • Page 28: Warranty

    Warranty 6.1 Terms Turner Designs warrants the DataBank and accessories to be free from defects in materials and workmanship under normal use and service for a period of 12 months from the date of shipment from Turner Designs with the following restrictions: ...

  • Page 29: Out Of Warranty Service

    Repair service will be billed on a fixed price basis, plus any applicable duties and/or taxes. Shipment to Turner Designs should be prepaid. Your bill will include return shipment freight charges.
  • Page 30 Equipment Specified as Electrical and Electronic Waste 998-2900 Rev L...

  • Page 31: Appendix A Specifications

    Appendix A: Specifications DataBank Handheld Datalogger Total: ≤ 120 mA; Sleeping = < 65 µA Current draw < 3 hours for a fully discharged battery; ambient @ 25 C Charge Time Slow charge mode recommended to extend battery life. Continuous up to 15 hours dependent on installed sensor/settings.

  • Page 32: B Setting Up Window's Hyperterminal

    Note: COM port is not set by included setting file. Copy this file from the USB flash drive into the folder or directory of choice. We recommend copying this file to the DataBank’s folder that was set up during DataBank software installation: C:\Program Files\DataBank GUI 1) Right click on this file and choose properties to change COM port settings.

  • Page 33: C Using Hyperterminal To Download Data Files

    “s” is the sort character, O thru F for curves 1-16 or S for sequential “SPACE” (or any other character) will retrieve unsorted data 2) Press Enter. The display on the DataBank should show “Downloading” followed by “0000 of xxxx”.
