Summary of Contents for Belgard ELEMENTS OUTDOOR LIVING BRISTOL

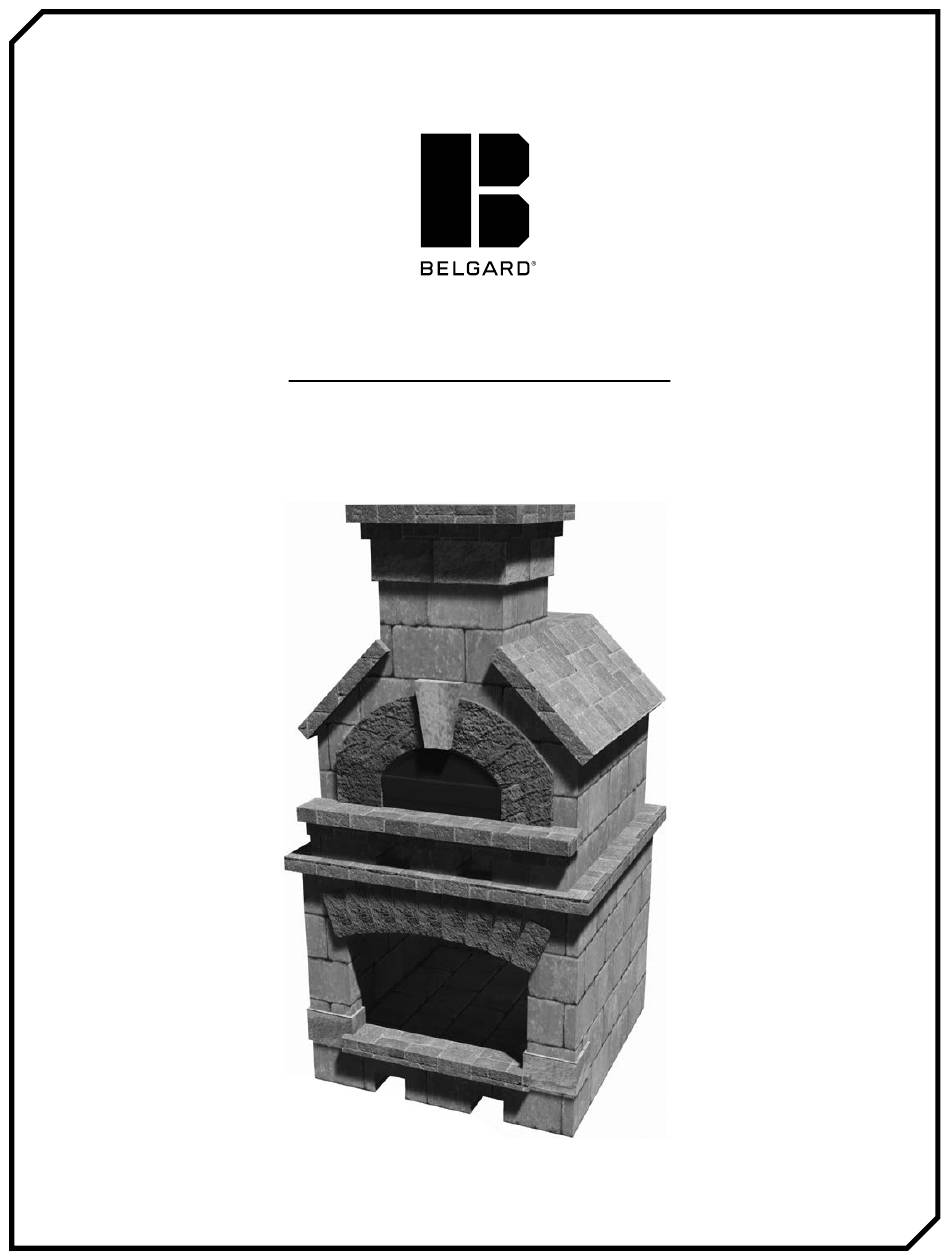

- Page 1 ELEMENTS OUTDOOR LIVING ™ BRISTOL BRICK OVEN INSTALLATION MANUAL BELGARD.COM...
- Page 2 OVERVIEW The Bristol Brick Oven from the Belgard Elements Collection consists of two large pieces: a base ™ and a top. The units are shipped separately on two pallets. Shipped in the base unit you will find filler blocks for all fork slots; a total of eight plugs are shipped with the unit.
-
Page 3: What's Included
WHAT’S INCLUDED The major components for the brick oven are shown in Figures 1 and 2. Figure 1 shows the top unit of the brick oven. Figure 2 shows the base unit of the brick oven. Figure 2 also shows the filler blocks or “plugs”... - Page 4 SAFETY The following recommendations should be carefully observed as part of any Elements Brick ™ Oven assembly. 1. DO read and follow the Bristol Brick Oven Installation Manual. 2. DO NOT climb on top of the base or top unit of the brick oven. 3.
- Page 5 GRAVEL BASE A properly constructed graded aggregate base is a minimum requirement for placement of your unit. The sketches below show the minimum excavation area for different unit assemblies in a stand- alone configuration; note that the excavation area extends one foot beyond the actual footprint of the unit assembly on all sides.
- Page 6 INSTALLING THE BRICK OVEN The first step after a gravel base has been established is to place the base unit. *Remember the first 4" are always buried. BASE UNIT After the base unit has been placed you can now place the brick oven top. NOTE: Top of brick oven TOP UNIT must be installed from...
- Page 7 INSTALLING “PLUGS” With every Belgard Elements Brick Oven base and top you will find a set of “plugs” that are used ™ to fill the fork slots on the units. Push the plugs in slowly until they are flush with the blocks next to them.
- Page 8 CONCRETE PAD INSTALL FIGURE A - Before installing brick oven, please review local building code requirements in your area. Brick ovens typically have a minimum setback from all buildings. It may also necessary to construct a concrete pad to set the unit on. Before construction of the concrete pad it is necessary to establish Finish Grade height first to ensure the first course of the unit is buried 4”.
- Page 9 NOTES - 9 -...
- Page 10 NOTES BELGARD.com | EXPOCRETE.com Copyright 2018 Oldcastle - Expocrete. All Rights Reserved. BEL18-001-BELGARD ELEMENTS BRISTOL BRICK OVEN - 9 -...
