Model VH439
4 Port Video Mini-Hub
Note: This installation should be made by a
qualified service person and conform with local
codes.
Specifications
Size
Power Requirements None Required
Video Input
Connection
Video Format
Twisted Pair
Description
The VH439 video balun hub is a multi-channel video transmission device that provides a low cost means of
sending quality live video over category 2, 3, 4 or 5 twisted pair cable. The system works equally well over existing
communication and computer network spare pairs or new cable installations.
The VH439 can send video up to 1,000 feet when used with other products in the VB37 or VB39 family. When
used with a DVR the VH439 must be limited to 750 feet. When used with Model TR515 or TR560 active receivers,
distances of 1,500 feet and 3,000, respectively, can be obtained. The VH439 is designed to provide superior
immunity from noise and interference even when run near power lines. Additionally, the unit has built-in surge
arresting to protect video equipment from harmful power lines and lightning related type surges.
USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: info@nitek.net
WWW.NITEK.NET
680390102

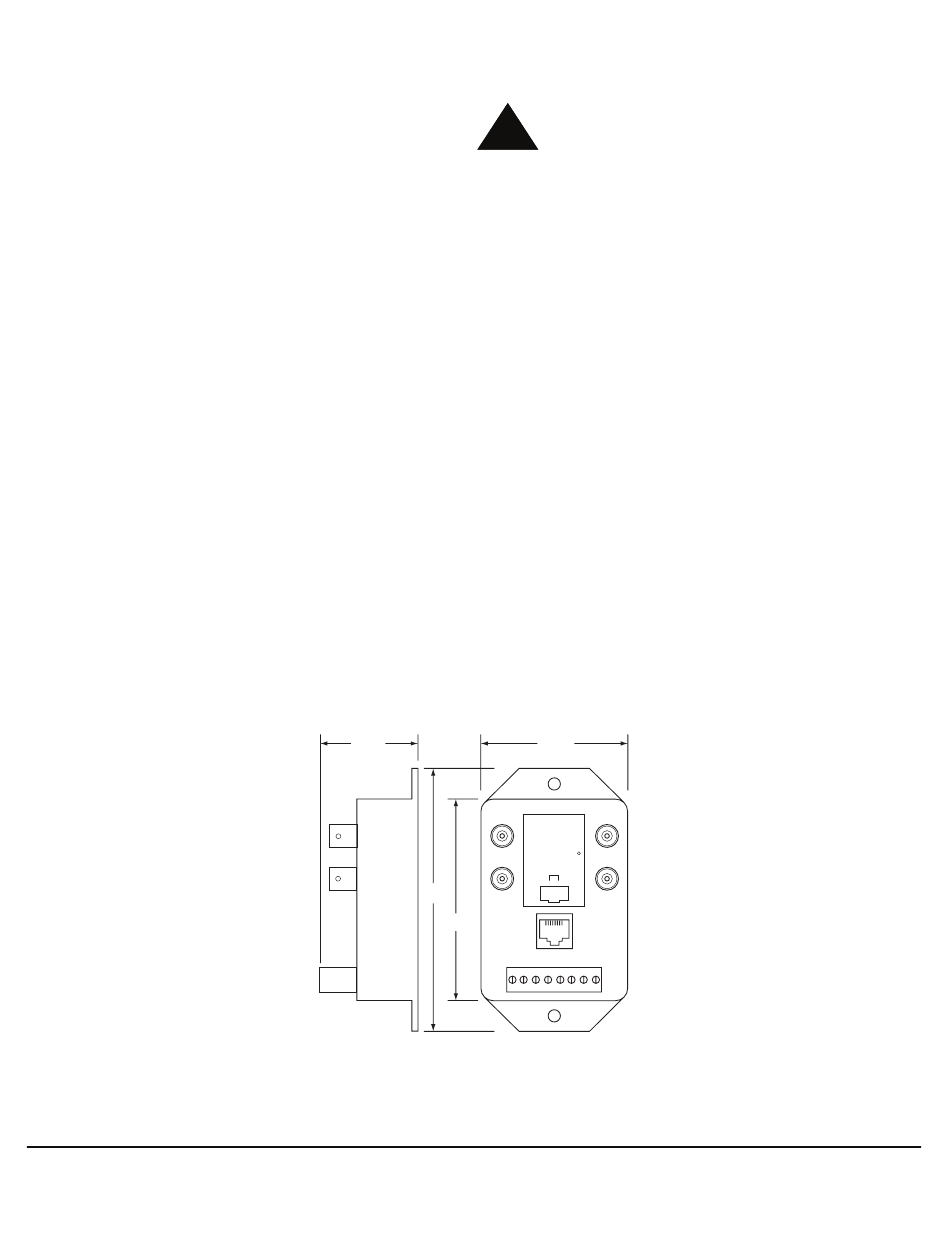

1.6"H x 4.3"W x 2.5"D
(41m H x 110m W x 64m D)
Standard BNC
1vpp composite video
Monochrome or Color
RS170, NTSC, PAL, SECAM
CCIR (Color or B/W)
Screw Terminals or RJ45 Jack
1.60"
NITEK
Operation Manual
Reduce risk of fire or electrical shock. Do not
!
expose this product to rain or moisture.
UTP Category
Common Mode
Rejection
Operating Frequency DC to 10 MHz
Recommended
Transmission
Distance
Transient Immunity
2.50"
VIDEO 1
VIDEO 2
VH439
UTP MINI HUB
NITEK
R
VIDEO 3
VIDEO 4
3
2
1
4
+-+-+-+-
12345678
4.30"
T568B
3.30"
®
Installation and
Unshielded Category 2 or better
>60dB
w/passive units - Up to 1,000 feet
w/active units - Up to 3,000 feet
w/DVR recorders - Up to 750 feet
Built-in
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
The Netherlands
Tel: +31(0)320-2300005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL
Rev 021411
