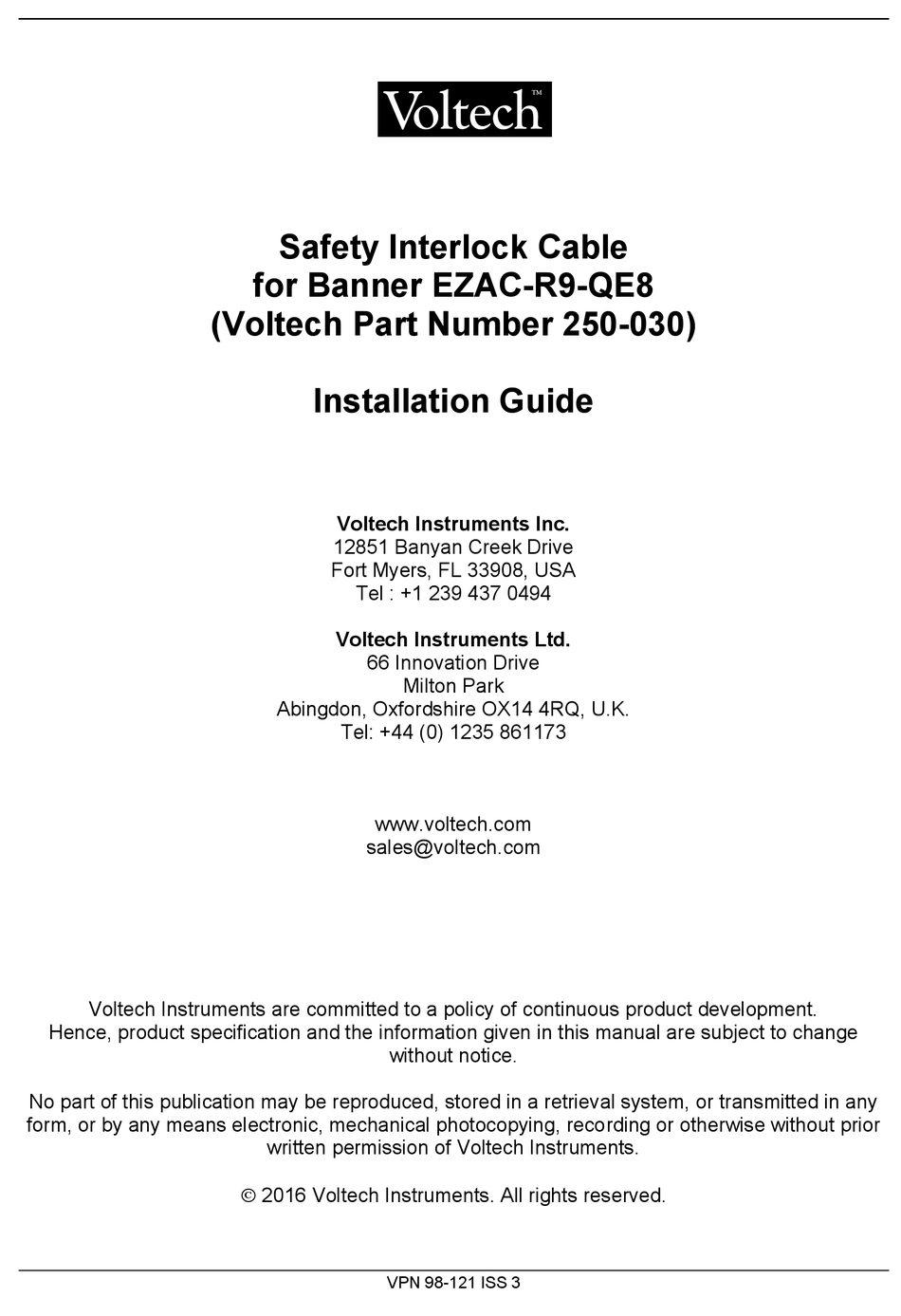

Safety Interlock Cable
for Banner EZAC-R9-QE8
(Voltech Part Number 250-030)
Installation Guide
Voltech Instruments Inc.
12851 Banyan Creek Drive
Fort Myers, FL 33908, USA
Tel : +1 239 437 0494
Voltech Instruments Ltd.
66 Innovation Drive
Milton Park
Abingdon, Oxfordshire OX14 4RQ, U.K.
Tel: +44 (0) 1235 861173
www.voltech.com
sales@voltech.com
Voltech Instruments are committed to a policy of continuous product development.
Hence, product specification and the information given in this manual are subject to change
without notice.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form, or by any means electronic, mechanical photocopying, recording or otherwise without prior
written permission of Voltech Instruments.
 2016 Voltech Instruments. All rights reserved.
VPN 98-121 ISS 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 250-030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Voltech 250-030

  • Page 1 Tel: +44 (0) 1235 861173 www.voltech.com sales@voltech.com Voltech Instruments are committed to a policy of continuous product development. Hence, product specification and the information given in this manual are subject to change without notice. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means electronic, mechanical photocopying, recording or otherwise without prior written permission of Voltech Instruments.
  • Page 2 DANGER OF ELECTRIC SHOCK Only qualified personnel should install this equipment, after reading and understanding this user manual. If in doubt, consult your supplier. RISQUE D'ELECTROCUTION L'installation de cet équipement ne doit être confiée qu'à un personnel qualifié ayant lu et compris le présent manuel d'utilisation.

  • Page 3: Table Of Contents

    Table of Contents ...............................1.1—4 NTRODUCTION 1.1. Introduction ..................................1.1—4 1.2. Recommended Infra-Red (IR) Safety System ........................ 1.2—4 .................................1.2—6 ESCRIPTION 2.1. GENERAL DESCRIPTION ............................. 2.1—6 2.2 PRINCIPLE of OPERATION ............................2.1—7 2.3 CABLE SCHEMATIC ..............................2.1—8 IR S ........................2.1—9 NSTALLING THE AFETY YSTEM 3.1.

  • Page 4: Introduction

    NFRA AFETY YSTEM For optimum safety, ease of use and test speed, Voltech recommends the use of a safety light curtain with the AT5600 and other Voltech products that can generate dangerous voltages during routine production testing. This provides a ‘light curtain’ of infrared beams positioned in front of the tester.
  • Page 5 The cable has been optimized for use with the ‘Banner’ safety light curtain described below, but safety light curtains from other manufacturers may also be suitable. To construct a complete safety system, you will need: From Voltech 250-030 Safety Interlock Cable From Banner 1 off ‘EZ-Screen’ safety light curtain 1 off EZAC-R9-QE8 AC Interface Box...

  • Page 6: Description

    ESCRIPTION The Safety Interlock Cable is a robust and convenient way of connecting the AT5600 and other Voltech products to a safety interlock system. Although other safety systems may be suitable, the cable has been optimized for direct and quick connection to the Banner product described in the previous chapter.

  • Page 7: Principle Of Operation

    2.2 P RINCIPLE OF PERATION The cable carries 3 pairs of color-coded wires. Each pair must be linked together by the safety system before the AT5600 will operate a high voltage test. If any one of the three pairs become un-linked during a test, the AT5600 very quickly switches off any high voltage that is being produced.

  • Page 8: Cable Schematic

    2.3 C ABLE CHEMATIC Function AT5600 Safety Light Curtain Connection to safety 9-pin d-type system. Primary power to Yellow Main power-breaking the high voltage relays (Final Switching Blue generators is Device) of the safety passed through system. The black link is pins 3 and 7 used to series 2 relays, if required.
  • Page 9 IR S NSTALLING THE AFETY YSTEM 3.1. OSITIONING THE IGHT URTAIN The light curtain should be positioned in front of the tester, extending well beyond the width of the tester so that the operator is not impeded when he/she has to load and unload the transformer under test.
  • Page 10 =Width of the light curtain 1.8m to 2.0m b =Banner cable length from control box to vertical columns b1 = 0.9m / b2 = 3.4m c =Voltech cable length from control box to AT tester 1.5m d =Lowest beam in light curtain...

  • Page 11: Important - Operator Safety

    3.2. MPORTANT PERATOR AFETY It is the responsibility of the user's organization to ensure that the AT5600 and its associated safety systems are installed, maintained, and operated in accordance with all safety guidance and legislation that may be in force locally. The BANNER EZ-Screen (light curtain) will provide only part of the complete safety function that is required.
  • Page 12 Failure to do so could result in personal injury. Consult the user manual supplied with the light curtain for up-to-date information. 1) Voltech Safety Interlock Cable (250-030) preparation: a) Cut the plastic tie-wrap joining the Blue wire and the Black jumper wire. The Black jumper wire is not required for Banner Model Number EZAC-R9-QE8 installation.
  • Page 13 2 Fit an AC Power Cord with the second cable gland supplied with the Banner AC Interface Box. Do not tighten at this point. Refer to Figure 3 Figure 3 3)Remove the lid from the Banner AC Interface Box. 4) Identify the terminal block, P1, P2, and P5, inside the Banner AC Interface Box. Also identify the EDM slide switch.
  • Page 14 6) Fit the two Shorting Links provided with the Banner AC Interface Box into terminal block P1 as followed; Refer to figure 5B a.) short X1 to X2 b.) short X3 to X4 Figure 5A Figure 5B 7) Set the EDM Slide Switch to 2-CH EDM position. Refer to figure 6. Figure 6 8) Fit the cable gland for the Safety Interlock Cable onto the top hole of the Banner AC Interface Box.
  • Page 15 Figure 7 9) Replace the lid on the Banner AC Interface Box. 10) Connect the d-type connector to the AT5600’s interlock port (see Figure 8). Figure 8 11) Position the AT5600, light curtain beams, control box and cables as described previously 12) Apply power to the light curtain control box and follow the manufacturer’s instructions for test and use.
  • Page 16 14. Banner AC Interface Box, POWER light. Refer to Figure 9. Figure 9 VPN 98-121 ISSUE 3 PAGE...

  • Page 17: Testing The Safety System

    ESTING THE AFETY YSTEM 4.1. ECOMMENDED AILY HECK Testing of the safety system, which may include checking any physical barriers in the total safety enclosure surrounding the tester, should be supervised by your designated, qualified person responsible for operator safety. The following tests must be carried out during installation of the light curtain and at periodic intervals, normally daily, as determined by the designated safety person: Check the integrity of the complete safety enclosure including warning notices and...

  • Page 18: Quick Check - Complete System

    – C 4.2. UICK HECK OMPLETE YSTEM The above process will check the action of the light curtain on its own. To check the operation of the complete system (i.e. to confirm that the interlock signals are correctly understood by the AT5600) you can use the interlock icon on the display of the AT5600. Repeat the above tests with the rod and observe the Icon on the front panel of the AT5600.

  • Page 19: Operating The At5600 With The Ir Safety System

    AT5600 IR S PERATING THE WITH THE AFETY YSTEM For a description of the use of the Light Curtain with the AT5600, please see the AT5600 user manual (98-119) chapter 6. Chapter 6.5 describes the operating and warning messages that may be observed on the AT5600 when it is being used with a safety light curtain.

  • Page 20: Constructing Safe Fixtures

    ONSTRUCTING IXTURES As described in the previous section, when the light curtain of the safety system is broken, the tester will stop the execution of a high voltage test, and remove the dangerous voltages, to protect the operator from the dangers of electric shock. This may sound a simple operation, but in fact it is not.
