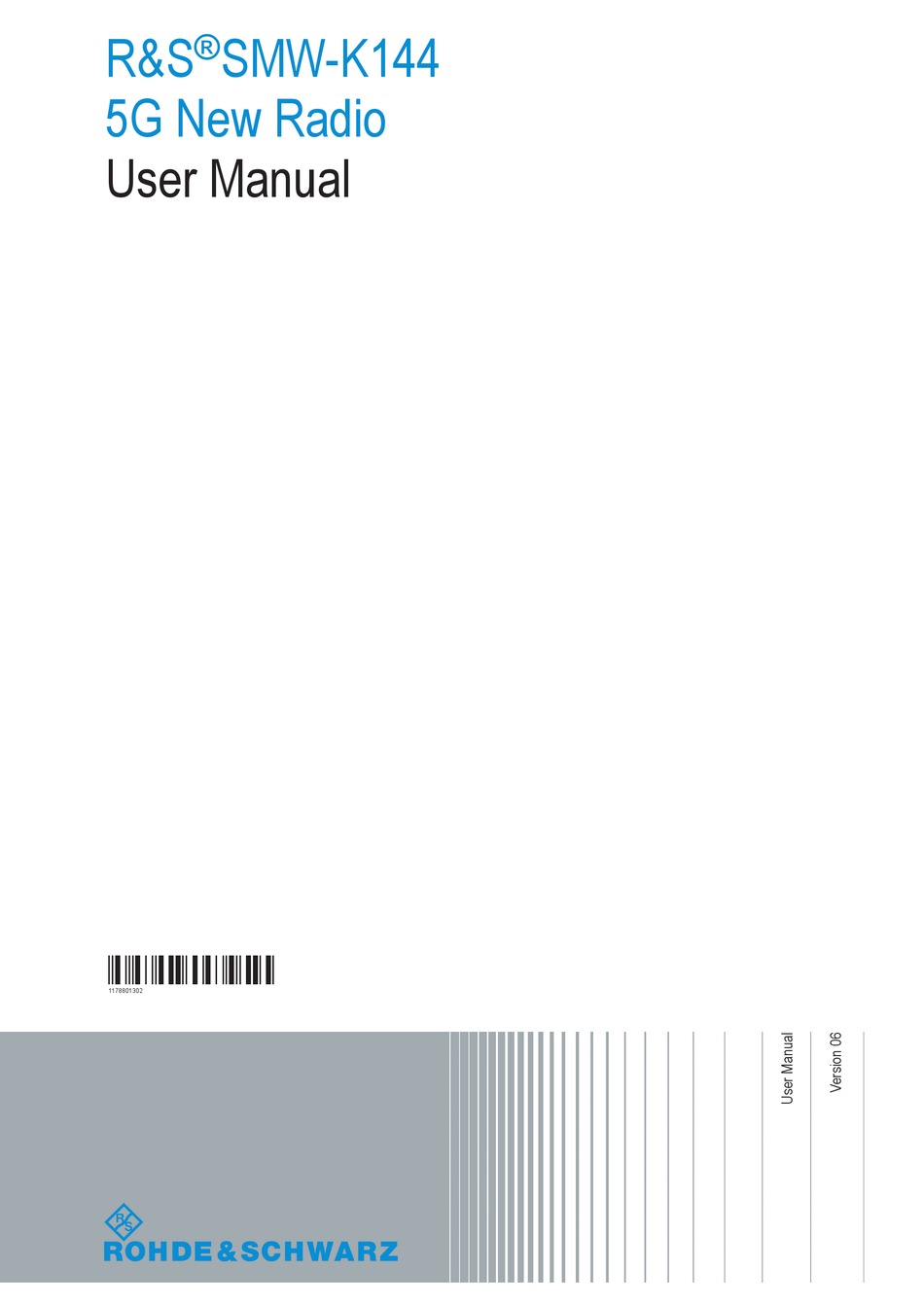

R&S
SMW-K144
5G New Radio
User Manual
(;ÜÞ=2)
1178801302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMW-K144 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz SMW-K144

Summary of Contents for Rohde & Schwarz SMW-K144

  • Page 1 ® R&S SMW-K144 5G New Radio User Manual (;ÜÞ=2) 1178801302...
  • Page 2 This document describes the following software options: ● R&S ® SMW-K144 1423.8608.02 This manual describes firmware version FW 4.60.092.xx and later of the R&S ® SMW200A. © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany...

  • Page 3: Table Of Contents

    ® Contents R&S SMW-K144 Contents 1 Preface....................7 About this Manual......................7 Documentation Overview..................... 7 1.2.1 Getting Started Manual....................8 1.2.2 User Manuals and Help....................8 1.2.3 Tutorials...........................8 1.2.4 Service Manual....................... 8 1.2.5 Instrument Security Procedures..................8 1.2.6 Basic Safety Instructions....................9 1.2.7 Data Sheets and Brochures....................
  • Page 4 ® Contents R&S SMW-K144 5.2.1 Scheduling........................29 5.2.2 Carriers Settings......................30 5.2.3 Transmission Bandwidth (TxBW) Settings..............33 5.2.4 SS/PBCH Settings......................35 5.2.5 Dummy REs Settings....................41 5.2.6 Carrier-Mapping Settings....................43 5.2.7 PBCH Settings......................44 Users/BWPs Settings....................49 5.3.1 General Settings......................49 5.3.2...
  • Page 5 ® Contents R&S SMW-K144 6 Signal Control and Signal Characteristics........124 Trigger Settings......................124 Marker Settings......................130 Clock Settings......................132 Local and Global Connector Settings..............133 Output Settings......................133 Time Domain Windowing Settings................136 Adjusting the Signal Power..................137 6.7.1 Power Settings......................138 7 Observing Current Allocations On the Time Plan......144...
  • Page 6 ® Contents R&S SMW-K144 8.16 Output Commands....................255 8.17 Trigger Commands....................261 8.18 Marker Commands....................266 8.19 Clock Commands......................268 Glossary: Abbreviations..............269 Glossary: 5G NR 3GPP Specifications, Documents with Further Information..................271 List of Commands................272 Index....................284 User Manual 1178.8013.02 ─ 06...

  • Page 7: Preface

    ® Preface R&S SMW-K144 Documentation Overview 1 Preface 1.1 About this Manual This user manual provides all the information specific to the 5G New Radio option. All general instrument functions and settings common to all applications and operating modes are described in the main R&S SMW user manual.

  • Page 8: Getting Started Manual

    ® Preface R&S SMW-K144 Documentation Overview 1.2.1 Getting Started Manual Introduces the R&S SMW and describes how to set up and start working with the prod- uct. Includes basic operations, typical measurement examples, and general informa- tion, e.g. safety instructions, etc. A printed version is delivered with the instrument.

  • Page 9: Basic Safety Instructions

    ® Preface R&S SMW-K144 Documentation Overview 1.2.6 Basic Safety Instructions Contains safety instructions, operating conditions and further important information. The printed document is delivered with the instrument. 1.2.7 Data Sheets and Brochures The data sheet contains the technical specifications of the R&S SMW. It also lists the options and their order numbers and optional accessories.

  • Page 10: Welcome To The 5G New Radio Option

    R&S SMW-K144 2 Welcome to the 5G New Radio Option The R&S SMW-K144 is a firmware application that adds functionality to generate sig- nals in accordance with the 3GPP standard 5G New Radio. Preamble All supported features are in line with 3GPP Release 15; the following official 3GPP specifications are implemented: ●...

  • Page 11: Accessing The 5G New Radio Dialog

    ® Welcome to the 5G New Radio Option R&S SMW-K144 Notes on Screenshots To play back a signal from a waveform file created by the simulation software R&S WinIQSIM2, the corresponding R&S WinIQSIM2 digital standard option must be installed. 2.1 Accessing the 5G New Radio Dialog To open the dialog with 5G New Radio settings ►...

  • Page 12: About The 5G New Radio Option

    Required Options 3 About the 5G New Radio Option The implementation of the option 5G New Radio R&S SMW-K144 is based on the 3GPP Rel. 15 specification group TS 38.xxx. According to these specifications, the 3GPP defines a great flexibility of the signal on the air interface.

  • Page 13: Nr Numerology

    R&S SMW-K144 Multiple Access Schemes ● Option 5G New Radio (R&S SMW-K144) ● Frequency option (R&S SMW-B10x) To play back a signal from a waveform file created by the simulation software R&S WinIQSIM2, the corresponding R&S WinIQSIM2 digital standard option must be installed.

  • Page 14: Frame Structure, Slots And Slot Formats

    ® About the 5G New Radio Option R&S SMW-K144 Resource Blocks and Resource Grid Figure 3-1: Signal processing depending on multiple access scheme In this implementation, you can define per PUSCh which of the two access schemes is used. 3.4 Frame Structure, Slots and Slot Formats Frame structure As it is in LTE, the 5G NR frame is 10 ms long;...

  • Page 15: Transmission Bandwidths Txbws

    ® About the 5G New Radio Option R&S SMW-K144 Transmission Bandwidths TxBWs granularity unit is a resource block (RB), which spans 12 subcarriers in frequency domain. Resource blocks The 5G NR specification defines different types of resource blocks: ● Common resource blocks (CRB) The term CRB is typically used when referring to the whole carrier.
  • Page 16 ® About the 5G New Radio Option R&S SMW-K144 Transmission Bandwidths TxBWs Figure 3-2: Transmission bandwidth (example) Carrier = Channel bandwidth = 5 MHz = Resource blocks = Subcarrier spacing TxBWs = Transmission bandwidth TxBWs#1 = SCS 15 kHz, usable resource blocks USB = "N_RB = 25"; TxBWs is not centered on the...

  • Page 17: Synchronization Signals And Ss/Pbch Block

    ® About the 5G New Radio Option R&S SMW-K144 Synchronization Signals and SS/PBCH Block = Aligned centers of the first subcarrier (SC#0) of resource blocks Point A = Common reference point for all numerologies and TxBWs; does not have to be within the carrier bandwidth.
  • Page 18 ® About the 5G New Radio Option R&S SMW-K144 Synchronization Signals and SS/PBCH Block Figure 3-3: Location of synchronization signals in a succession of several slots (Case A - 15 kHz SCS, f < 3 GHz) PSS/SSS = Primary/secondary synchronization signals...

  • Page 19: Carrier Bandwidth Part (Bwp)

    ® About the 5G New Radio Option R&S SMW-K144 Carrier Bandwidth Part (BWP) The SSs are allocated on predefined symbols but the allocated resource blocks and subcarriers are user-defined. The TS 38.213 specifies the number of and the start of...

  • Page 20: Nr Channels And Signals Overview

    ® About the 5G New Radio Option R&S SMW-K144 5G NR Channels and Signals Overview 3.9 5G NR Channels and Signals Overview Channels: ● DL: PBCH, PDCCH (CORESET), PDSCH ● UL: PRACH, PUCCH, PUSCH Signals: ● DL: PSS/SSS, CSI-RS, DMRS (for PBCH, PDCCH, PDSCH), TRS, PTRS ●...

  • Page 21: Find Out The Implemented 3Gpp Specification

    ® Find Out the Implemented 3GPP Specification R&S SMW-K144 4 Find Out the Implemented 3GPP Specifica- tion The Info dialog displays the currently supported version of the 3GPP standard. Access: ► Select "5G New Radio > Info". The supported features are in line with the specifications and the version dis- played.

  • Page 22: New Radio Configuration And Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings 5 5G New Radio Configuration and Settings Access: ► Select "Baseband > 5G NR". The remote commands required to define these settings are described in Chapter 8, "Remote-Control Commands", on page 146.

  • Page 23: Set To Default

    ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings Settings: State..........................23 Set to Default........................ 23 Save/Recall........................23 Generate Waveform File....................24 Link Direction........................ 24 Test Models........................25 Node..........................28 Users/BWPs........................28 Scheduling........................28 Output/Power........................ 28 State Activates the standard and deactivates all the other digital standards and digital modu- lation modes in the same path.

  • Page 24: Generate Waveform File

    ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings Remote command: on page 164 [:SOURce<hw>]:BB:NR5G:SETTing:CATalog? on page 165 [:SOURce<hw>]:BB:NR5G:SETTing:LOAD on page 164 [:SOURce<hw>]:BB:NR5G:SETTing:STORe on page 165 [:SOURce<hw>]:BB:NR5G:SETTing:DEL Generate Waveform File With enabled signal generation, triggers the instrument to store the current settings as an ARB signal in a waveform file.

  • Page 25: Test Models

    ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings Remote command: on page 164 [:SOURce<hw>]:BB:NR5G:LINK Test Models Accesses a dialog for selecting of: ● One of the 5G NR Test Models (NR TM) defined in TS 38.141-1/TS 38.141-2 38.104.
  • Page 26 ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings "NR FR1/FR2 Test Models" The test models are defined for the following test purpose: 5G NR Test Model Defined for tests on ● NR-FR1-TM1.1 BS output power ● NR-FR2-TM1.1 ●...
  • Page 27 ® 5G New Radio Configuration and Settings R&S SMW-K144 General Settings Example test signals Test signals are descriptions of specific 5G NR signals. The following DL signals are provided: ● "Example 100MHz Full Sub6GHz" "Channel Bandwidth = 100 MHz", "Deployment = Sub 6 GHz", "Number of BWPs = 1", "Subcarrier Spacing = 30 kHz", "PBCH >...

  • Page 28: Node Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Node Accesses the "Node" dialog, see Chapter 5.2, "Node Settings", on page 28. Remote command: n.a. Users/BWPs Accesses the "Users/BWPs" dialog, see Chapter 5.3, "Users/BWPs Settings", on page 49.

  • Page 29: Scheduling

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings 5.2.1 Scheduling Access: 1. Select "5G New Radio > Link > Downlink". 2. Select "5G New Radio > General > Node > Scheduling". Settings: PDSCH Scheduling.......................29 Restrict to Search Space....................

  • Page 30: Carriers Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings "Off" Define the search space by the CCE start index, see Index. "On" The CCE start indexes are selacted autimatically so that they are wihin the search space. The "Scheduling > CORESET > Payload" >...
  • Page 31 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings According to the 3GPP specifications, carrier aggregation is user-specific and thus dif- ferent users served by the same base station can use different carriers. Moreover, the different users can also have different primary cell (PCell). In this implementation, how- ever, all users use the same carrier aggregation configuration, or with other words, the primary and secondary cells (SCells) are the same for all configured users.
  • Page 32 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings N1 ID/N2 ID ← Carrier table Indicates the physical cell indicator group (N ) and the physical layer identity (N cell derived from the selected N (Cell ID). Remote command: on page 167 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:N1ID?

  • Page 33: Transmission Bandwidth (Txbw) Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Remote command: on page 169 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SUL:STATe 5.2.3 Transmission Bandwidth (TxBW) Settings Access: 1. Select "5G New Radio > General > Link Direction > Downlink". 2. Select "5G New Radio > General > Node > TxBW".
  • Page 34 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Chapter 3.6, "Transmission Bandwidths TxBWs", on page 15. Remote command: on page 170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:POINta Resolve Conflicts Recalculates the frequency-dependent settings and thus redefines the frequency posi- tion of the TxBW.

  • Page 35: Ss/Pbch Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Remote command: on page 171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:OFFSet etc. k0u ← TxBW table μ Indicates the value of the parameter k , that defines the number of subcarriers the transmission bandwidth is shifted related to the carrier center.
  • Page 36 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Offset Relative to......................36 SS/PBCH patterns table....................37 └ Spacing/CP....................37 └ RB Offset/RB Offset (15 kHz SCS)/RB Offset (60 kHz SCS)......37 └ SC Offset/SC Offset (15 kHz SCS)/SC Offset (60 kHz SCS)......

  • Page 37: Offset Relative To

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings SS/PBCH patterns table Comprises the configuration of the SS/PBCH transmissions. You can enable different SS/PBCH patterns and configure their individual settings in the SS/PBCH pattern table. There is one table row per pattern. Each row describes a...
  • Page 38 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Remote command: [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:RBOFfset on page 173 SC Offset/SC Offset (15 kHz SCS)/SC Offset (60 kHz SCS) ← SS/PBCH patterns table Sets the start subcarrier of the selected allocation within a resource block, where the...
  • Page 39 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings SS/PBCH case Frequency Case D 120 KHz > 6 GHz Case E 240 KHz > 6 GHz The start symbol index in case B and case C is different.
  • Page 40 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings PBCH Config ← SS/PBCH patterns table Accesses the dialog with PBCH settings, see Chapter 5.2.7, "PBCH Settings", on page 44. PSS/SSS Power ← SS/PBCH patterns table Sets the relative power of the allocations of the primary and the secondary synchroni- zation signals (PSS and SSS).

  • Page 41: Dummy Res Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings 5.2.5 Dummy REs Settings Access: ► Select "5G New Radio > General > Node > Dummy REs". With the provided settings, you define if and what is transmitted in the resource elements that are not allocated.
  • Page 42 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Power Sets the power of the resource elements filled in with dummy data. The value is set relative to the power of the other resource elements. See also Chapter 6.5, "Output Settings",...

  • Page 43: Carrier-Mapping Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings – Use the "New" and "Edit" functions to create internally new data list or to edit an existing one. – Use the standard "File Manager" function to transfer external data lists to the instrument.

  • Page 44: Pbch Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings The number of the outputs at the baseband block depends on the selected "System Configuration", in particular on whether coupled sources are used. Remote command: via suffix at ROW<ch0>...
  • Page 45 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings 3. Select "Node > SS/PBCH > SS/PBCH Pattern Table > Pattern# > PBCH > Config". This dialog comprises the settings of the broadcast channel (PBCH) channel cod- ing settings.
  • Page 46 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Remote command: [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:MIB:STATe on page 177 Dummy Content Available for "Dummy Content for MIB > On". Channel Coding ← Dummy Content Enables PBCH channel coding. Remote command: [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:CCODing:STATe on page 176 Transport Block Size ←...
  • Page 47 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings – Use the standard "File Manager" function to transfer external data lists to the instrument. See also: ● Section "Modulation Data" in the R&S SMW user manual. ● Section "File and Data Management" in the R&S SMW user manual.
  • Page 48 ® 5G New Radio Configuration and Settings R&S SMW-K144 Node Settings Remote command: [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:MIB:SCSC on page 177 DMRS Type A Position ← MIB Content Indicates the first symbol that the DMRS uses, as set with the parameter "Node > Car- riers"...

  • Page 49: Users/Bwps Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:MIB:SPARe:STATe on page 179 5.3 Users/BWPs Settings Access: ► Select "Baseband > 5G NR > Users/BWPs". Settings: ● General Settings..................... 49 ● Properties Settings....................50 ● DL/UL BWPs Settings.....................

  • Page 50: Properties Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings 5.3.2 Properties Settings Access: ► Select "5G New Radio > General > Users/BWPs > Properties". This dialog comprises the user-specific general settings. Settings: User..........................50 UE ID (RNTI).........................50 DSCH/USCH Channel Coding..................

  • Page 51: Dl/Ul Bwps Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings (P)DSCH/(P)USCH Data Source Depending on the selected "Link Direction", selects the PDSCH/PUSCH data source. If channel coding is enabled, the parameter sets the DSCH/USCH data source. The following standard data sources are available: ●...
  • Page 52 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings 2. Select "General > Users/BWPs" > "DL BWPs". The dialog comprises the settings for the DL/UL bandwidth parts (BWP) configura- tion. The UL BWPs dialog is displayed for DL and UL direction, whereas the DL BWP - only for DL direction.
  • Page 53 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Figure 5-1: Bandwidth parts BWP# = Bandwidth part and indicator = Subcarrier spacing Center carrier = Center frequency of the carrier (cell) = Number of resource blocks or channel bandwidth per BWP...
  • Page 54 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: via suffix at USER<ch> Cell Selects/indicates to which carrier/cell the settings apply. Remote command: via suffix at CELL<ch> Number of DL/UL BWPs Sets the number of downlink bandwidth parts (BWP).
  • Page 55 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings The number of available RBs (N ) depends on the SCS and channel bandwidth, where the latter depends on the selected deployment. The number of available RBs ) is calculated as follows:...

  • Page 56: Dl Bwp Configuration Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings 5.3.4 DL BWP Configuration Settings Access: 1. Select "5G New Radio > General > Link Direction > Downlink". 2. Select "General > Users/BWPs" > "DL BWP Config". The dialog comprises the settings for the DL bandwidth parts (BWP) configuration.

  • Page 57: Pdsch Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Cell Selects/indicates to which carrier/cell the settings apply. Remote command: via suffix at CELL<ch> Select the bandwidth parts (BWP) whose settings are displayed for configuration. There are one or more BWPs, as set with the parameter "User/BWP Settings > DL BWPs"...
  • Page 58 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings About PDSCH and DMRS sequence generation According to 38.211, the PDSCH sequence is generated based among others on the value of the variable n , that can be: ●...
  • Page 59 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 190 PDSCh:DMTA:CTYPe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 190 PDSCh:DMTB:CTYPe Additional Position Index Sets the parameter dmrs-AdditionalPosition that is required to select the posi- tions of the DMRS symbols l , as defined in 38.211.
  • Page 60 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Phase-tracking reference signals can be transmitted only in the resource blocks used for the PDSCH and if the transmission is enabled. State ← PTRS Config ... DSCH/USCH Channel Coding >...
  • Page 61 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings EPRE Ratio ← PTRS Config ... Sets the higher layer parameter epre-Ratio ratio, needed to define the ratio of PTRS EPRE to PDSCH EPRE per layer per RE for PTRS port The abbreviation EPRE stands for energy per resource element.
  • Page 62 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings "On" is the values set with the parameter "Data Scrambling ID" on page 62. See also "About PDSCH and DMRS sequence generation" on page 58. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 193...

  • Page 63: Zp Csi-Rs Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings "Dynamic Switch" Reserved for future use. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 195 PDSCh:RESalloc 5.3.4.3 ZP CSI-RS Settings Access: ► Select "User/BWP Settings > DL BWP Config > ZP CSI-RS".
  • Page 64 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Resources Sets the number of periodicCSI-RS resources. There is one table row per resource. "Periodic/aperiodic ZP CSI-RS resource table" on page 64. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 196 CSIRs:ZP:SET<gr0>:NRESources Periodic/aperiodic ZP CSI-RS resource table Each periodicZP CSI-RS is configured individually;...

  • Page 65: Nzp Csi-Rs Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 198 CSIRs:ZP:SET<gr0>:RES<user0>:DENSity CDM-Type ← Periodic/aperiodic ZP CSI-RS resource table Indicates or sets value of the higher-layer parameter cdm-Type in the CSI-RS-ResourceMapping. The value is selected automatically according to TS 38.211...
  • Page 66 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings For description of the remote-control commands, see Chapter 8.10.2, "ZP and NZP CSI-RS Commands", on page 195. State..........................66 Resources........................66 Periodic NZP CSI-RS resource table................67 └ Periodicity....................... 67 └...
  • Page 67 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Periodic NZP CSI-RS resource table Each periodic NZP CSI-RS is configured individually; there is one table row per resource, where the number of rows is defined by the parameter Resources.
  • Page 68 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings The value is selected automatically according to TS 38.211 and depending on the selected Row. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: on page 198 CSIRs:NZP:SET<gr0>:RES<user0>:CDMType? Bitmap ← Periodic NZP CSI-RS resource table...
  • Page 69 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Resource-APs > Antenna Port Mapping ← Periodic NZP CSI-RS resource table Access: "General > Users/BWPs > DL BWP Config > NZP CSI-RS" > "Resources = 1" and select "Antenna Ports > Config".

  • Page 70: Ul Bwp Configuration Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: CSIRs:NZP:SET<gr0>:RES<user0>:APMap:AP<s2us0>:ROW<s3us0>: on page 200 IMAGinary "Mapping Coordinates = Cylindrical": [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: CSIRs:NZP:SET<gr0>:RES<user0>:APMap:AP<s2us0>:ROW<s3us0>: on page 201 MAGNitude [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: CSIRs:NZP:SET<gr0>:RES<user0>:APMap:AP<s2us0>:ROW<s3us0>:PHASe on page 201 5.3.5 UL BWP Configuration Settings Access: 1. Select "5G New Radio > General > Link Direction" > "Uplink".
  • Page 71 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings └ Subcarrier Spacing..................74 └ Allocated Resource Blocks................74 └ Modulation...................... 74 └ Payload Size....................75 └ Offset......................75 PUSCH settings......................75 └ Config Type.....................75 └ Additional Position Index.................76 └...
  • Page 72 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Additional DMRS ← PUCCH settings Global parameter that defines if additional DMRS is used for PUCCH format 3 and 4. According to 38.211, the value is required to select the DMRS positions for the PUCCH format 3 and 4.
  • Page 73 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings The dialog allows you to select and enable fixed reference measurement channels (FRC), as defined in 38.141. The available FRCs depend on the selected BWP SCS Spacing/CP) and selected number of RBs (No.
  • Page 74 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Test condition Fre- Subset Modula- Reference channels quency tion Fixed Reference Channels for performance QPSK G-FR1-A3-1 to G- requirements FR1-A3-32 16QAM G-FR1-A4-1 to G- FR1-A4-28 64QAM G-FR1-A5-1 to G-...

  • Page 75: Modulation

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC: on page 205 MODulation? Payload Size ← FRC settings Indicates the payload size of the selected FRC. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC: on page 205 PASize? RB Offset ← FRC settings Sets the RB offset for the selected FRC.
  • Page 76 ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings The configuration type is carried by the higher-layer parameter dmrs-Type. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: on page 206 PUSCh:DMTA:CTYPe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: on page 206 PUSCh:DMTB:CTYPe Additional Position Index ← PUSCH settings Sets the parameter dmrs-AdditionalPosition that is required to select the posi-...

  • Page 77: Codebook Subset

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings "Off" Disables the DFT-s-OFDM precoding operation. Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: on page 208 PUSCh:TPSTate Max Rank ← PUSCH settings Sets the higher layer parameter maxRank that defines the rank of the precoding matrix, as defined in 38.212.

  • Page 78: Mcs Table Transform Precoding

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: on page 210 PUSCh:DSID MCS Table ← PUSCH settings Sets the MCS table and thus together with the parameter "MCS Table Transform Pre- coding" on page 78 defines the used modulation scheme.

  • Page 79: Mode

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Mode ← PUSCH UCI settings Defines the information transmitted on the PUSCH. "UCI+UL-SCH" Control information and data are multiplexed into the PUSCH. "UCI only" Only uplink control information is transmitted on PUSCH.

  • Page 80: Number Of Srs Antenna Ports

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Users/BWPs Settings Remote command: [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: on page 211 HARQ:OFF0 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: on page 211 HARQ:OFF1 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: on page 211 HARQ:OFF2 Access: "User/BWP Settings > UL BWP Config >SRS". Number of SRS Antenna Ports ← SRS Sets how many antenna ports (AP) are used for every SRS transmission.

  • Page 81: Scheduling Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 Scheduling Settings 5.4 Scheduling Settings Access: ► Select "Baseband > 5G NR > Scheduling". This dialog displays an overview of distribution of the configured allocations in the time domain. Because the slot is the basis time unit in 5G NR and the basis granularity in the numerologies, the 5G NR scheduling is performed on a per slot basis.
  • Page 82 ® 5G New Radio Configuration and Settings R&S SMW-K144 Scheduling Settings Once configured, these allocations are repeated as defined in the Repetition field. ● Read-only allocations These allocations are configured automatically, based on: scheduling mode, DCI, repetition of an allocation configured in previous or same subframe, ongoing allo- cations, aggregated PDSCH, or because they are configured elsewhere, like for example SS/PBCH, SRS, CSI-RS, dummy RE.
  • Page 83 ® 5G New Radio Configuration and Settings R&S SMW-K144 Scheduling Settings Expand/Collapse Shows/hides the group of settings. Remote command: n.a. Content Sets or indicates the allocated channel or signal. ● Configurable allocations – DL: CORESET, PDSCH or CSI-RS PDSCH Scheduling = "Auto/DCI", the "Content"...
  • Page 84 ® 5G New Radio Configuration and Settings R&S SMW-K144 Scheduling Settings Slot SCS / CP 0 to 7 120 kHz NCP 0 to 15 240 kHz NCP Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 214 BWPart<gr0>:ALLoc<user0>:SLOT Mapping Type Defines to which symbols of the PDSCH/PUSCH allocation the demodulation refer- ence signals (DMRS) are mapped.
  • Page 85 ® 5G New Radio Configuration and Settings R&S SMW-K144 Scheduling Settings Sym. Offset Sets the allocation's start (OFDM symbol) within the slot. The available values depend on the CP and the Mapping Type, see Table 5-3 Table 5-3: Sym. Offset...

  • Page 86: Pdsch/Pusch Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings "Config" Opens the dialogs for configuration of the corresponding settings. See: ● Chapter 5.2.4, "SS/PBCH Settings", on page 35 ● Chapter 5.2.5, "Dummy REs Settings", on page 41 ●...
  • Page 87 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings d) Select "PDSCH > Settings > Config". 2. PUSCH settings: a) Select "5G New Radio > General > Link Direction > Uplink". b) Select "5G New Radio > Scheduling".

  • Page 88: General Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings 5.5.1 General Settings Access: 1. Select "Scheduling > User x BWP x > Content > PDSCH/PUSCH > Settings > Con- fig". 2. Select "General". Settings: PDSCH Type/PUSCH Type..................88 Number of Codewords....................

  • Page 89: Txscheme Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Scheduled by CORESET 0 For PDSCH allocations, defines if the PDSCH settings are scheduled by CORESET 0 or not. You can enable several PDSCH allocations, also a combination of PDSCH scheduled by CORESET 0 and such that are not.
  • Page 90 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Settings: CDM Groups w/o Data....................90 Number of Layers......................90 TPMI..........................90 CDM Groups w/o Data Sets the number of DMRS CDM groups without data, required to select the number of DMRS ports and hence the number of antenna ports.

  • Page 91: Dmrs Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings 5.5.3 DMRS Settings Access: 1. Select "Scheduling > User x BWP x > Content > PDSCH/PUSCH > Settings > Con- fig". 2. Select "DMRS". Settings: Sequence Generation....................91 N_SCID......................... 91 Length...........................

  • Page 92: Channel Coding Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Length Defines whether single- or double-symbol DMRS is used. Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 222 BWPart<gr0>:ALLoc<user0>:PDSCh|PUSCh:DMRS:LENGth Slot Symbols Indicates the number of DMRS slot symbols. The value is set automatically, depending on the selected "Length".
  • Page 93 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Settings: I_MCS........................... 93 Target Code Rate......................93 Phys. Bits........................93 Transport Block Size..................... 94 Redundancy Version Index................... 94 I_MCS Sets the modulation and coding scheme index. The available values depend on the selected Modulation.

  • Page 94: Uci Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 221 BWPart<gr0>:ALLoc<user0>[:CW<s2us0>]:PHYSbits? Transport Block Size Indicates the resulting transport block size (TBS), calculated for the selected modula- tion and coding scheme ("I_MSC"). Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...

  • Page 95: Ptrs Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Settings: Number of ACK Bits...................... 95 Pattern........................95 Number of CSI x Bits.....................95 CSI x Pattern.........................95 Number of ACK Bits Sets the number of ACK bits and defines the length of the "ACK Pattern" field.
  • Page 96 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings 2. Select "PTRS". The dialog comprises the settings of the phase-tracking reference signal (PTRS). Settings: Mode..........................96 State..........................96 Time Density (L_PTRS)....................96 RE-offset........................97 Frequency Density (K_PTRS)..................97 EPRE Ratio........................97...

  • Page 97: Antenna Ports

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings RE-offset Sets the parameter resourceElementOffset k required to define the precoding and mapping to the physical resources. Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 225 BWPart<gr0>:ALLoc<user0>:PDSCh:PTRS:REOF Frequency Density (K_PTRS) Sets the higher-layer parameter frequencyDensity.
  • Page 98 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings 3. Select "Antenna Ports". The dialog displays the antenna port mapping settings in a table form. The map- ping table is a matrix with number of rows equal to the number of physical Tx antennas (Basebands) and number of columns equal of the number of antenna ports (AP).
  • Page 99 ® 5G New Radio Configuration and Settings R&S SMW-K144 PDSCH/PUSCH Settings Direction Channel/signal Antenna ports SS/PBCH 4000 Uplink PUSCH+DMRS 0 to 11 PUCCH 2000 PRACH 4000 1000 to 1004 Select the button "Antenna Ports" to observe details on the antenna port mapping.

  • Page 100: Coreset Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Remote command: "Mapping Coordinates = Cartesian": [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:REAL on page 229 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:IMAGinary on page 229 "Mapping Coordinates = Cylindrical": [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:MAGNitude on page 230 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:PHASe on page 230 5.6 CORESET Settings...
  • Page 101 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings 2. Select "5G New Radio > Scheduling". 3. Select "User x BWP x > Content > CORESET". 4. Select "CORESET > Settings > Config" > "General". This dialog comprises the settings of the Control Resource Set (CORESET). Each CORESET is assigned to a specific user and comprises of a set of one or more PDCCH channels.
  • Page 102 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings "All Contiguous The same precoding is used across all REG within the set of contigu- RBs" ous resource blocks in the CORESET; corresponds to precoderGranularity = allContiguousRBs. Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...
  • Page 103 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Bundle Size Interleaving State > "On", sets the higher-level parameter bundle size L (CORESET-REG-bundle-size). The value is used to calculate the CCE-to-REG mapping, according to 38.211. See also "CORESET"...

  • Page 104: Payload Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Example: Select: ● Restrict to Search Space > "On". ● For "Scheduling > CORESET > General" > Aggregation Level = "1", select Candidates = "2". ● Select "Scheduling > CORESET > Payload" >...
  • Page 105 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings 3. Select "User x BWP x > Content > CORESET". 4. Select "CORESET > Settings > Config" > "Payload". Dummy CCEs......................105 Dummy CCEs Data Source..................105 Number of DCIs......................
  • Page 106 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings The following standard data sources are available: ● "All 0, All 1" An internally generated sequence containing 0 data or 1 data. ● "PNxx" An internally generated pseudo-random noise sequence.
  • Page 107 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 237 BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:RNTI DCI Format ← DCI Table Sets the DCI format. The downlink control information (DCI) is a message used to control the physical layer resource allocations.
  • Page 108 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Table 5-6: Search space sets Search space Designation CRC scrambled with Type0-PDCCH SI-RNTI (Common search Type0A-PDCCH space) Type1-PDCCH RA-RNTI or TC-RNTI Type2-PDCCH P-RNTI Type3-PDCCH INT-RNTI, SFI-RNTI, TPC-PUSCH/PUCCH/SRS- RNTI, C-RNTI, CS-RNTI...
  • Page 109 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings Content ← DCI Table Access a dialog for configuring the parameters per DCI format, see "DCI Content Con- figuration" on page 109 Create PDSCH ← DCI Table If enabled, the content and scheduling of the PDSCH is created automatically, as con- figured with the DCI format 1_0 and 1_1 parameters.
  • Page 110 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI field Remote command: Remark Frequency Domain Resource [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Assignment SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:FRDRes on page 240 Time Domain Resource Assign- [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: ment SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:TIDRes on page 240 Frequency Hopping Flag [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 111 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI format 0_1 is scrambled by C-RNTI, CS-RNTI or SP-CSI-RNTI and carries the fol- lowing information: DCI field Remote command: Remark UL/SUL Indicator If "Node > [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Carrier >...
  • Page 112 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI field Remote command: Remark (1st) Downlink Assignment [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Index SUBF<st0>:USER<dir0>:BWPart<gr0>: on page 243 ALLoc<user0>:CS:DCI<s2us0>:DAI1 (2nd) Downlink Assignment [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Index SUBF<st0>:USER<dir0>:BWPart<gr0>: on page 243 ALLoc<user0>:CS:DCI<s2us0>:DAI2 TPC Command for Scheduling [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 113 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI format 1_0 is scrambled by C-RNTI or CS-RNTI and carries the following informa- tion: DCI field Remote command: Remark Frequency Domain Resource [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Assignment SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:FRDRes on page 240 Time Domain Resource Assign- [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 114 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI format 1_1 is scrambled by C-RNTI or CS-RNTI and carries the following informa- tion: DCI field Remote command: Remark Bandwidth Part Indicator [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>: on page 246 ALLoc<user0>:CS:DCI<s2us0>:BWINd Frequency Domain Resource [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 115 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI field Remote command: Remark ZP CSI-RS Trigger [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:ZCRTrigg on page 247 Modulation and Coding Scheme [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: (TB1/TB2) SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:TB1:MCS on page 241 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:TB2:MCS on page 241 New data Indicator (TB1/TB2) [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 116 ® 5G New Radio Configuration and Settings R&S SMW-K144 CORESET Settings DCI field Remote command: Remark Antenna Ports [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:ANTPorts on page 243 Transmission Configuration [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: Indication SUBF<st0>:USER<dir0>:BWPart<gr0>: on page 247 ALLoc<user0>:CS:DCI<s2us0>:TCI SRS Request [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:SRSRequest on page 243 CBG Transmission Information [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...

  • Page 117: Pucch Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PUCCH Settings ● "PNxx" An internally generated pseudo-random noise sequence. ● "Pattern" An internally generated sequence according to a bit pattern. Use the "Pattern" box to define the bit pattern. ●...

  • Page 118: General Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PUCCH Settings 5. Select "PUCCH > Settings > Config". This dialog comprises the settings of the physical uplink common channel (PUCCH). PUCCH and PUCCH formats The PUCCH supports 5 different formats (F0 to F4), each of them spanning different number of OFDM symbols.
  • Page 119 ® 5G New Radio Configuration and Settings R&S SMW-K144 PUCCH Settings Second Hop PRB......................119 Initial Cyclic Shift......................119 Time Domain OCC Index.................... 119 Length........................ 120 Index........................120 Group Hopping Sets the higher-layer parameter pucch-GroupHopping, as defined in 38.211. Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...

  • Page 120: Payload Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PUCCH Settings OCC Length For PUCCH format F4, sets the value of the parameter N PUCCH,4 and thus defines which of the orthogonal sequences w (m) defined in TS 38.211 is used.

  • Page 121: Prach Settings

    ® 5G New Radio Configuration and Settings R&S SMW-K144 PRACH Settings Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 252 BWPart<gr0>:ALLoc<user0>:PUCCh:PL:SRCount Number of ACK Bits Sets the number of ACK bits and defines the length of the "ACK Pattern" field. Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 252 BWPart<gr0>:ALLoc<user0>:PUCCh:PL:ACK:BITS...
  • Page 122 ® 5G New Radio Configuration and Settings R&S SMW-K144 PRACH Settings 4. Select "PRACH > Settings > Config". This dialog comprises the settings of the physical random access channel (PRACH). According to 38.211, the 64 preambles (Preamble Index) defined in each time-...
  • Page 123 ® 5G New Radio Configuration and Settings R&S SMW-K144 PRACH Settings Remote command: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: on page 254 BWPart<gr0>:ALLoc<user0>:PRACh:RSEQuence Zero Correlation Zone Sets the parameter zeroCorrelationZoneConfig required to select the N value that in turn is used for the calculation of the cyclic shift 38.211).

  • Page 124: Signal Control And Signal Characteristics

    ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings 6 Signal Control and Signal Characteristics This section lists settings provided for improving the signal and spectrum characteris- tics of the generated signal, defining the signal power and the signal generation start.
  • Page 125 ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings Routing and enabling a trigger The provided trigger signals are not dedicated to a particular connector. Trigger signals can be mapped to one or more USER x or T/M connectors.
  • Page 126 ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings The signal is generated only when a trigger event occurs. Then the signal is gener- ated continuously. An "Arm" stops the signal generation. A subsequent trigger event (internal or exter- nal) causes a restart.
  • Page 127 ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings Remote command: on page 265 [:SOURce<hw>]:BB:NR5G:TRIGger:EXECute Trigger Source The following sources of the trigger signal are available: ● "Internal" The trigger event is executed manually by the "Execute Trigger". ●...
  • Page 128 ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings ● "Off" The signal output begins after elapsing of the processing time. Signal output starts with sample 0. The complete signal is output. This mode is recommended for triggering of short signal sequences. Short sequen- ces are sequences with signal duration comparable with the processing time of the instrument.
  • Page 129 ® Signal Control and Signal Characteristics R&S SMW-K144 Trigger Settings To specify the delay, use the parameter (Specified) External Delay/(Specified) Trigger Delay. The parameter Actual Trigger Delay/Actual External Delay displays the delay conver- ted in time. Remote command: on page 262 [:SOURce<hw>]:BB:NR5G:TRIGger:DELay:UNIT...

  • Page 130: Marker Settings

    ® Signal Control and Signal Characteristics R&S SMW-K144 Marker Settings 6.2 Marker Settings Access: ► Select "5G New Radio > Marker". This tab provides access to the settings necessary to select and configure the marker output signal, like the marker mode or marker delay settings.
  • Page 131 ® Signal Control and Signal Characteristics R&S SMW-K144 Marker Settings "Subframe" A marker signal is generated at the start of each subframe. "Radio Frame Start" A marker signal is generated at the start of each radio frame. "Restart (ARB)" A marker signal is generated at the start of each ARB sequence.

  • Page 132: Clock Settings

    ® Signal Control and Signal Characteristics R&S SMW-K144 Clock Settings Marker x Delay Delays the marker signal at the marker output relative to the signal generation start. Variation of the parameter "Marker x Delay" causes signal recalculation. Remote command: on page 267 [:SOURce<hw>]:BB:NR5G:TRIGger:OUTPut<ch>:DELay...

  • Page 133: Local And Global Connector Settings

    ® Signal Control and Signal Characteristics R&S SMW-K144 Output Settings The instrument uses its internal clock reference. ● "External Local Clock" The instrument expects an external clock reference at the local T/M/C connector. "External Local Clock" requires R&S SMW-B10. Remote command: on page 268 [:SOURce<hw>]:BB:NR5G:CLOCk:SOURce...
  • Page 134 ® Signal Control and Signal Characteristics R&S SMW-K144 Output Settings This dialog comprises the settings required for configuring the output power. Settings: Sequence Length......................134 Suppress Subcarrier on Output Center...............134 Filter Mode........................134 Clipping Level......................135 Clipping Mode......................135 Sample Rate Mode.....................
  • Page 135 ® Signal Control and Signal Characteristics R&S SMW-K144 Output Settings "Channel BW" On the whole channel bandwidth. "Per BWP" By filtering the individual BWPs separately. "Off" Disbales filtering. Remote command: on page 257 [:SOURce<hw>]:BB:NR5G:OUTPut:FBWP:STATe Clipping Level Sets the limit for clipping.

  • Page 136: Time Domain Windowing Settings

    ® Signal Control and Signal Characteristics R&S SMW-K144 Time Domain Windowing Settings Sample Rate Variation Activates sample rate variation and allows you to change the Playback Rate manually. Use this feature if a conflict is indicated and varry the "Playback Rate" until the conflict indication disapears.

  • Page 137: Adjusting The Signal Power

    ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power Settings: Time Domain Windowing (WOLA)................137 Spacing/CP......................137 Transition Time......................137 Transition BB A Samples.................... 137 Time Domain Windowing (WOLA) Activates/deactivates the time domain windowing. Time domain windowing is a method that influences the spectral characteristics of the signal.

  • Page 138: Power Settings

    ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power To adjust the value, select "Status bar > Level". ● Selected power calculation method To define it, select "General > Output/Power > Power > Power Mode" ● Selected relative signal and channel power values –...
  • Page 139 ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power Settings: Power Mode........................ 139 Reference System Bandwidth..................143 Power Mode Defines which method is used to calculate the signal power at the first instrument out- put. The signal power at the other outputs is calculated according to the current power relations of all channels and signals.
  • Page 140 ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power "Average" The power level set with the parameter "Status Bar > Level" is the average RMS power of the complete signal. The absolute power of a subframe depends on the configuration of the remaining signal.
  • Page 141 ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power "Average Active Subframes" The power level set with the parameter "Status Bar > Level" is the average power in all allocated subframes. Thus, the absolute power of the allocated subframe depends only on the configuration of the remaining allocated signal.
  • Page 142 ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power "Constant PSD" The power level set with the parameter "Status Bar > Level" is the power of a fully allocated, fictitious signal with a specific band- width (Reference System Bandwidth).
  • Page 143 ® Signal Control and Signal Characteristics R&S SMW-K144 Adjusting the Signal Power Remote command: on page 260 [:SOURce<hw>]:BB:NR5G:OUTPut:POWer:MODE Reference System Bandwidth In "Power Mode > Constant PSD", sets the system bandwidth used as reference for the calculation of the output power.

  • Page 144: Observing Current Allocations On The Time Plan

    ® Observing Current Allocations On the Time Plan R&S SMW-K144 7 Observing Current Allocations On the Time Plan You can observe the current allocations on the time plan. The time plan shows active channels and signals, the allocations of the active UEs and indicates the cell it applies for.
  • Page 145 ® Observing Current Allocations On the Time Plan R&S SMW-K144 "Carrier" Displayed is the entire carrier bandwidth. Remote command: n.a. First Subframe Selects the first subframe to be displayed. Remote command: n.a. Subframe Selects the number of subframes to be displayed.

  • Page 146: Remote-Control Commands

    The following commands are required to perform signal generation with the option R&S SMW-K144 in a remote environment. We assume that the R&S SMW has already been set up for remote operation in a network as described in the R&S SMW docu- mentation.

  • Page 147: Programming Examples

    ® Remote-Control Commands R&S SMW-K144 Programming Examples ● User Commands....................183 ● DL/UL BWP Commands..................185 ● BWP Configuration Commands................188 ● Scheduling Commands..................212 ● PDSCH/PUSCH Commands.................219 ● CORESET Commands..................230 ● PUCCH Commands....................249 ● PRACH Commands....................253 ●...
  • Page 148 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Loading predefined test signals SOURce1:BB:NR5G:LINK DOWN SOURce1:BB:NR5G:SETTing:TMODel:DL:CATalog? // Example 100MHz Full 30kHz QPSK Sub6GHz, // Example 100MHz TwoBWP 60kHz 120kHz QPSK mmWave, // Example 400MHz Full 120kHz 256QAM mmWave SOURce1:BB:NR5G:SETTing:TMODel:DL "Example 100MHz Full 30kHz QPSK Sub6GHz"...
  • Page 149 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Configuring the TxBWs // enable 15 kHz SCS SOURce1:BB:NR5G:NODE:CELL0:TXBW:S15K:USE 1 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S15K:NRB? // 270 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S15K:OFFSet 0 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S15K:KOMU? // -1700 // enable 30 kHz SCS SOURce1:BB:NR5G:NODE:CELL0:TXBW:S30K:USE 1 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S30K:NRB? // 133 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S30K:OFFSet? // 0 SOURce1:BB:NR5G:NODE:CELL0:TXBW:S30K:KOMU?
  • Page 150 ® Remote-Control Commands R&S SMW-K144 Programming Examples // PBCH configuration SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:POWer 0 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:STATe 1 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:CCODing:STATe 1 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:CCODing:DATA PN9 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:STATe 0 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:SCSC N15_60 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:CSZero 1 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:SSZero 1 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:CBARred NBAR SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:IFRResel ALWD SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:SPARe:STATe 1 SOURce1:BB:NR5G:NODE:CELL0:TAPos? // 2 SOURce1:BB:NR5G:NODE:CELL0:SSPBch0:MIB:SCOFfset? // 0 Example: Filling in the frame with dummy REs...
  • Page 151 ® Remote-Control Commands R&S SMW-K144 Programming Examples ENTity1:SOURce1:BB:NR5G:NODE:CARMapping:ROW7:CELL? // 7 Example: Configuring the users and the BWPs // enable 2 users SOURce1:BB:NR5G:UBWP:NUSer 2 SOURce1:BB:NR5G:UBWP:USER0:UEID 10 SOURce1:BB:NR5G:UBWP:USER0:DSCH:CCODing:STATe 0 SOURce1:BB:NR5G:UBWP:USER0:DSCH:DATA PN9 // SOURce1:BB:NR5G:UBWP:USER0:DSCH:DATA PATT // SOURce1:BB:NR5G:UBWP:USER0:DSCH:PATTern #H1E15,14 SOURce1:BB:NR5G:UBWP:USER1:UEID 20 SOURce1:BB:NR5G:UBWP:USER1:DSCH:DATA DLIS SOURce1:BB:NR5G:UBWP:USER1:DSCH:DLISt "/var/user/user"...
  • Page 152 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Fixed reference channels SOURce1:BB:NR5G:LINK UP SOURce1:BB:NR5G:UBWP:USER0:USCH:CCODing:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:TYPE FR1A15 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:SCS? // N30 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:ALRB? // 51 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:MODulation? // QPSK SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:PASize? // 4352 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:FRC:RBOFfset 10 Example: Configuring the configurable allocations in the users and BWPs...
  • Page 153 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Configuring the PDSCH incl. PTRS settings SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTA:CTYPe T1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTA:APINdex 0 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTA:MLENgth 2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTA:SID0 10 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTA:SID1 20 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTB:CTYPe T2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTB:APINdex 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTB:MLENgth 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTB:SID0 100 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DMTB:SID1 200 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:SCRambling:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:DSID 100 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:PDSCh:MCWDci 2...
  • Page 154 ® Remote-Control Commands R&S SMW-K144 Programming Examples SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:DMRS:LENGth 2 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:DMRS:SLTSymbols? // "2,3" SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:DMRS:POWer 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:TXSCheme:NLAYer? // 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:TXSCheme:CDMData 2 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:PDSCh:APSelect0? // AP1000 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:MAPCoordinates CART SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:AP0:ROW0:REAL 0.7 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:AP0:ROW0:IMAGinary 0.7 SOURce1:BB:NR5G:UBWP:USER0:USCH:CCODing:STATe 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:CW0:PDSCh:CCODing:IMCS 5 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:CW0:PDSCh:CCODing:TCRate? // 0.369140625 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:CW0:PDSCh:CCODing:TBSize? // 22536 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:CW0:PDSCh:CCODing:RVINdex 1...
  • Page 155 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Configuring the CSI-RS settings // periodic ZP CSI-RS SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:NRESources 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:PER 10 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:OFFSet 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:ROW 2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:BITMap #HAFA,12 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:I0 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:ZP:SET0:RES0:I1 2 // periodic NZP CSI-RS SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:NZP:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:DL:BWP0:CSIRs:NZP:SET0:NRESources 1...
  • Page 156 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Antenna port settings SCONfiguration:MODE ADV SCONfiguration:FADing MIMO2X4X4 SCONfiguration:BASeband:SOURce CPEN SCONfiguration:APPLy ENTity1:SOURce1:BB:NR5G:LINK DOWN ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:MAPCoordinates CART ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL0:ROW0:REAL 1 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL0:ROW0:IMAGinary? // 0 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL1:ROW1:REAL 1 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL2:ROW2:REAL 1 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL3:ROW3:REAL 1 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:MAPCoordinates CYL ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL0:ROW0:MAGNitude 1 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL0:ROW0:PHASe 360 ENTity1:SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:APMap:COL1:ROW1:MAGNitude 0...
  • Page 157 ® Remote-Control Commands R&S SMW-K144 Programming Examples SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER1:BWPart1:ALLoc0:CS:DCI0:INDex? // 22 Example: Configuring the CORESET settings For example of how th e search space is configured, see Example "Search space con- figuration" on page 156. SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CONTent COR SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:PREGran REG SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:ID 0...
  • Page 158 ® Remote-Control Commands R&S SMW-K144 Programming Examples SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:USAGe? // C SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:RNTI? // 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER1:BWPart1:ALLoc0:CS:DCI1:AGGLevel AL2 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER1:BWPart1:ALLoc0:CS:DCI1:INDex 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:FMT F10 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:SSP CSS3 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:FRDRes 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:TIDRes 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:VTPRb? // 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:TB1:MCS 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:TB1:NDI 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:TB1:RV 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:HAPRoc 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:DAI1 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CS:DCI1:TPUCch 1...
  • Page 159 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Configuring the PUSCH settings SOURce1:BB:NR5G:LINK UP SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTA:CTYPe T1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTA:APINdex 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTA:MLENgth 2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTA:SID0 0 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTA:SID1 0 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTB:CTYPe T2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTB:APINdex 2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTB:MLENgth 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTB:SID0 10 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:DMTB:SID1 10 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:TPSTate 0 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:MRANk 2 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUSCh:TXConfig? // CB...
  • Page 160 ® Remote-Control Commands R&S SMW-K144 Programming Examples SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:TXSCheme:CDMData 2 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:TXSCheme:TPMidx 1 SOURce1:BB:NR5G:UBWP:USER0:USCH:CCODing:STATe 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:CCODing:IMCS 11 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CW0:PUSCh:CCODing:TCRate? // 0.455078125 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:CW0:PUSCh:CCODing:TBSize? // 90176 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:CCODing:RVINdex 1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:ACK:BITS 4 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:ACK:PATTern #HC,4 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:CSI1:BITS 5 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:CSI1:PATTern #H15,5 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:CSI2:PATTern #H0,1 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:CSI2:BITS 3 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc0:PUSCh:UCI:CSI2:PATTern #H2,3 User Manual 1178.8013.02 ─ 06...
  • Page 161 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Configuring the PUCCH settings SOURce1:BB:NR5G:LINK UP SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUCCh:ADMRs:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUCCh:BPSK:STATe 1 SOURce1:BB:NR5G:UBWP:USER0:CELL0:UL:BWP0:PUCCh:HACK:STATe? // 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:NALLoc 2 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:CONTent PUCC SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:SLOT 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:FMT F4 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:SYMNumber 4 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:SYMoffset 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:RBNumber 10 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:RBOFfset 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:POWer 0 SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER0:BWPart0:ALLoc1:REPetitions SUBF...
  • Page 162 ® Remote-Control Commands R&S SMW-K144 Programming Examples Example: Time domain windowing SOURce1:BB:NR5G:TDWind:STATe? // 0 SOURce1:BB:NR5G:OUTPut:TDWind:TRTime:S15K:TRTime 5 SOURce1:BB:NR5G:OUTPut:TDWind:TRTime:S240K:TRTime 5 SOURce1:BB:NR5G:OUTPut:TDWind:TRTime:S240K:TRTSamples? // 11 Example: Output settings SOURce1:BB:NR5G:OUTPut:SEQLen 10 SOURce1:BB:NR5G:OUTPut:SSOC:STATe 0 SOURce1:BB:NR5G:OUTPut:FBWP:STATe 1 SOURce1:BB:NR5G:OUTPut:SAMRmode FFt SOURce1:BB:NR5G:OUTPut:BBConf:ROW0:SRATe? // 122880000 SOURce1:BB:NR5G:OUTPut:BBConf:ROW0:CONFlict? // 0 SOURce1:BB:NR5G:OUTPut:BBConf:ROW0:PBRate? // 122880000...

  • Page 163: General Commands

    ® Remote-Control Commands R&S SMW-K144 General Commands Example: Specifying delay and inhibit values in time units SOURce1:BB:NR5G:CLOCk 1000000 SOURce1:BB:NR5G:TRIGger:SEQuence AAUT SOURce1:BB:NR5G:TRIGger:SOURce EGT1 SOURce1:BB:NR5G:TRIGger:DELay:UNIT SAMP SOURce1:BB:NR5G:TRIGger:EXTernal:DELay 100 SOURce1:BB:NR5G:TRIGger:EXTernal:RDELay? // Response: 100 SOURce1:BB:NR5G:TRIGger:DELay:UNIT TIME SOURce1:BB:NR5G:TRIGger:EXTernal:TDELay 0.00001 SOURce1:BB:NR5G:TRIGger:EXTernal:RDELay? // Response: 0.00001 SOURce1:BB:NR5G:TRIGger:DELay:UNIT SAMP...
  • Page 164 ® Remote-Control Commands R&S SMW-K144 General Commands ..........165 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:UL:CATalog? ..........165 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:DL:CATalog? ..................166 [:SOURce<hw>]:BB:NR5G:STATe ..............166 [:SOURce<hw>]:BB:NR5G:WAVeform:CREate ..................166 [:SOURce]:BB:NR5G:VERSion? [:SOURce<hw>]:BB:NR5G:PRESet Sets the parameters of the digital standard to their default values (*RST values speci- fied for the commands). Not affected is the state set with the command SOURce<hw>:BB:NR5G:STATe.
  • Page 165 ® Remote-Control Commands R&S SMW-K144 General Commands Example: Example "Storing current configuration" on page 147. Manual operation: "Save/Recall" on page 23 [:SOURce<hw>]:BB:NR5G:SETTing:LOAD <Filename> Loads the selected file from the default or the specified directory. Loaded are files with extension *.nr5g.

  • Page 166: Carrier Commands

    ® Remote-Control Commands R&S SMW-K144 Carrier Commands Example: Example "Loading predefined test signals" on page 148. Usage: Query only Manual operation: "Test Models" on page 25 [:SOURce<hw>]:BB:NR5G:STATe <State> Activates the standard and deactivates all the other digital standards and digital modu- lation modes in the same path.
  • Page 167 ® Remote-Control Commands R&S SMW-K144 Carrier Commands ............168 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CBW ............168 [:SOURce<hw>]:BB:NR5G:NODE:RFPHase:STATe ............ 168 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:PCFReq ............169 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TAPos ..........169 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SUL:STATe [:SOURce<hw>]:BB:NR5G:NODE:NCARrier <NumCarrier> Sets the number of simulated carriers. Parameters: <NumCarrier> integer Range: 1 to 16 *RST: Example: Example "Configuring the carrier"...
  • Page 168 ® Remote-Control Commands R&S SMW-K144 Carrier Commands Example: Example "Configuring the carrier" on page 148. Usage: Query only Manual operation: "N1 ID/N2 ID" on page 32 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CARDeply <CarrierDepl> Selects one of the frequency ranges, specified for 5G NR transmission. Parameters: <CarrierDepl>...

  • Page 169: Txbw Commands

    ® Remote-Control Commands R&S SMW-K144 TxBW Commands Parameters: <CarrierFreq> float Range: 0.0 to 44E9 Increment: 1E3 *RST: Example: [:SOURce<hw>]:BB:NR5G:NODE:RFPHase:STATe on page 168. Manual operation: "Frequency in GHz" on page 32 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TAPos <DmrsTypeAPos> Sets the position of the first DMRS symbol within the slot, if mapping type A is used.
  • Page 170 ® Remote-Control Commands R&S SMW-K144 TxBW Commands ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:OFFSet ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:OFFSet ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:OFFSet ........ 171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S120K:KOMU? ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:KOMU? ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:KOMU? ........171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:KOMU? [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:POINta <CarrierPointA> Sets the frequency offset between the reference Point A and the center carrier fre- quency.
  • Page 171 ® Remote-Control Commands R&S SMW-K144 TxBW Commands Parameters: <ScsUse> 0 | 1 | OFF | ON Example: Example "Configuring the TxBWs" on page 149. Manual operation: "Use" on page 34 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S120K:NRB? [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:NRB? [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:NRB? [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:NRB? Queries the number of available resource blocks (N_RB).

  • Page 172: Ss/Pbch Commands

    ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands Example: Example "Configuring the TxBWs" on page 149. Usage: Query only Manual operation: "k0u" on page 35 8.5 SS/PBCH Commands ............. 172 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:OFFSet ...........173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:NSSPbch ........173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:STATe ......173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:SCSPacing ......173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:RBOFfset...
  • Page 173 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands *RST: TXBW Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "Offset Relative to" on page 36 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:NSSPbch <NuOfPbchPattern> Sets the number of SS/PBCH patterns to be configured. Parameters: <NuOfPbchPattern> integer Range:...
  • Page 174 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands Parameters: <RBOffset> integer Range: 0 to 126 *RST: Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "RB Offset/RB Offset (15 kHz SCS)/RB Offset (60 kHz SCS)" on page 37 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:SCOFfset <SCOffset>...
  • Page 175 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "Case" on page 38 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:L <PositionBitLen> Sets the number of SS/PBCH blocks, transmitted per half-frame. Parameters: <PositionBitLen> L4 | L8 | L64 *RST: Example: Example "Configuring the SS/PBCH"...
  • Page 176 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:POWer <PbchPower> [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:PSSPow <PssPower> [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:SSSPow <SssPower> Sets the power of the SSS/PSS/PBCH allocations relative to the power of the other resource elements. Parameters: <SssPower> float Range: -80.0 to 10.0 Increment: 0.01 *RST: Example: Example "Configuring the SS/PBCH"...
  • Page 177 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands Parameters: <DataList> string Filename incl. file extension or complete file path Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "Data Source" on page 46 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:CCODing:PATTern <Pattern>, <BitCount> Sets a bit pattern as a data source.
  • Page 178 ® Remote-Control Commands R&S SMW-K144 SS/PBCH Commands Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "SCS Common" on page 47 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:MIB:SCOFfset? Queries the SS/PBCH subcarrier offset. Return values: <SSPbchSsbSCOff> integer Range: 0 to 11 *RST: Example: Example "Configuring the SS/PBCH"...

  • Page 179: Dummy Resource Elements Commands

    ® Remote-Control Commands R&S SMW-K144 Dummy Resource Elements Commands Parameters: <SSPbchCellBarre> BARR | NBAR *RST: BARR Example: Example "Configuring the SS/PBCH" on page 149. Manual operation: "Cell Barred" on page 48 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:MIB:IFRResel <SSPbchInFreqSel> Sets the value of the system information parameter intraFreqReselection.
  • Page 180 ® Remote-Control Commands R&S SMW-K144 Dummy Resource Elements Commands Parameters: <DummyResState> 0 | 1 | OFF | ON *RST: Example: Example "Filling in the frame with dummy REs" on page 150. Manual operation: "State" on page 41 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:POWer <Power> Sets the power of the resource elements filled in with dummy data.
  • Page 181 ® Remote-Control Commands R&S SMW-K144 Dummy Resource Elements Commands [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:SLTFmt <SlotFmt> Queries the used slot format. Parameters: <SlotFmt> integer Range: 0 (in DL)/1 (in UL) *RST: 0 (in DL)/1 (in UL) Example: Example "Filling in the frame with dummy REs"...

  • Page 182: Carrier Mapping Commands

    ® Remote-Control Commands R&S SMW-K144 Carrier Mapping Commands [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:PATTern <Pattern>, <BitCount> Sets a bit pattern as a data source. Parameters: <Pattern> numeric *RST: <BitCount> integer Range: 1 to 64 *RST: Example: Example "Filling in the frame with dummy REs" on page 150.

  • Page 183: User Commands

    ® Remote-Control Commands R&S SMW-K144 User Commands Parameters: <CellMapped> 0 | 1 | OFF | ON *RST: Example: Example "Mapping the carriers to the outputs" on page 150. Manual operation: "Cell Mapped" on page 44 [:SOURce<hw>]:BB:NR5G:NODE:CARMapping:AP4000[:ROW<ch0>] <AP4000> Sets if the SS/PBCHs are output at the selected output.
  • Page 184 ® Remote-Control Commands R&S SMW-K144 User Commands [:SOURce<hw>]:BB:NR5G:UBWP:NUSer <NumUsers> Sets the number of simulated users. Parameters: <NumUsers> integer Range: 1 to 10 *RST: Example: Example "Configuring the users and the BWPs" on page 151. Manual operation: "Number of Users" on page 49 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:UEID <UserId>...

  • Page 185: Dl/Ul Bwp Commands

    ® Remote-Control Commands R&S SMW-K144 DL/UL BWP Commands Parameters: <DschDataSource> PN9 | PN11 | PN15 | PN16 | PN20 | PN21 | PN23 | PATTern | DLISt | ZERO | ONE *RST: Example: Example "Configuring the users and the BWPs"...
  • Page 186 ® Remote-Control Commands R&S SMW-K144 DL/UL BWP Commands ..186 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:SCSPacing ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:RBNumber ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:RBNumber ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:RBOFfset ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:RBOFfset ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PRBoffset? ..187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PRBoffset? ....188 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:DFReq? ....188 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:DFReq? [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:NBWParts <UserUlBwp> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:NBWParts <UserDlBwp> Sets the number of downlink bandwidth parts (BWP).
  • Page 187 ® Remote-Control Commands R&S SMW-K144 DL/UL BWP Commands Parameters: <SCSpacing> N15 | N30 | N60 | N240 | N120 *RST: Example: Example "Configuring the users and the BWPs" on page 151. Manual operation: "SC Spacing/CP" on page 54 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: RBNumber <UlBwpRBNumber>...

  • Page 188: Bwp Configuration Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Return values: <PointAOffset> integer Range: 0 to 500 *RST: Example: Example "Configuring the users and the BWPs" on page 151. Usage: Query only Manual operation: "RB Offset to Point A" on page 55 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:...
  • Page 189 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ....................190 DMTB:APINdex [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ....................190 DMTA:APINdex [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ....................190 DMTB:MLENgth [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ....................190 DMTA:MLENgth [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................191 DMTA:SID0 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................191 DMTA:SID1 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................191 DMTB:SID0 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................191 DMTB:SID1 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ..................... 191 DMTA:PTRS:STATe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:...
  • Page 190 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands ..193 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DSID [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................194 MCWDci [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................194 MCSTable .194 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:VPINter [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh: ......................195 RESalloc [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTB:CTYPe <TypeBConfigType> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:CTYPe <TypeAConfigType> Sets the configuration type (type 1 or type 2) and defines the mapping of the DMRS to the physical resource elements.
  • Page 191 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <DmrsMaxLength> integer Range: 1 to 2 *RST: Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "Max Length" on page 59 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:SID0 <ScramID0> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:SID1 <ScramID1>...
  • Page 192 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:PTRS:REOF <ResElemOffset> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTB:PTRS:REOF <ResElemOffset> Sets the parameter resource element offset. Parameters: <ResElemOffset> RE00 | RE01 | RE11 | RE10 *RST: RE00 Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153.
  • Page 193 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "I_MCS_1/I_MCS_2/I_MCS_3" on page 61 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:PTRS:RB0 <PtrsNrb0> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTA:PTRS:RB1 <PtrsNrb1> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTB:PTRS:RB0 <PtrsNrb0> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:DMTB:PTRS:RB1 <PtrsNrb1> Sets the threshold values NRB with I = {0, 1}.
  • Page 194 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "Data Scrambling ID" on page 62 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:MCWDci <MaxCodeWordsPer> Sets the number of codewords. Parameters: <MaxCodeWordsPer>integer Range: 1 to 2...

  • Page 195: Zp And Nzp Csi-Rs Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>: PDSCh:RESalloc <ResourceAlloc> Queries the used resource allocation type. Parameters: <ResourceAlloc> T0 | T1 | DS T0, DS (Dynamic Switch): Reserved for future use. *RST: Example: Example "Configuring the PDSCH incl. PTRS settings"...
  • Page 196 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP: ................199 SET<gr0>:RES<user0>:BITMap [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ................199 SET<gr0>:RES<user0>:BITMap [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP: ..................199 SET<gr0>:RES<user0>:I0 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP: ..................199 SET<gr0>:RES<user0>:I1 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ..................199 SET<gr0>:RES<user0>:I0 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ..................199 SET<gr0>:RES<user0>:I1 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ................199 SET<gr0>:RES<user0>:SCID [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ................200 SET<gr0>:RES<user0>:PWR [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP: ............200 SET<gr0>:RES<user0>:APMap:MAPCoord...
  • Page 197 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <Resources> integer Range: 0 to 16 *RST: Nr5gDef_numZpCsiRsSets Example: Example "Configuring the CSI-RS settings" on page 155. Manual operation: "Resources" on page 66 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: ZP:SET<gr0>:RES<user0>:PER <Periodicity> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: NZP:SET<gr0>:RES<user0>:PER <Periodicity> Sets the periodicity T (in slots).
  • Page 198 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Manual operation: "Row" on page 67 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: ZP:SET<gr0>:RES<user0>:PORTs? [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: NZP:SET<gr0>:RES<user0>:PORTs? Sets the number of ports X. Return values: <Ports> 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32...
  • Page 199 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: ZP:SET<gr0>:RES<user0>:BITMap <Bitmap> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: NZP:SET<gr0>:RES<user0>:BITMap <Bitmap>, <BitCount> Sets the location of the ZP CSI-RS in the frequency domain. Parameters: <Bitmap> numeric *RST: <BitCount> integer Range: 1 to 12 *RST: Example: Example "Configuring the CSI-RS settings"...
  • Page 200 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs: NZP:SET<gr0>:RES<user0>:PWR <NZpPower> Sets the power of the NZP ressource relative to the PDSCH power. Parameters: <NZpPower> float Range: -80 to 10 Increment: 0.01 *RST: Example: Example "Configuring the CSI-RS settings" on page 155.
  • Page 201 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <APMapDataImag> float The REAL (Magnitude) and IMAGinary (Phase) values are interdependent. Their value ranges change depending on each other and so that the resulting complex value is as follows: |REAL+j*IMAGinary| ≤ 1 Otherwise, the values are normalized to Magnitude = 1.

  • Page 202: Pucch Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands 8.10.3 PUCCH Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh: .....................202 ADMRs:STATe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh: ....................... 202 BPSK:STATe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh: .......................202 HACK:STATe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUCCh:ADMRs:STATe <AdditionalDMRS> Defines if additional DMRS is used for PUCCH format 3 and 4. Parameters: <AdditionalDMRS> 0 | 1 | OFF | ON...

  • Page 203: Frc Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands 8.10.4 FRC Commands ..203 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:STATe ..203 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:TYPE ..204 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:SCS? ..204 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:ALRB? [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC: ....................... 205 MODulation? ..205 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:PASize? .. 205 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:RBOFfset [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC: STATe <FrcState> Enables the fixed reference measurement channels (FRC), as defined in 38.141.
  • Page 204 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <FrcType> FR1A11 | FR1A12 | FR1A13 | FR1A14 | FR1A15 | FR1A16 | FR1A17 | FR1A18 | FR1A19 | FR2A11 | FR2A12 | FR2A13 | FR2A14 | FR2A15 | FR1A21 | FR1A22 | FR1A23 | FR1A24 |...
  • Page 205 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Return values: <AllocRB> integer Range: 6 to 273 *RST: Example: Example "Fixed reference channels" on page 152. Usage: Query only Manual operation: "Allocated Resource Blocks" on page 74 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC: MODulation? Queries the modulation scheme used by the selected FRC.

  • Page 206: Pusch Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Manual operation: "RB Offset" on page 75 8.10.5 PUSCH Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ......................206 DMTB:CTYPe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ......................206 DMTA:CTYPe [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ....................207 DMTB:MLENgth [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ....................207 DMTA:MLENgth [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ....................207 DMTB:APINdex [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ....................207 DMTA:APINdex [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh: ......................
  • Page 207 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <TypeAConfigType> T1 | T2 *RST: Example: Example "Configuring the PUSCH settings" on page 159. Manual operation: "Config Type" on page 75 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:DMTB:MLENgth <TypeBMaxLength> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:DMTA:MLENgth <TypeAMaxLength> Sets if single- or double-symbol DMRS is used.
  • Page 208 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <ScramID1> integer Range: 0 to 65535 *RST: Example: Example "Configuring the PUSCH settings" on page 159. Manual operation: "Scrambling ID 0/Scrambling ID 1" on page 76 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:TPSTate <TransformPrec> Enables the precoding operation and thus enables the DFT-s-OFDM.
  • Page 209 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:CBSubset <CodebookSubset> Sets the higher layer parameter codebookSubset. Parameters: <CodebookSubset> FPNC | PNC | NC FPNC Fully-and-partial-and-non-coherent Partial-non-coherent Non-coherent *RST: FPNC Example: Example "Configuring the PUSCH settings" on page 159. Manual operation: "Codebook Subset"...

  • Page 210: Pusch Uci Commands

    ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands Parameters: <UseScramblingId> 0 | 1 | OFF | ON *RST: Example: Example "Configuring the PUSCH settings" on page 159. Manual operation: "Use PUSCH Scrambling ID" on page 77 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:DSID <DataScrambleId> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>: PUSCh:SCRambling:STATe 1, sets the data scrambling ID.
  • Page 211 ® Remote-Control Commands R&S SMW-K144 BWP Configuration Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: MODE <PuschUciMode> Defines the information transmitted on the PUSCH. Parameters: <PuschUciMode> UCLSch | UCIonly UCLSch Control information and data are multiplexed into the PUSCH. UCIonly Only uplink control information is transmitted on PUSCH.

  • Page 212: Srs Commands

    ® Remote-Control Commands R&S SMW-K144 Scheduling Commands [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: CSI:OF10 <PuschUciCsiOf10> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: CSI:OF11 <PuschUciCsiOf11> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: CSI:OF20 <PuschUciCsiOf20> [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:UCI: CSI:OF21 <PuschUciCsiOf21> Sets the CSI part 1 (OF10|OF11) and CSI part 2 (OF20|OF21) information offsets, where the OF10|OF20 are used if up to 11 CSI bits are multiplexed and OF11|OF21 otherwise.
  • Page 213 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................215 ALLoc<user0>:MAPType [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................... 215 ALLoc<user0>:FMT [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................215 ALLoc<user0>:SLTFmt? [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................215 ALLoc<user0>:TPSTate [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................216 ALLoc<user0>:SYMNumber [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................216 ALLoc<user0>:SYMoffset [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................216 ALLoc<user0>:RBNumber [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ...............217 ALLoc<user0>:PRACh:RBNumber? [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................217 ALLoc<user0>:RBOFfset [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................218...
  • Page 214 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands Parameters: <RestrToSSpace> 0 | 1 | OFF | ON *RST: Example: Example "Search space configuration" on page 156. Manual operation: "Restrict to Search Space" on page 29 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CONTent <Content> Sets the allocated channel or signal.
  • Page 215 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:MAPType <MappingType> Defines to which symbols of the PDSCH/PUSCH allocation the demodulation refer- ence signals (DMRS) are mapped. Parameters: <MappingType> A | B *RST: Example: Example "Configuring the PDSCH incl. PTRS settings"...
  • Page 216 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands Example: SOURce1:BB:NR5G:LINK UP SOURce1:BB:NR5G:SCHed:CELL0:SUBF0:USER1:BWPart0:ALLoc0:TPSTate 1 Manual operation: "Transform Precoding" on page 85 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:SYMNumber <UserAllocSymNum> Sets the number of symbols the allocation spans. Parameters: <UserAllocSymNum> integer Range: 1 to 14 *RST: Example: Example "Configuring the configurable allocations in the users and BWPs groups"...
  • Page 217 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands Parameters: <UserAllocRBNum> integer CORESET allocations span always a multiple of 6 resource blocks. Thus, only values that are multiple of 6 are allowed for these allocations. The number of resource blocks that are available for PUSCH...
  • Page 218 ® Remote-Control Commands R&S SMW-K144 Scheduling Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:POWer <Power> Sets the power for the selected allocation relative to the power of the other allocations. Parameters: <Power> float Range: -80 to 10.0 Increment: 0.01 *RST: Example: Example "Configuring the configurable allocations in the users and BWPs groups"...

  • Page 219: Pdsch/Pusch Commands

    ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands 8.12 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............220 ALLoc<user0>:PDSCh|PUSCh:TYPE [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: .................220 ALLoc<user0>:PDSCh:NCW [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............221 ALLoc<user0>:PDSCh:SBCZero:STATe [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ................ 221 ALLoc<user0>[:CW<s2us0>]:MOD [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............221 ALLoc<user0>[:CW<s2us0>]:PHYSbits? [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............. 222 ALLoc<user0>:PDSCh|PUSCh:DMRS:SEQGen [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............222 ALLoc<user0>:PDSCh|PUSCh:DMRS:NSID [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............222 ALLoc<user0>:PDSCh|PUSCh:DMRS:LENGth [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..........223 ALLoc<user0>:PDSCh|PUSCh:DMRS:SLTSymbols?
  • Page 220 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ......227 ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:TBSize? [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ......227 ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:RVINdex [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............228 ALLoc<user0>:PUSCh:UCI:CSI1:BITS [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............228 ALLoc<user0>:PUSCh:UCI:CSI2:BITS [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............228 ALLoc<user0>:PUSCh:UCI:ACK:BITS [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............228 ALLoc<user0>:PUSCh:UCI:CSI1:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............228 ALLoc<user0>:PUSCh:UCI:CSI2:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: .............. 228 ALLoc<user0>:PUSCh:UCI:ACK:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............229 ALLoc<user0>:APMap:MAPCoordinates [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ........ 229 ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:IMAGinary...
  • Page 221 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "Number of Codewords" on page 88 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh:SBCZero:STATe <UserAllocPdschS> Sets if the PDSCH settings are scheduled by CORESET 0 or not.
  • Page 222 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh|PUSCh:DMRS:SEQGen <SeqGen> Sets how the scrambling ID for DMRS is derived. Parameters: <SeqGen> DMRSid | CELLid DMRSid DMRS : Scrambling ID (i.e. n ) = DMRS scrambling ID (i.e. DMRS CELLid Cell Cell : Scrambling ID (i.e.
  • Page 223 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh|PUSCh:DMRS:SLTSymbols? Queries the slot number of DMRS symbols. Return values: <PxschDmrsSlotSy> string Range: 0 char to 256 char Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Usage: Query only Manual operation: "Slot Symbols"...
  • Page 224 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands Parameters: <CDMGroupData> integer Range: 0 to 2 *RST: Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "CDM Groups w/o Data" on page 90 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh:APSelect<s2us0> <PdschAPSel> Queries the antenna ports.
  • Page 225 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands Example: Example "Configuring the PUSCH settings" on page 159. Manual operation: "TPMI" on page 90 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh:PTRS:MODE <PtrsMode> Sets if the PTRS configuration is defined, manually (with the ...PDSCH:PTRS:... commands) or automatically (from the current PDSCH DMRS settings).
  • Page 226 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands Example: Example "Configuring the PDSCH incl. PTRS settings" on page 153. Manual operation: "RE-offset" on page 97 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PDSCh:PTRS:FRQDen <PtrsFreqDensity> Sets the parameter frequency density. Parameters: <PtrsFreqDensity> FD2 | FD4 *RST: Example: Example "Configuring the PDSCH incl. PTRS settings"...
  • Page 227 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing: TCRate? Queries the target code rate for the selected modulation and coding scheme. Return values: <TargetCodeRate> float Range: 0.0 to 1.0 Increment: 0.001 *RST: Example: Example "Configuring the PDSCH incl. PTRS settings"...
  • Page 228 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUSCh:UCI:CSI1:BITS <PuschUciCSI1Bit> [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUSCh:UCI:CSI2:BITS <PuschUCICSI2Bit> [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUSCh:UCI:ACK:BITS <PuschUciAckBit> Sets the number of ACK/CSI 1/CSI 2 bits. Parameters: <PuschUciAckBit> float Range: 0 to 128 Increment: 1 *RST: Example: Example "Configuring the PUSCH settings"...
  • Page 229 ® Remote-Control Commands R&S SMW-K144 PDSCH/PUSCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:MAPCoordinates <APCoordMapMode> Switches between the cartesian and cylindrical coordinates representation. Parameters: <APCoordMapMode> CARTesian | CYLindrical *RST: CARTesian Example: Example "Antenna port settings" on page 156. Manual operation: "Mapping Coordinates" on page 99 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...

  • Page 230: Coreset Commands

    ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>: MAGNitude <APMapDataMagn> Defines the mapping of the antenna ports to the physical antennas, cylindrical mapping coordinates are used. Parameters: <APMapDataMagn> float Range: 0 to 1 Increment: 0.001 *RST: Example: [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>: SUBF<st0>:USER<dir0>:BWPart<gr0>:ALLoc<user0>: on page 230.
  • Page 231 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............234 ALLoc<user0>:CS:DMRS:SCRam:ID [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................234 ALLoc<user0>:CS:IL:STATe [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ................234 ALLoc<user0>:CS:IL:BUNSize [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................235 ALLoc<user0>:CS:IL:SHIDx [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..................235 ALLoc<user0>:CS:IL:SIZE [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..........235 ALLoc<user0>:CS:DMRS:SPACe<s2us0>:AGGLevel? [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ........235 ALLoc<user0>:CS:DMRS:SPACe<s2us0>:MAXCandidate [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ................236 ALLoc<user0>:CS:DCCes:STATe [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ................236 ALLoc<user0>:CS:DCCes:DATA [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ................236 ALLoc<user0>:CS:DCCes:DLISt...
  • Page 232 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............241 ALLoc<user0>:CS:DCI<s2us0>:TB2:MCS [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............... 241 ALLoc<user0>:CS:DCI<s2us0>:TB1:NDI [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............... 241 ALLoc<user0>:CS:DCI<s2us0>:TB2:NDI [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............241 ALLoc<user0>:CS:DCI<s2us0>:TB1:RV [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............241 ALLoc<user0>:CS:DCI<s2us0>:TB2:RV [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ............... 242 ALLoc<user0>:CS:DCI<s2us0>:HAPRoc [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............242 ALLoc<user0>:CS:DCI<s2us0>:TPUSch [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............242 ALLoc<user0>:CS:DCI<s2us0>:VTPRb [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............243 ALLoc<user0>:CS:DCI<s2us0>:DAI2 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:...
  • Page 233 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............247 ALLoc<user0>:CS:DCI<s2us0>:CBGFi [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............247 ALLoc<user0>:CS:DCI<s2us0>:STATe [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............248 ALLoc<user0>:CS:DCI<s2us0>:DATA [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............248 ALLoc<user0>:CS:DCI<s2us0>:DLISt [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: .............248 ALLoc<user0>:CS:DCI<s2us0>:BITLength [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............249 ALLoc<user0>:CS:DCI<s2us0>:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:PREGran <PrecoderGranula> Sets the value of the higher-layer parameter precoderGranularity, as defined in 38.211.
  • Page 234 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <CSDmrsScramStat> 0 | 1 | OFF | ON *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "Use DMRS Scrambling ID" on page 102 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DMRS:SCRam:ID <DmrsScramId> Sets the DMRS scrambling ID.
  • Page 235 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:IL:SHIDx <CSIntlShiftIdx> Sets the shift index n shift Parameters: <CSIntlShiftIdx> integer Range: 0 to 274 *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "Shift Index" on page 103 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...
  • Page 236 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <MaxCandidate> 1 | 2 | 3 | 4 | 5 | 6 | 8 *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "Max Candidates" on page 104 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCCes:STATe <DummyCceState>...
  • Page 237 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCCes:PATTern <Pattern>, <BitCount> Sets a bit pattern as a data source. Parameters: <Pattern> numeric *RST: <BitCount> integer Range: 1 to 64 *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "Dummy CCEs Data Source"...
  • Page 238 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <RNTI> integer Range: 0 to 65535 *RST: Manual operation: "RNTI" on page 106 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:FMT <AllocDciFmt> Sets the DCI format. Parameters: <AllocDciFmt> F00 | F01 | F10 | F11 | F20 | F21 | F22 | F23 | CUSTom F20|F21|F22|F23 are reserved for future use.
  • Page 239 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:CANDidate <Candidate> Selects the candidate number for the selected aggregation level, where the maximum number of candidates per aggregation level are set with the command SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DMRS:SPACe<s2us0>:MAXCandidate. Parameters: <Candidate> integer Range: 0 to 8...
  • Page 240 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Return values: <PatternHigh> 64 bits Example: Example "Configuring the CORESET settings" on page 157. Usage: Query only Manual operation: "Bit Data > Pattern" on page 109 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:FRDRes <FreqDomResAssig> Sets the DCI field frequency domain resource assignment.
  • Page 241 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <FreqHopFlag> 0 | 1 | OFF | ON *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "DCI Format 0_0" on page 109 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:TB1:MCS <MCSTB1> [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:TB2:MCS <MCSTB2>...
  • Page 242 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <RVTB2> integer Range: 0 to 3 *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "DCI Format 0_0" on page 109 "DCI Format 1_1" on page 113 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:HAPRoc <HarqProc>...
  • Page 243 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <VrbToPrb> 0 | 1 | OFF | ON *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "DCI Format 1_0" on page 112 "DCI Format 1_1" on page 113 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...
  • Page 244 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <SRSRequest> integer Range: 0 to 3 *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "DCI Format 0_1" on page 110 "DCI Format 1_1" on page 113 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:PTDMrs <PtrsDmrs>...
  • Page 245 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "DCI Format 0_0" on page 109 "DCI Format 0_1" on page 110 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:TPUCch <TpcPucch> Sets the DCI field TPC command for scheduling PUCCH.
  • Page 246 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:SMINd <ShortMsgInd> Sets the DCI field short message indicator. Parameters: <ShortMsgInd> integer Range: 0 to 3 *RST: Example: Example "Configuring the CORESET settings" on page 157. [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:BWINd <BWPInd> Sets the DCI field BWP indicator.
  • Page 247 ® Remote-Control Commands R&S SMW-K144 CORESET Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:ZCRTrigg <ZpCsiRsTrigg> Sets the DCI field ZP CSI-RS trigger. Parameters: <ZpCsiRsTrigg> integer Range: 0 to 3 *RST: Manual operation: "DCI Format 1_1" on page 113 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:TCI <TCI> Sets the DCI field transmission configuration indication.
  • Page 248 ® Remote-Control Commands R&S SMW-K144 CORESET Commands Parameters: <ChanCodingState> 0 | 1 | OFF | ON *RST: Example: Example "Configuring the CORESET settings" on page 157. Manual operation: "Channel Coding" on page 116 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:DATA <DataSource> Sets the data source for the custom DCI.

  • Page 249: Pucch Commands

    ® Remote-Control Commands R&S SMW-K144 PUCCH Commands Manual operation: "Pattern Length" on page 117 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:CS:DCI<s2us0>:PATTern <Pattern>, <BitCount> Sets the content of the custom DCI as a bit pattern. Parameters: <Pattern> 128 bits Corresponds to the value set with the command SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:...
  • Page 250 ® Remote-Control Commands R&S SMW-K144 PUCCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............253 ALLoc<user0>:PUCCh:PL:UCI:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ..............253 ALLoc<user0>:PUCCh:PL:ACK:PATTern [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUCCh:GRPHopping <PucchGrpHopping> Sets the higher-layer parameter pucch-GroupHopping. Parameters: <PucchGrpHopping> N | ENA | DIS N = neither ENA = enable DIS = disable *RST: Example: Example "Configuring the PUCCH settings"...
  • Page 251 ® Remote-Control Commands R&S SMW-K144 PUCCH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUCCh:SHOPping <SecongHoppingPR> Sets the physical resource block (PRB) of the second hop. Parameters: <SecongHoppingPR> float Range: 0 to 273 Increment: 1 *RST: Example: Example "Configuring the PUCCH settings" on page 161. Manual operation: "Second Hop PRB"...
  • Page 252 ® Remote-Control Commands R&S SMW-K144 PUCCH Commands Parameters: <OCCindex> integer Range: 0 to 6 *RST: Example: Example "Configuring the PUCCH settings" on page 161. Manual operation: "OCC Index" on page 120 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUCCh:FS:OCCLength <PucchOCCLength> For PUCCH format F4, sets the OCC length.

  • Page 253: Prach Commands

    ® Remote-Control Commands R&S SMW-K144 PRACH Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUCCh:PL:UCI:PATTern <PucchUciPattern>, <BitCount> [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PUCCh:PL:ACK:PATTern <AackPattern>, <Bitcount> Sets the ACK/UCI bits in pattern form. Parameters: <AackPattern> numeric Bit pattern *RST: <Bitcount> integer Pattern length, should be the same as the length set with the command [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:...
  • Page 254 ® Remote-Control Commands R&S SMW-K144 PRACH Commands Parameters: <PrachNumerology> N1_25 | N5 | N15 | N30 | N120 | N60 *RST: Example: Example "Configuring the PRACH settings" on page 161. Manual operation: "SC Spacing/CP" on page 83 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PRACh:FORMat <PrachFormat>...

  • Page 255: Output Commands

    ® Remote-Control Commands R&S SMW-K144 Output Commands [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>: BWPart<gr0>:ALLoc<user0>:PRACh:ZCZone <ZeroCorrZone> Sets the parameter zeroCorrelationZoneConfig according to 38.211. Parameters: <ZeroCorrZone> integer Range: 0 to 15 *RST: Example: Example "Configuring the PRACH settings" on page 161. Manual operation: "Zero Correlation Zone" on page 123 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:...
  • Page 256 ® Remote-Control Commands R&S SMW-K144 Output Commands ........257 [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:SRATe? ........257 [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:CONFlict ........258 [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:PBRate ........258 [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:VARiation ..............258 [:SOURce<hw>]:BB:NR5G:OUTPut:CLEVel ..............259 [:SOURce<hw>]:BB:NR5G:OUTPut:CMODe ............... 259 [:SOURce<hw>]:BB:NR5G:TDWind:STATe ..........259 [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:SE60K:TRTime ..........259 [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S15K:TRTime ..........259 [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S30K:TRTime ..........259 [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S60K:TRTime ..........259 [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S120K:TRTime ..........259...
  • Page 257 ® Remote-Control Commands R&S SMW-K144 Output Commands [:SOURce<hw>]:BB:NR5G:OUTPut:FBWP:STATe <FilterBWP> Defines if and how the filter is applied, on the whole channel bandwidth or on the indi- vidual BWPs separately. Parameters: <FilterBWP> 0 | 1 | 2 0 = per channel bandwidth...
  • Page 258 ® Remote-Control Commands R&S SMW-K144 Output Commands Parameters: <Conflict> 0 | 1 | OFF | ON *RST: Example: Example "Output settings" on page 162. Manual operation: "Conflict" on page 135 [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:PBRate <PlaybackRate> 1, sets [:SOURce<hw>]:BB:NR5G:OUTPut:BBConf:ROW<ch0>:VARiation the playback speed. Parameters: <PlaybackRate>...
  • Page 259 ® Remote-Control Commands R&S SMW-K144 Output Commands [:SOURce<hw>]:BB:NR5G:OUTPut:CMODe <ClippingMode> Sets the method for level clipping. Parameters: <ClippingMode> VECTor | SCALar *RST: VECTor Example: Example "Output settings" on page 162. Manual operation: "Clipping Mode" on page 135 [:SOURce<hw>]:BB:NR5G:TDWind:STATe <TDWindow> Enables time domain windowing.
  • Page 260 ® Remote-Control Commands R&S SMW-K144 Output Commands [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S60K:TRTSamples? [:SOURce<hw>]:BB:NR5G:OUTPut:TDWind:S240K:TRTSamples? Queries the number of transition samples. The next to last block in the command syntax indicates the used SCS and CP combi- nation. ● DL: SE<SCS>K, where E indicates the extended CP or for normal CP, the designa-...

  • Page 261: Trigger Commands

    ® Remote-Control Commands R&S SMW-K144 Trigger Commands Example: [:SOURce<hw>]:BB:NR5G:OUTPut:POWer:MODE on page 260. Manual operation: "Reference System Bandwidth" on page 143 8.17 Trigger Commands .............. 261 [:SOURce<hw>]:BB:NR5G[:TRIGger]:SEQuence ..............261 [:SOURce<hw>]:BB:NR5G:TRIGger:SOURce ......... 262 [:SOURce<hw>]:BB:NR5G:TRIGger:EXTernal:SYNChronize:OUTPut ............. 262 [:SOURce<hw>]:BB:NR5G:TRIGger:DELay:UNIT ............262 [:SOURce<hw>]:BB:NR5G:TRIGger[:EXTernal]:DELay ............263 [:SOURce<hw>]:BB:NR5G:TRIGger[:EXTernal]:INHibit ............263...
  • Page 262 ® Remote-Control Commands R&S SMW-K144 Trigger Commands ● Internal triggering by a signal from the other basebands (INTA|INTB) ● In master-slave mode, the external baseband synchronization signal (BBSY) ● OBASeband|BEXTernal|EXTernal: Setting only Provided only for backward compatibility with other Rohde & Schwarz signal gener- ators.
  • Page 263 ® Remote-Control Commands R&S SMW-K144 Trigger Commands Parameters: <TrigExtDelay> float Range: 0 to 2147483647 Increment: 0.01 *RST: Example: Example "Configure and enable triggering" on page 162. Manual operation: "(Specified) External Delay/(Specified) Trigger Delay" on page 129 [:SOURce<hw>]:BB:NR5G:TRIGger[:EXTernal]:INHibit <TrigExtInhibit> Specifies the duration by which a restart is inhibited.
  • Page 264 ® Remote-Control Commands R&S SMW-K144 Trigger Commands Example: Example "Specifying delay and inhibit values in time units" on page 163. Manual operation: "(Specified) External Delay/(Specified) Trigger Delay" on page 129 [:SOURce<hw>]:BB:NR5G:TRIGger:OBASeband:DELay <TrigIntOthDelay> Sets the trigger delay for triggering by the trigger signal from the other path.
  • Page 265 ® Remote-Control Commands R&S SMW-K144 Trigger Commands [:SOURce<hw>]:BB:NR5G:TRIGger:OBASeband:TDELay <IntOthDelaySec> Specifies the trigger delay for triggering by the signal from the other path. Parameters: <IntOthDelaySec> float Range: 0 to 688 Increment: 250E-12 *RST: Default unit: s Example: Example "Specifying delay and inhibit values in time units"...

  • Page 266: Marker Commands

    ® Remote-Control Commands R&S SMW-K144 Marker Commands Usage: Query only Manual operation: "Running/Stopped" on page 126 [:SOURce<hw>]:BB:NR5G:TRIGger:SLENgth <TrigSeqLen> Defines the length of the signal sequence that is output in the SINGle trigger mode. Parameters: <TrigSeqLen> integer Range: 1 to dynamic...
  • Page 267 ® Remote-Control Commands R&S SMW-K144 Marker Commands Manual operation: "Marker Mode" on page 130 [:SOURce<hw>]:BB:NR5G:TRIGger:OUTPut<ch>:DELay <MarkDelay> Defines the delay between the signal on the marker outputs and the start of the sig- nals. Parameters: <MarkDelay> float Range: 0 to 16777215...

  • Page 268: Clock Commands

    ® Remote-Control Commands R&S SMW-K144 Clock Commands If R&S SMW-B9 is installed, the minimum marker duration depends on the sample/ symbol rate. See chapter "Basics on ..." in the R&S SMW user manual. Parameters: <MarkTimeOff> integer Range: 1 to 16777215...

  • Page 269: Glossary: Abbreviations

    ® Glossary: Abbreviations R&S SMW-K144 Glossary: Abbreviations Symbols 5G NR: 5G new radio BW: Bandwidth BWP: Carrier bandwidth part CP: Cyclic prefix CP-OFDM: Cyclic prefix OFDM, as known from LTE DFT-s-OFDM: Discrete Fourier transform spread OFDM DMRS: Demodulation reference signal...
  • Page 270 ® Glossary: Abbreviations R&S SMW-K144 SCS: Subcarrier spacing SRS: Sounding reference signal SS: Synchronisation signal SSS: Secondary synchronisation signal User Manual 1178.8013.02 ─ 06...

  • Page 271: Glossary: 5G Nr 3Gpp Specifications, Documents With Further Information

    ® Glossary: 5G NR 3GPP Specifications, Documents with Further Information R&S SMW-K144 Glossary: 5G NR 3GPP Specifications, Documents with Further Information Symbols [1]: Rohde & Schwarz Poster "Be ahead in 5G. Demystifying 5G NR" TS 38.101: "User Equipment (UE) radio transmission and reception"...

  • Page 272: List Of Commands

    ® List of Commands R&S SMW-K144 List of Commands [:SOURce]:BB:NR5G:VERSion?........................166 [:SOURce<hw>]:BB:NR5G:CLOCk:MODE....................268 [:SOURce<hw>]:BB:NR5G:CLOCk:SOURce....................268 [:SOURce<hw>]:BB:NR5G:LINK........................164 [:SOURce<hw>]:BB:NR5G:NODE:CARMapping:AP4000[:ROW<ch0>]............183 [:SOURce<hw>]:BB:NR5G:NODE:CARMapping:CELL[:ROW<ch0>]............182 [:SOURce<hw>]:BB:NR5G:NODE:CARMapping:DFReq[:ROW<ch0>]............183 [:SOURce<hw>]:BB:NR5G:NODE:CARMapping:MAPPed[:ROW<ch0>]............. 182 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CARDeply................168 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CBW................... 168 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CELLid................167 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:CINDicator................167 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:DATA..............181 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:DLISt..............181 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:MODulation............180 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:PATTern...............182 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:POWer..............180 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:SCSPacing............180 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:DUMRes:SLTFmt..............181...
  • Page 273 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:SCSPacing..........173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:SSSPow............176 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SSPBch<st0>:STATe............173 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:SUL:STATe................. 169 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TAPos................. 169 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:CONFlict?..............170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:POINta..............170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:RESolve..............170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:KOMU?............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:NRB?............. 171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:OFFSet............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S15K:USE............... 170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:KOMU?............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:NRB?............. 171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:OFFSet............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S30K:USE............... 170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:KOMU?............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:NRB?............. 171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:OFFSet............171 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S60K:USE............... 170 [:SOURce<hw>]:BB:NR5G:NODE:CELL<ch0>:TXBW:S120K:KOMU?............171...
  • Page 274 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:PRESet......................164 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:IMAGinary.............229 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:MAGNitude............230 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:PHASe..............230 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:APMap:COL<s2us0>:ROW<s3us0>:REAL..............229 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:APMap:MAPCoordinates....................229 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CONTent......................... 214 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCCes:DATA......................236 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCCes:DLISt......................236 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCCes:PATTern......................237 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCCes:STATe......................236 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:AGGLevel.....................238 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:ANTPorts....................243 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:BITLength.....................248...
  • Page 275 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:FRDRes....................240 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:FRHFlag....................240 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:HAPRoc....................242 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:HBTS?....................239 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:INDex....................239 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:PATTern....................249 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:PDSHarq....................245 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:PRBBundling..................246 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:PTDMrs....................244 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:PUCResind..................245 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:RMINd....................246 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:RNTI.....................237 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:SMINd....................246 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:...
  • Page 276 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:TPUSch....................242 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:USAGe....................237 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:USINd....................244 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:VTPRb....................242 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DCI<s2us0>:ZCRTrigg....................247 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DMRS:SCRam:ID..................... 234 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DMRS:SCRam:STATe....................233 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DMRS:SPACe<s2us0>:AGGLevel?................235 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:DMRS:SPACe<s2us0>:MAXCandidate..............235 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:ID..........................233 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:IL:BUNSize........................234 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:IL:SHIDx........................235 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:IL:SIZE........................235 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:IL:STATe........................234 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:CS:NDCI......................... 237 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:...
  • Page 277 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh:PTRS:TMDen.....................225 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh:SBCZero:STATe....................221 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:DMRS:LENGth..................222 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:DMRS:NSID..................222 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:DMRS:POWer..................223 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:DMRS:SEQGen..................222 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:DMRS:SLTSymbols?................223 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:TXSCheme:CDMData................223 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:TXSCheme:NLAYers................223 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PDSCh|PUSCh:TYPE.....................220 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:POWer..........................218 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PRACh:FORMat......................254 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PRACh:PRINdex......................255 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PRACh:RBNumber?....................... 217 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:...
  • Page 278 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:ISFHopping......................250 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:PL:ACK:BITS..................... 252 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:PL:ACK:PATTern....................253 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:PL:SRCount....................... 252 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:PL:UCI:BITS...................... 252 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:PL:UCI:PATTern....................253 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUCCh:SHOPping......................251 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:APSelect<s2us0>....................224 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:TXSCheme:TPMidx................... 224 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:UCI:ACK:BITS....................228 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:UCI:ACK:PATTern....................228 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:UCI:CSI1:BITS....................228 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>:PUSCh:UCI:CSI1:PATTern..................... 228 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:...
  • Page 279 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:IMCS.............. 226 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:RVINdex............227 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:TBSize?............227 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>[:CW<s2us0>]:PDSCh|PUSCh:CCODing:TCRate?............227 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>: ALLoc<user0>[:CW<s2us0>]:PHYSbits?....................221 [:SOURce<hw>]:BB:NR5G:SCHed:CELL<ch0>:SUBF<st0>:USER<dir0>:BWPart<gr0>:NALLoc....214 [:SOURce<hw>]:BB:NR5G:SCHeduling:MODE.................... 213 [:SOURce<hw>]:BB:NR5G:SCHeduling:RSSPace..................213 [:SOURce<hw>]:BB:NR5G:SETTing:CATalog?..................... 164 [:SOURce<hw>]:BB:NR5G:SETTing:DEL..................... 165 [:SOURce<hw>]:BB:NR5G:SETTing:LOAD....................165 [:SOURce<hw>]:BB:NR5G:SETTing:STORe....................164 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:DL..................165 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:DL:CATalog?................. 165 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:UL..................165 [:SOURce<hw>]:BB:NR5G:SETTing:TMODel:UL:CATalog?................. 165 [:SOURce<hw>]:BB:NR5G:STATe.........................166...
  • Page 280 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:APMap:AP<s2us0>:ROW<s3us0>:IMAGinary..............200 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:APMap:AP<s2us0>:ROW<s3us0>:MAGNitude..............201 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:APMap:AP<s2us0>:ROW<s3us0>:PHASe............... 201 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:APMap:AP<s2us0>:ROW<s3us0>:REAL................200 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:APMap:MAPCoord......................200 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:BITMap..........................199 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:CDMType?......................... 198 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:DENSity..........................198 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:I0............................199 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:I1............................199 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:OFFSet..........................197 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:PER............................197 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:NZP:SET<gr0>: RES<user0>:PORTs?..........................198...
  • Page 281 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP:SET<gr0>: RES<user0>:PORTs?..........................198 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP:SET<gr0>: RES<user0>:ROW..........................197 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:CSIRs:ZP:STATe....196 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:DFReq?......... 188 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:INDicator....... 186 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:APINdex..190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:CTYPe...190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:MLENgth..190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:EPRE.. 192 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:MCS1..192 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:MCS2..192 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:MCS3..192 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:RB0..193 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:RB1..193 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:REOF..192 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:PTRS:STATe..191 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:SID0....191 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTA:SID1....191 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTB:APINdex..190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTB:CTYPe...190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTB:MLENgth..190 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:DL:BWP<dir0>:PDSCh:DMTB:PTRS:EPRE..192...
  • Page 282 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:STATe......203 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:FRC:TYPE......203 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:INDicator....... 186 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PRBoffset?......187 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh:ADMRs:STATe..202 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh:BPSK:STATe.... 202 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUCCh:HACK:STATe....202 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:CBSubset....209 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTA:APINdex..207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTA:CTYPe...206 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTA:MLENgth..207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTA:SID0....207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTA:SID1....207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTB:APINdex..207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTB:CTYPe...206 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTB:MLENgth..207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTB:SID0....207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DMTB:SID1....207 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:DSID......210 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:MCSTable....209 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:MRANk..... 208 [:SOURce<hw>]:BB:NR5G:UBWP:USER<ch0>:CELL<st0>:UL:BWP<dir0>:PUSCh:MTTPrecoding..209...
  • Page 283 ® List of Commands R&S SMW-K144 [:SOURce<hw>]:BB:NR5G[:TRIGger]:SEQuence..................261 User Manual 1178.8013.02 ─ 06...
