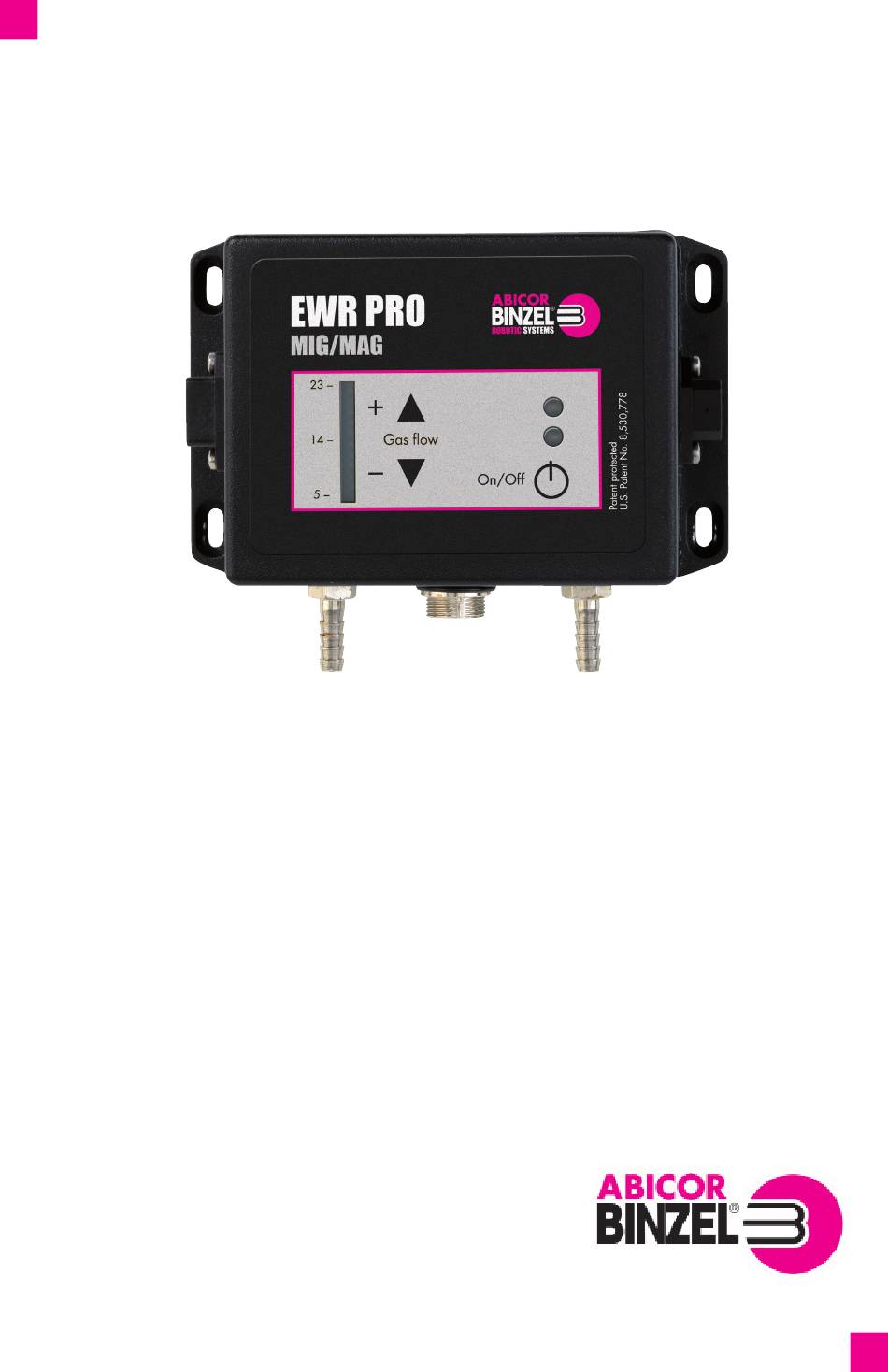

T E C H N O L O G Y F O R T H E W E L D E R ' S W O R L D
EWR Quick
Install Instructions
www.binzel-abicor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWR and is the answer not in the manual?

Questions and answers

Related Manuals for Abicor Binzel EWR

Summary of Contents for Abicor Binzel EWR

  • Page 1 T E C H N O L O G Y F O R T H E W E L D E R ’ S W O R L D EWR Quick Install Instructions www.binzel-abicor.com...
  • Page 2 Guarantee Calibration Report Safety Documentation Operating Instructions EWR or EWR Pro (Basic Model shown) 110v AC Power Supply Current Measuring Shunt* *Confirm that the current capacity of the measuring shunt is adequately sized for the welding operation that it will be used for.
  • Page 3 STEP 2: Mount the EWR Regulator EWR Basic shown The EWR Regulator has the flexibility to be mounted wherever it makes the most sense for your application. A few guidelines to consider: ■ The EWR should be mounted on a stable location away from welding sparks or places where it can be damaged.
  • Page 4 Optimal hose length is considered 1 foot longer than the torch length with a minimum of 6 feet. For instance, if the torch is 7 feet, then the gas hose between the EWR and the feeder should be no less than 8 feet.
  • Page 5 The EWR offers you the ability to select the most efficient gas delivery schedule for your application. There are a total of 11 schedules on the EWR and EWR Pro. Selection is done by simply pressing either the plus (+) or minus (-) buttons. The factory default setting is right in the middle of these schedules and serves as a starting point for the majority of welding applications.
  • Page 6 STEP 8: Setting the Gas Flow Pressure What is this Adjustment? The gas pressure between the EWR and the closed magnetic valve in the power source or feeder can be adjusted. This adjustment is necessary if you have longer cable assemblies or other circumstances which might affect a proper gas flow.
  • Page 7 1. Disconnect Power Supply 2. Reconnect power supply while pressing the ON/OFF button. The EWR is now in setup mode for pressure. 3. Press the plus (+) or (-) button to adjust the outgoing 4. Press and hold the ON/OFF button until the lights pressure.
  • Page 8 T E C H N O L O G Y F O R T H E W E L D E R ’ S W O R L D Gas Flow Measurement Chart for the EWR Ampere Usage Alexander Binzel Corporation...
