User Manual of ReaSnow S1
ReaSnow S1 User Manual
V1.0
May, 2019
This manual is the intellectual property of ReaSnow. It must only be published in its original form.
Using parts or republishing altered parts of this document is prohibited without permission from
ReaSnow.
http//www.reasnow.com
PAGE 1 / 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Reasnow S1

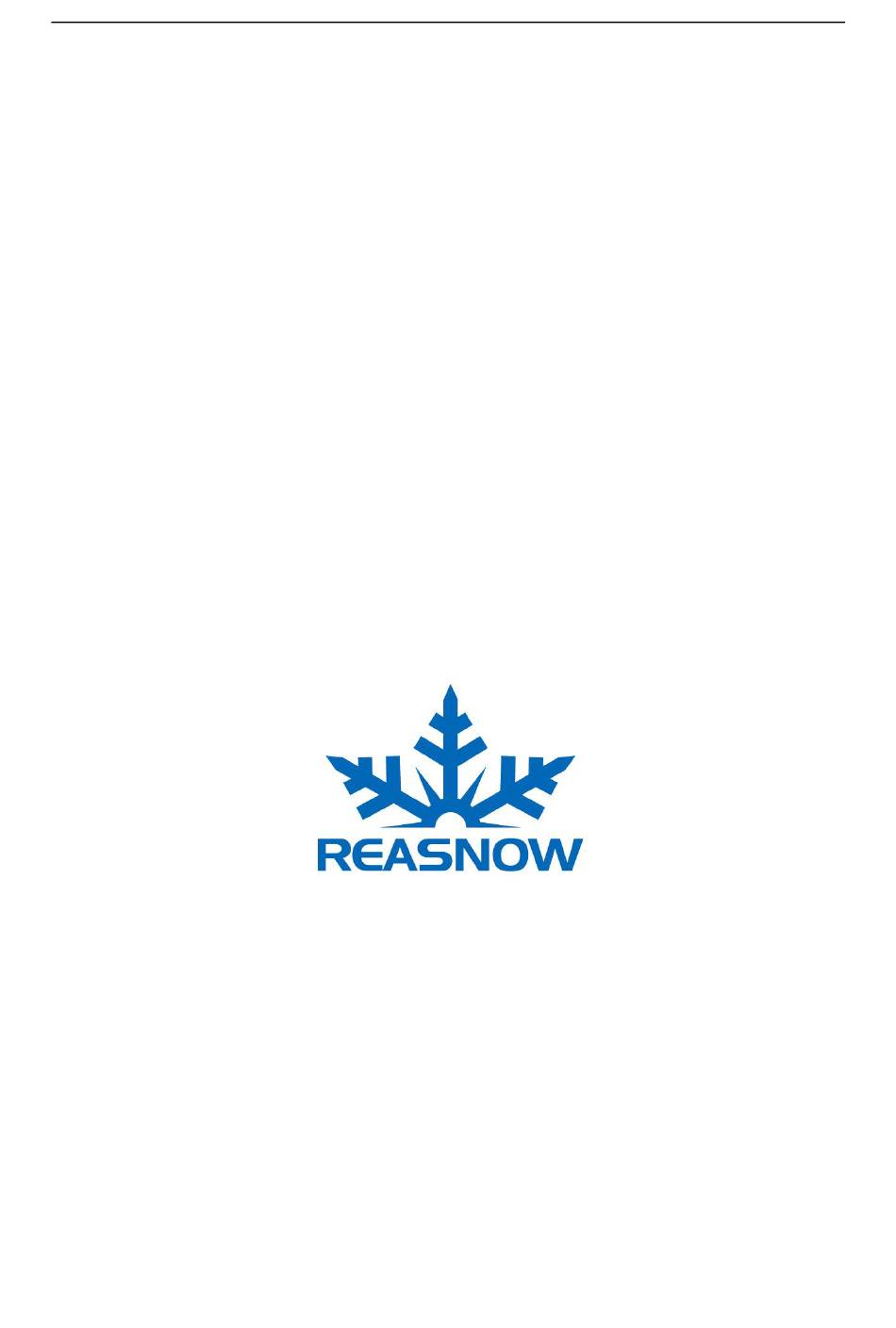

  • Page 1 ReaSnow S1 User Manual V1.0 May, 2019 This manual is the intellectual property of ReaSnow. It must only be published in its original form. Using parts or republishing altered parts of this document is prohibited without permission from ReaSnow. http//www.reasnow.com...
  • Page 2: Table Of Contents

    User Manual of ReaSnow S1 Table of Contents Chapter 1:Introduction to ReaSnow S1 1.1 Major Features of ReaSnow S1 1.2 Technical Specifications 1.3 Diagram Chapter 2:Quick Guide 2.1 Upgrade Firmware 2.2 Mouse Settings 2.3 Console and game settings 2.4 Wiring 2.5 ReaSnow Manager APP...
  • Page 3: Chapter 1:Introduction To Reasnow S1

    Except for these powerful features, it's also designed for intuitive and easy use. A completely new way to enjoy games will be found with ReaSnow S1 at hand. 1.1 Major Features of ReaSnow S1 ● Professional Mouse Optimization for FPS games, Intelligent Engine 3.0 (accurate and stable aiming, 1:1 movement in game, mouse curve editor) ●...
  • Page 4: Technical Specifications

    User Manual of ReaSnow S1 360/Nintendo Switch ● Excellent compatibility, keyboards, mice, wheels, flight sticks, arcade sticks, third-party gamepads, etc ● ReaSnow Manager APP(Android & iOS Version) ● Multiple languages ● Online Game Preset Synchronization 1.2 Technical Specifications Outline 76*76*20mm...
  • Page 5: Chapter 2:Quick Guide

    2.1 Upgrade Firmware ReaSnow S1's firmware shall be upgraded, even if it's just purchased. for firmware will be updated frequently to keep up with changing games and new peripherals, or to provide patches and improvements.
  • Page 6: Mouse Settings

    Settings - Devices - Controllers - Communication Method - "Use USB cable" This will not bring any trouble if the controller will be used wirelessly without ReaSnow S1. http//www.reasnow.com PAGE 6 / 25...
  • Page 7 User Manual of ReaSnow S1 For SWITCH: 1. Upgrade Switch System Version to the latest one 2. Disable Auto Sleep 3. then enable Pro Controller Wired Communication http//www.reasnow.com PAGE 7 / 25...
  • Page 8 User Manual of ReaSnow S1 For Xbox series, no special settings are required. Prepare Games: Our goal is to get the highest sensitivity for gamepad right stick to harness all the potential of your game, for our mouse movement is mapped to the right stick.
  • Page 9: Wiring

    For SWITCH, there is no need of any controller, leave USB port 1 open. keyboard and mouse, or any other peripherals shall be connected to USB port 2 and 3. Flashing red LED indicator means ReaSnow S1 is waiting to be configured with APP. http//www.reasnow.com...
  • Page 10 Turn on Bluetooth and Location Services(GPS) before running the APP for the first time, add a preset game profile. and now you are ready to GO! To get more knowledge about ReaSnow S1, the following chapters are also very important. http//www.reasnow.com PAGE 10 / 25...
  • Page 11: Reasnow Manager App

    User Manual of ReaSnow S1 Chapter 3:ReaSnow Manager APP 3.1 Home ● Game Setting Recommendation is very important, please follow it carefully. ● Input and Output status will only be shown when “I/O Monitor” is enabled in “Settings” http//www.reasnow.com PAGE 11 / 25...
  • Page 12: Manager

    User Manual of ReaSnow S1 3.2 Manager ● Add/ delete/ edit/ export/ import configs. ● Config which is set as “Startup” will be activated automatically every time when being powered http//www.reasnow.com PAGE 12 / 25...
  • Page 13: Settings

    User Manual of ReaSnow S1 3.3 Settings ● Accessory Support: It is designed for independent throttle of flight stick or independent handbrake of wheel. In this way, 2 USB peripherals can be mapped to one controller. ● Professional Mode: All settings are accessible when this is enabled.
  • Page 14: Add Config

    User Manual of ReaSnow S1 3.4 Add Config Games in this column are for mouse and keyboard control(FPS games) Games in this column are for wheel control(racing games) Games in this column are for controller, gamepad, flight stick, arcade stick, etc http//www.reasnow.com...
  • Page 15: Edit Config

    User Manual of ReaSnow S1 3.5 Edit Config ● Scenarios (HIP/ADS/TBD1/TBD2/TBD3) Scenarios can also be treated as sub configs, there are 5 scenarios in one config. HIP and ADS are for infantry, TBD1/2/3 are for vehicles, such as tank, plane or for inventory and map control.
  • Page 16: Global Settings

    User Manual of ReaSnow S1 3.6 Global Settings ● Config Mode By default, press F12 to enter and exit config mode, when APP is disconnected or closed. While in config mode, LED indicator will be turned off, and HIP/ADS sensitivity can be changed by corresponding keys.
  • Page 17: Chapter 4:Macro

    User Manual of ReaSnow S1 Chapter 4:Macro 4.1 Macro Manager Add/ delete/ edit/ export/ import macros. 4.2 Macro Glossary Switching Key: A key which is used to choose which Macro shall be effective in one group. Hotkey: A hotkey which is used to trigger this macro Mode: The way how this Macro will be triggered by Hotkey.
  • Page 18 User Manual of ReaSnow S1 It tells how many times this Macro will be executed repeatedly. Terminated: The way how this Macro will be terminated. There are 2 options: Immediately and Until the last line. Group: All macros in group 0 are always effective, and for macros in other groups (1 ~ 250), only one of the macros will be effective.
  • Page 19: Examples And Explanations

    User Manual of ReaSnow S1 4.3 Examples and Explanations Rapid fire This Macro(Rapid fire) will be effective in group 1 after Key 6 is pressed, Line 1: R2(100% strength) will be held for 40ms Line 2: All buttons will be released for 40ms when mouse left key is held, this macro will be executed repeatedly.
  • Page 20: Chapter 5:Steering Wheel

    User Manual of ReaSnow S1 Grenade This Macro(Grenade) is used in Apex Legends to choose a grenade, Line 1: Right button will be held for 600ms Line 2: Right button and a movement of the right stick will be held for 100ms.
  • Page 21: Usage

    Assetto Corsa, F1 2015, F1 2016, F1 2017, WRC5, WRC6, GT Sport etc. 5.2 Usage Step 1: Wiring Firstly, connect the original controller (USB 1) and the wheel (USB 2 or 3) to ReaSnow S1, and then connect ReaSnow S1 to console. Step 2: Add a Config http//www.reasnow.com...
  • Page 22 ● Other preset configs(NFS19/ NFS: Rivals) are legacy mode support, ● Racing games shall be started after ReaSnow S1 is powered up and set properly. ● If your racing game is installed from a CD/DVD, please do upgrade the game to the latest version, or it might not support wheels.
  • Page 23 User Manual of ReaSnow S1 Chapter 6:Flight Stick, Arcade Stick, and Other Controllers 6.1 Wiring Firstly, connect all peripherals to ReaSnow S1 as shown above, and then connect ReaSnow S1 to console. 6.2 Add a Config This preset config is designed for flight stick, arcade stick, and other controllers(gamepads).
  • Page 24: Chapter 7:Restoration

    User Manual of ReaSnow S1 Chapter 7:Restoration 7.1 Restore factory defaults http//www.reasnow.com PAGE 24 / 25...
  • Page 25 User Manual of ReaSnow S1 If ReaSnow S1 works improperly, restoration is something we should try. And please always check our website for the latest flash tool. Step 1: Connecting ReaSnow S1 to PC while holding the button. Release the button until the LED indicator is stable green.
