Northern HDLPCAM Manual

HDLPCAM
4-in-1 Full HD 1080p License Plate Capture Camera
OSD, True D/N - DWDR, IP66, Motorized 9~22mm Lens

PRODUCT FEATURES

• Multi Format (TVI, CVI, AHD, 960H)
•
Full HD 1080p Resolution
•
Motorized 9~22mm Auto Iris IR Lens
• 42 IR LED's
•
50' Plate Capture Range
•
44 MPH Plate Capture Speed
•
Digital Wide Dynamic Range
•
True Day/Night Mechanical IR Cut Filter
•
UTC Controllable OSD & Joystick
•
Sense-up / Slow Shutter Speed
•
12VDC/24VAC Dual Voltage Power
•
3D Digital Noise Reduction
•
1/2.9" Sony CMOS Sensor
• 3-Axis Cable Management Mount
•
IP66 Weatherproof

SPECIFICATIONS

Model No.
Image Sensor
Total Pixels
Active Pixels
Resolution
Scanning System
OSD (On Screen Display)
Digital WDR (Wide Dynamic Range)
DNR (Digital Noise Reduction)
Video Output
Lens Type - True Day Night
Sense-up
Shutter Speed
IR Cut Filter
Minimum Illumination
IR LED Count / Range
Plate Capture Viewing Angle
Plate Capture Speed
Plate Capture Range
S/N Ratio
Automatic Gain Control
Sync System
Gamma Characteristics
White Balance
Back Light Compensation
HBLC (High Back Light Compensation)
Day/Night
Mirror
Languages
Brightness
Motion Detection
Privacy Mask
Power Input
Power Requirement
Overall Camera Dimensions
Housing / Color
Weight
Operating Temperature
Weatherproof Rating
Ø5.5
Ø70
HDLPCAM
1-2/9" Sony CMOS Sensor
1984 x 1225
1920 x 1080
1920 x 1080 (1080p)
Progressive Scan
Dual OSD Access: Cable Mounted Joystick Controlled /
UTC Controlled (coaxial control)
Auto / Off / On (0 ~8 Adjustable)
2D & 3D (Off / Low / Middle / High)
BNC Video Connector
Motorized 9 ~ 22mm Varifocal Auto Iris IR Lens
Off / x2 ~ x30
Auto, FLK, 1/30 ~ 1/50,000, x2 ~ x30
Built in Mechanical
0.0 Lux IR LED On
42 IR LED's / 50' Range / 850nM
14° ~ 32° Vertical / 8° ~ 35° Horizontal
44 MPH
Up to 50'
More than 52dB
0 ~15 Adjustable
Internal
y = 0.45 typ.
ATW / AWC->Set / Indoor / Outdoor / Manual
Off / BLC / HSBLC
On / Off 4-Zone, Level & Mode Adjustable
EXT / Auto / Color / B/W
Mirror / V-Flip / Rotate / Off
English, French, Spanish, German, Italian (see OSD Menu for more)
0 ~ 100 Adjustable
On/Off (4 Zone Selectable)
On/Off (4 Zone Selectable)
12VDC/24VAC +/- 10% Dual Voltage Power
400mA / 900mA IR LED ON
9.1" x 3.3" x 4.3" (231mm x 84mm x 110mm)
Aluminum - White
1.6 Lb.
-22°F ~ 122°F
IP66
3625 Cincinnati Avenue, Rocklin, CA 95765

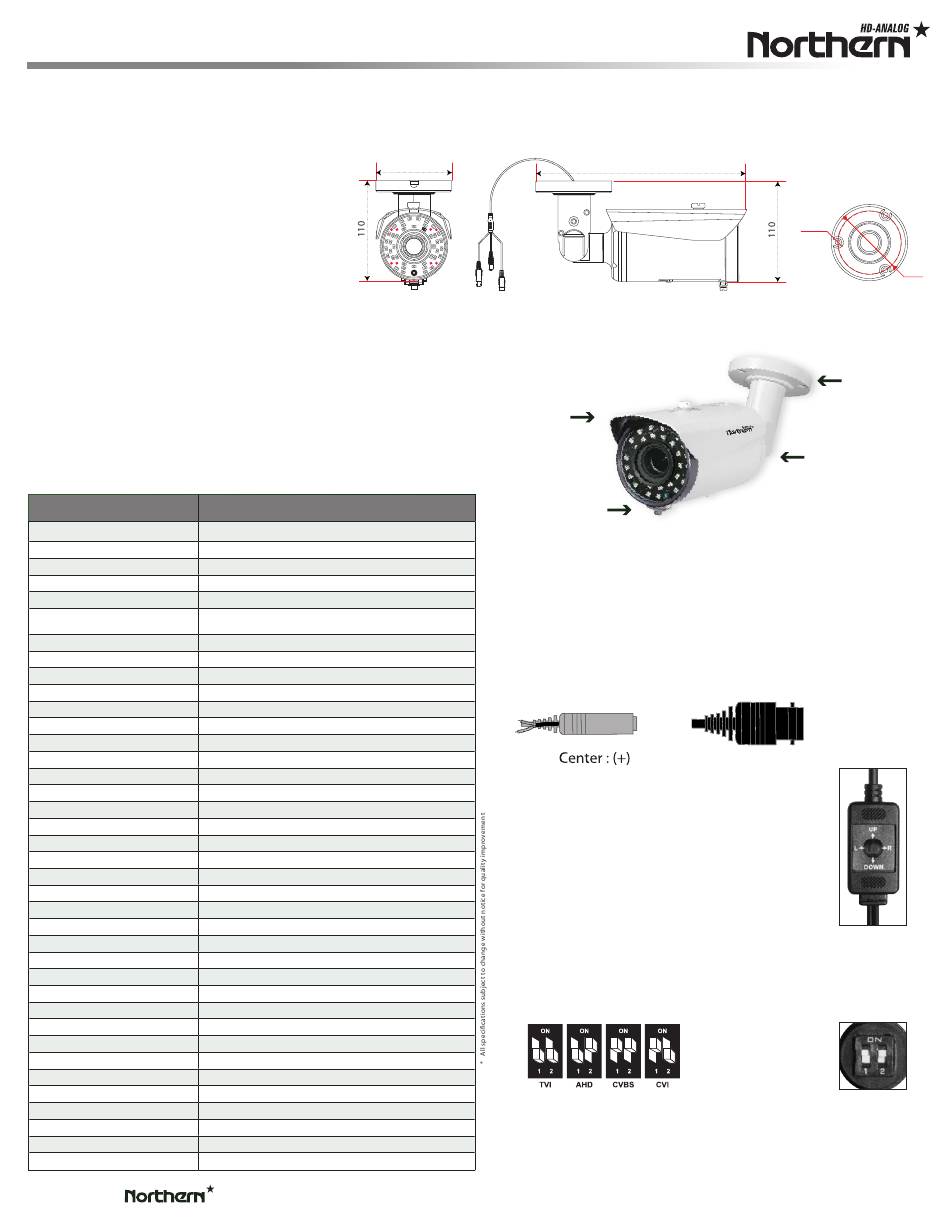

CAMERA DIMENSIONS / LINE ART
84
CAMERA COMPONENT
DESCRIPTIONS
Sun Shield
IR Adjustment
Access
CAMERA CABLE CONNECTION
Insert power lead into power connector:
be sure proper voltage is supplied and observe polarity.
Insert video lead into BNC connector:
push, then twist to lock BNC connector in place.
Power Input
OSD CONTROL
Press Up/Down to Zoom In/Out
Press Left/Right for Fine Focusing
Press in on the OSD button to access the OSD
menu and sub-menus
While in the OSD menu - press up, down, left and
right to navigate/change OSD settings
FORMAT SELECTOR SWITCH

PACKAGE CONTENTS

Mounting Hardware Packet, L-Style Wrench, Mounting Template
♦
855-388-7422
231
Video Input
In-Line
Cable Mounted
OSD Control
Cable Mounted
Dip Switch
♦
www.northernvideo.com
Ø5.5
Ø70
Mounting Base
Vertical Angle
Adjustment
Rev. 061118
