Summary of Contents for Multistar Turnigy SK450
- Page 1 SK450 Powered by Turnigy and Multistar...
- Page 2 Turnigy has done all the hard work for you. Don’t spend hours trying to work out the best components to use or time assembling. Get out there and start flying with the new, plug and fly, Turnigy SK450, powered by Multistar.

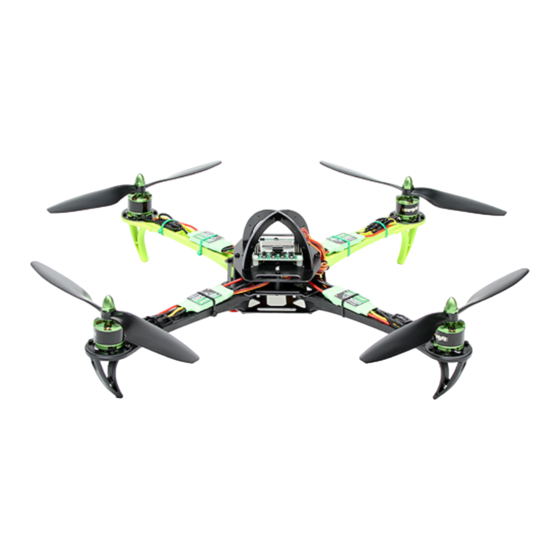

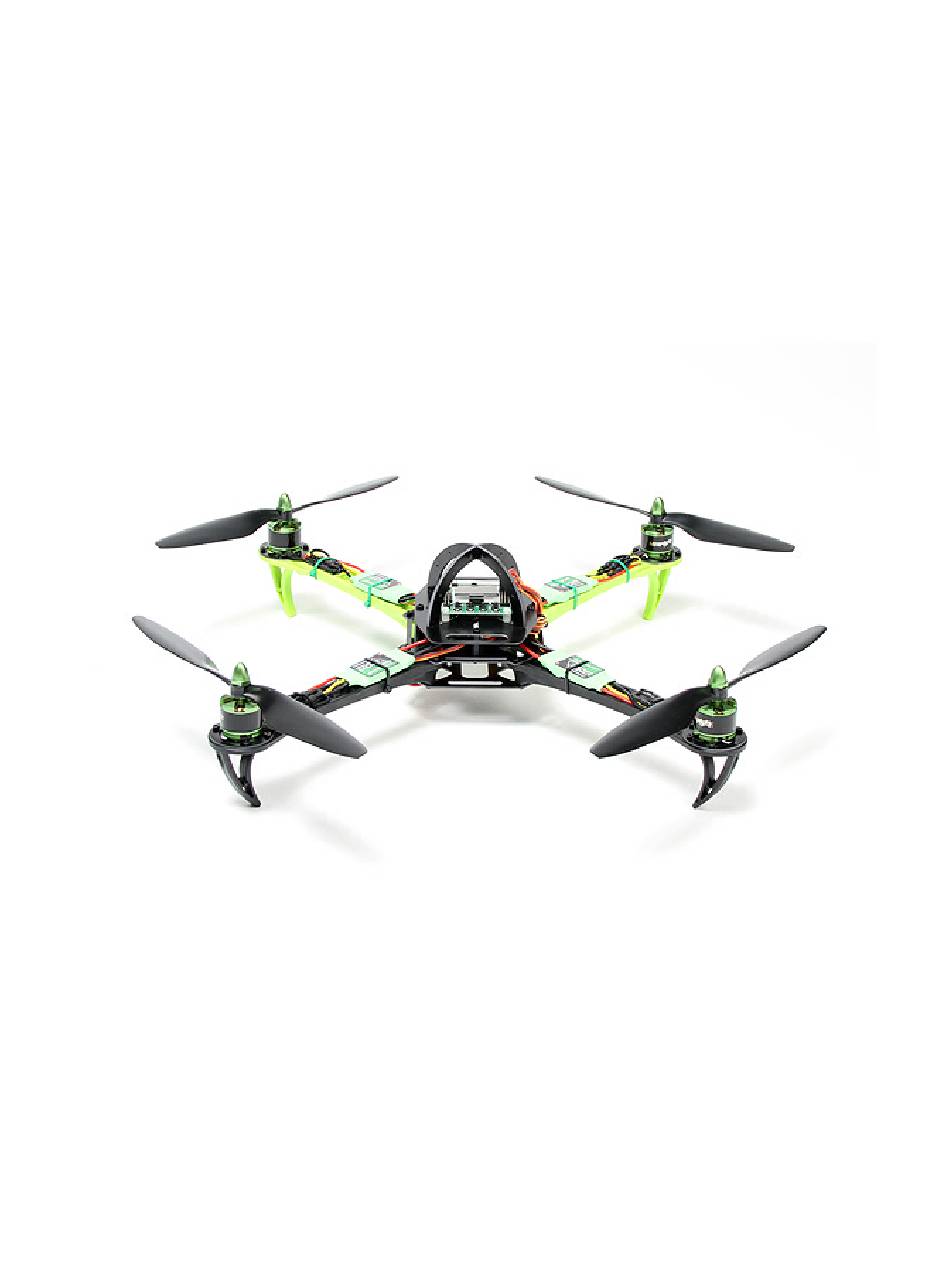

- Page 3 SK450 FRAME ESCRIPTION The Hobbyking SK450 is a brilliantly designed 450mm quad frame built from top quality materials. The main frame is high quality glass fiber while the arms are constructed from ultra durable polyamide nylon. This quad not only looks great, its very well thought out as well. Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required.
- Page 4 Specs: Width: 450mm Height: 80mm Weight: 300g (w/out electronics)
- Page 5 All Multistar series ESC's come with bullet connectors installed that are suited to the ESC's rated power handling. This allows for plug and play convenience by simply adding the appropriate battery supply splitter (3,4 or 6 ESC) and motor lead extensions from the Multistar modular accessory line. What could be simpler? All Multistar ESC's feature an ATmega MCU that opens the door to customizable firmware –...
- Page 7 CCW and one CW and is ideal for a 3 cell set-up for a 450 size Quad, 550 Hex or 700 Octo. And for those running a 4 cell set up can use 8045 size prop for an ultra-fast response. These Multistar outrunners have been specifically designed from the ground up for multi-rotor use and are not based on aeroplane motors.
- Page 8 KK2.1.5 MULTI-ROTOR LCD FLIGHT CONTROL BOARD ESCRIPTION The next evolution of the rotor revolution is here!! The KK2.1.5 is packing new found power with updated sensors, memory and header pins. The KK2.1.5 is next big evolution of the first generation KK flight control boards. The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts.
-
Page 9: Initial Setup
• Signal to ESC: 1520us Firmware Version: 1.6: • X8 + Pre-installed firmware. • X8 X • Dualcopter • H8 • Tricopter • H6 • Y6 • V8 • Quadcopter + • V6 • Quadcopter X • Aero 1S Aileron •... - Page 10 -Mount the FC on the frame with the LCD facing front and the buttons facing back. -Connect the receiver to the pins on the left side. The negative (black or brown) lead towards the edge of the FC. The order is, from front to back: Aileron, Elevator, Throttle, Rudder and AUX. Connect AUX to a switched channel on your transmitter.
- Page 11 Sub-menu descriptions. "PI Editor": Adjust the PI gain settings here. Use the PREV and NEXT buttons to highlight the parameter you want to change, then press the CHANGE button. To adjust both Roll and Pitch at the same time, see the "Mode Settings "sub-menu.
-
Page 12: Tuning Guide
4: Press down button 1 and 4, keep pressing until last step. Releasing the buttons aborts the calibration. 5: Turn on power to the FC 6: Wait for the ESC to beep its full throttle calibrated signal. Takes a few seconds, depends on the ESC. 7: Lower the throttle to idle.
