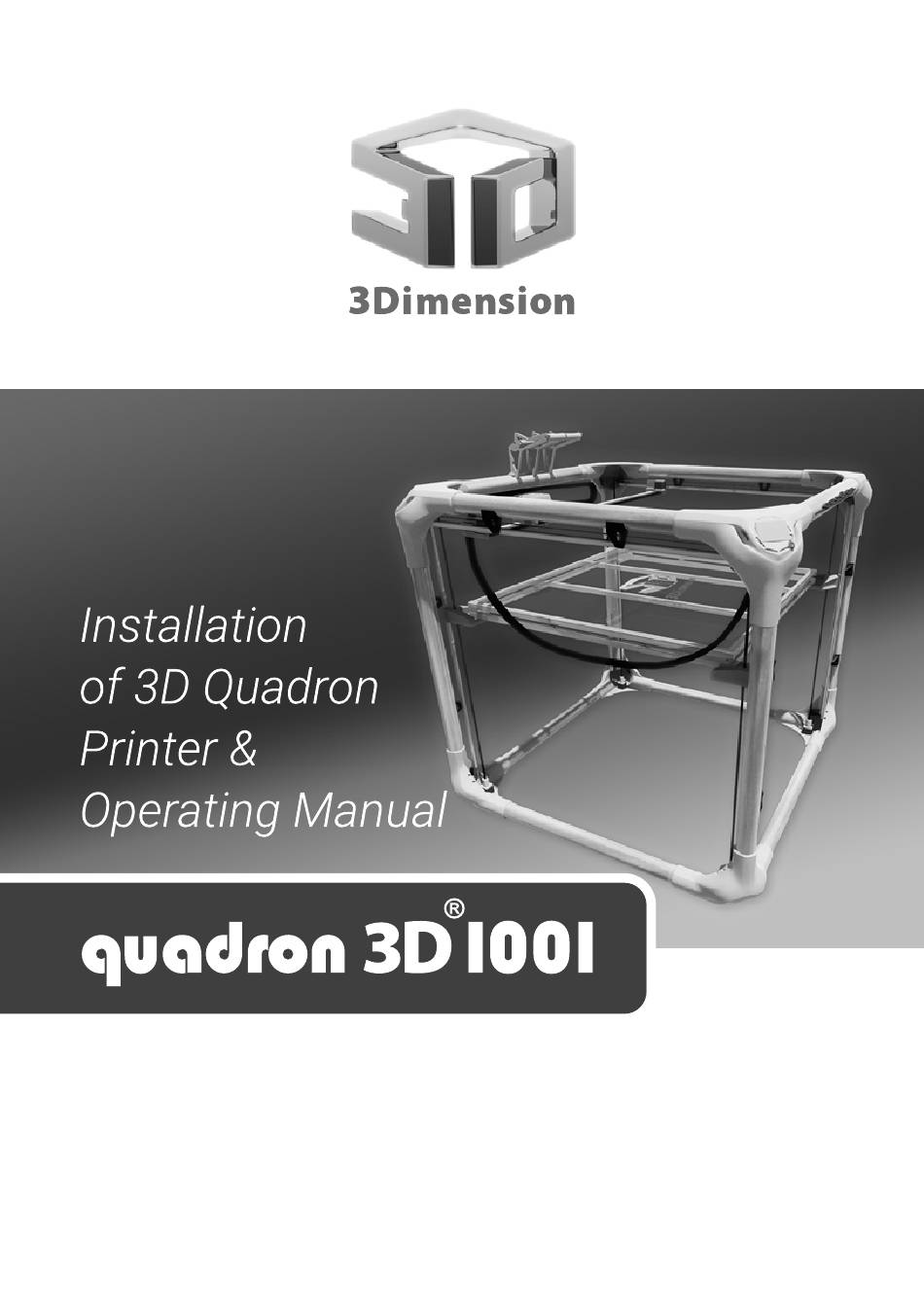

Summary of Contents for MYMEDIA Quadron 3D 1001
-
Page 3: Table Of Contents
Post-Printing Problems with the Object............12 Correct Wiring of Connectors ................12 Fluidity of Axes ......................12 General Information ....................12 Disposal of the Device.................... 13 WARRANTY CERTIFICATE ..................14 EC DECLARATIONOF CONFORMITY..............15 Manufacturer: MYMEDIA, s.r.o., Popradská 40, 821 06 Bratislava, Slovakia Technical support: info@3dimenzia.sk... -
Page 4: Technical Parameters
Technical Parameters the moving parts of the device with a block or objects and tools. Never carry out any structural ® Quadron 3D 1001 modifications on, or interventions in, the device that were not recommended and approved by Build volume: (mm) x 1000 - y 1000 - z 1000 ... -
Page 5: Quadron Printer Assembly
Quadron Printer Assembly Start assembling the printer by placing the part 5 (Figure 1) on a stable horizontal surface. Insert ver- tical axes in its corners (Figure 1). In the clockwise order, start with the corner containing the power supply. Insert the part 1 on the vertical axes. At the same time, plug the cable from the display to the lower corner containing the power supply. -
Page 6: Preparation Of The Printer For Printing
nently safe and reliable state that corresponds to the valid electrotechnical regulations. Persons without professional electrotechnical qualifications may operate the electrical device under safe-and low-voltage the way that they cannot come into contact with any uncovered live parts of the electrical device, and only where the local or other safety regulations were deve- loped. -
Page 7: Introduction Of Filament Into The Print Head
“Materials” section. On the LCD panel, press the main button to gain access the main menu. In- troduce the filament into the print head sleeve. The engine captures the filament and inserts it itself into the print head. Cut the tip of the filament perpendi- cularly. -
Page 8: Materials: Pla, Petg, Carbon, Flex, Pva
Materials: PLA, PETG, Glass Cleaning CARBON, FLEX, PVA After having cleaned it thoroughly with the spa- tula, we recommend cleaning the print surface Filament is supplied on a spool containing the (glass) smooth with a damp cloth or a paper tis- the manufacturer's basic information, the type sue without using any detergents and abrasives. -
Page 9: Printing Of Own Models
the possibility of continuing it. We recommend favorite model-maker is 123D Design - http:// printing via the SD card. www.123dapp.com/design, which exists in ver- sions designed for PC, Mac and iPad. There, you 1. The model must be in the ”*.gcode” format. find a quick guide and detailed video tutorials, so it is a very good choice for the beginning 2. -
Page 10: Printing Of Nonstandard Objects
Printer Maintenance 3. Navigate to the more detailed print settings, and filament and printer settings. and Troubles in Printing 4. If the model is ready for printing, genera- Glass cleaning is the most common main- te the necessary .gcode with this button. tenance of the printer. -
Page 11: Maintenance Of The Extruder Outside The Printer
Maintenance of the Extruder Outside the Printer Quadron printers have the removable printing extruders. In the case of simple maintenance or replacement, unscrew (Figure 14) the left (No. 1) or right (No. 2) print head out. Figure 12: Open print head of the extruder Unscrew the sleeve and select the Teflon tube from the nozzle using a small cylindrical rasp that is included as part of the accessory. -
Page 12: Cleaning The Nozzle From The Outside
After each longer printing, we recommend ex- panding the extruder, remove the sleeve and clean or replace the Teflon barrier. Post - Printing Problems with the Object The object cracks or can be easily destroyed - a typical ABS property. If the temperatures were set correctly, the printer is outside the draught, and the design was well-planned, the print shou- ld not crack. -
Page 13: Disposal Of The Device
- Y-axis 1400 mm; height - Z-axis 1400 mm The printer is wider than most standard doors, so consider the printer mounting location. Room temperature : 16-30 °C. Structure Aluminum profiles 3D printed parts - PLA, Carbon ... -
Page 14: Warranty Certificate
Thank you for purchasing a product made by children or persons with limited physical or MYMEDIA. We would like to inform you that this mental capabilities, except when supervised product is subject to a warranty that complies by a person responsible for their safety. -
Page 15: Ec Declarationof Conformity
The technical documentation is stored at the Manufacturer's address. In terms of electrical safety, we refer to the EC Declaration of Conformity for MEAN WELL SP-240-12 power adaptors. Ing. Marek Vysopal, Director of MYMEDIA, s.r.o. Date of issue: 14.03.2018 Place of issue: Bratislava...
