Summary of Contents for ShareVgo SXB1000

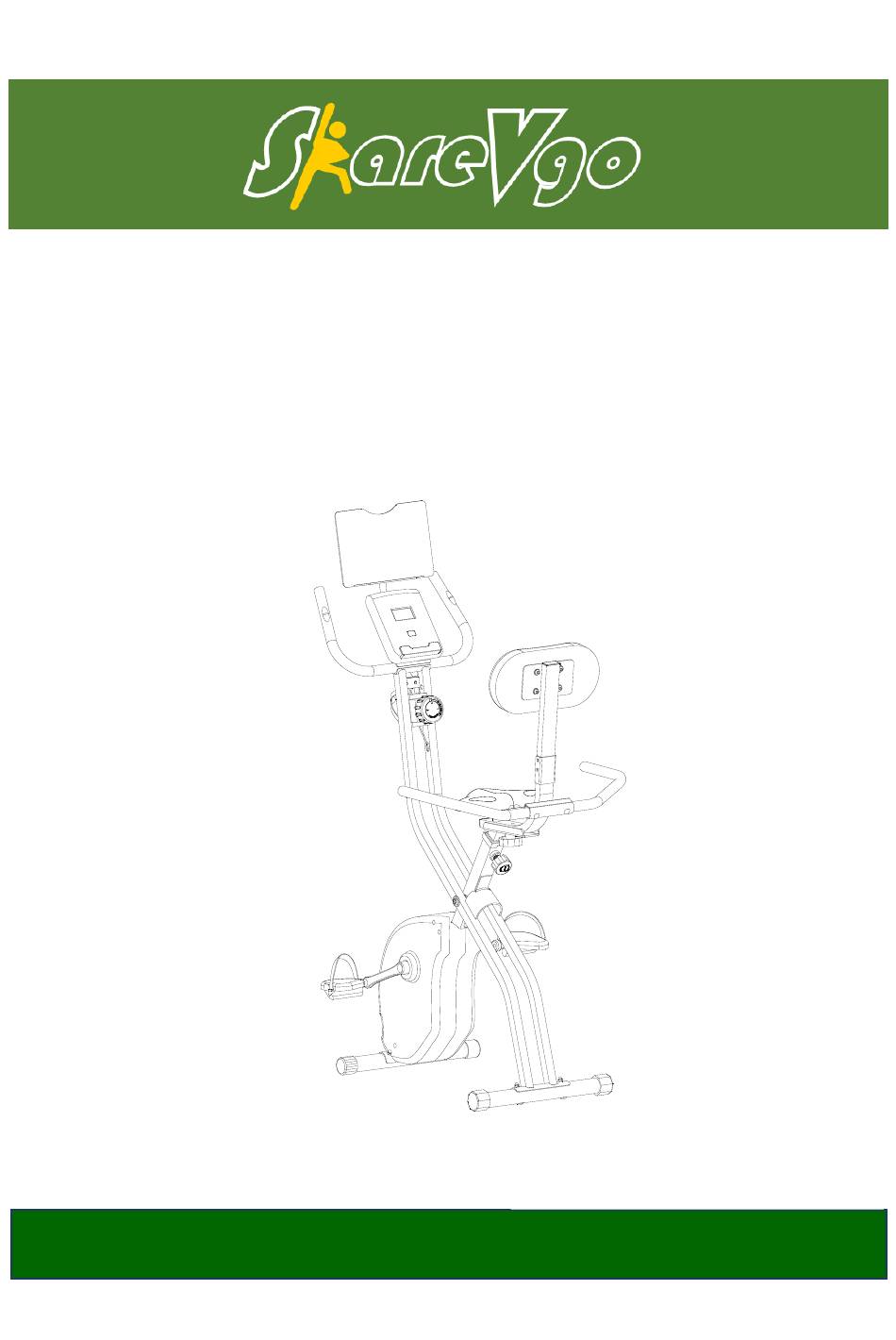

- Page 1 Smart Folding Exercise Bike with Backrest and Pulse Model: SXB1000 FCC ID:2AR8P-HONGYUAN203 Item# M1B1 Last Modified: Dec 1, 2018 Email: support@sharevgo.com Owner’s Manual ...
-
Page 2: Before You Begin
ShareVgo Smart Folding Exercise Bike safely so that you and your loved ones do not get hurt. Let’s review the safety notes and warnings now. If you have any questions, please contact support@sharevgo.com... - Page 3 M1B1 ShareVgo Smart Folding Exercise Bike User manual warning statement The user is cautioned that changes or modifications not expressly approved by the party responsible for Caution: compliance could void the user's authority to operate the equipment.
-
Page 4: Part Drawing
M1B1 ShareVgo Smart Folding Exercise Bike Part Drawing ... -
Page 5: Part List
M1B1 ShareVgo Smart Folding Exercise Bike Part List NO. Description Qty NO. Description Qty 1 Monitor 1 36 Foam Grip Φ23*5*450 2 2 Universal Tablet Holder Post 1 37 Washer d8*Φ16*1.5 11 3 Foam Grip Φ23*5*350 2 38 Rear Handlebar 1 4 Front Armrest 1 39 Bushing F38*38*F30*30*L96 1 ... - Page 6 M1B1 ShareVgo Smart Folding Exercise Bike Step 1 - Base Tubes and Pedals Assembly 1-1: Attach the Front Base Tube (30A) to the Front Main Frame (25) and secure it by using 2 Square Bolts (33), 2 Arc Washers (31), and 2 Nuts (32).
- Page 7 M1B1 ShareVgo Smart Folding Exercise Bike Step 2 – Handlebar and Saddle Assembly 2-1: Attach the Front Handlebar (4) with the up, and Handle Pulse Sensors (5) facing at the same time, attach the Monitor/Tablet Plate (12) to the Main Frame (14) using 2 Bolts (10) and 2 Arc Washers (11).
- Page 8 M1B1 ShareVgo Smart Folding Exercise Bike Step 3 – Backrest and Rear Handlebar Assembly 3-1: Attach the Backrest Post (50) to the Saddle lower hole Base Tube (44) and secure it at the using Bolt (45), Washer (37), and Nut (43). Insert...
- Page 9 M1B1 ShareVgo Smart Folding Exercise Bike Step 4 – Monitor 4-1: Open the cover at the back of Monitor (1), install the 2 AAA batteries into the slot and then close the cover. 4-2: Remove the 2 pre-installed Screws (13) from the back of the Monitor (1).
- Page 10 M1B1 ShareVgo Smart Folding Exercise Bike Step 5 – Tablet Holder Assembly & 水壶架 5-1: Attach the Tablet Holder (20) to Tablet Holder Post (2) using Bolt (19), Washer (37), and Nut (43).
- Page 11 M1B1 ShareVgo Smart Folding Exercise Bike Monitor Operation & Function MODE button: 1. Press to select functions. 2. Press and hold 3-5 seconds to reset time, distance, calorie values to zero. Operations: 1. SCAN: Press MODE until ‘SCAN’ appears. The monitor will rotate through all 6 functions: Time, Speed, Distance, Calorie, Odometer, and Pulse.
- Page 12 M1B1 ShareVgo Smart Folding Exercise Bike Connecting to Mobile Device STEP 1 - Get it assembled Make sure your equipment is assembled properly, batteries are installed, and the monitor is ON. STEP 2 - Get the app...
- Page 13 M1B1 ShareVgo Smart Folding Exercise Bike R Connecting to Mobile Device FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 14: Maintenance And Storage
M1B1 ShareVgo Smart Folding Exercise Bike Maintenance and Storage ... - Page 15 M1B1 ShareVgo Smart Folding Exercise Bike Inspect all parts and make sure all nuts, bolts, and screws are completely tightened before each use. To clean, wipe this equipment with a damp cloth. DO NOT use abrasive cleaners or solvents.
-
Page 16: Product Warranty
Product Warranty 90-day Limited Warranty ShareVgo, LLC. warrants that this product will be free from defects in materials and workmanship for a period of 90 days from date of purchase when purchase of the product is from an authorized retailer and is used for the purpose intended, under the conditions that it has been installed and operated in according to ShareVgo’s Owner’s Manual.
