Installation and maintenance instructions for GRAF septic
3750 L
Order No. 370016
4800 L
Order No. 370017
6500 L
Order No. 370018
The points described in these
instructions must be observed
under all
circumstances.
warranty rights are invalidated
in the event of non-observance.
Separate
instructions are enclosed in the
transportation packaging for all
additional
articles
from GRAF.
The tank must be checked for
any damage prior to insertion
into
the
trench
circumstances.
Missing
instructions
downloaded on www.graf.info or
can be requested from GRAF.
info@graf.info
www.graf.info
tanks, Carat series

Table of contents

1.
All
1.1
2.
installation
3.
4.
purchased
5.
5.1
5.2
5.3
5.4
6.
under
all
6.1
6.2
can
be
6.3
6.4
6.5
6.6
7.
10 / 36
11
11
12
13
14
14
15
15
16
16
17
17
17
17
17
18
18
18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carat series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graf Carat series

Summary of Contents for Graf Carat series

  • Page 1: Table Of Contents

    Installation and maintenance instructions for GRAF septic tanks, Carat series 3750 L Order No. 370016 4800 L Order No. 370017 6500 L Order No. 370018 Table of contents The points described in these instructions must be observed GENERAL NOTES under all circumstances.

  • Page 2: General Notes

    Only original GRAF covers or covers approved in writing by GRAF must be used. GRAF offers an extensive range of accessories, all of which are designed to match each other and which can be extended to form complete systems. The use of other accessories may lead to impediments to the system's functional capability, therefore invalidating liability for resulting damage.

  • Page 3: Installation Conditions

    Installation conditions Mini telescopic Maxi telescopic dome shaft dome shaft Telescopic with cast iron lid Coverage heights with telescopic dome shaft in green areas. The mini dome shaft produces a depth of cover of between 420 – 620 mm.

  • Page 4: Technical Data

    Technical data Hges Hges with mini tank dome Hges Hges with tank dome, high version Tank 3750 litres 4800 litres 6500 litres Art. No. 370002 370003 370004 Weight 150 kg 185 kg 220 kg 2280 mm 2280 mm...

  • Page 5: Tank Structure

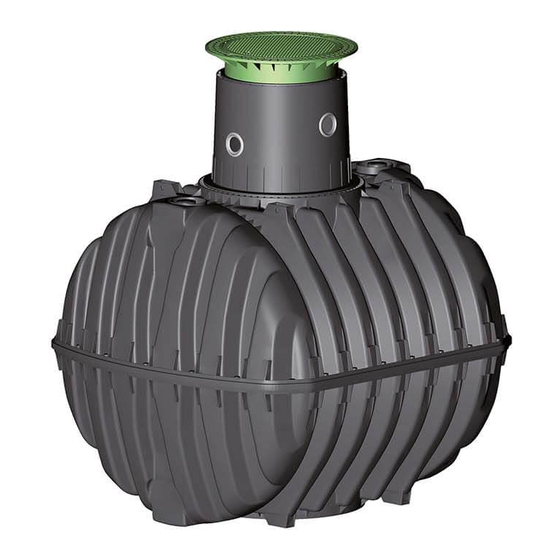

    Tank structure Cover Telescopic dome shaft (can be inclined by 5°) Profile seal Tank dome (can be rotated by 360°) Tank - tank dome seal Carat underground tank Baffle Installation and assembly Subsoil Covering layer Telescopic dome shaft...

  • Page 6: Construction Site

    Installation and assembly Construction site Under all circumstances, the following points must be clarified prior to installation: The structural suitability of the ground according to DIN 18196 Maximum groundwater levels which occur and drainage capability of the subsoil Types of load which occur, e.g.

  • Page 7: Insertion And Filling

    (to be provided at construction site). The apertures must be drilled to the corresponding size using only the GRAF special crown bit. It must be ensured that the distance between the tanks is at least 600 mm. The pipes must project at least 200 mm into the tanks.

  • Page 8: Assembling The Tank Dome And Telescopic Dome Shaft

    Assembling the tank dome and telescopic dome shaft Assembling the tank dome „A“ Prior to assembly, the enclosed seal is inserted into the tank domes’s groove „B“. The tank dome is then aligned with the piping connections and is locked to the tank neck. It is essential to make sure that the upper seal "A"...

  • Page 9: Truck Telescopic Dome Shaft

    GRAF SARL – 45, Route d´Ernolsheim – F-67120 Dachstein Gare – Tel.: 0033/388497310 – Fax: 0033/388493280 GRAF Iberica – C/Marquès Caldes de Montbui, 114 baixos – ES-17003 Girona – Tel.: +34/972 913 767 – Fax: +34/972 913 766 GRAF Ltd – Maidstone, Kent – UK-ME16 8Ry – Phone: +44 (0) 16 22 68 65 50...
  • Page 10 Notice de montage et d’entretien du collecteur d’eau de pluie GRAF série Carat 3750 L N° de réf. 370016 4800 L N° de réf. 370017 6500 L N° de réf. 370018 Afin garantir Sommaire fonctionnement et la longévité de votre installation, les différents...
