Summary of Contents for Costar Video Systems CVI5000

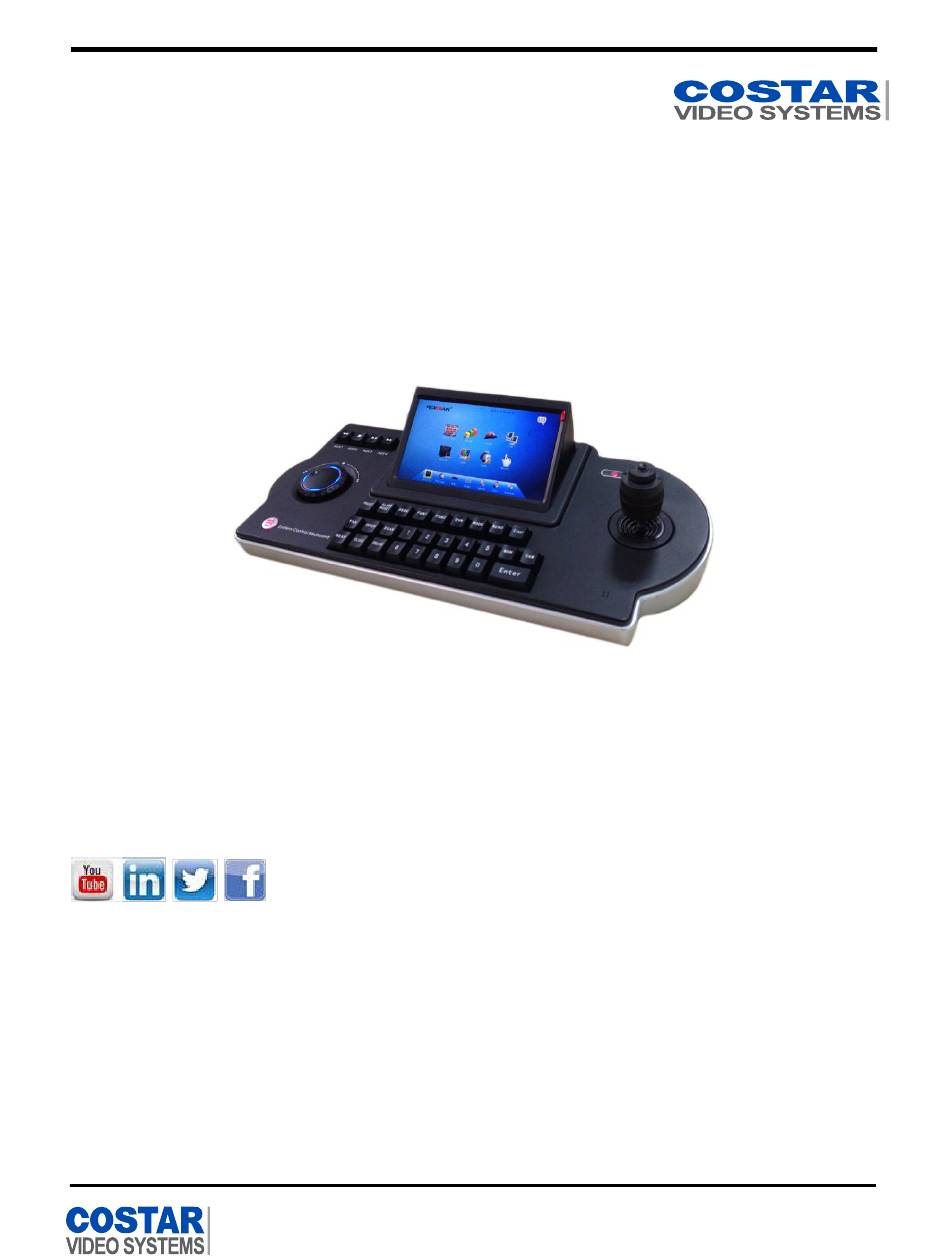

- Page 1 User Manual CVI5000 User Manual youtube.com/costarvideo LinkedIn.com/costarvideo twitter.com/costarvideo facebook.com/costarvideo w w w . Costarvideo.com (469) 635-6800 © Costar Video Systems LLC. reserves the right to change specifications without notice...
- Page 2 User Manual...
-
Page 3: Table Of Contents
User Manual Table of Contents Table of Contents Table of Contents ............................3 1.0 General Information ..........................5 About This Document ......................... 5 Copyright/Intellectual Property Rights Statement ................5 FCC Compliance ..........................5 Support Services ..........................5 2.0 Returns................................ 6 Instructions ............................ - Page 4 User Manual 8.0 WEB Interface ............................21 8.1.1 WEB Interface Login ........................21 8.1.2 Controller ............................21 8.1.3 Controller Maintenance ........................22 8.1.4 Configuration Management ......................22 8.1.5 Controller Reboot ........................... 23 8.2 System ..............................23 8.2.1 Network Settings ..........................23 8.2.2 Time Setting ............................
-
Page 5: General Information
Please be sure to carefully review the User manual for your product before starting the installation process. About This Document This document contains information on how to install and use the CVI5000 IP Keyboard. Please read this manual carefully prior to installation to prevent any accidental damage or misuse. This manual is also available from the Costar Video Systems website at http://www.costarvideo.com/Products/VideoMatrix... -
Page 6: Returns
Installation Manual 1.0 General Information 2.0 Returns Instructions This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by the carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged condition, apparent or concealed, a claim for damage must be made to the carrier. -
Page 7: Safety
4.1 Package Contents Upon opening of the products shipping package, please verify you have received the following items: 1. CVI5000 keyboard 2. 3ft CAT5 Cable with RJ45 Connectors 3. 12VDC Power Supply +US AC plug 4. User Manual "Support Services"... -
Page 8: Product Overview
User Manual 6.0 Factory Defaults 5.1 Product Overview 1. Shuttle: used to control optional NVR recorder 2. LCD Screen: display any registered camera 3. Keyboard Keys: direct entry to display or control functions of cameras 4. Indicator: Network connection activity LED 5. -
Page 9: Product Description
6.0 Factory Defaults 5.3 Product Description The CVI5000 is a new generation of IP Keyboard. Used in control center environment it can display registered IP cameras on the onboard LCD screen or to a connected external monitor. Using the Joystick the operator can control various types of PTZ or high speed dome devices or if supplied optional NVR recorder connected to the same network. -
Page 10: Technical Specifications
User Manual 6.0 Factory Defaults 5.5 Technical Specifications 7-inch LCD screen design, support 1024 * 600 resolution output 1 HDMI output, up to support 3840 * 2160 resolution output 7-inch LCD Simultaneous display of the image of the controlled device currently controlled window, support H265, H264, MPEG4 HDMI output display consistent with the LCD screen Support PTZ control, preset setting and calling... -
Page 11: Factory Defaults
User Manual 6.0 Factory Defaults 6.0 Factory Defaults Factory Default IP Address and Settings The camera is shipped with the following network settings: IP Address: 192.168.6.254 Subnet mask: 255.255.255.0 Gateway: 192.168.6.1 Factory Default User Names and Passwords The camera is shipped with the user names and passwords shown in the table. Access Level Username Password Administrator admin... - Page 12 User Manual 6.0 Factory Defaults On the "NET" tab, click the "Search" button to search for the IP address of all supported devices in the LAN, including the address of the keyboard, as shown in the following figure: Click "IP Settings" to set the keyboard IP address, subnet mask and gateway. After setting the desired values for your network, click "OK"...
-
Page 13: Login And Exit
User Manual 6.0 Factory Defaults Login and Exit Power on the keyboard to display the user login screen on the LCD screen as shown below: User login interface: 0 ~ 255; 0 is administrator user, you can view and modify the keyboard settings; 1 ~ 255 for the operator user, you can only view the keyboard settings Login for the first time as user: 0 Password: 12345, you are now in the administrator interface, for setting up an additional operator user (required). -
Page 14: User
User Manual 6.0 Factory Defaults 7.3.1 User Select the "User" tab to enter the account management interface, the current user has been created, as shown below: Users can be created, modified and deleted in the "User” Account Management interface. 255 operator users can be created, users and passwords only support numbers input, administrator user cannot be deleted, only the password can be changed. -
Page 15: Site
User Manual 6.0 Factory Defaults 7.3.3 Site Select the "Site Settings" tab to enter the site settings interface, the current site has been created, as shown below: You can view the field parameters that have been set to create field points, modify and delete created field points. -
Page 16: Brightness
User Manual 6.0 Factory Defaults In type "2" you can configure "port", "IP address" of NVR and so on. As shown below: 7.3.4 Brightness Select the " Brightness " tab, enter the LCD screen brightness adjustment interface, as shown below: 【Brightness】... -
Page 17: Logout
User Manual 6.0 Factory Defaults 7.3.5 Logout Select the "Logout" tab, enter the user logout interface, as shown below: 【Logout current user】 Click "Confirm" to logout the current user and return to the keyboard login page. Note: After the administrator user configures the related parameters, it needs to logout before entering the operator user to operate the controlled device. -
Page 18: System Info
User Manual 6.0 Factory Defaults 7.3.6 System INFO Check the System Information tab to view the system information of the current keyboard, such as the device name, device type, and version information, as shown in the following figure: 【Device Name】 View the current device name 【Device Type】... -
Page 19: Screenshot
User Manual 6.0 Factory Defaults 7.3.8 Screenshot Select the " Screenshot " tab, enter the capture settings interface, as shown below: 【FTP Upload】 【USB Upload】 View and set "FTP address" and "USB address", that is to save the picture path. 7.3.9 Screenshot Preview Select "... - Page 20 User Manual 6.0 Factory Defaults Check the "Back" tab to see the tabs in the previous page, as shown in the following figure: In the following two cases, enter the video preview interface 1. In the keyboard setting interface, when the cursor is on the tab, press "MENU" button to return to the video preview interface.
-
Page 21: Web Interface
User Manual 6.0 Factory Defaults 8.0 WEB Interface The WEB interface is mainly used for viewing system information of the keyboard, maintenance of equipment such as upgrading and restarting, and advanced applications such as configuring and adding IP cameras to the list. Camera list addition is only needed when the keyboard is actively decoding, support Onvif camera access and RTSP direct access. -
Page 22: Controller Maintenance
User Manual 6.0 Factory Defaults In the "Controller Information" interface, you can view the current device name, device model, hardware serial number and software version (the software version has the actual shipping version) from the "Information" column; in the " Status" column, you can view the CPU Usage, system memory, system utilization and other information. -
Page 23: Controller Reboot
User Manual 6.0 Factory Defaults 8.1.5 Controller Reboot Click "Reboot" in "Controller Reboot" to restart the keyboard. 8.2 System Under the System tab you can adjust Network Settings, Time Settings and manage users. 8.2.1 Network Settings You can edit the device IP address, subnet and default gateway. Click Save to save the new settings. -
Page 24: User Management
User Manual 6.0 Factory Defaults 8.2.3 User Management Enter any additional user (numeric value only) and corresponding passwords (numeric value only). Click Save to save the new settings 8.3 Decoder Manage Allows the configuration of decoding parameters 8.3.1 Output Port You can enable or disable to corresponding Video outputs of the keyboard and select the resolution of the attached display on Port 1. -
Page 25: Decoder Set
User Manual 6.0 Factory Defaults 8.3.2 Decoder Set Work Mode Set: Reserved for interface to VMS or Decoders. Requires customization. Camera: User can bind a new text to replace the default OSD text. Example: “W101” (default OSD text) can be replaced with “Mon 1”. Each of the windows can be named individually. Get Info With IP: User can specify the IP camera address and enter user credentials to permanently “Bind”... -
Page 26: Channel Name
User Manual 6.0 Factory Defaults 8.3.2 Channel Name User can bind a new text to replace the default OSD text. Example: “W101” (default OSD text) can be replaced with “CAM 1”. Each of the windows can be named individually. 8.4 ONVIF search Select Cameras >... - Page 27 User Manual 6.0 Factory Defaults Check one or more lines and click on "authenticate" to authenticate the selected line. The result of the authentication is shown in "Status" as shown below: Click "Add List", the camera with successful authentication can be added to the list of cameras, and the camera list will show whether added successfully.
-
Page 28: Camera List
User Manual 6.0 Factory Defaults 8.4.1 Camera List Click the "Cameras " option "Camera List", as shown below: You can view the list of registered and authenticated cameras stored in the IP Keyboard. 【Add】When the RTSP address is known, click "Add" to add the RTSP address, add parameters such as logical number and source name. -
Page 29: Application Examples
User Manual 6.0 Factory Defaults 8.5 Application Examples Connect the master keyboard, matrix, dome camera, monitor and other devices to the same LAN, as shown in the following figure: HDMI cable Network cable Matrix Switch Keyboard HDMI output and 7-inch LCD display the same image, in the upper left corner of the 7-inch LCD screen displays the current field site number (1-255), window number and camera number,... -
Page 30: Keyboard Control Matrix Operation Instructions
User Manual 6.0 Factory Defaults 8.6 Keyboard control matrix operation instructions Function operation instruction N（Win No.）+WIN+M（Cam No.）+CAM，The corresponding window on the monitor screen (WIN Switch image on N) shows the M camera image window No image on window N+WIN+0+CAM Window tour N（Win No.）+WIN+SHOT+3（Run window switch switching scheme）+M（Macro No.）+ENTER... - Page 31 User Manual 6.0 Factory Defaults Function operation instruction Rocker control the ball up / down / left / right / Direction and upper left / lower left / right up / down direction, zoom support for image zoom in / out PRESET+2(set preset）+N（preset No.）...
-
Page 32: Active Decoding Keyboard
User Manual 6.0 Factory Defaults 8.7 active decoding keyboard After the user is logged in (1-255), press 0 + MODE to switch the current mode to the active decoding mode of the keyboard, as shown in the following figure: HDMI output and 7-inch LCD output are unrelated, HDMI output support 1/4/6/8/9/10/12/16/20/25/30 split, 7-inch LCD does not support split. -
Page 33: Keyboard Operating Instruction
User Manual 6.0 Factory Defaults 8.8 Keyboard operating instruction Function Operation instruction Call out cam list N（Win No.）+WIN+M（Cam No.）+CAM，The corresponding window on the monitor screen (WIN N) shows the M camera image Switch video Forward switch FWD，current CAM No increase Backward switch BWD，current CAM No decrease M（split No 1/4/6/8/9/10/12/16/25/30）+MULT，... -
Page 34: Troubleshooting
User Manual 6.0 Factory Defaults 9.0 Troubleshooting Fault 1: power indicator does not turn on, the LCD screen has no display A. Check the supply voltage is normal, 12VDC / 2A B. Verify the transformer Is plugged-in and has good with the outlet? C. -
Page 35: System Requirements
Monitor: LCD monitor with 1920x1080 or better resolution 11.0 Service The CVI5000 Keyboard is designed for long-term use and contains no user-serviceable parts. In the event of product failure, the system should be removed from the site and returned to an authorized service center for repair. - Page 36 Installation Manual 14.0 Warranty For more information please visit us at: www.costarvideo.com...
