Summary of Contents for Keba OP 460-LD/A

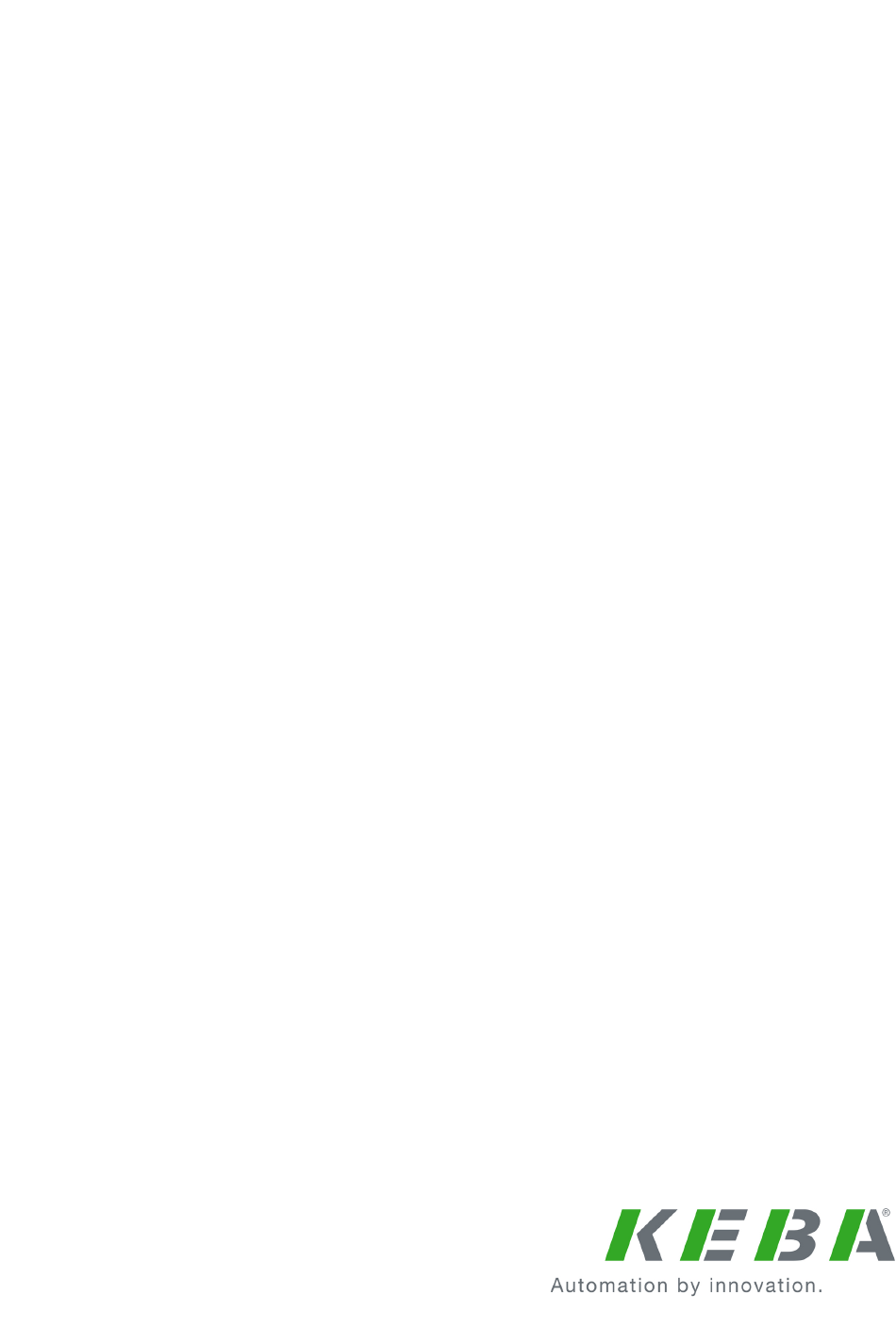

- Page 1 Kemro OP 460-LD/A Operating panel Project engineering manual V1.05 Translation of the original manual...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. KEBA AG Headquarters: Gewerbepark Urfahr, A-4041 Linz, Phone: +43 732 7090-0, Fax: +43 732 7309-10, keba@keba.com For information about our subsidiaries please look at www.keba.com.
- Page 3 OP 460-LD/A Record of Revision Record of Revision Version Date Change in chapter Description changed by 1.00 04-2009 Newly created kalt 1.01 08-2009 Mounting and instal- Attachment of the patterned foil kalt lation instructions 1.02 04-2010 product name changed 1.03...
-
Page 5: Table Of Contents
Status LED (operating panel back side)..............21 RFID status LED (only OP 460-LD/A-xx1x)............22 Touchscreen......................22 Mounting and installation instructions................. 24 General instructions....................24 Attachment of the patterned foil (only OP 460-LD/A-3xxx)........24 5.2.1 Mounting instructions................24 5.2.2 Faulty mounting..................26 Space requirement.................... - Page 6 Connection example (CP - OP)................41 Configuration........................42 Address setting for the operating panel..............42 Address setting of the RFID unit (only OP 460-LD/A-xx1x)........42 Operation and handling....................44 Removing the display protective film..............44 RFID unit (only OP 460-LD/A-xx1x)..............44 8.2.1...
- Page 7 OP 460-LD/A Table of Contents 12.2.2 EMC guideline..................52 12.2.3 Electrical safety and fire protection............52 12.2.4 Environmental and surrounding conditions..........52 12.3 Standards for the American market..............52 12.3.1 UL test for industrial control equipment..........52 12.4 Integrated RFID-Module..................52 12.4.1...
-
Page 9: Introduction
Introduction Purpose of the document This document describes the structure, installation and connection of the op- erating panel OP 460-LD/A. Information This manual is not adressed to end costumers! Necessary safety notes for the end costumer have to be taken into the costumer manual in the respective national language by the machine builders and system providers. -
Page 10: Intended Use
OP 460-LD/A. Because of the fact that costumer variants may differ in their appearance (e.g. with a different front cover) from the KEBA standard variant, the pictured de- vices used in this manual may differ in their appearance from the devices used by you. -
Page 11: Documentation For Further Reading
OP 460-LD/A Introduction ● Key evaluations with functions from the IEC-library. Documentation for further reading Doc.No. Designation Target group XE 040/A, XE 040/B DE: 1000725 Project engineer, start-up technician Input/Output module and service technician EN: 1000726 Project engineering manual Moreover, the following documents are to be observed depending on the sys-... -
Page 12: Safety Notes
Safety notes OP 460-LD/A Safety notes Representation At various points in this manual you will see notes and precautionary warnings regarding possible hazards. The symbols used have the following meaning: DANGER! ● indicates an imminently hazardous situation which will result in death or serious bodily injury if the corresponding precautions are not taken. -
Page 13: Safety Instructions For Personal Safety
Excluded from this is maintenance work that is expressly allowed by KEBA. ● The keys of the OP 460-LD/A must not be operated with sharp-edged or peaked items (e.g. screwdriver) since this damages the keys. Safety instructions for personal safety... -
Page 14: Operating Panel Description
● Display: 15'' TFT, 16 Millionen colors ● Touchscreen Additionally product variant OP 460-LD/A owns an integrated RFID-device (Radio Frequency IDentification). KeView ViewStandard As visualization system, is used, which is projec- KeView ViewEdit. -
Page 15: Front View
OP 460-LD/A Operating panel description Front view Fig.3-1: Device layout of the operating panel OP 460-LD/A ... Opening for operating or signaling ele- ... 10 membrane keys with tactile feed- ments, can be provided with blank back plugs..RFID antenna (optional) ... -
Page 16: Rear View
Operating panel description OP 460-LD/A Rear view Fig.3-2: Device layout on the operating panel back side (shown without wiring) ... DIP switch for the address setting of ... DIP switch for the address setting of the RFID mode (optional) the operating panel ... -
Page 17: Device Dimensions
OP 460-LD/A Operating panel description Device dimensions Fig.3-3: Dimensions of the operating panel OP 460-LD/A (specifications in mm) Ordering information Ordering information legend Abbreviation Significance Operating panel (Operating Panel) CPU module of the KeControl control LVDS Low Voltage Differential Signaling Panel Link Project engineering manual V1.05... -
Page 18: Operating Panel
Operating panel description OP 460-LD/A 3.5.1 Operating panel Order Description Designation Comment number Operating panel OP 460-LD/A-0000 76960 Operating panel OP 460-LD/A-0010 77030 3.5.2 Accessories The following accessories are available for the operating panel. Cables general Order Description Designation Comment... - Page 19 OP 460-LD/A Operating panel description Connector Order Description Designation Comment number For connection cable Y-Adapter XW 042-002 72080 to CP 23x For 16 inputs for the connection of external 20-pole female connector switching elements 72262 such as toggle switches etc.
-
Page 20: Displays And Operating Elements
Displays and operating elements OP 460-LD/A Displays and operating elements Keypad and LED assignment The following image shows the assignment of the KEY- and LED-Codes on the keypad. The KEY- and/or LED-Code is required to activate the keys and LEDs through the software. -
Page 21: Status Led (Operating Panel Back Side)
OP 460-LD/A Displays and operating elements Status LED (operating panel back side) Fig.4-2: Status LED on the operating panel back side There is a status LED in SMD design (surface-mounted device) on the main printed circuit board of the operating panel that is visible on the operating panel back side through a ventilation opening. -
Page 22: Rfid Status Led (Only Op 460-Ld/A-Xx1X)
Displays and operating elements OP 460-LD/A RFID status LED (only OP 460-LD/A-xx1x) The RFID status LED is located on the front side of the operating panel and indicates the states of the RFID card detection: LED status Meaning RFID card not recognized or not authorization. - Page 23 Information If there is a linebreak at touch detected, the touch input is deactivated and the cursor starts jumping between two fixed positions. The product has to be send to KEBA for repair. Project engineering manual V1.05 © KEBA 2012...
-
Page 24: Mounting And Installation Instructions
The operating panel variant OP 460-LD/A-3xxx is delivered without a keypad overlay. This allows the device design to be modified individually. Designable Patterned foils can be purchased from KEBA. In case of using a different foil, KEBA does not assume warranty. The panel thereby loses its CE conformity and UL control mark. - Page 25 OP 460-LD/A Mounting and installation instructions Mounting of the patterned foil CAUTION ● Touching the adherend per hand or with other objects results in damaging the keyboard! ● It is not possible to detract the keyboard overlay and fix it again.
-
Page 26: Faulty Mounting
5.2.2 Faulty mounting Inappropriate mounting of the patterned foil may result in restricting the func- tioning of the panel. Therefore return the panel to KEBA for reparation in case of faulty mounting. Information KEBA assumes no liability for potential damage due to the adhesive bounding of the keypad overlay. -
Page 27: Required Space
OP 460-LD/A Mounting and installation instructions Fig.5-4: Opening ... Width: 420 mm ... Height: 378 mm In each case, the tolerance is +/- 0.5 mm. 5.3.2 Required space The following free spaces must be provided to ensure sufficient air circulation and to prevent contact with other objects: Fig.5-5:... -
Page 28: Maximum Installation Inclination
A vertical installation of the operating panel is recommended. The following maximum deviations are permitted: Fig.5-6: Maximum installation inclination Consult with KEBA for any deviating installation positions. Information The optimum image quality is achieved with a user viewing angle of 90° cen- tred to the display surface. -
Page 29: Mounting The Operating Panel
OP 460-LD/A Mounting and installation instructions CAUTION ● All unused openings on the operating panel must be covered by blank plugs intended for this purpose or by using suitable blink covers since tightness cannot otherwise be guaranteed. ● Before installing the operating panel, check the surrounding caulking strip for damage. - Page 30 Mounting and installation instructions OP 460-LD/A Fig.5-7: Inserting the operating panel The operating panel is automatically held in place by the locking hooks. Project engineering manual V1.05 © KEBA 2012...
- Page 31 OP 460-LD/A Mounting and installation instructions Fig.5-8: Locking hooks 3) Turn mounting clamp on the back side of the panel by 90°. To do this, first loosen the hexagon distins (M4x15) of the locking units. Fig.5-9: Mounting clamp 4) Fix locking units by tightening the hexagon distins (M4x15) using a socket wrench (size 7.0 mm) at the back side of the panel.
-
Page 32: Removing The Operating Panel
Mounting and installation instructions OP 460-LD/A Removing the operating panel 1) Disable the power supply. 2) Remove all electrical plugs from the operating panel. 3) Disconnect the ground cable from the ground bolt. 4) Loosen the locking units by loosening the hexagon distins. - Page 33 OP 460-LD/A Mounting and installation instructions elements must be cleaned or replaced regularly (see chapter 5.3.2 "Required space" on page 27). Project engineering manual V1.05 © KEBA 2012...
-
Page 34: Connections And Wiring
PL..Graphics: Graphics interface for the con- trol *) Exclusively for KEBA USB modules. Power supply operating panel (0V | 24V) The operating panel is supplied by 24 V DC. WARNING! Please observe the safety-relevant information in the chapter 2.3 "Safety in-... -
Page 35: Connection Diagram
OP 460-LD/A Connections and wiring 6.2.1 Connection diagram Fig.6-2: 24 V DC connection diagram 6.2.2 Plug specification Connection terminals: 2-pin male connectors (Weidmüller SL-SMT 5.08). The necessary female connectors are not included in the scope of delivery of KEBA. Cross section according to manufacturer specifications:... -
Page 36: Protective Earthing
Connections and wiring OP 460-LD/A Cross-section The actual permissible wire cross-section is specified by the electrical condi- tions of the connected equipment an the female connectors used: ● Max. load current and required heat dissipation through the connected wire at maximum ambient temperature. -
Page 37: Plug Specification
OP 460-LD/A Connections and wiring Information These digital inputs are not EN 61131-2 conforming and may not be utilized for machine/system functions that require the EN EN 61131-2 conforming digital inputs. For such cases, use the conforming digital inputs of the control. -
Page 38: Cable Specification
Connections and wiring OP 460-LD/A Connectable conductor Cross-section finely-stranded, max. H05(07) V-U 1 mm² with wire sleeves according to DIN 46 228/1, 0.13 mm² min. with wire sleeves according to DIN 46 228/1, 0.34 mm² max. with AEH with collar DIN 46 228/4, min. -
Page 39: Cable Specification
OP 460-LD/A Connections and wiring In this case, the terminating resistor of the operating panel must be deactivated since it is not the last participant (DIP switch 6=OFF). Fig.6-4: Connection example for the RS-485-A interface ... Operating panel OP 4xx, schematic ... -
Page 40: Adjust Equalizer (Adj.)
Connections and wiring OP 460-LD/A Fig.6-5: PIN assignment (on the cable both sides 9-pole DSUB female connector) PIN no. Signal designation Termination bracket (bus termination on the device) RS485_B n.c. n.c. Termination bracket RS485_A n.c. For further information (wiring guidelines) please refer to the System manual ->... -
Page 41: Cable Specification
A 15-pole DSUB cable is used (XW 041-xxx) is used as connecting cable. Fig.6-6: Operating panel OP 4xx with CP ... 15-pole DSUB female connector Information Only cables recommended by KEBA may be used! These cables are availa- ble in different lengths (order numbers, see chapter "Ordering information" on page 17). -
Page 42: Configuration
6=ON Terminating resistor for RS-485-A interface running Address setting of the RFID unit (only OP 460-LD/A-xx1x) If multiple RFID units are present on in the complete system, a HW addressing using DIP switch is required. The DIP switch for this is located on the back side of the panel. - Page 43 OP 460-LD/A Configuration Fig.7-2: Address setting RFID unit (schematic diagram) DIP switch address setting Adr0 Adr1 Address Project engineering manual V1.05 © KEBA 2012...
-
Page 44: Operation And Handling
After the protective film has been pulled off, it should not be applied again to the display since it can no longer adhere evenly. RFID unit (only OP 460-LD/A-xx1x) The RFID unit is used for contact-free login and logout of a user via RFID card and is utilized for the user identification. -
Page 45: Functionality
Range and detection The range between RFID card and RFID antenna amounts to the range with the RFID card XC 140/A available from KEBA typical 40 mm. A detection of the card is indicated by the RFID status LED lighting up green (for 3 sec.) on the front side of the operating panel. - Page 46 Operation and handling OP 460-LD/A KeView ViewStandard visualisation system is used. For the visuali- zation application the tool [Konnte nicht in genstrings finden: key: ViewEdit sprache: en] can be used. Project engineering manual V1.05 © KEBA 2012...
-
Page 47: Maintenance
Packaging, shipment The device is wrapped into protective packaging material for shipment. For reasons of environmental protection KEBA appreciates receiving the original packaging material for multiple use. The protective packaging does not qualify as adequate transport packaging and hence is not suited for transportation via carrier haulage or airplane. Ap- propriate transportation packaging is required for these types of shipment. -
Page 48: 10 Disposal
Disposal OP 460-LD/A 10 Disposal 10.1 Disposal of the module CAUTION Please observe the regulations regarding disposal of electric appliances and electronic devices! ● The symbol with the crossed-out waste container means that electrical and electronic devices including their accessories must not be disposed of in the household garbage. -
Page 49: 11 Technical Data
OP 460-LD/A Technical data 11 Technical data 11.1 In general 24 V DC (voltage limits according to EN Nominal supply voltage: 61131-2) Max. switch-on current: 10 A Maximum power consumption (without / with 31 W 31 W RFID): Power consumption own consumption (with-... -
Page 50: Interfaces
● Type: PL (Panel Link) ● Transmission range of the operating panel up to 20 m from the control: 11.5 Option RFID unit (OP 460-LD/A-xx1x) 11.5.1 In general Nominal supply voltage: 12 V DC Maximum power consumption: 1 W (power made available by OP 3xx) - Page 51 OP 460-LD/A Technical data Front plate: Aluminium Decor film: Polyester Seal: circumferential round cord Project engineering manual V1.05 © KEBA 2012...
-
Page 52: 12 Ec Directives And Standards
Programmable controllers - Part 2 12.3 Standards for the American market 12.3.1 UL test for industrial control equipment UL 508, 2005 Industrial Control Equipment 12.4 Integrated RFID-Module Valid for product variant OP 460-LD/A-xx1x Project engineering manual V1.05 © KEBA 2012... - Page 53 OP 460-LD/A EC directives and standards 12.4.1 EC Directives Guideline 1999/5/EG Regulation for radio installations and telecommunication equipment 12.4.2 Standards The conformity with the regulations of the Directive 1999/5/EG about radio installations and telecommunication equipment is verified by the adherence to the following harmonized European norms: Electromagnetic compatibility and radio spectrum matters (ERM);...
- Page 54 Declaration of conformity OP 460-LD/A 13 Declaration of conformity The declaration of conformity of this product is available on request from KEBA. Project engineering manual V1.05 © KEBA 2012...
