Summary of Contents for Interspace Industries MasterCue V5 USB

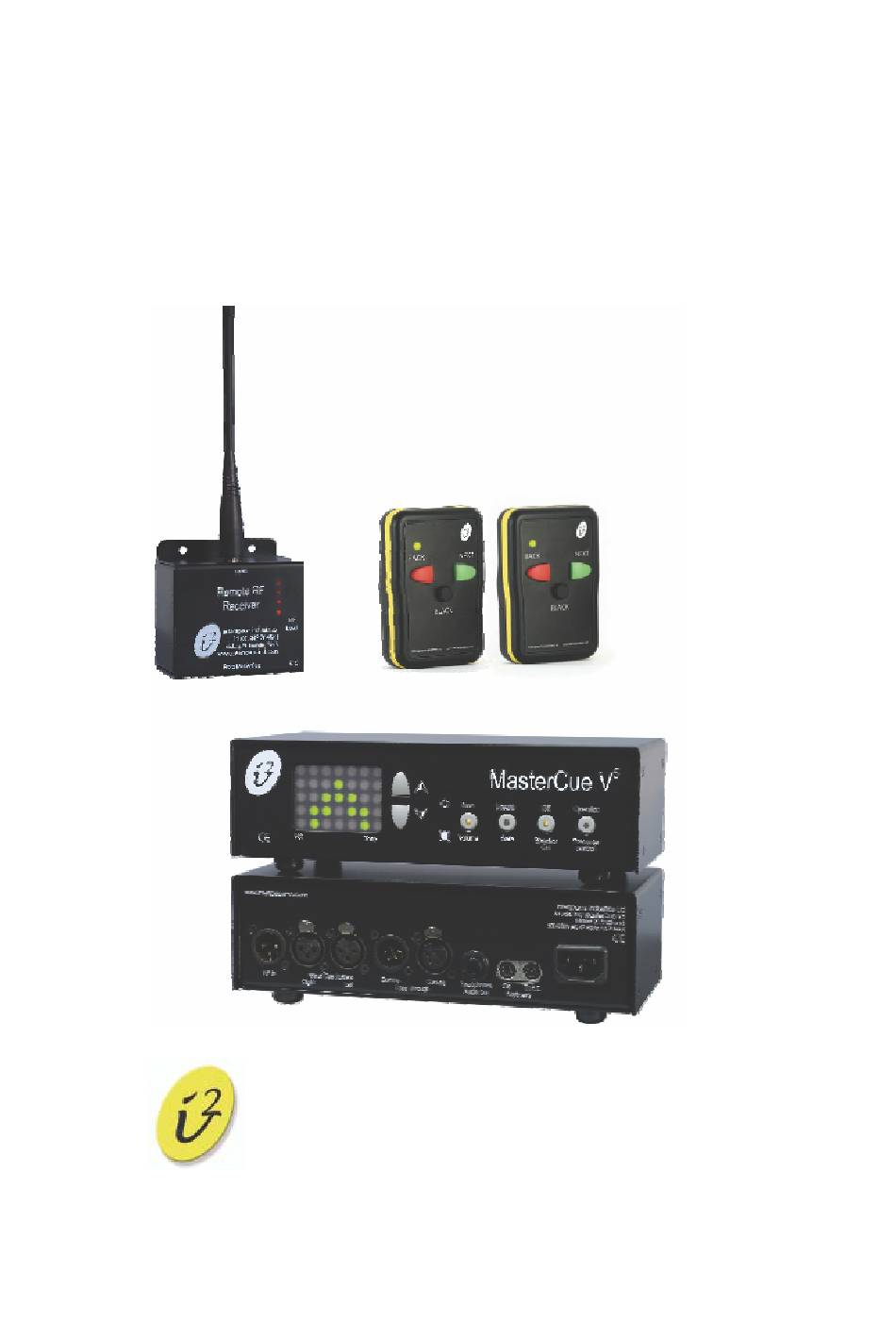

- Page 1 MasterCue V User Manual interspace industries Cueing and Presentation Control Specialists...
-
Page 2: Table Of Contents
Contents: Introduction Safety Instructions and FCC Instructions For Use Cable Connections RF System Equipment Supplied Help Line... -
Page 3: Introduction
Introduction The MasterCue V5 USB is the true professional’s presentation cueing system. Featuring USB interfacing, the MasterCue V5 USB can now connect to computers and directly control PowerPoint presentations as well as providing visual and audible cues. The V5 USB has continued to evolve throughout all MasterCue range models, building on such strengths as the robust case and the AV industrial grade wireless RF system and hard-wired remote controls. -
Page 4: Safety Instructions And Fcc
SAFTEY INSTRUCTIONS All the safety and operating instructions should be read before this product is operated and should be retained for further reference. Please adhere to all the warnings on this product and in these operating instructions. Please follow these instructions carefully: Power. - Page 5 Federal Communications Commission Handset Transmitters (FCC ID: T3Q I2TX) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Instructions For Use
OPERATING INSTRUCTIONS Unpacking and Connections. Unpack the Main Unit and place on a flat surface within easy access for the Operator. If using the keyboard control please see this separate section also. Main Unit, Receiver Unit and Handsets. Place the RF Receiver Unit behind the stage in close proximity to the wireless handsets being used (not closer than 2metres as signal overloading may occur). - Page 7 Resetting the Main Unit. To reset the Main Unit to all the factory default settings, disconnect the power from the Main Unit, wait 20 seconds and then press and hold the down arrow button beside the main display on the Main Unit while reconnecting the power.
- Page 8 To do this, with the power connected, connect the external keyboard (PS2 type) to the keyboard input on the rear of the MasterCue V5 USB. Connect the USB cable supplied to the PC. Check that the PC can be controlled.
-
Page 9: Cable Connections
Special Requirements Cables. Optimum performance of the MasterCue V5 system can be assured when using cable lengths up to 200M between the handsets and the Main Unit, and between the RF Receiver and the Main Unit. This is dependant on the quality of the cable used of course and high quality microphone cable (screened pair) is recommended for optimum performance. -
Page 10: Rf System
Radio Frequency System. The MasterCue V5 uses a proven RF system for all wireless applications. Operating frequency: 433Mhz band (UK and Europe) Transmission method: FM Maximum transmit power: 10mW This frequency is open and licence exempt for UK and Europe. Other countries should consult their respective authorities. -
Page 11: Equipment Supplied

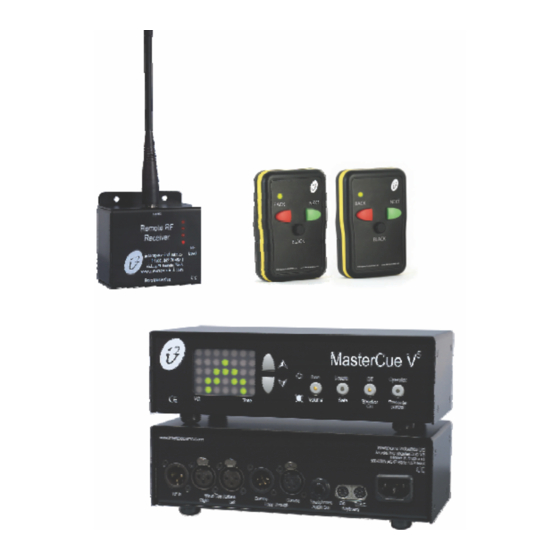

EQUIPMENT SUPPLIED 1 x MasterCue V5 USB Main Unit 1x RF Receiver Unit 2 x Dual button wired handsets 2 x Single button RF transmitters 1 x IEC Power Lead 1 x USB cable 1 x Blue 4-pin XLR comms loop –through cable... - Page 12 28 High Street Arlesey Bedfordshire SG15 6RA Tel: +44 (0)870 770 8088 Fax: +44 (0)870 770 8089 Email: marketing2004@hiveindustries.com www.interspaceind.com...
