A. OPERATION
This fixture has affluent effect programs. It can be operated easily.
DMX mode
Master mode
Slave mode
Sound-active mode
Manual mode
DMX Channels: 10/18/66channels
Pan: 540︒ +non-polar
Tilt: 360︒ +non-polar
LED dimming: 0~100% dimming smoothly
Indicator light LED function
DMX
Flash
MASTER
Bright
SLAVE
Flash
SOUND
Flash

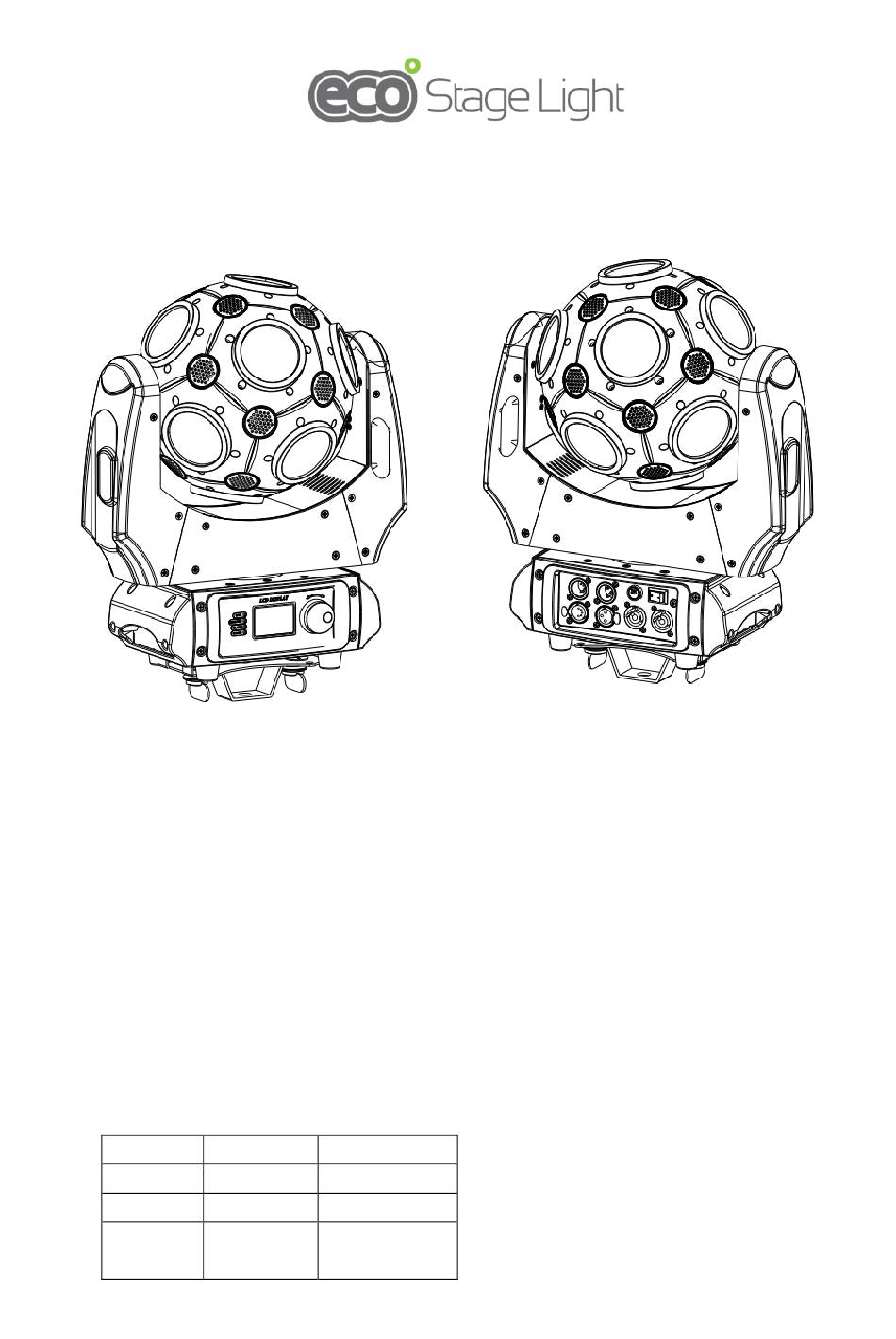

TOP-BALL12
User Manual
DMX input
Master mode
Slave mode
Sound active
mode
Advertisement
Summary of Contents for Danor Eco TOP-BALL12
- Page 1 TOP-BALL12 User Manual A. OPERATION This fixture has affluent effect programs. It can be operated easily. DMX mode Master mode Slave mode Sound-active mode Manual mode DMX Channels: 10/18/66channels Pan: 540︒ +non-polar Tilt: 360︒ +non-polar LED dimming: 0~100% dimming smoothly Indicator light LED function Flash...
- Page 2 Rotation button function Anticlockwise Choose next option rotation Clockwise rotation Choose last option Press Affirm the function DMX Channel Sheet Function DMX Value Setting Channels Channels Channels 000-255 0-540 Pan fine 000-255 0~100% Tilt 000-255 0-360 Tilt fine 000-255 0~100% P/T Speed 000-255 Speed from fast to slow...
- Page 3 W000) 049-055 Color7(R255 G255 B000 W075) 056-062 Color8(R000 G255 B000 W255) 063-069 Color9(R000 G255 B000 W150) 070-076 Color10(R000 G255 B000 W050) 077-083 Color11(R000 G255 B000 W000) 084-090 Color12(R000 G255 B050 W000) 091-097 Color13(R000 G255 B150 W000) 098-104 Color14(R000 G255 B255 W000) 105-111 Color15(R000 G255 B255...
- Page 4 196-202 Color28(R255 G000 B025 W025) 203-209 Color29(R255 G000 B025 W000) 210-216 Color30(R000 G000 B000 W255) 217-223 Color31(R075 G075 B000 W255) 224-230 Color32(R000 G000 B100 W255) 231-255 Color33(R255 G255 B255 W255) color running 000-015 No function 016-023 Jump1 024-031 Jump2(pixel effect) 032-039 Jump3 040-047...
- Page 5 006-010 Show1 011-020 Show2 021-030 Show3 031-040 Show4 041-050 Show5 051-060 Show6 061-070 Show7 071-080 Show8 081-090 Slave1 091-096 Slave2 097-160 Sound (sensitivity increasing from 097-160) 161-170 Pan invert 171-180 Tilt invert 181-190 Pan normal 191-200 Tilt normal 201-220 Black out during pan/ tilt movement 221-240 Reset after 5 seconds 241-255...
- Page 6 Menu Menu 1 Menu 2 Menu 3 Functions Menu 1 1)DMX Address 001 - 512 Address code setting 2)Channel Mode 1:10Ch Channel mode selection 2:18ch 3:66Ch 3)Run Mode 1:DMX DMX mode 2:Master Show01-Show08 Auto run mode 3:Slave Slave1 Slave mode Slave2 4:Sound 000-255...
- Page 7 adjustment Exit 7:Reset Motor reset 8:Factory Sets Restore factory set 9:Auto Test Test Exit Exit 5）Version CPU version Exit Under the 4) function of state, please press the button for 3s to enter password, then input 088 and enter Calibrations menu. 4)Functions 1:Pan 000-255...
- Page 8 d) Mater Mode Select the Show Mode menu, press the button. And then rotate the button to select run mode 01-08. Once you have set it well, please press the button to save and go back to the main menu. ...
- Page 9 DMX Fail Select DMX Fail menu, press the button. And then rotate the button to select settings: “OFF” (No DMX, lighting is off.) , “HOLD” (No DMX, lighting keeps the original state), “Auto”(No DMX, signal auto run), “Sound”(No DMX, signal sound active). ...
- Page 10 Once you have set it well, please press the button to save and go back to the main menu. If you have not done anything for 20s, it will go back to main menu automatically. DANOR Theatre & Studio systems, 9 Hanagar st.. Hod Hasharon, Israel Tel. 09-7444222 Fax.09-7466466...
