Summary of Contents for LX Navigation LX 16-D

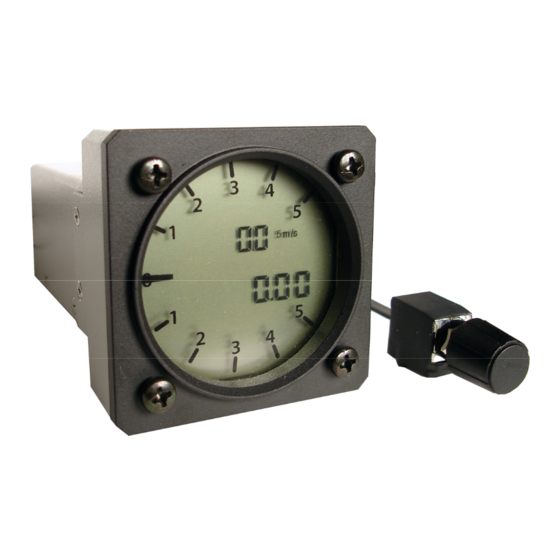

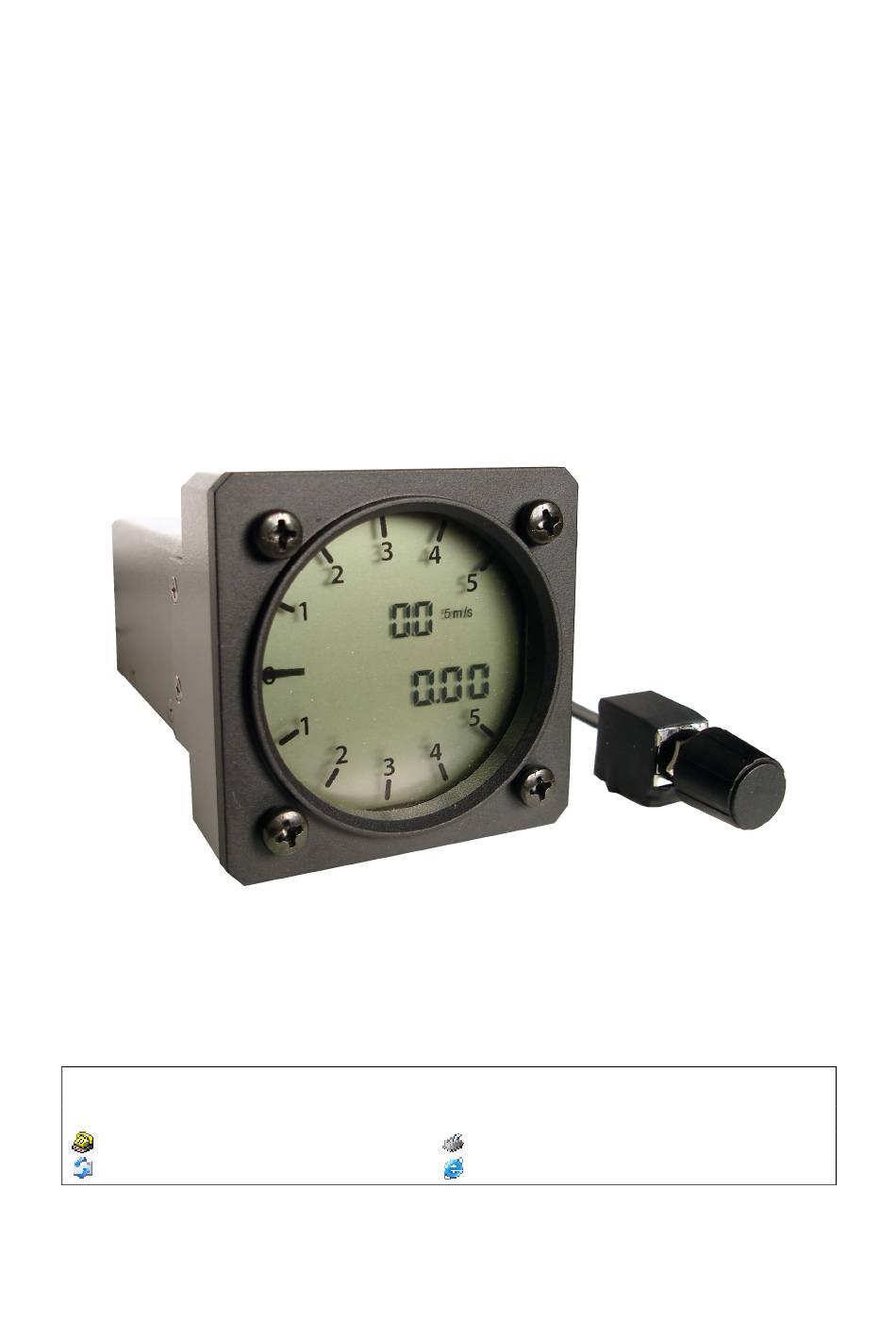

- Page 1 LX 16-D Audio -Variometer system for gliders Pilots` Manual LX navigation d.o.o. Tkalska 10 SLO 3000 Celje + 386 3 490 46 70 + 386 3 490 46 71 support@lxnavigation.si http://www.lxnavigation.si...
-
Page 2: Technical Data
1 Introduction The LX 16-D built in sensor is high quality pressure transducer, to guaranty high accuracy of vario signal and its zero . A modern low-power microcontroller drives the LCD vario indicator and supports input controls. All necessary inputs are made by using of one external rotary switch with a push button. -
Page 3: How To Use The Unit
3 How to use the unit The unit comes with an external rotary switch with push button, and you can access all the options with that button by either pressing it or turning it left/right. 3.1 Setup The unit is ready for operation immediately after power on and vario needle is back to zero. -
Page 4: Setup Menu
3.2 Setup Menu Unit selection: After press of the button on external rotary switch, the Unit selection option becomes active. You can select between m/s and kts (number next to it, is vario range). Range selection: On the second push of the button, the option for selecting Vario range will show up. Here you can then select vario Range between 2.5m/s, 5m/s and 10m/s, or 5kts, 10kts and 20kts. - Page 5 Filter selection: On the third push of the button, the option for selecting the vario Filter will show up. The vario filter range is from 0.2 till 5, in steps of 0.1. The default value is set to 3. Changing of audio volume •...
-
Page 6: Mechanical Installation
The unit is attached by four M4 screws; the positioning of these holes is the same as any other instrument of this size. Installation procedure: • Remove the four screws. • Insert LX 16-D into the cut out and fix it using the four screws. 4,5mm “ 57mmh11 φ φ φ φ 66.0mm φ... - Page 7 External rotary switch installation: You will need to drill a 7mm hole into the panel to place the external rotary switch (note that the hole needs to be in reach of the 50cm connection cable). The switch maximum dimensions are: 14mm width 17mm height 18mm length...
-
Page 8: Pneumatic Connections
ON/OFF switch, use avionic master switch or install a separate switch. Note! There is no internal fuse in the LX 16-D and you must install an external fuse with a rating of 1 amp (quick blow). In the LX 16-D delivery box you will find the following cables and accessories:... - Page 9 4.4 Wiring LX 16-D Wiring 150cm USB-D Speaker 30cm Shield(GND) Audio Out Chinch Speaker Green Green Blue Blue White White 50cm Brown Brown Black RJ 6/6 TOP VIEW External Rotary Switch 150cm +12V DC IN DB15/F...
- Page 10 LX navigation d.o.o. Tkalska 10 SLO 3000 Celje + 386 3 490 46 70 + 386 3 490 46 71 support@lxnavigation.si http://www.lxnavigation.si...
