Please read the full instructions before beginning your installation.
These instructions cover the basic kit installation and setup. Failure
to follow these instructions may result in malfunctioning of the
Caution must be observed when installing any product
Warning:
involving fuel system parts. Work in a well ventilated area with an
approved fire extinguisher readily available.
other safety apparel should be worn to protect against debris and
sprayed gasoline. We recommend having this installation per-
Instruction Manual
for the following Go EFI System
30020 - Go EFI CLASSIC
Eye protection and
A
Table of Contents
1
2
2
2, 3
3
4
4
www.P65Warnings.ca.gov.
system. For technical assistance with your Go EFI Classic System,
the FiTech EFI Tech Line at (951)340-2624
call
formed by an experienced, qualified, automotive technician. The
finished installation must be thoroughly checked for any fuel sys-
tem leaks. All safety precautions must be observed when working
with fuel. Disconnect the battery ground wire (-) before starting
the installation.

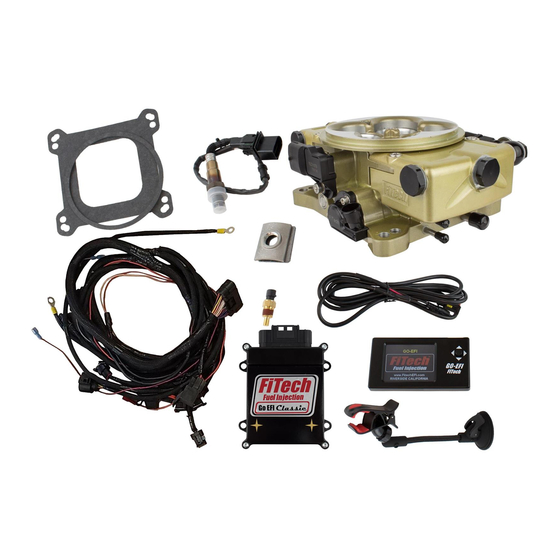

(1) 4-injector throttle body with Classic
Carburetor Gold finish.
(4) inlet/outlet port plugs (Installed on throttle
body)
(1) Harness "A" (plug-in pigtail use harness)
(1) Cable for handheld controller
(1) ECU
(1) Coolant Temperature Sensor
(1) 1/2" NPT to 3/8" NPT Reducer
(4) Injectors pre-installed
(1) Idle Air Control (Pre-Installed)
(1) Throttle Position Sensor (Pre-Installed)
(1) MAP Sensor (Pre-Installed)
(1) Handheld Controller with billet case
(1) Windsheild Mount for Controller
(1) -06 AN crossover hose with -6AN male
inlet fitting (Pre-Installed)
(1) Gasket kit
Figure 1
4
4
4
4, 5
5
Wiring Diagrams
5
With Ready-to-Run distributor
5
5, 6
6
1
Note: These kits are not
legal for use on pollu-
tion controlled vehicles
Go EFI Classic 30020
KIT CONTENTS
Sensor
2
Bung Kit
2
10
6
6
6
7
8
9
