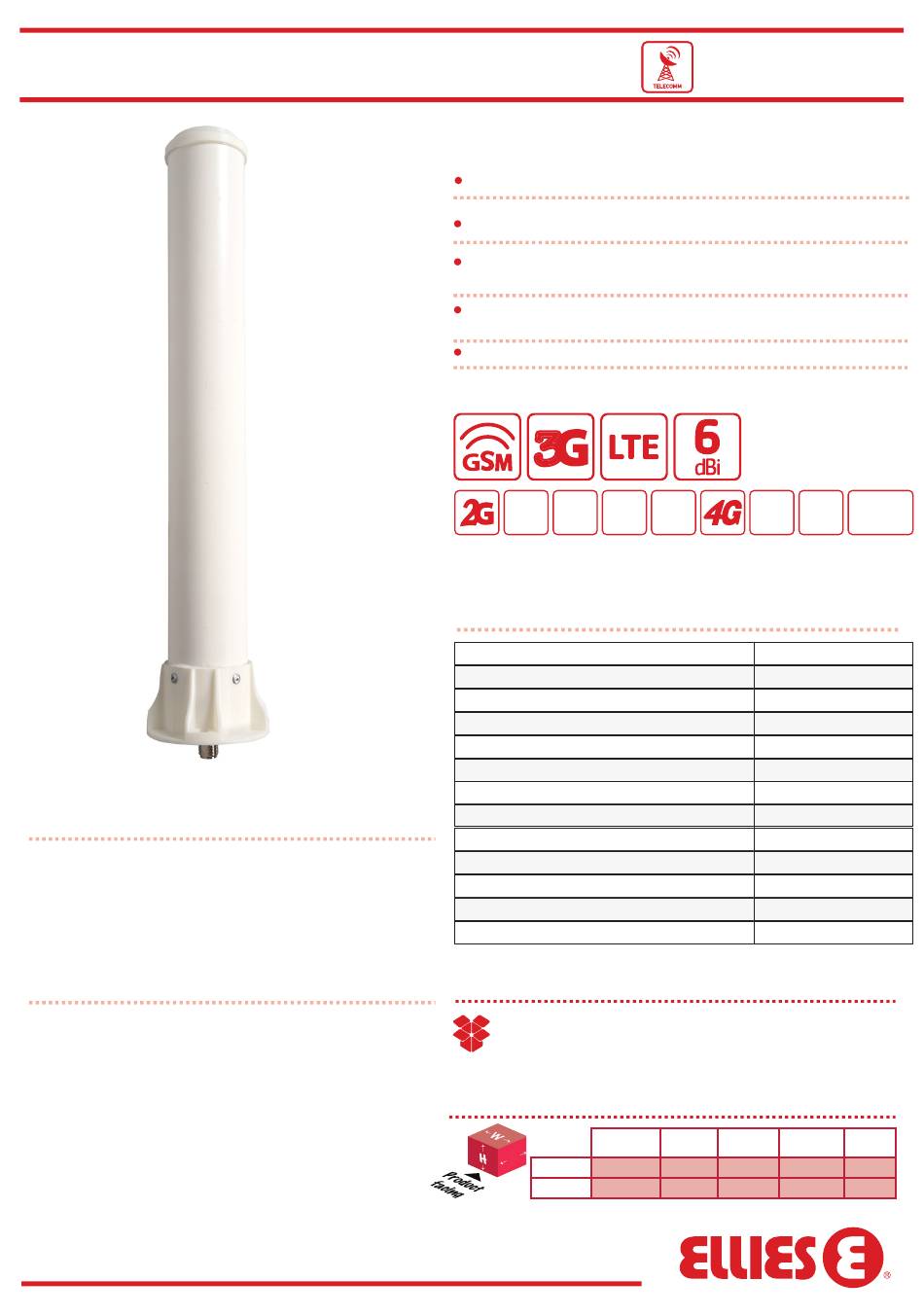

Ellies AABOB Quick Start Manual

Quad Band Outdoor Omni GSM-3G-LTE
6dBi Antenna
Omni Directional High Gain Telecommunication Antenna
Omni directional antennas are designed to communicate with
multiple base stations, which allows the "cell network" more
control in managing a connection.
This antenna is designed for use with any current as well as
future 2G/3G/4G/5G networks and operators.
Uses
Improves existing network signal strength, internet quality
and speed.
The antenna can only be used with a modem that has an
external "cellular" antenna connector. Antenna only, must be
used with AABOC7M antenna cable for modems with a SMA
antenna.
Outdoor Omnidirectional cellular antenna
Quad band for all current and future cellular networks
Receives on all current networks (2G, 3G, 4G) and all mobile
network operators
Consistant performance across all bands:
(700, 800, 900, 1800, 2100, 2300, 2600.)
Industry standard N-type female connector
EDGE GPRS
HSDPA
TECHNICAL INFORMATION
Frequency R ange
V S W R
Impedance
G ain
P olarization
Horizontal Beam W idth ( half-power)
Vertical B eam W idth ( half-power)
M ax.P ower
C onnector
D imension
W eight
R adome material
Mounting bracket for masts up to;
1 x Antenna
Mounting accessories included (excludes mast and cable)
PACKAGE DIMENSIONS
Height
(mm)
D
Carton 490
Bulk -
www.ellies.co.za
Product Code:
Barcode:
600284406 5157
TELECOMM
HSPA EVDO
WIMAX CDMA2000
698-960/1710-2700MHz
≤3
50 Ω
6dBi
Vertical or Horizontal
360 °
30 °
100W
N-Female
ɸ 63X 450mm
1.1kg
P V C
50 mm diameter
Depth Width Weight
(mm) (mm) (kg)
100 100 1.1
- - -
AABOB
QTY
1
-
