ViewSonic VP2458 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

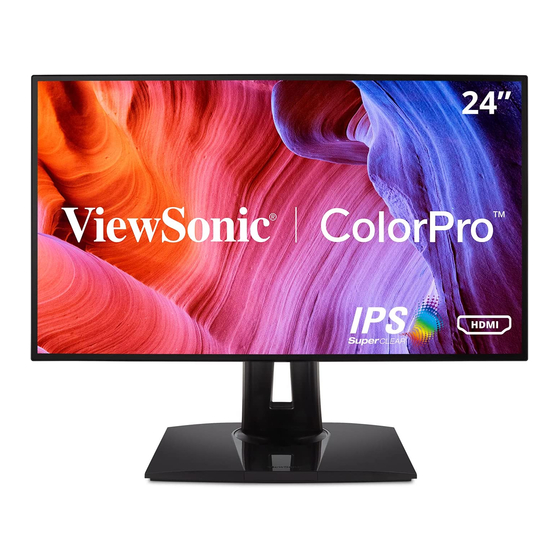

VP2458
Monitor
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"
Model No. VS17557
P/N: VP2458

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic VP2458

Summary of Contents for ViewSonic VP2458

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
  • Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

  • Page 3: Safety Precautions

    • Do not place any heavy objects on the device or connection cables. • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device.
  • Page 4 • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED. • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment.

  • Page 5: Table Of Contents

    Contents Safety Precautions ................3 Introduction ...................7 Package Contents ......................7 Product Overview ......................8 Initial Setup ..................9 Installing the Stand ......................9 Wall Mounting ......................11 Using the Security Slot ....................13 Making Connections ..............14 Connecting to Power ....................14 Connecting External Devices ..................15 HDMI Connection ....................
  • Page 6 Appendix ..................53 Specifications ....................... 53 Glossary ........................55 Troubleshooting ......................60 Maintenance ........................ 62 General Precautions ....................62 Cleaning the Screen ....................62 Cleaning the Case ....................62 Disclaimer ......................62 Regulatory and Service Information ..........63 Compliance Information ....................63 Industry Canada Statement ................... 63 CE Conformity for European Countries..............

  • Page 7: Introduction

    Introduction Package Contents • Monitor • Power cord • Video cable • Quick start guide NTTE: The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

  • Page 8: Product Overview

    Product Nverview Front View Display screen Rear View Power button Security Slot HDMI port USB ports AC IN jack DisplayPort VGA port NTTE: For more information about the 1/2/3/4/5 key and its functions, refer to “Hot Keys” on page 26.

  • Page 9: Initial Setup

    Initial Setup This section provides detailed instructions for setting up your monitor. Installing the Stand 1. Place the monitor on a flat, stable surface with the screen facing down. 2. Align and connect the two (2) points on the monitor stand’s base with the monitor stand’s neck.
  • Page 10 4. Lift the device into its upright position on a flat, stable surface. NTTE: Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

  • Page 11: Wall Mounting

    Refer to the table below for the standard dimensions for wall mount kits. NTTE: For use only with a UL certified wall mount kit/bracket. To obtain a wall- mounting kit or height adjustment base, contact ViewSonic® or your local dealer.
  • Page 12 5. Attach the mounting bracket to the VESA mounting holes at the rear of the device. Then secure it with four (4) screws (M4 x 10 mm). 100 mm 6. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

  • Page 13: Using The Security Slot

    Using the Security Slot To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object. Below is an example of setting up a security slot locking device on a table.

  • Page 14: Making Connections

    Making Connections This section guides you on how to connect the monitor with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the device. 2. Connect the power cord plug to a power outlet.

  • Page 15: Connecting External Devices

    Connecting External Devices HDMI Connection Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer. NTTE: The monitor is equipped with one HDMI 1.4 port.

  • Page 16: Displayport Connection

    DisplayPort Connection Connect one end of a DisplayPort cable to the DisplayPort port. Then connect the other end of the cable to the DisplayPort or mini DP port of your computer. NTTE: To connect the monitor to the Thunderbolt port (v. 1&2) on your Mac, connect the mini DP end of the “mini DP to DisplayPort cable”...

  • Page 17: Usb Connection

    USB Connection Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer. NTTE: The monitor supports two (2) types of USB ports. When making the connection(s), observe the following guidelines: •...

  • Page 18: Vga Connection

    VGA Connection Connect one end of a VGA cable to the VGA port of your monitor. Then connect the other end of the cable to the VGA port of your computer.

  • Page 19: Using The Monitor

    Using the Monitor Adjusting the Viewing Angle For optimal viewing, you can adjust the viewing angle using any of the following methods: Height Adjustment Lower or raise the monitor to the desired height (0 to 130 mm). NTTE: When adjusting, press down firmly along the adjustment track holding the monitor with both hands on the side.

  • Page 20: Tilt Angle Adjustment

    Tilt Angle Adjustment Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 21˚). NTTE: When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand. Screen Orientation Adjustment (Monitor Pivot) 1.
  • Page 21 2. Rotate the monitor 90° clockwise or counter clockwise from landscape to portrait orientation. NTTE: • When adjusting, make sure to hold both sides of your monitor firmly with both hands and rotate the monitor 90°. • Using the “Auto Pivot” application, the system can detect the screen orientation automatically.

  • Page 22: Swivel Angle Adjustment

    Swivel Angle Adjustment Swivel the monitor to the left or right for the desired viewing angle (60˚).

  • Page 23: Turning The Device On/Off

    Turning the Device On/Off 1. Plug the power cord into a power outlet. 2. Touch the Power button to turn on the monitor. 3. To turn the monitor off, touch the Power button again. NTTE: The monitor will still consume some power as long as the power cord is connected to the power outlet.

  • Page 24: Using The Control Panel Keys

    Using the Control Panel Keys Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings. Quick Menu Press the 1/2/3/4 key to activate the Quick Menu. Standard Color Contrast/Brightness Input Select Main Menu...
  • Page 25 Adjust the contrast or brightness level. Contrast Brightness htness Input Select Select the input source. DisplayPort HDMI D-Sub htness Main Menu Enter the On-Screen Display (OSD) Menu. VP2458 Input ViewMode Color Adjust Manual Image Setup Menu Select Adjust DisplayPort HDMI D-Sub Auto Detect...

  • Page 26: Hot Keys

    Hot Keys When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys. Description Press and hold the key for 5 seconds to enter the “User Mode” menu. Then select the desired user mode to activate it. User 1 User 2 User 3...
  • Page 27 Description 2 + 3 Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. OSD Lock/Unlock Locking OSD Press and hold for 10s to lock OSD If the OSD Menu is locked, the below message will appear on the screen:...
  • Page 28 Description 2 + 4 Press and hold the keys to lock/unlock the Power button. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the Power button. Power Lock/Unlock Locking Power Button Press and hold for 10s to lock power If the Power button is locked, the below message will appear on the screen:...

  • Page 29: Configuring The Settings

    Configuring the Settings General Operations 1. Press the 1/2/3/4 key to activate the Quick Menu. Then press the 4 key to display the On-Screen Display (OSD) Menu. VP2458 Input ViewMode Color Adjust Manual Image Setup Menu Select Adjust DisplayPort HDMI...
  • Page 30 3. Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu. VP2458 Manual Image Input ViewMode Color Adjust Setup Menu Select Adjust Contrast/Brightness Contrast Color Format Brightness Standard Color...
  • Page 31 NTTE: Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the side of the screen to select the option or make adjustments. VP2458 VP2458 Input...

  • Page 32: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Input Select DisplayPort HDMI D-Sub Auto Detect ViewMode Game FPS1 FPS2 MOBA Movie Text Ultra Clear (-/+, 0~10) Designer CAD/CAM Ultra Clear Advanced-Sharpness Advanced-Gamma Animation Ultra Clear Advanced-Sharpness Black Stabilization Video Edit Ultra Clear Advanced-Sharpness...
  • Page 33 Main Menu Sub-menu Menu Option ViewMode Photographer Retro Ultra Clear (-/+, 0~10) Advanced-Sharpness (-/+, 0/25/50/75/100) Advanced-Gamma (-/+, 1.8/2.0/2.2/2.4/2.6) Photo Ultra Clear (-/+, 0~10) Advanced-Sharpness (-/+, 0/25/50/75/100) Advanced-Gamma (-/+, 1.8/2.0/2.2/2.4/2.6) TruTone (-/+, 0~100) Landscape Ultra Clear (-/+, 0~10) Advanced-Sharpness (-/+, 0/25/50/75/100) Advanced-Gamma (-/+, 1.8/2.0/2.2/2.4/2.6)
  • Page 34 Main Menu Sub-menu Menu Option Color Adjust Contrast/ Contrast (-/+, 0~100) Brightness Brightness (-/+, 0~100) Color Format Auto RGB (Full Range) RGB (Limited Range) YUV (Full Range) YUV (Limited Range) Standard sRGB Color Custom Color Temperature Panel Default Bluish 9300K Cool 7500K Native...
  • Page 35 Main Menu Sub-menu Menu Option Color Adjust Custom Saturation (-/+, 0~100) Green (-/+, 0~100) Blue (-/+, 0~100) Cyan (-/+, 0~100) Magenta (-/+, 0~100) Yellow (-/+, 0~100) Recall Color CAL 1 Calibration CAL 2 CAL 3 Calibration Notice Remind Schedule (-/+, 0/1/10/100/200/ 500/1000/2000/3000) Counter Hour Recall...
  • Page 36 Main Menu Sub-menu Menu Option Setup Menu Language English Français Deutsch Español Italiano Suomi Русский Türkçe 日本語 한국어 繁體中文 简体中文 Česká Svenska Resolution Notice Information OSD Timeout (-/+, 5/15/30/60) Background OSD Pivot Auto 0˚ +90˚ -90˚ Power Indicator Auto Power Sleep 30 Minutes 45 Minutes...
  • Page 37 Main Menu Sub-menu Menu Option Setup Menu Eco Mode Standard Optimize Conserve USB Charging DisplayPort DDC/CI Save As User 1 User 2 User 3 Recall All Recall...

  • Page 38: Menu Options

    1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu. 2. Press the 1 or 2 key to select Input Select. Then press the 3 key to enter the Input Select menu. VP2458 Input ViewMode Color Adjust...
  • Page 39 1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu. 2. Press the 1 or 2 key to select ViewMode. Then press the 3 key to enter the ViewMode menu. VP2458 Input ViewMode Color Adjust...
  • Page 40 1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu. 2. Press the 1 or 2 key to select Color Adjust. Then press the 3 key to enter the Color Adjust menu. VP2458 Input ViewMode Color Adjust...
  • Page 41 Menu Option Description Color Format The monitor can detect the input signal color range automatically. You can manually change the color range options to fit the correct color range if the colors are not displayed correctly. • Auto: Automatically recognizes the color format and black and white levels.
  • Page 42 Menu Option Description Custom Gamma Manually adjust the brightness level of the monitor’s grayscale levels. Black Stabilization Provide heightened visibility and detail by brightening dark scenes. Advanced DCR Automatically detects the image signal and intelligently controls the backlight brightness and color, to improve on the ability to make the black blacker in a dark scene, and make the white whiter in a bright environment.
  • Page 43 Menu Option Description Color Calibration Калибрирайте монитора с помощта на приложението (Калибриране на ViewSonic® Colorbration със специфични цветови датчици. цветовете) • CAL 1: Дисплей с режима на калибриране на първия потребител. • CAL 2: Дисплей с режима на калибриране на втория...
  • Page 44 1. Press the 1/2/3/4 key to display the Quick Menu. Then press the 4 key to display the OSD Menu. 2. Press the 1 or 2 key to select Manual Image Adjust. Then press the 3 key to enter the Manual Image Adjust menu. VP2458 ViewMode Color Adjust Manual Image...
  • Page 45 Menu Option Description Response Time Adjust the response time, creating smooth images without streaking, blurring or ghosting. A low response time is perfect for the most graphic-intense gaming, and provides amazing visual quality while watching sports or action movies. Blue Light Filter Adjust the filter that blocks high-energy blue light for a more comfortable viewing experience.
  • Page 46 1. Press the 1/2/3/4 key to activate the Quick Menu. Then press the 4 key to display the OSD Menu. 2. Press the 1 or 2 key to select Setup Menu. Then press the 3 key to enter the Setup Menu menu. VP2458 ViewMode Color Adjust Manual Image...
  • Page 47 Menu Option Description Language Select Select an available language for the OSD Menu. Resolution Notice Enable this option to allow the system to inform users that the current viewing resolution is not the correct native resolution. Resolution Notice For best picture quality, change resolution to 1920x1080 Clear Disable...
  • Page 48 Menu Option Description DDC/CI Enable this option to allow the monitor control via the graphics card. Save As Set the personalized OSD configurations for User 1/User 2/ User 3. All Recall Resets all settings to their default values.

  • Page 49: Advanced Features And Settings

    To ensure long-term color accuracy, some specific models support hardware color calibration function. The monitor comes with the Colorbration application. The application installation file is in the software folder of the ViewSonic® CD. Or you can visit: http://color.viewsonic.com/support/software/ to check and download the latest version of the Colorbration application.

  • Page 50: Auto Pivot

    The application installation file is in the software folder of the ViewSonic® CD. Or you can visit: http://color.viewsonic.com/support/software/ to check and download the latest version of the Auto Pivot application.

  • Page 51: Firmware Update

    With the USB cable and firmware update tool, you can easily update your monitor firmware any time. You can visit: https://color.viewsonic.com/support/software/ to check and download the latest firmware version with the update tool.
  • Page 52 VP Series USB Firmware Update Tool v1.0 Model Name Model Name Current Firmware Current Firmware New Firmware New Firmware CheckSum CheckSum Update EXIT(X) CAUTIN E: Any interruptions during the firmware upgrade process may permanently damage your monitor. Do not disconnect the USB cable or turn off your PC and monitor.

  • Page 53: Appendix

    Appendix Specifications Item Category Specifications Type IPS, Active Matrix 1920 X 1080 LCD; 0.2745 (H)mm x 0.2745(V)mm pixel pitch Display Size 60.47 cm, 24" (23.8” viewable) Color Filter RGB vertical stripe Glass Surface Anti-Glare type, 3H hard coating Input Signal Video Sync TMDS digital (100 Ω) :55-90 Khz, f...
  • Page 54 Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. Please use the power adapter from ViewSonic® or an authorized source only. The test condition follows EEI standard.

  • Page 55: Glossary

    This function on some models is disabled by default. Black Stabilization ViewSonic’s Black stabilization provides heightened visibility and detail by brightening dark scenes. Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
  • Page 56 Color Adjust Provides several color adjustment modes, to help adjust the color settings to fit the user’s needs. Color Format The monitor can detect the input signal color format automatically. You can manually change the color format options to fit the correct color format range if the colors are not displayed correctly.
  • Page 57 Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics cards’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
  • Page 58 Manual Image Adjust Displays the “Manual Image Adjust” menu. You can manually set a variety of image quality adjustments. Memory Recall Returns the adjustments back to factory settings if the display is operating in a factory preset timing mode listed in the “Specifications” of this manual. NTTE: (Exception) This control does not affect changes made in the “Language Select”...
  • Page 59 Native Original color presented by the LCD panel. ViewMode ViewSonic’s unique ViewMode feature offers “Standard”, “FPS Game”, “RTS Game”, “MOBA Game”, “Movie”, “Web”, “Text”, “MAC”, and “Mono” presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications.

  • Page 60: Troubleshooting

    Loose or broken pins in the cable connector could cause an improper connection. • Connect the monitor to another computer. • If you have an older graphics card, contact ViewSonic® for a non-DDC adapter. Screen image is too •...
  • Page 61 Problem or Issue Possible Solutions The screen isn’t • Adjust the horizontal and vertical controls via the OSD centered correctly Menu. • Check the Aspect Ratio. • Reset the monitor to factory settings. The screen appears • Make sure the “Blue Light Filter” is Off. yellow The OSD Menu •...

  • Page 62: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 63: Regulatory And Service Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 64: Ce Conformity For European Countries

    CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

  • Page 65: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...

  • Page 66: Copyright Information

    ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein;...

  • Page 67: Customer Service

    For technical support or product service, see the table below or contact your reseller. NTTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ www.viewsonic.com.cn www.viewsonic.com/hk/ 中国 (China) 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...

  • Page 68: Limited Warranty

    How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase.
  • Page 69 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
  • Page 70 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...

  • Page 71: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 72 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
  • Page 73 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
  • Page 74 C0 M91 Y72 K24 Process Color Process Color C0 M0 Y0 K100 C0 M91 Y72 K24 Process Color Spot Color Pantone Black C Pantone 187 C Spot Color...
