PRODUCT PARAMETERS
Product Name

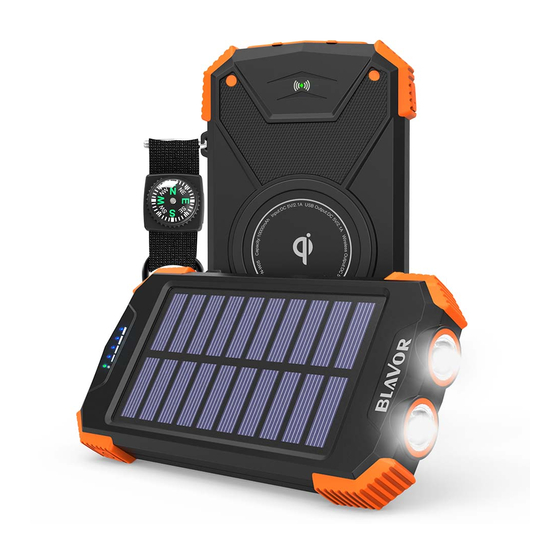

Wireless Solar Power bank
Micro USB Input
DC 5V 2.1A
Type C Input
DC 5V 2.1A
USB Output
DC 5V 2.1A
DC 5V 1.0A
Wireless Output
10,000mah
Battery Capacity
Battery Type
Polymer Lithium Battery
QI Compatible Devices
All Qi-Enabled Devices
Waterproof Rating
IPX4（Splash Proof）
5.9*3.1*0.8in
Product Size
Product Weight
9.6oz
PACKAGE CONTENTS
1*Solar Power Bank 1*User Manual
1* 2A 11.8in Cable
1*Compass Ring
PRODUCT DETAILS
②
power button
wireless charging indicator
①
⑪
sunlight receiving panel
⑩
⑨
battery power indicator
solar charging indicator
①
wireless charging indicator
Press the "power button", then the "wireless charging indicator" and
"battery power indicator"is going to turn on, if no Qi-enabled devices
get close to the qi wireless charging area within 20S, it will be off.
power button
②
Press the "power button", then the function of wireless charg-
ing and cable output charging turns on.
③
wireless charging area
The wireless charging feature only suit for qi-enabled devices, pls
③
wireless charging area
figure out whether your phone is Qi-enabled before charging it.
④
anti-slip rubber mat
A circle of premium anti-slip rubber mat is designed for preventing
④
anti-slip mat
your phone from falling off.
⑤
dual led flashlight
Press the power button for at least 5 seconds to turn on/off the
flashlights.
dual LED flashlight
⑥
Type C input
⑤
DC 5V 2.1A type C port is a new tech designed for future use.
⑦
usb output
DC 5V 2.1A
⑥
Type C input
⑧
micro usb input
usb output
⑦
DC 5V 2.1A
⑧
micro usb input
⑨
solar charging indicator
Color-green, When the sunlight intensity is above 25,000lux and
the solar panel are fully exposed to the sunlight, so the solar charger
can charge itself with max 180ma currency.
⑩
battery power indicator
Color-blue, press the "power button", the indicator is going to turn on.
Fours lights from left to right represent 25%/50%/ 75%/100% power
capacity, When you charge the power bank by micro USB port, all the
indicator lights flash in sequence till it's fully charged.
⑪
sunlight receiving panel
Minimum sunlight intensity 25,000LUX, 180ma charging currency.
