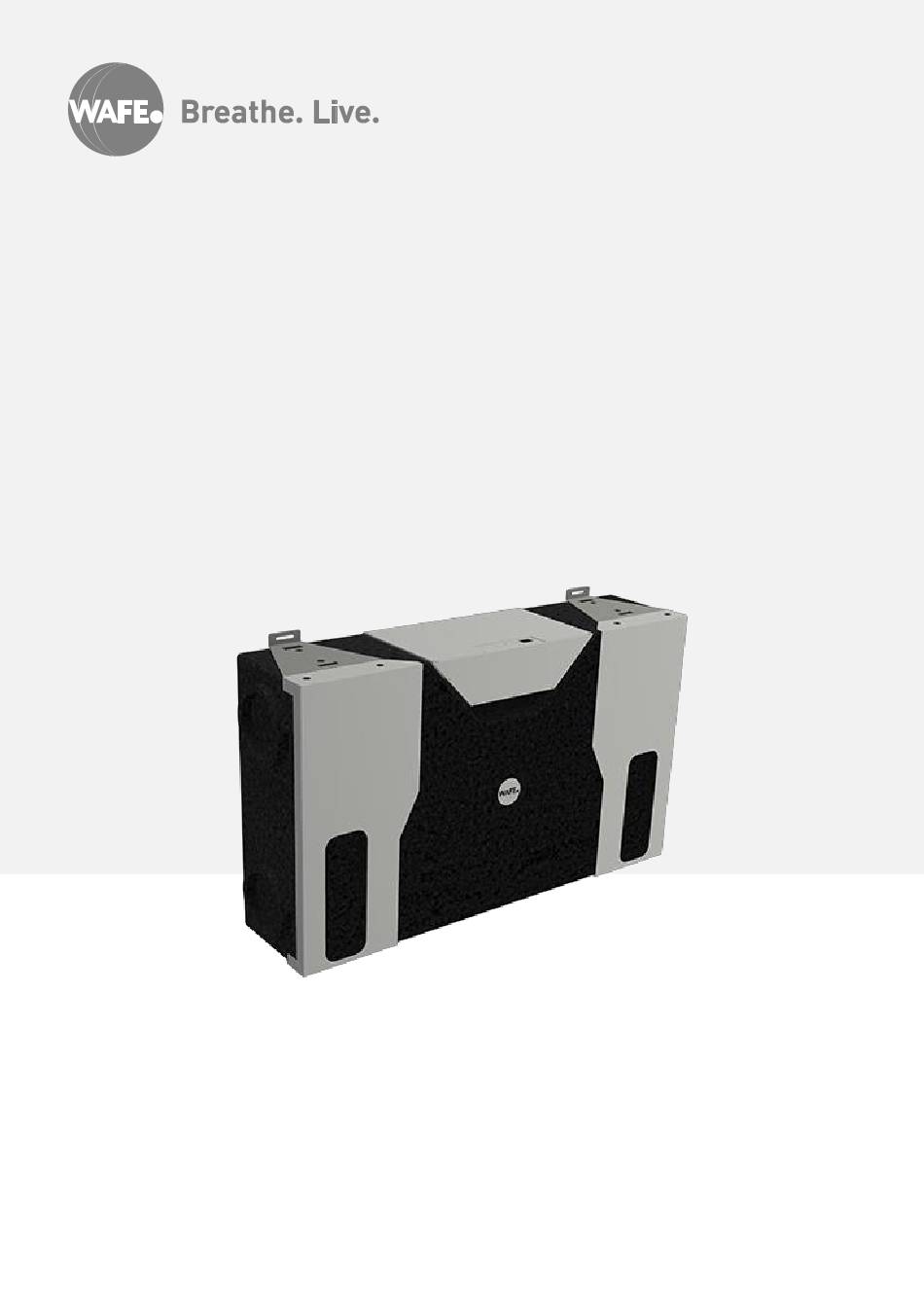

WAFE 200 E Energy recovery ventilation Safety instruction unit (hereinafter “manual”) are to pro- vide safe and economically efficient op- Disposal eration of WAFE 200 E energy recovery Installation ventilation unit (hereinafter “unit”). Planning the installation Read carefully, please. Eletrical installation...
Page 4
There is a danger of personal injury. Intended use Figure 01: An example of a unit nameplate. WAFE 200 E energy recovery ventilation unit is an air ventilation device with an active Manufacturer heat and humidity recovery function de- 0200...
Dispose the package material in an environmentally friendly way. Once the life cycle of WAFE 200 E comes to its end choose an eco-friendly option for its disposal. The unit must not be disposed together with a regular household waste. The unit has been classi-fied according to the EU Directive 2012/19/EU.
Planning the installation Construction readiness Purchase and delivery of WAFE 200 E is preceded by consulting the parameters of the construction project with a responsible person. Transportation and unpacking When transporting the unit, be careful and bear in mind the principles of working with...
Installation I 7 ELECTRICAL INSTALLATION Electrical installation must be done in accordance with applicable law and regulations by qualified and authorized personnel. Electricity is supplied to the unit through a power cable with a standard EU plug for 230V. The connecting cable for the external control and the preheater is to be connected directly to the cen- tral control board.
Page 8
8 I Installation Connecting clamp of the Contact labels external controller X 01 +12V X 02 Us (intake ventilator control voltage) X 03 Ue (outtake ventilator control voltage) X 04 X 05 Analog input 0-10V X 06 Analog input GND X 07 Boost input X 08...
Controller I 9 EXTERNAL CONTROLLER External controller uses a rotary button with a scale up to nine to control the level of ventilation. Two ON/OFF buttons allow for the required activity set up. The ON status is indicated by green LED light.
10 I Controller Controller functions Status Function Absence Mode Position 1: 1 min ON 6 min OFF Setting Position Position 3: 6 min ON 1 min OFF Position of the rotary button between 1 and 3: relatively divided ON and OFF Operation Mode Position 4: lowest airflow Rotary Button...
Controller I 11 Operation and Maintenance Indication Symbol LED signaling Function/Interpretaion/Measure Both LED lights green Start balanced pressure ventilation by pressing both A and B buttons. Start Outtake mode by pressing A button only. Intake ventilator stays Outtake LED green off.
There are two high quality filters placed inside the ventilation unit. You will recognize the ba the WAFE logo. The filters may be purchased through on order at info@wafe.cz. These two filters need to be checked if notified on the control panel. Please follow these steps: 1.
The warranty also does not cover normal wear and tear. Responsibility WAFE 200 E energy recovery ventilation unit has been developed and manufactured for use in ven- tilation systems for residential applications. Any other way of installation and operation than the one approved by the manufacturer is considered inappropriate and can cause damage to the unit or property or personal injury for which the manufacturer cannot be held responsible.
