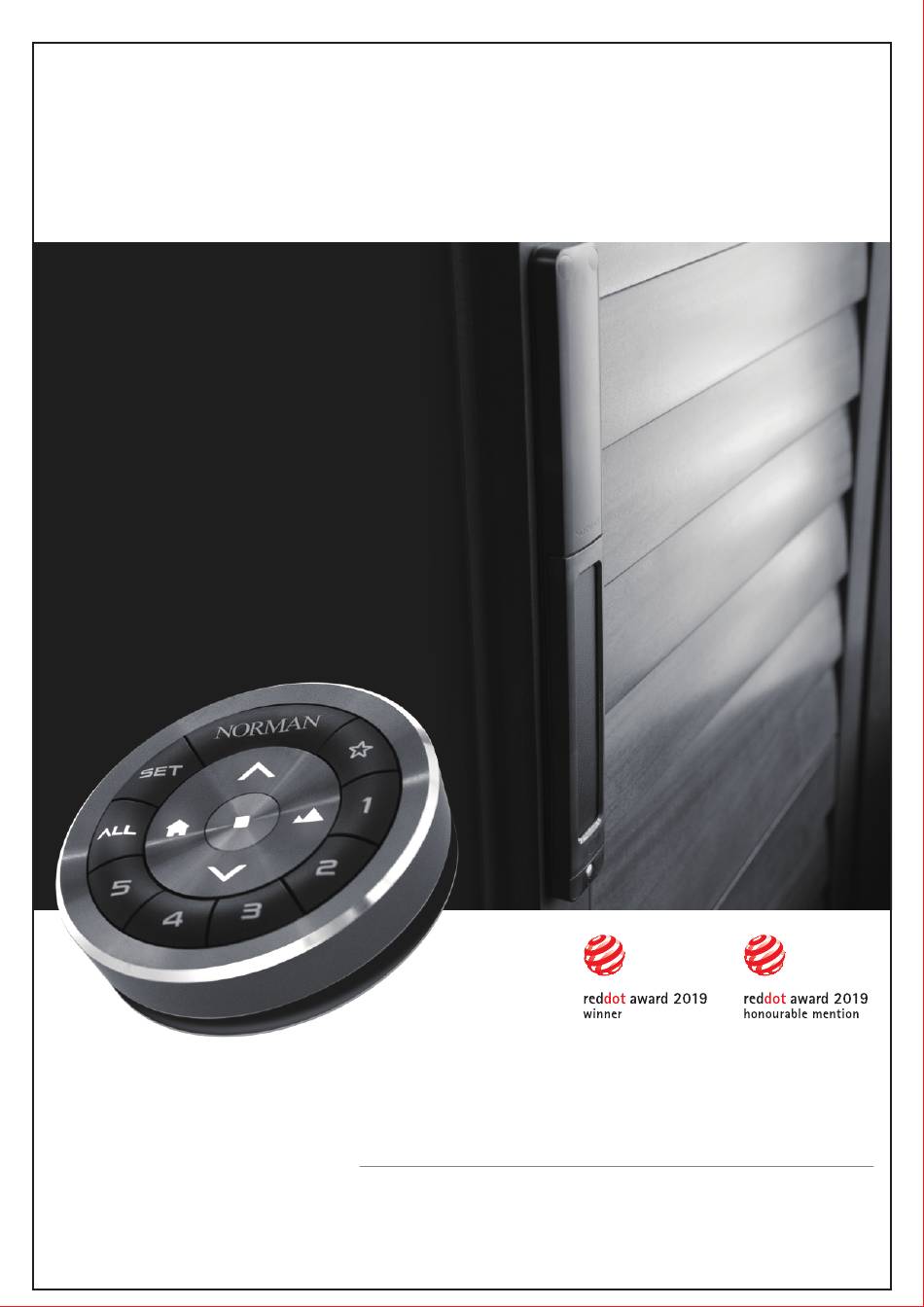

- Page 1 PerfectTilt ™ SmartDial ™ MS4 (Motorized Shutters) User Manual...
-
Page 2: Installation And Settings
6. Product operation is intended for temperatures between 0℃/32°F ~55℃/131°F. 7. In order to improve the user experience and function improvement, the firmware and software of this product will be ® automatically updated from time to time. (When the Norman Hub is installed) ™... -
Page 3: Remote Operation
This process lets you setup/adjust louver horizontal position if the horizontal position shifted. ˙Setup Louver Horizontal Position - Method 1 1. Select the desired group number for setup of horizontal position, and hold down for Tilt Upward button ( ) 1 second. Move the louvers to horizontal position by remote ring with spin anticlockwise direction. -
Page 4: Product Functions
Control Group All Groups 1, 2, 3, 4 or 5 3. Red LED on indicates the Motor Module charging abnormal, please stop charging immediately. Tilt Downward Remote (SmartDial ™ ) Tilt Downward ˙Button Definitions Function Button Description HOLD-DOWN FEATURES... - Page 5 ˙Remote – Operating Functions Function Description 1.Three ways to wake up Remote: ˙Vibration ˙Press button Wake Up Remote ˙Spin the remote ring 2.Remote will light up when awakened. Select/ 1. Press one or more Group button (1 to 5) to select shutter groups. Deselect Group 2.Groups can be deselected by pressing the Group button (1 to 5) again.
-
Page 6: Hub Installation
Norman Hub. 2) The mobile phone is connected to the home AP router WiFi. ® 3) Open the App and select Connect to Hub to connect to the Norman Hub. ® ► Option 2 : Hub and home AP router via WiFi. -
Page 7: Troubleshooting
Mode: (lasts 5 seconds) ˙Press for 3 seconds to initiate Hub button 1. Press once: Search shutters. 2. Press twice: Station Mode switch to AP Mode. ˙Press for 20 seconds to Factory Reset Norman ® Hub. ® Hub Function ˙Norman... -
Page 8: Safety Instructions
5、Safety Instructions The PerfectTilt ™ Motor Module and Remote (SmartDial ™ ) contain lithium batteries, the battery contains flammable materials such as organic solvents. Mishandling the battery may cause fire, smoke, or an explosion and the battery’s functionality will be seriously damaged. - Page 9 ˙Warning (1) Ingestion Keep away from small children. Keep the battery away from small children. If the battery or any of its component parts is swallowed, seek medical attention immediately. (2) Storage Do not place the battery in or near a microwave or other cooking appliances. If subjected to heat or electromagnetic radiation, the battery may leak, generate heat, smoke, catch fire, or explode.
-
Page 10: Specification
˙Caution 1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children being supervised not to play with the appliance.
