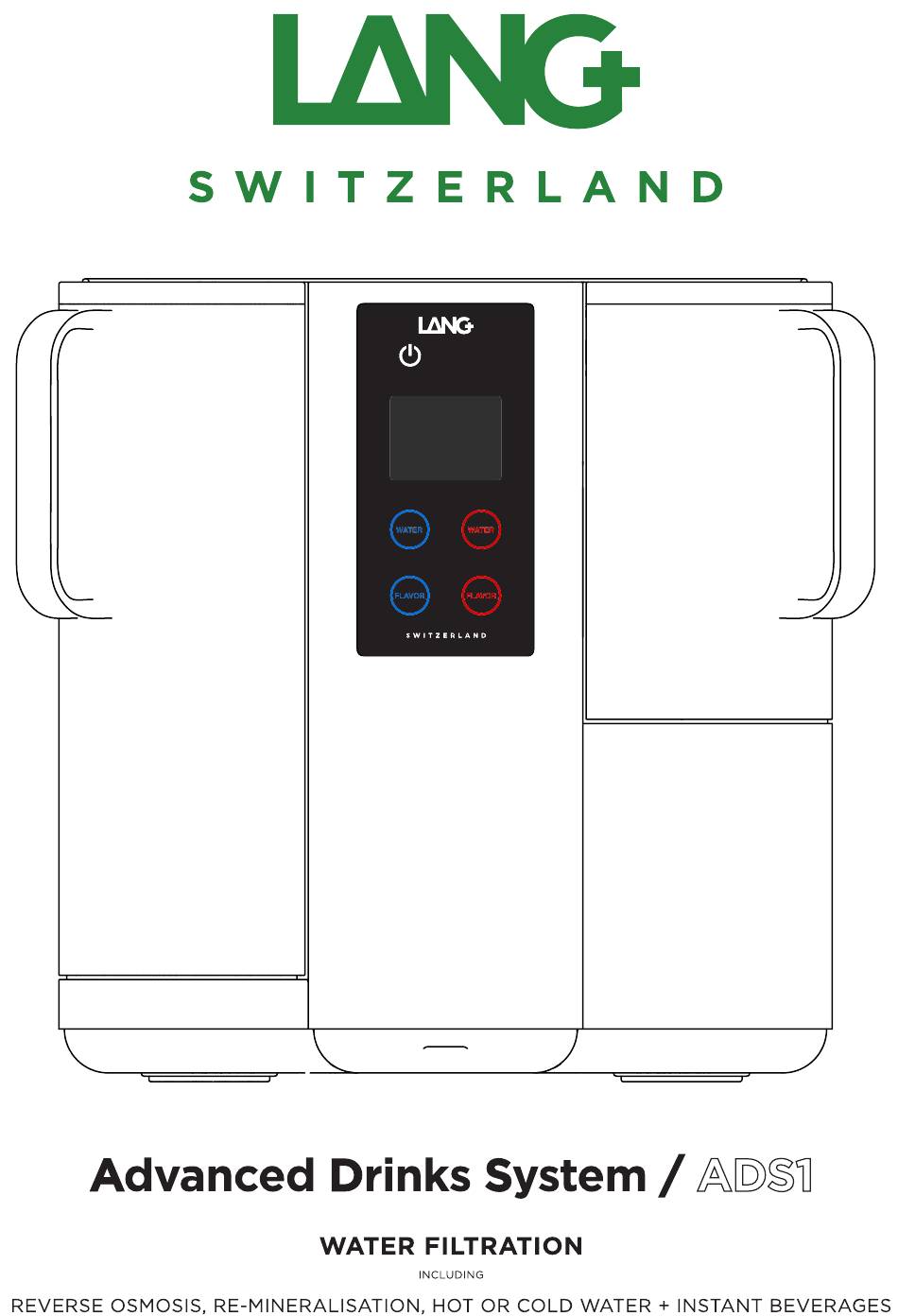

Summary of Contents for Lang ADS1
- Page 3 OPERATIONS GUIDE SAFETY PRECAUTIONS CAUTION: WHEN YOU SEE THIS SIGN, PLEASE REFER TO THE SAFETY PRECAUTIONS TO AVOID HARM AND DAMAGE Avoid risks of fatal electric shock and fire 1. Only plug the machine into suitable, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate.
- Page 4 OPERATIONS GUIDE SAFETY PRECAUTIONS Avoid possible harm when operating the machine 1. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manu- facturer accepts no responsibility and the guarantee will not apply. 2.
-
Page 5: Table Of Contents
INDEX ADS1 LANG ADVANCED DRINKS SYSTEM INCLUDED ACCESSORIES ....6 1. COMPONENTS ........................7 2. FILTER CARTRIDGE INSTALLATION ..............8 3. LANGPAK INSTALLATION ...................9 4. JAR INSTALLATION ......................9 5. LANG START UP ......................10 6. LANG OPERATION ......................11 ......................11 6.1 Initialization ......................13 6.2 Operation 6.3 Programming the cup fill level... -
Page 6: Lang Advanced Drinks System Included Accessories
INCLUDED ACCESSORIES MAY VARY WITH PURCHASED BUNDLE BACK COVER FILTER LOCKS LANGPAKS TOP LID FOUNTAIN MAIN BODY TAP WATER JAR DOCKING STATION CLEAN WATER JAR SEDIMENT FILTER / RO MEMBRANE / ACTIVATED CARBON FILTER... -
Page 7: Components
USER MANUAL ADS1 PLEASE READ THIS USER MANUAL CAREFULLY BEFOR OPERATING THE MACHINE WARNING: Step 1 – 6 must be carefully followed, otherwise the machine is NOT operable COMPONENTS The package contains the following: • jars (tap water jar and cover; clean water jar and cover) •... -
Page 8: Filter Cartridge Installation
FILTER CARTRIDGE INSTALLATION 1. Open the rear cover. Lift up to 2. Push the lever up to install filter unlock hooks cartridges 3. Install filter cartridges. 4. Push the lever down to lock. “1” Sediment filter on the left. Make sure the lever is tightly “2”... -
Page 9: Langpak Installation
LANGPAK INSTALLATION 1. Open top lid. Press rear end to lift. 2. Install mineral A in the slot marked “A” 3. Install mineral B in the slot marked “B” 4. Optional: install flavor in the slot marked “C” NOTE: PUSH DOWN CARTRIDGES UNTIL THEY LOCK IN POSITION 5. -
Page 10: Lang Start Up
LANG START UP 1. Connect the power cord WARNING: CHECK FOR CORRECT VOLTAGE SOURCE AND POWER RATING. 2. When power cord is plugged in the power outlet, the machine will go in standby mode (ready for operation). CONFIRMATION OF FILTER CHANGE... -
Page 11: Lang Operation
LANG OPERATION 6.1 INITIALIZATION To start the initialization procedure press the power button. The machines guides the user through each step. The procedure lasts about 120 minutes and shall not be interrupted. CHANGE LANGUAGE When the machine is turned on the CHANGE LANGUAGE setting will be dis- played. - Page 12 FILLING FILTERS Insert the filters, make sure the filters are properly locked and the rear cover is in place. You will now be guided to fill the tap water jar and empty the clean water jar multiple times. The procedure is terminated when 10 liters of water have been processed.
-
Page 13: Operation
6.2 OPERATION Fill the tap water jar, empty the clean water jar or lower the spout and place a cup on the clean jar docking station. The machine is turned on by pressing the power button The machine will perform automatically a flushing cycle to remove accu- mulated air in the system. -
Page 14: Programming The Cup Fill Level
6.3 PROGRAMMING THE CUP FILL LEVEL If the selected button is pressed longer than 3sec the machine starts to memorize the fill level in CUP FILLING MODE. Pressing again the selected button will stop the filling and memorize the cup fill level. The next cup filling will stop at the memorized fill level. -
Page 15: Troubleshooting
TROUBLESHOOTING 8.1 WARNINGS The following warnings are displayed during the water processing. The user is alerted to take care of these issues in due time CHANGE MINERALS: mineral concentrates containers need to be changed soon. Both mineral concentrate containers must be changed simultaneously (Langpak A and B) CHANGE FLAVOR: flavor concentrate contain- ers need to be changed soon (LangPak C) -
Page 16: Operational Errors
The battery can only be replaced by a certified repair agent. A list of certified repair agents can be found on the LANG website 8.2 OPERATIONAL ERRORS A number of errors can be displayed during the operation of the machine... - Page 17 CLEAN WATER JAR FULL: Empty clean water jar FILL TAP WATER JAR: Empty tap water jar and fill with fresh water MINERALS EMPTY: Replace minerals. Always change both minerals simultaneously CARTRIDGE ERROR: Mineral or flavor cartridges are in a wrong position Mineral cartridge missing Damaged mineral cartridge TAP WATER JAR UNEXPECTELY REMOVED DURING...
-
Page 18: Errors
8.3 ERRORS During the processing, the following errors can occur. The user can repeat processing. If the error persists the machine must be serviced by a author- ized repair centre. WATER FLOW TOO LOW ERROR The water flow rate is low. This can be due to: - Air has accumulated in the system, perform a CLEANING PROCEDURE, see maintenance... -
Page 19: Critical Errors
REMINERALIZATION UNIT MALFUNCTION Replace mineralization or flavor cartridges. Check if cartridges are correctly inserted. Try replacing cartridges INTERNAL COMMUNICATION ERROR Unplug and plug-in the machine. 8.4 CRITICAL ERRORS If the following errors are displayed the machine will no longer be function- al and must be sent to an authorized repair centre BOILER ERROR For safety unplug the machine. -
Page 20: Maintenance
MAINTENANCE 9.1 AUTO MAINTENANCE FLUSHING Whenever the tap water jar is inserted on the docking station and the power button is subsequently pressed an auto flush is performed for 10 sec- onds while the machine is in the SELECT MODE. This is to remove air which could be captured in the pipe when the jar is inserted and subsequently reduce the performance of the pressure pump. -
Page 21: Manual Maintenance
9.2 MANUAL MAINTENANCE Pressing the standby button for 3 seconds in Select mode enables the main- tenance menu 1. CHANGE LANGUAGE PRESSING scrolls through the language options PRESSING confirms change and returns to Select mode 2. FILL FILTERS This step guides you through the filter filling process Filling filters procedure: PRESS to start the procedure only after replacing... - Page 22 During the FILLING FILTERS the following information will be displayed : FILL TAP WATER JAR EMPTY CLEAN WATER JAR MACHINE IS PROCESSING After a successful filling the filters the machine is ready to use and goes to the Select menu 3.
-
Page 23: Product Information
PRODUCT INFORMATION Model: Lang C010 LANG temperature operating range: 10 - 35 °C Tap water temperature range: 5 - 35 °C Ratings: 220-240V~ 50-60Hz, 620W, Class I Max. Input: 1500W Manufacturer: G-Lab GmbH Address: Baarerstrasse 38, 6300 Zug, Switzerland ENVIRONMENT FRIENDLY DISPOSAL...
