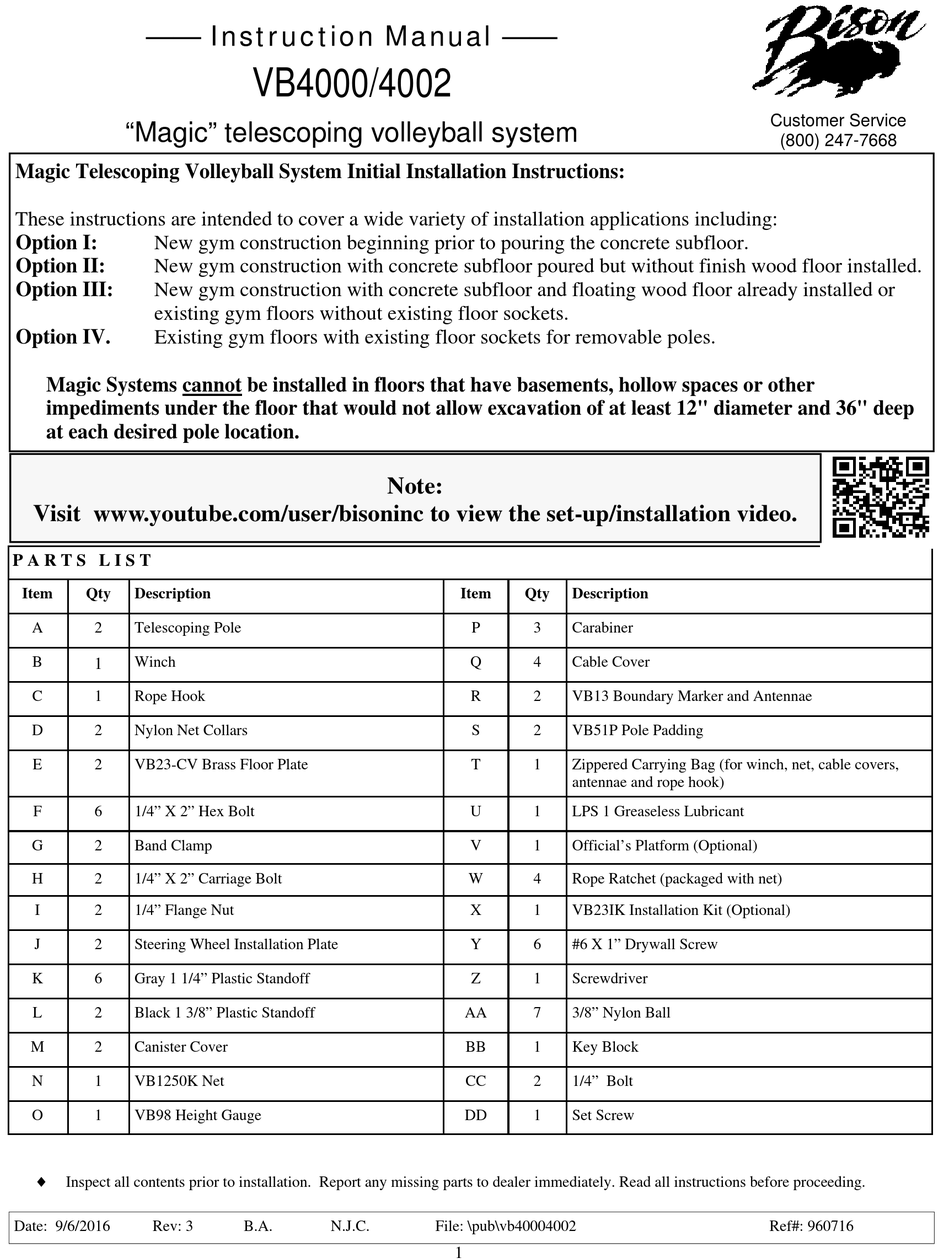

—— Instruction Manual ——
"Magic" telescoping volleyball system
Magic Telescoping Volleyball System Initial Installation Instructions:
These instructions are intended to cover a wide variety of installation applications including:
Option I:
New gym construction beginning prior to pouring the concrete subfloor.
Option II:
New gym construction with concrete subfloor poured but without finish wood floor installed.
Option III:
New gym construction with concrete subfloor and floating wood floor already installed or
existing gym floors without existing floor sockets.
Option IV.
Existing gym floors with existing floor sockets for removable poles.
Magic Systems cannot be installed in floors that have basements, hollow spaces or other
impediments under the floor that would not allow excavation of at least 12" diameter and 36" deep
at each desired pole location.
Visit www.youtube.com/user/bisoninc to view the set-up/installation video.
P A R T S L I S T
Item
Qty
Description
A
2
Telescoping Pole
B
1
Winch
C
1
Rope Hook
D
2
Nylon Net Collars
E
2
VB23-CV Brass Floor Plate
F
6
1/4" X 2" Hex Bolt
G
2
Band Clamp
H
2
1/4" X 2" Carriage Bolt
I
2
1/4" Flange Nut
J
2
Steering Wheel Installation Plate
K
6
Gray 1 1/4" Plastic Standoff
L
2
Black 1 3/8" Plastic Standoff
M
2
Canister Cover
N
1
VB1250K Net
O
1
VB98 Height Gauge
Inspect all contents prior to installation. Report any missing parts to dealer immediately. Read all instructions before proceeding.
Date: 9/6/2016
Rev: 3
VB4000/4002
Note:
B.A.
N.J.C.
Item
Qty
Description
P
3
Carabiner
Q
4
Cable Cover
R
2
VB13 Boundary Marker and Antennae
S
2
VB51P Pole Padding
T
1
Zippered Carrying Bag (for winch, net, cable covers,
antennae and rope hook)
U
1
LPS 1 Greaseless Lubricant
V
1
Official's Platform (Optional)
W
4
Rope Ratchet (packaged with net)
X
1
VB23IK Installation Kit (Optional)
Y
6
#6 X 1" Drywall Screw
Z
1
Screwdriver
AA
7
3/8" Nylon Ball
BB
1
Key Block
CC
2
1/4" Bolt
DD
1
Set Screw
File: \pub\vb40004002
1
Customer Service
(800) 247-7668
Ref#: 960716
