Summary of Contents for Trac Vac 330

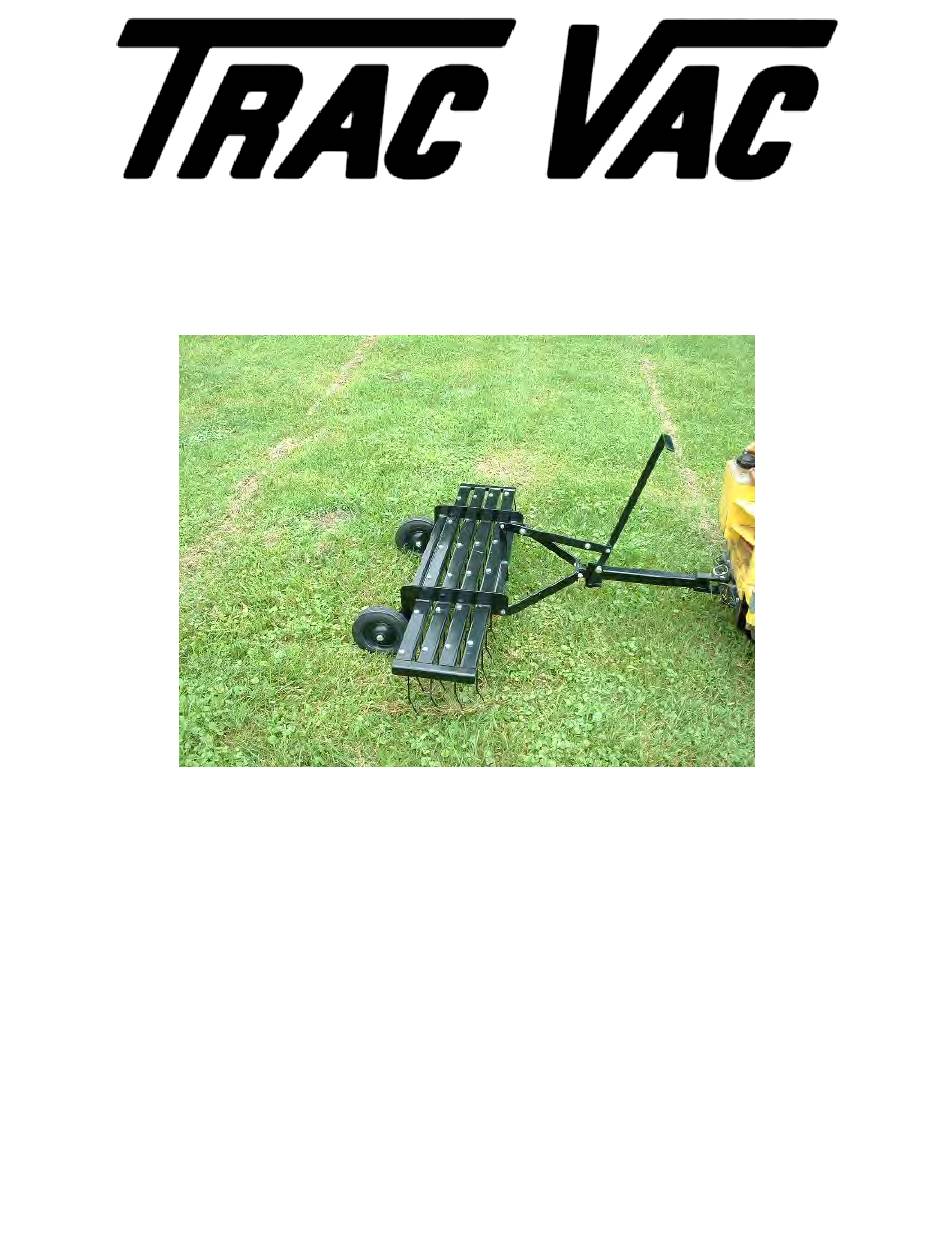

- Page 1 Model 330 & 335 TOW BEHIND DE-THATCHER Operating and Assembly Manual Midwest Equipment Mfg. 5225 Serum Plant Road Thorntown, IN 46071 Assembly Instructions 3-13-12...
- Page 2 Your Model 330 De-Thatcher comes partially assembled. Remove all parts from the cartons to be sure you have received all parts necessary for assembly. 1. Attach Frame Mount (B) to Frame (A) with 3/8” x 3/4” HHC and Whizlock nuts provided, three (3) on the front and two (2) on the rear.
- Page 4 FIG.2 FIG. 1 FIG. 3 FIG.4 FIG. 5 FIG. 6...
- Page 5 Model 330 Tow Behind De-Thatcher Description Qty. Part No. Frame, 330, 48" 33010 Frame, 335, 56" 33510 33020 Frame Mount Draw Strap 32524 32525 Draw Bar 32528 Lift Handle Hand Grip 32521 32530 Lift Bracket 58104 Hitch Pin 32101 Tine...
- Page 6 TRAC VAC WARRANTY POLICY...
- Page 7 Midwest Equipment Mfg. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use. The purchaser will pay transportation charges on parts submitted for replacement under warranty.
