Dictator EM GD 60 Technical Data

DICTATOR electromagnets are used in
combination with smoke detectors to keep
fire protection doors open.

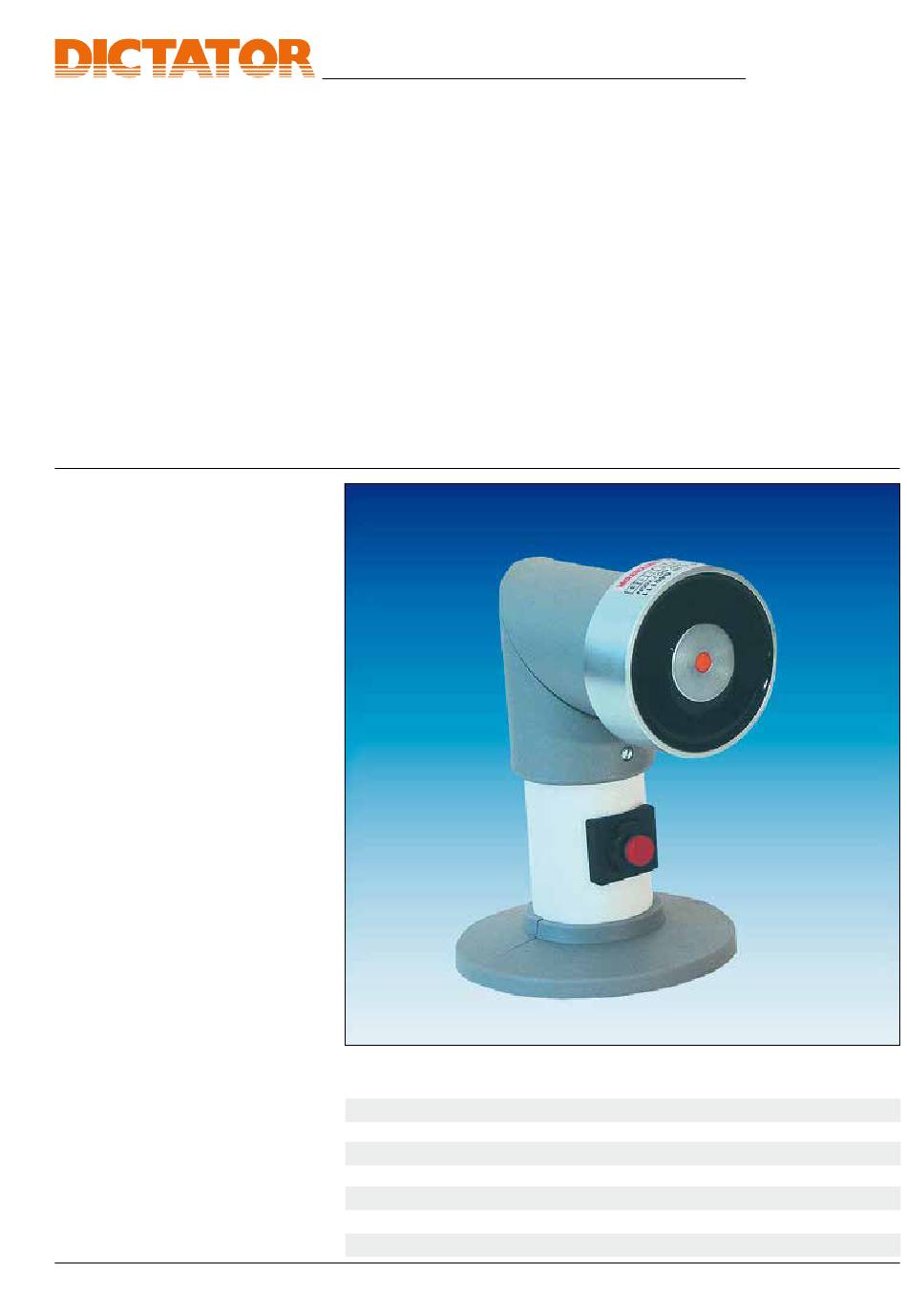

The electromagnet with swivel head has
a distance tube which is welded vertically
onto a mounting plate.
The magnet is supplied with its head in a
straight position. To mount on the floor or
ceiling the head position can be altered
without having to interfere with any
electrical connections (see diagram on
the right).
The tube is available in three different
lengths. It can also be shortened to the
required length if necessary.
The mounting plate and tube are made of
grey laquered steel and the magnet is zinc
plated steel. The other parts are made of
light grey plastics (RAL 7037). An inter-
rupter key is integrated in the lower part
of the tube.
DICTATOR magnets are equipped with
spark extinction diodes. In the event of
faulty connection, the integrated polarity
protection prevents the spark extinction
diode from being destroyed.
The EM GD 60 electromagnet has been
tested according to EN 1155 and
among others is included in the following
approvals: Z-6.5-1903, Z-6.5-1707.

Technical Data

© DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany
Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 1067
Electromagnet with
Swivel Head
For Installation on the Floor, Wall or Ceiling
Electromagnet
Voltage
Power consumption
Duty cycle
Operating temperature
Force
Remanence / IP rating
Finish
Electromagnets
EM GD 60 EM GD 60 S
24 VDC ±10 % 24 VDC ±10 %
67 mA (1.6 W) 79 mA (1.9 W)
100 % 100 %
-20 °C to +60 °C -20 °C to +60 °C
700 N 1000 N
0 N / IP 40 0 N / IP 40
zinc-plated / powder coated RAL 9010
Page 07.031.00
