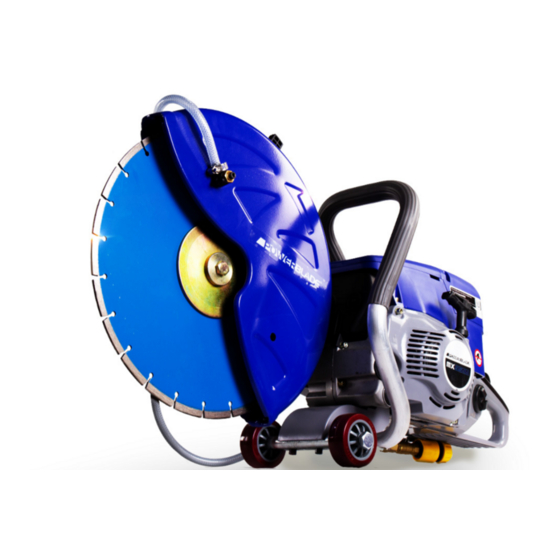

Concrete Cut-off Saw – MX9500
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
The product is NOT supplied with engine oil, although traces of oil from the manufacturing
process may be present. It is essential to add adequate engine oil of the correct type to the
engine before use.
Failure to add engine oil will void the product
E&OE
User Manual
[Revision 1.0 November 2018]
©2018 Powerblade
warranty.
