LS-U1000 RF Module
Low Power RF Module User Manual
Contact: Sunny
What's App: 008613826574847
Skype: lensen-tech@outlook.com
Email: sunny@lensen-tech.com
Web：www.lensen-tech.com
Address: Xixiang, Baoan, Shenzhen, China
Manufacture: Shenzhen Qianhai Lensen Technology Co., Ltd
Contact: Sunny
Web：www.lensen-tech.com
Email：sunny@lensen-tech.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the LS-U1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen Qianhai Lensen Technology LS-U1000

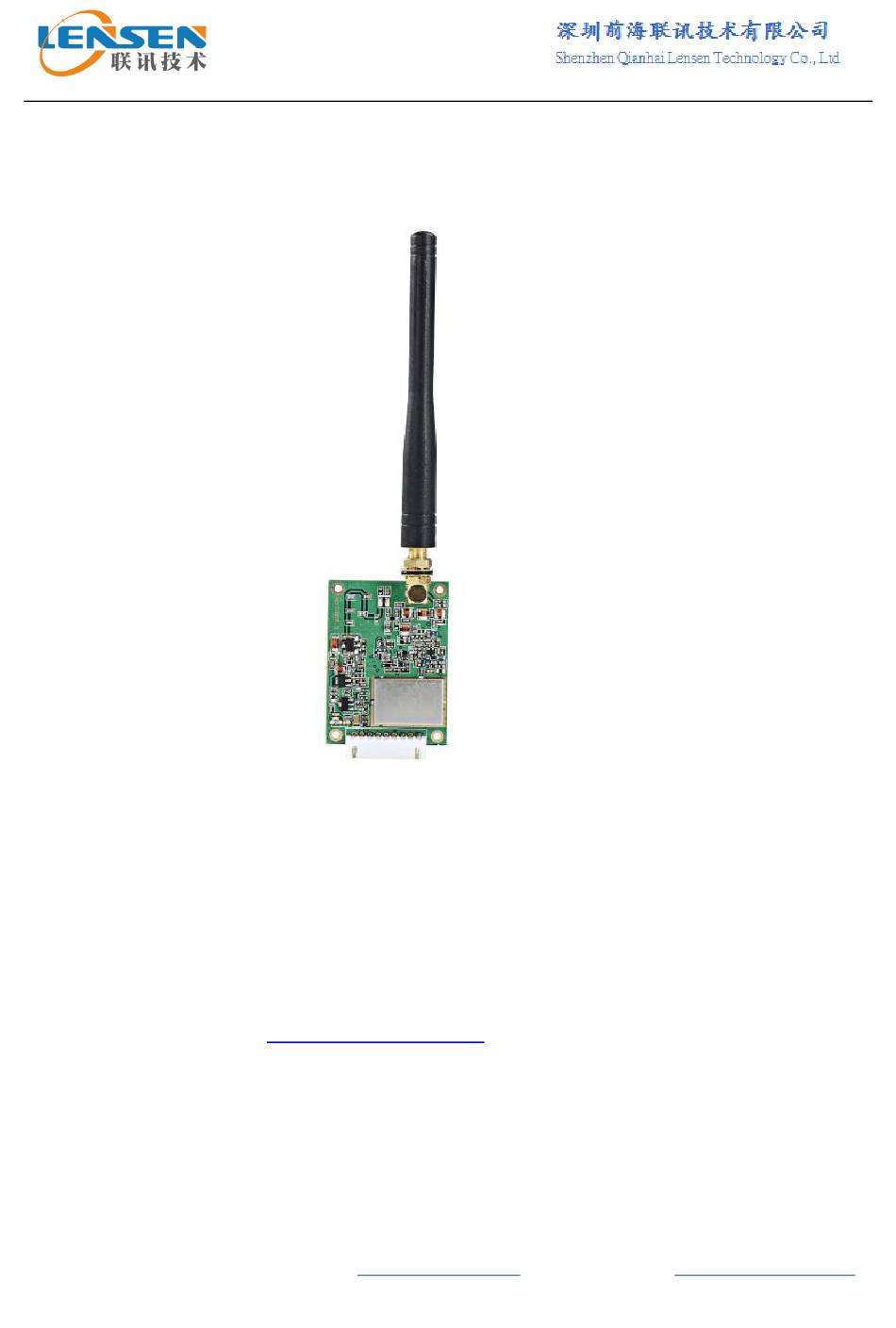

  • Page 1 LS-U1000 RF Module Low Power RF Module User Manual Contact: Sunny What’s App: 008613826574847 Skype: lensen-tech@outlook.com Email: sunny@lensen-tech.com Web：www.lensen-tech.com Address: Xixiang, Baoan, Shenzhen, China Manufacture: Shenzhen Qianhai Lensen Technology Co., Ltd Contact: Sunny Web：www.lensen-tech.com Email：sunny@lensen-tech.com...

  • Page 2: General Introduction

    1. General Introduction LS-U1000 rf module, designed with high efficiency FEC technology, good performance IC and high speed MCU, is an excellent RF transceiver. Its power output is 1W, transmission distance reaches 3km LOS. It has the advantage of small size, low power consumption, long transmission distance, and also, strong anti-interference ability.

  • Page 3: Technical Specification

    1200/2400/4800/9600/19200bps Space Channel: 1MHz(Default), (12.5/25KHz customization ) Bandwidth: <25KHz Receiver Sensitivity: -123dBm@1200bps, -118dbm(9600bps) Data format: 8N1, 8E1, 8O1 (customize) COMPATIBILITY LS-UN10, LS-UN100, LS-U1000, LS-UN5000 series POWER Supply Voltage: 5V DC Transmit Current: <600mA Receive Current: <50mA Sleep current: <20uA GENERAL...
  • Page 4 4. How to Use It 1) Install Dimension 2) How to connect LS-U1000 with PC. RF Module Contact: Sunny Web：www.lensen-tech.com Email：sunny@lensen-tech.com...
  • Page 5 TEST Factory testing LS-U1000 provide RS232, RS485 or TTL interface, please choose one when you place order. 4). The Function of LED indicator a. The LED indicator flashes red for 0.5S when power supply on. b. The LED indicator blinking blue when receiving data.
