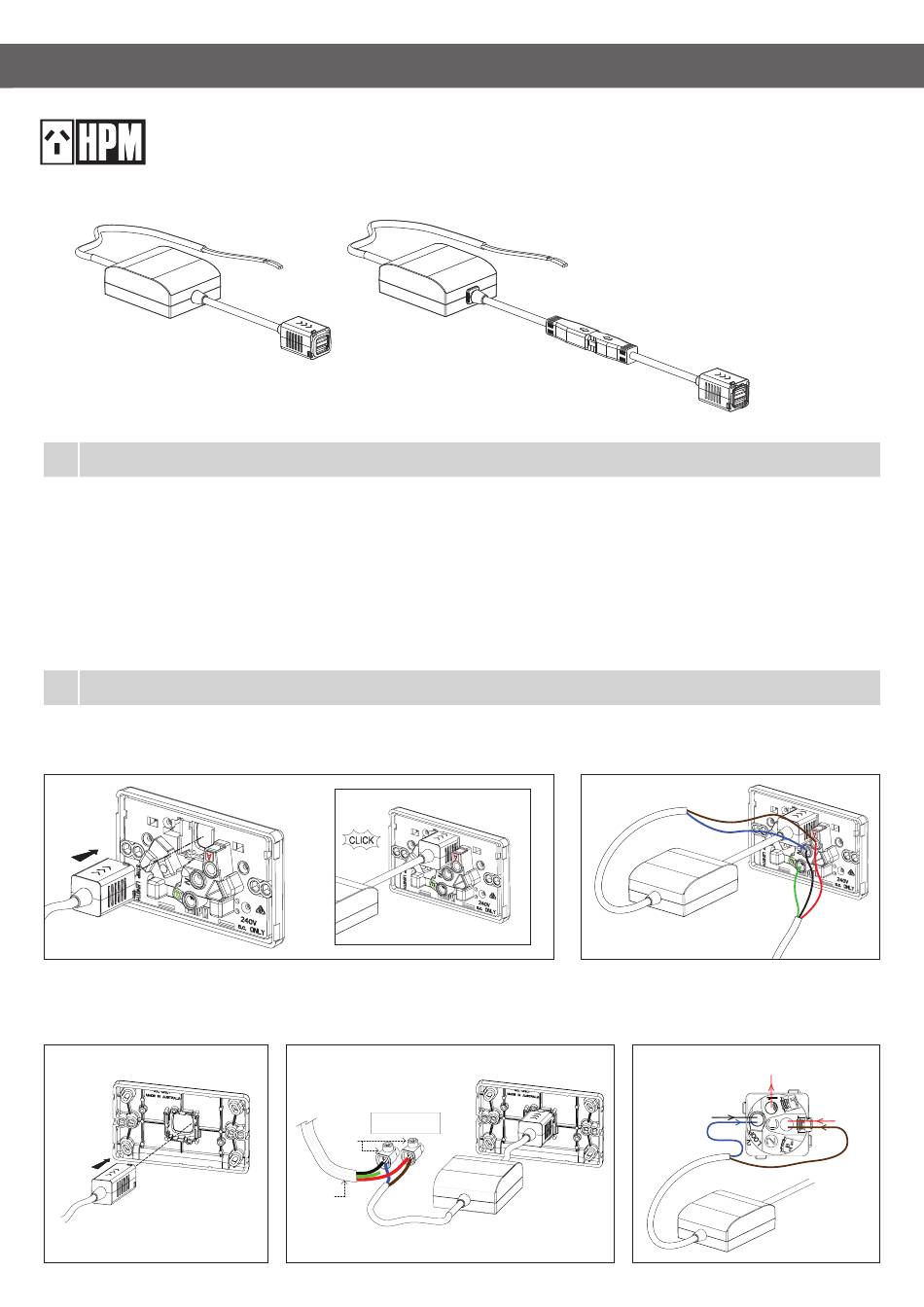

HPM 770USB2PSAMWE Instruction Sheet

770USB2PSAMWE
770USB2PSAMBL
1 Features
Cat No.
Ouput:
Input current 10A (GPO):
Mains connections:
Standby power consumption:
Overload protection on output:
NOTE: USB charger mechanism can be assembled with Excel and Linea powerpoints and switch plates (if Neutral is available) and
powerpoints with extra function hole.
2 Installation
Installation in powerpoints
1. Push USB mechanism into extra function hole with arrows facing up as shown.
Installation in switch plates
1. Push USB mechanism into extra function
hole with arrows facing up as shown.
770USB2PSAMWE, 770USB2PSAMBL, 770USB2PSXMWE, 770USB2PSXMBL
5V d.c. ± 5% 4.8 A
230-240V a.c. 50Hz
Via 'A' and 'N' wires
‹ 0.07W
5.1A
2a. Configuration with USB mechanism stand alone in plate.
Connect USB module wires to the mains cable via insulated
connectors (401 series) as per diagram below.
WIRING OF USB DRIVER
TO MAINS WIRING WITH 401
CONNECTOR (REQ. NEUTRAL)
Insulated
connetors
401
Mains cable
Dual USB Charger Mechanism
770USB2PSXMWE
770USB2PSXMBL
2. Join wires with corresponding Mains cables in the 'A'
and 'N' terminals of powerpoint.
Excel and Linea
Cat no. 770USB2PSAMWE
770USB2PSAMBL
770USB2PSXMWE
770USB2PSXMBL
Instruction Sheet
2b. Configuration with USB mechanism installed
next to a switch on a plate. Connect USB
wires to switch mechanism as per below.
ACTIVE - OUT
(TO LIGHT)
MAINS
NEUTRAL
IN
USB
MAINS
ACTIVE
IN
USB
