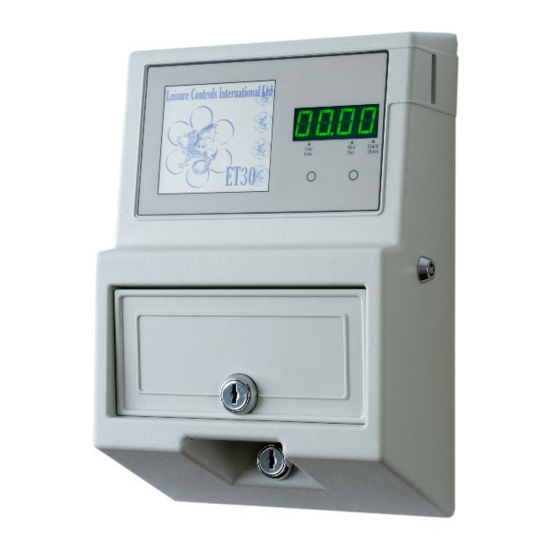

Handbook for the ET30
Coin Operated Timer
Part Number 918-000-918 July 2012 Issue 4 (Version 31.2 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET30 and is the answer not in the manual?

Questions and answers

Related Manuals for LCI ET30

Summary of Contents for LCI ET30

  • Page 1 Handbook for the ET30 Coin Operated Timer Part Number 918-000-918 July 2012 Issue 4 (Version 31.2 )

  • Page 2: Table Of Contents

    Contents Introduction ......... . . Operational Features .

  • Page 3: Introduction

    Introduction Operational Features The ET30 meter is a 30 amp coin or token operated electronic timer. It provides secure, reliable and affordable timing metering solutions for switching up to 30 amps. Standard features include credit save facility, resettable and non-resettable coin counter, dual or single coin operation and the time period may be set in minutes and seconds or hours and minutes.

  • Page 4: Installation

    (see Figure 2). Unplug the cover flying lead from the wall bracket and remove front cover. The ET30 should be mounted on a smooth vertical wall making sure access to the side coin entry is not obstructed. Take care to mount the case level in both the vertical and horizontal axes;...

  • Page 5: Service Mode

    ET30 Installation and Operating Instructions Service Mode The service mode consists of four settings split in to two functional areas:- 1. Programming credit 2. Audit functions To access service mode remove the coin box, press and release button B (Figure 4) to step to the desired setting number (St.01 to St.04).

  • Page 6: Audit Functions

    ET30 Installation and Operating Instructions St.01 Credit (Fixed Time) Per Coin 1 Sets the amount of credit given by coin sensor 1 (£1 coin, L2 or L4 tokens). Set in HH.MM or MM.SS. St.02 Credit (Fixed Time) Per Coin 2 Sets the amount of credit given by coin sensor 2 (€1, €½, 10p, 20p coins or L1 token)

  • Page 7: Operating Instructions

    Er.11 Not used Er.12 Not used If the following error messages are encountered contact the LCI support desk. Er.05 Opto 1 validated but meter is configured as a 10p or 20p only. Er.06 Opto 2 validated but meter is configured as a £1 only.

  • Page 8: Specifications

    Cash box capacity 100 coins of 23mm diameter x 2.5mm thick Service Information The ET30 meter has been designed to provide reliable long-term use for a variety of timing applications. No regular servicing is required, apart from emptying of the cash box.
