MarMonix MSF6-1000 Operation Manual

Portable infrared gas detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

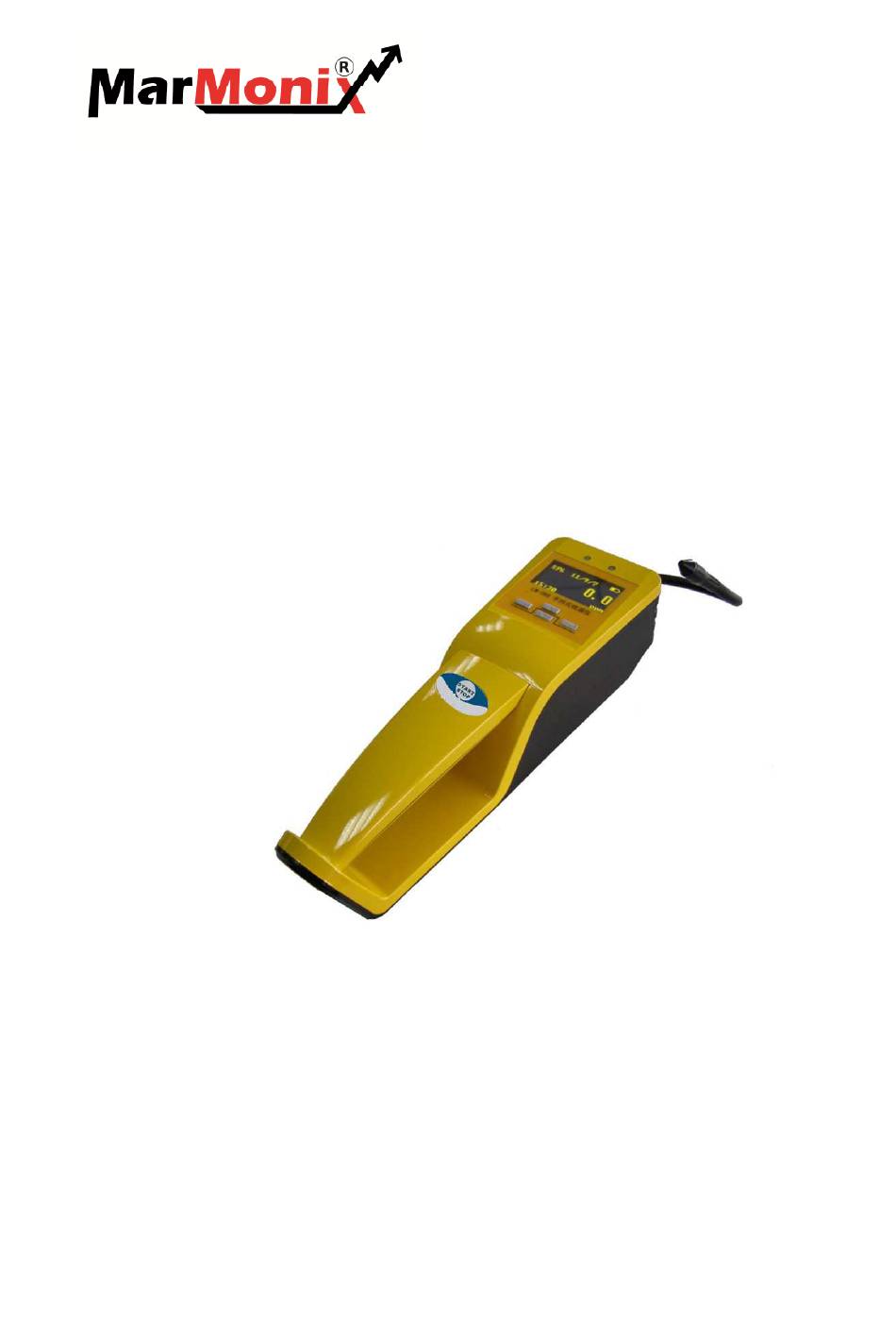

MSF6-1000 Portable Infrared
Gas Detector
Operation Manual V1.0
Please read Operating Specifications carefully prior to use.
MARMONIX (Measuring devices).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSF6-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for MarMonix MSF6-1000

  • Page 1 MSF6-1000 Portable Infrared Gas Detector Operation Manual V1.0 Please read Operating Specifications carefully prior to use. MARMONIX (Measuring devices).

  • Page 2: Safety Caution

    The product shall be operated and maintained by trained personnel. Any further questions regarding to safety, use and maintenance, please consult the After Service Center of MARMONIX. Warning Potential danger! Never use the instrument where explosion may happen or there is flammable vapors.

  • Page 3: Table Of Contents

    Promote your assets Contents SAFETY CAUTION ..........................1 CHAPTER 1 OVERVIEW ........................3 1.1 I ..........................3 NTRODUCTION 1.2 M ..........................3 EATURES 1.3 D ........................4 ETECTION RINCIPLE 1.4 A ........................5 PPLICATION LACE 1.5 E ........................5 XECUTED STANDARDS 1.6 T ........................

  • Page 4: Chapter 1 Overview

    Promote your assets Chapter 1: Overview 1.1 Introduction MSF6-1000 portable infrared leakage detector of SF is mainly applied for leak detection in power industry for GIS and SF gas insulated circuit breaker and other related products. It adopts imported SF gas infrared sensor and unique data processing method.

  • Page 5: Detection Principle

    Promote your assets Detection Principle Portable infrared leakage detector of SF detects and analyzes SF gas, by adopting the principle of infrared absorption spectrum. Infrared absorption spectrum, also known as infrared spectrophotometry, achieves qualitative and quantitative analysis of material, by making use of the property of material of selective absorption for infrared electromagnetic radiation.

  • Page 6: Application Place

    Promote your assets Diagram 1-1 Detection Principle of SF Gas Sensor 1.4 Application Place I. The instrument is special products for detecting the SF gas leak (without Explosion-proof Certification), widely used in many occasions of using SF such as the electric power industry, metallurgy industry, petroleum chemical industry etc.

  • Page 7: Technical Parameters

    Promote your assets Technical Parameters Table 1-1 MSF6-1000 Technical Parameters Measuring Principle Infrared (NDIR) Standard type:0-1000ppm Measuring Range Highly sensitive type:0-50ppm Standard type:1ppm Sensitivity Highly sensitive type:0.01ppm Standard type:1ppm Accuracy Highly sensitive type:0.1ppm Sampling Mode Pump Operating Temperature -20 ~ 60℃...

  • Page 8: Chapter 2 Product Structure

    Promote your assets Chapter 2: Product Structure MSF6-1000 portable infrared leakage detector of SF is mainly composed of two parts: the handheld host machine and probe; we will introduce it as below. Figure 2-1 MSF6-1000 Overall Unit Power Indicator Test status indicator light is green in normal status, while the light gets red in alarming status.
  • Page 9 Promote your assets instrument charging interface and USB interface can be seen clearly. Figure 2-2 Figure 2-3 is partial enlarged detail of label 5 in figure 2-1, it introduces the meaning of various numerical label in the measurement interface. Date Battery Indicator Measure gas 11/9/2...

  • Page 10: Chapter 3 Operating Instruction

    Promote your assets Chapter 3: Operating Instruction This chapter will introduce the operation methods and steps of MSF6-1000 Portable Infrared Quantitative Leakage Detector of SF6. 3.1 Functions of Keys on Instrument Table 3-1 Functions of Keys on Instrument Name Key Function...

  • Page 11: Measuring Steps

    Promote your assets Gas pump Under the main interface, press to open the gas pump control key and then the instrument start to measure or shut down the gas pump and then the instrument stop to measure; Under the calibration interface, press key to start up or shut down gas pump;...

  • Page 12: Instrument Menu Operation

    Figure 3-5 Main menu interface Figure 3-5 shows the main menu interface of the instrument, data record and system state has two- stage menu, instrument calibration and instrument settings have three-stage menu structure. The menu structure of MSF6-1000 shown as Figure 3-6:...

  • Page 13: Operation Of Data Record Menu

    Promote your assets Figure 3-6 Instrument menu structure 3.3.1 Operation of data record menu 3.3.1 3.3.1 3.3.1 Press the confirm key in the interface as shown in Figure 3-5 , entering the interface as shown in Figure 3-7, users can operate to set the save mode, review or delete data and check the store status etc.
  • Page 14 Promote your assets View the data record Select the SCANDATA item and press the confirm key, entering input data time interface as shown in Figure 3-8. Press the CL key at the moment to view the lastest record data. Press the up, down and confirm key to input the record time, the system will display the data which is nearest to query time and nearer to this moment if the query record doesn't exist.
  • Page 15 Promote your assets Figure 3-12 Select the “CLEAR” Figure 3-13 Confirm to delete or not Setting data save mode Under the “DATA_LOG” main interface, select the “SAVEMODE”, press confirm key to switch between the “MANUAL” mode and the “AUTO” mode. If you select the “MANUAL”...

  • Page 16: The System Status Related Operation

    Promote your assets Figure 3-16 Select the “SAVE-STA " Figure 3-17 Instrument save state 3.3.2 The system status related operation 3.3.2 3.3.2 3.3.2 Select the " SYSM_LOG " under the main menu interface and then press confirm key to entering the system status main menu interface. The " SYSM_LOG " displays some important components and parameters of the instrument, also can check the battery status, the calibration data of last time, view the current using address of sensor (manual testing whether the sensor has a problem) and the program version.
  • Page 17 Promote your assets The parameter query Under the SYSM_LOG main menu interface, select the " PARA_CHK " ( as Figure3-21), press the confirm key to entering the interface with the stored calibration parameters of last time(as Figure 3-22 ), it displays the ppm value of the low and high point of standard gas and the reading sampling value of the sensor, these values influences the measured display value, the value in bottom line is the stored zero point correction value which is being used (after the instrument calibration,when the...

  • Page 18: Calibration Operation

    Promote your assets Figure 3-25 Searching the sensor information Figure 3-25 Display the sensor address View the current program version As shown in Figure 3-27, select SOFT_VER, press the confirm key to entering the interface of the software version information. Figure 3-27 Select the SOFT_VER Figure 3-28 Software version information 3.3.3 Calibration Operation...
  • Page 19 Promote your assets two-point calibration. The zero calibration refers to the steps as follow: the sensor feedback is a stable value or fluctuates in a small range when inlet the clean gas or nitrogen gas without the measured gas and other interfering gas, and then record the value as the internal parameter.
  • Page 20 Promote your assets line as shown in Figure 3-22). At the same time, the instrument provides the single calibration (calibration in the clean air without the measured gas)at the zero point. Under the main menu interface (see Figure 3-2, 3-3),press down key to enter the interface as shown in Figure 3-33 and press confirm key to store the value and correct the measured value.
  • Page 21 Promote your assets store the set of parameters and prompt the calibration successful ( Figure 3-36), otherwise it will display the cancel prompt ( Figure 3-37). Then end the low point calibration. Figure 3-34 Select the LOW_ CAL Figure 3-35 Low point calibration sampling interface Figure 3-36 Calibration is successful Figure 3-37 Calibration cancel （2）High point calibration...

  • Page 22: Operating Instructions Of Instrument Setting

    Promote your assets Figure 3-38Select the HIGH_CAL Figure 3-39 High point calibration sampling interface Zero calibration Zero calibration shall be operated only by our factory workers to calibrate and maintenance the instrument, users are banned to operate this step. Operating instructions of instrument setting 3.3.4 3.3.4 3.3.4...
  • Page 23 Promote your assets Figure 3-42 selected “CODE_SET " Figure 3-43 setting the new password Figure 3-44 Confirm password has been saved A larm value setting （ 2 ） Select the menu (as Figure 3-45), entering the ALAM_SET PARA_SET interface after confirmation (as Figure 3-46), the alarm setting data of last ALAM_SET time is displayed on the screen before inputting the new value, Figure 3-46 displays the alarm setting of last time, the instrument shall alarm if the gas concentration...
  • Page 24 Promote your assets volume setting interface after pressing the confirm key (as Figure 3-48), the initial display is still the previous setting value, press up key or down key to set the new volume size, press the confirm key to save the value and to exit, press the CL Key and keep the previous setting value and then exit.
  • Page 25 Promote your assets Select IIME_SET in the INST_SET menu (as Figure 3-53), press confirm key to enter TIME_ SET menu interface (as Figure 3-55), enter the CLK_SET interface after press the confirm key (as Figure 3-54), press up or down key and the confirm key to input the new clock value, press the CL Key and then return to the previous menu.

  • Page 26: Chapter 4 Software Operating Instructions

    Promote your assets Chapter 4 Software Operating Instructions 4.1 Software Installation Please run installation package the install necessary software on the upper computer at first (find it in the attached installation CD). Figure 4-1 Software Installation (1)
  • Page 27 Promote your assets Figure 4-2 Software Installation (2) Suggest to select the installation path as the no operating system disk partition, such as "D: \ Globe Instrument \ MSF6-1000", in case the measurement data is lost. Figure 4-3 Software Installation (3)

  • Page 28: Pc Operating Instructions

    Windows and desktop shortcut. 4.2 PC Operating Instructions 1. Please use supporting USB data lines are connecting to the MSF6-1000 and PC. 2. Open the rsDeviceManager.exe program, and the program interface will be as shown in Figure 4-5...
  • Page 29 Promote your assets Figure 4-5 Click on the scan device, if successful that the interface will display as shown in Figure 4-6...
  • Page 30 Promote your assets Figure 4-6 3. Click to open the device, if successful that the interface will be as shown in Figure...
  • Page 31 Promote your assets Figure 4-7 4. Click to read data, if successful that the interface will be as shown in Figure 4-8:...
  • Page 32 Promote your assets Figure 4-8 5. At this time you can use the mouse wheel to zoom in or out. To view the data corresponding to the date, please move your mouse to data points stay there for a short time (in the scaling status please ensure that the palm portion of the hand cursor masked the data points)
  • Page 33 Promote your assets Figure 4-9 6. If you want to export the current data into EXCEL format, please click export data button.
  • Page 34 Promote your assets Figure 4-10 Figure 4-11...

  • Page 35: Chapter 5 Precautions And Faq

    Promote your assets Chapter 5 Precautions and FAQ Points for Attention Keep the surrounding environment dry and clean, to avoid long-term at high temperature and high concentration gas. The instrument should be prevented from collision, extrusion, and severe vibration, during transportation or testing. Before measured, the instrument should be preheated for 100s.

  • Page 36: Common Failure & Troubleshooting

    Promote your assets 5.2 Common Failure & Troubleshooting 5.2.1 Frequently Asked Questions 5.2.1 5.2.1 5.2.1 1) Generally, how long is required for the instrument to charge? a) USB charging: 5-7 hours; b) AC adapter for charging: 3-4 hours. 2) How often should the instrument be calibrated and maintained? It is suggested that the user should calibrate the instrument once every six months.

  • Page 37: Chapter 6 Packing, Transportation And Storage

    Promote your assets displayed on the were on, check the and OLED module. screen connections The power No power, Charge the indicator not bright, instrument; or reconnect the check the power or battery and motherboard the connections. Poor contact with the Re-plug it.

  • Page 38: Chapter 7 Quality Assurance

    ℃ dusts exist in the air. Chapter 7 Quality assurance Products made from MARMONIX ELECTRONICS TRADING L.L.C.. are calibrated and commissioned according to the special requirements of users, and strictly inspected before leaving factory, which meet relative national standards and industrial standards.

  • Page 39: Acceptance & Inspection

    Promote your assets for use and explosion when an order is placed. 2) In order to upgrade the technology level, the Company may modify the recorded technical specifications without any prior notice. 3) Please contact the Manufacturer for confirmation before an order is placed. Acceptance &...
  • Page 40 Please forgive us that these changes may not inform you. If you search the latest version, please login www.marmonix.co or call us MARMONIX head office. reserves the final right to interpret.
