Summary of Contents for VIERLING ECOTEL C6

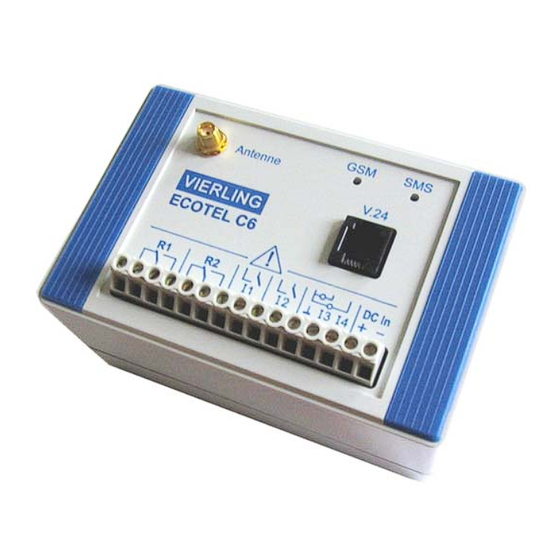

- Page 1 ® ECOTEL A TeleControlling Device for Remote Querying, Monitoring and Controlling over the GSM 900/1800 Mobile Phone Network Operating Instructions Edition 1.5 VIERLING Communications GmbH 70411.202/20 - 1.5 – 20051018...
- Page 2 VIERLING Communications GmbH. We reserve the right to make changes without prior notice. This text was conscientiously prepared. However, VIERLING Communications GmbH assumes no liability should it nevertheless contain errors. ®...
-
Page 3: Table Of Contents
VIERLING Contents SAFETY INFORMATION ............5 INTRODUCTION ................ 8 Applications................8 Components ................8 Brief Description ............... 9 Controlling................9 2.3.1 2.3.2 Querying ................9 2.3.3 Reporting/ Alarming ............9 2.3.4 Counting Impulses ............9 2.3.5 Querying the Counter Status.......... 10 2.3.6... - Page 4 VIERLING 3.6.4 Analogue Inputs .............. 17 3.6.5 Antenna ................19 3.6.6 Serial Interface (V.24) ............19 Display Elements ..............20 Configuration ................21 CONFIGURATION PROGRAM ..........22 Installation ................22 Program Start................22 TELECONTROLLING .............. 23 Start Report ................23 Controlling................
-
Page 5: Safety Information
VIERLING 1. Safety Information General Safety Instructions This device has been constructed and tested in accord with DIN EN 60950/- 1:2003 VDE 0805, "Institute for Safety in Information Technology". It left the factory in perfect condition with respect to safety-technology considerations. - Page 6 VIERLING absolutely dry. Thus, an acclimatization period of at least two hours must be observed. Setting Up Protect the device from direct sunlight and heat. Supply Voltage If the device is operated on a current source that can supply more than 15 watts, then the power consumption input of the device should be limited to a maximum of 15 watts by using appropriate protection (refer to Technical Data section).
- Page 7 VIERLING Repairs Repairs may only be made by qualified personnel. Only replacement parts may be used that do not violate device safety stipulations. Always unplug the power supply unit before opening the device! System Expansion Install only those system expansions that have been expressly designed for this device.
-
Page 8: Introduction
VIERLING 2. Introduction TTENTION Before inserting the SIM card deactivate the PIN of the SIM card or use the specified PIN. See also page 31. Applications ® ECOTEL C6 can be used to • Control devices and systems • Query conditions and status quo •... -
Page 9: Brief Description
VIERLING ® In order to operate ECOTEL C6, you will require: • SIM card (card agreement or prepaid cards) • GSM external antenna (only for conditions of poor reception). • Laptop with RS232 serial interface for configuration purposes ® •... -
Page 10: Querying The Counter Status
VIERLING internal counter by 1. After a power failure the counter starts with 0. The impulses are counted from 0 to 4.000.000. 2.3.5 Querying the Counter Status ® The counter status of ECOTEL C6 can be remotely queried with a mobile phone or via Internet. -
Page 11: Starting-Up Ecotel C6
VIERLING ® 3. Starting-Up ECOTEL The following points must be clarified when starting operations for the first time: • SIM card (card agreement or prepaid card) • PIN for the SIM card • Receiving conditions/ antenna location • Installation at the assembly location •... -
Page 12: Pins
VIERLING PINs ® When operating ECOTEL C6, there are two different PINs. The first PIN secures access to the SIM card (SIM-PIN) while the second PIN ® protects ECOTEL C6 from being used by unauthorized persons (SMS- PIN). 3.2.1 SIM-PIN ®... -
Page 13: Sms-Pin
VIERLING 3.2.2 SMS-PIN ® The SMS-PIN prevents unauthorized use of ECOTEL C6 over SMS. When the PIN identification function is activated, a PIN is required for controlling outputs and querying inputs, and it must appear at the ® beginning of every SMS sent to ECOTEL C6. -
Page 14: Inserting The Sim Card Into Ecotel ® C6
VIERLING The short antenna can be used if it is adequate for reception conditions prevailing at the assembly location. Minimum reception field strength app. –80 dBm. Should reception conditions be insufficient, a GSM antenna will be required at an appropriate location. The antenna is then to be ®... -
Page 15: Mounting Options For Housing
VIERLING ® Illustration 1: Inserting the SIM card into ECOTEL Mounting Options for Housing ® The universal ECOTEL C6 housing offers three mounting options: • Desk-top housing (rubber feet) • Wall-mounted housing (screws) • Control cubicle (DIN rail-assembly) Mount the housing according to your requirements. -
Page 16: Interfaces
VIERLING ® Illustration 2: Mounting the ECOTEL C6 Housing Interfaces TTENTION Observe VDE regulations when connecting relay contacts (R1, R2) and inputs (I1 to I4). Connected voltages may not exceed 60V DC / 42 V AC (SELV-Electrical Circuit). 3.6.1 Power Supply ®... -
Page 17: Relays
VIERLING the original power supply unit is not being used, the power supply itself must be fuse-protected. Refer to section 7 Technical Data. The DC In input is protected against reversed connections. 3.6.2 Relays ® ECOTEL C6 has two relays, R1 and R2, each with a change-over contact. - Page 18 VIERLING 3.6.4.1 Hysteresis In order to avoid multiple reports resulting from small voltage-deviations about the threshold value, high and low threshold boundaries have been established. Mode of operation when overshooting the threshold value: If the input voltage overshoots the lower boundary and then the threshold value, ®...
-
Page 19: Antenna
VIERLING Input Voltage Upper Boundary Value Threshold Value Report Report Time Illustration 4: Threshold value and upper boundary value Refer to section 5.3 Querying for information about querying input conditions. 3.6.5 Antenna The antenna interface has been designed to directly connect the short antenna. -
Page 20: Display Elements
VIERLING Display Elements ® ECOTEL C6 has two light-emitting diodes that are used to indicate current operating conditions. The green "GSM" LED shows the operating condition. "GSM" LED Significance No power supply SIM card not yet logged-in to the mobile phone network... -
Page 21: Configuration
VIERLING Configuration When starting up this device for the first time, a configuration is ® necessary in order to install the desired ECOTEL C6 functions. In general, this is accomplished over the serial interface using the ® ECOTEL C6 config configuration program. -
Page 22: Configuration Program
Place the CD that is included in the accessories into the disk drive of your laptop/PC. Start the setup.exe program. Then follow the installation instructions. Program Start Start > Program > ECOTEL > ECOTEL C6 config ® Page 22 70411.202/20 - 1.5 – 20050418 – ECOTEL... -
Page 23: Telecontrolling
VIERLING 5. TeleControlling After the desired (configuration) functions have been transmitted to ® ECOTEL C6 via the configuration program, the device is ready for operations after logging-in. CHTUNG Pay attention to upper and lower case in the following examples. Start Report... -
Page 24: Controlling With Phone Calls
VIERLING The relay is specified with "R1=" or "R2=". The desired action of the relay is specified with either "on", "off" or "imp". • the relay responds • the relay releases • the relay responds for the impulse period configured The PIN identification serves to prevent unauthorized controlling. -
Page 25: Querying
VIERLING designated in the configuration. Otherwise, the control-command will not be processed. Furthermore, the CLIP function in the mobile phone (or fixed network phone) must be activated. TTENTION CLI-identification will function only if ones own telephone number is forwarded (CLIP). Not every telephone is capable of forwarding its own telephone number. -
Page 26: Status Query With Calls
VIERLING SMS PIN-identification serves as protection against unauthorized status query. If the PIN-identification has been activated for status query with SMSs, then control-SMSs must always begin with the SMS-PIN. Examples for control-SMSs: • • (SMS PIN-Identification) 1234,S=? Example for status... -
Page 27: Reporting/ Alarming
VIERLING Reporting/ Alarming If one of the alarming conditions should occur at the inputs of I1 to I4 (as ® defined in the configuration), then ECOTEL C6 will automatically send a message (SMS) and will inform/ alarm you about the alarm condition with an SMS, with a fax or with an e-mail. -
Page 28: Summary Of Commands
VIERLING 6. Summary of Commands Switch-on relay R1, R2 unchanged R1=on R1 unchanged, switch-off relay R2 R2=off Switch-on relays R1 and R2 R1=on R2=on Relay R1 unchanged, switch-on R2 for the R2=imp impulse period configured Status request Status request xxxx S=? -
Page 29: Technical Data
VIERLING 7. Technical Data Height x Width x Depth: 60 mm x 120 mm x 80 mm Approx. 300 g Weight: Primary: 100 - 240 volts AC, 50 - 60 Hz Power Supply Unit: Secondary: 15 volts DC, 1 Ampere... -
Page 30: Index Of Abbreviations
VIERLING 8. Index of Abbreviations All abbreviations used in these operating instructions are explained in the following table. CLIP Calling Line Identification Presentation; Calling Line Identification Light-Emitting Diode; Personal Identification Number Subscriber Identity Module Short Message Sequence Table 4: Index of Abbreviations ®... - Page 31 VIERLING ® The PIN to protect the SIM card for ECOTEL C6 can not be freely selected. Please use the PIN specified below or else deactivate the PIN function. Cut off the lower part of this page and keep it in a safe place.
- Page 32 VIERLING ® Page 32 70411.202/20 - 1.5 – 20050418 – ECOTEL...
- Page 33 VIERLING ® ECOTEL C6 - 70411.202/20 - 1.5 – 20051018 Page 33...
