Summary of Contents for Econ 1096

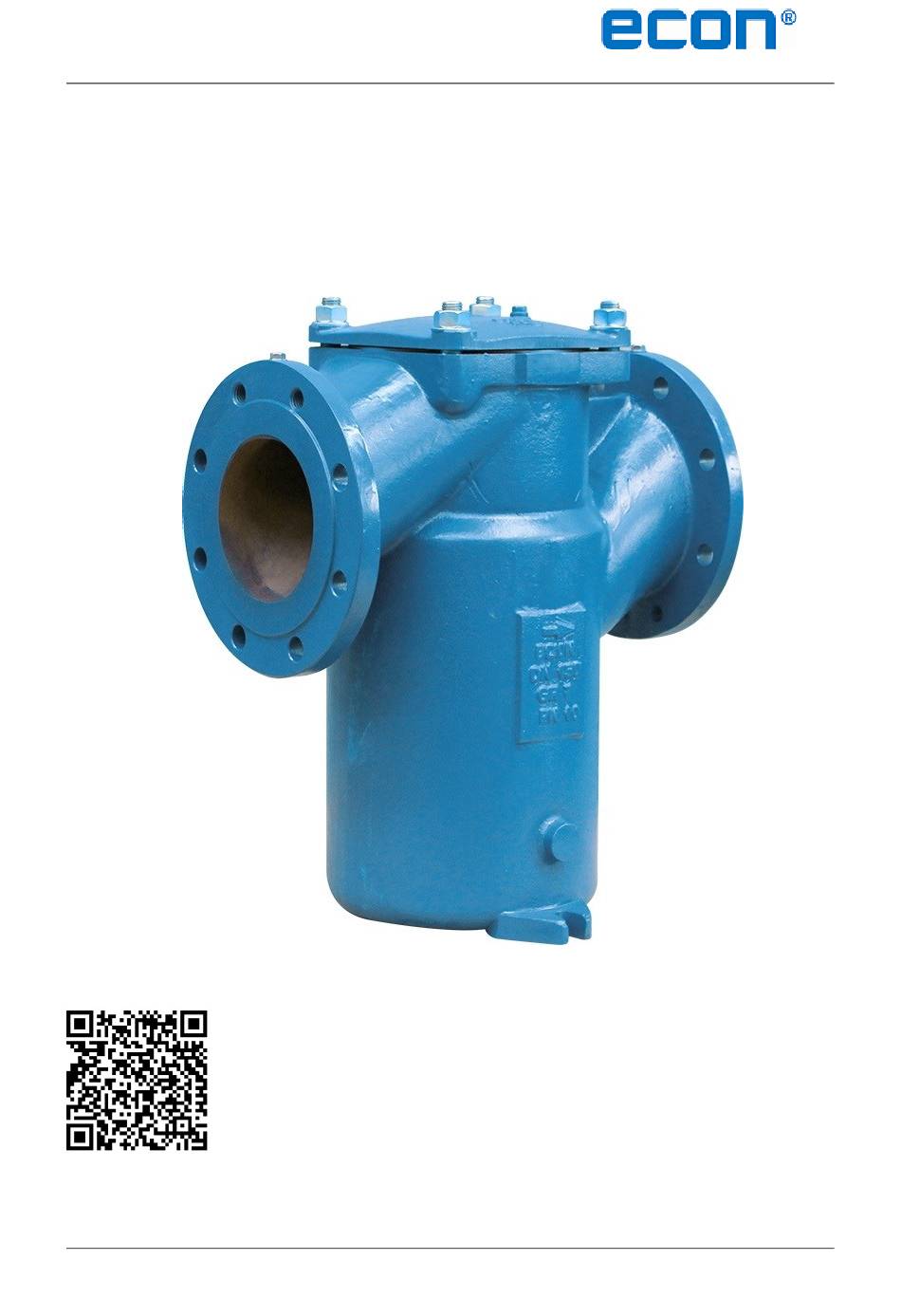

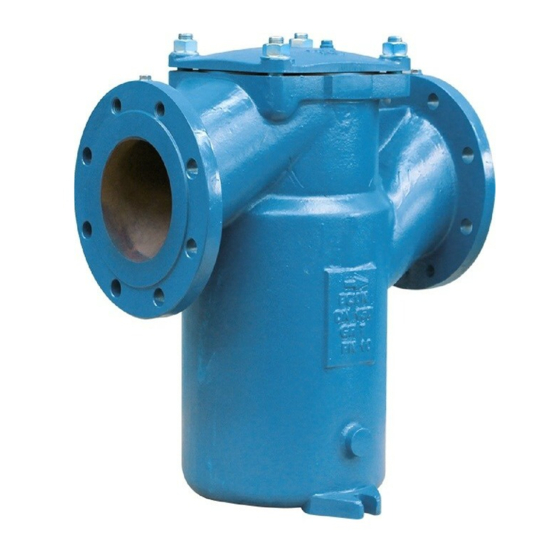

- Page 1 Installation & Operation Manual Proven Quality since 1892 ECON BUCKET FILTER Fig. 1096 Scan for manual Operating and Instruction Manual for Bucket filter: Fig. 1096 ECON bucket filter Fig. 1096 www.eriks.com Rev. 1...
- Page 2 In this manual these will be referred to as ‘ERIKS’, the individual terms of delivery of the ERIKS operating company having executed the order are applicable. 2. Product description The ECON bucket filters are designed according the information in our latest catalogue or see our website www.eriks.com and should be used in accordance with the applicable pressure- temperature rating as stated on this website.
- Page 3 Regulation (EC) No 1272/2008. 7. Installation During the assembly of the ECON bucket filters, the following rules should be observed: the filters should be checked before installation if they have not any defects caused by transport and/or storage.
- Page 4 When changing the bucket filter from bolted cover version to clamped cover version the stud bolts and nuts can be forgotten. Please note that the clamped version has a lower maximum working pressure, depending on Nom. diameter and housing size. ECON bucket filter Fig. 1096 www.eriks.com Rev. 1...
- Page 5 Installation & Operation Manual Proven Quality since 1892 Bolt with lock nut Clamp Filter body Filter ECON bucket filter Fig. 1096 www.eriks.com Rev. 1...
- Page 6 Cast iron can be used for various applications, such as listed in our catalogue. It should however always be observed, that frost (in combination with non drained products) may permanently damage the proper functioning and integrity of our product. ECON bucket filter Fig. 1096 www.eriks.com Rev. 1...
- Page 7 Installation & Operation Manual Proven Quality since 1892 ECON bucket filter Fig. 1096 www.eriks.com Rev. 1...
