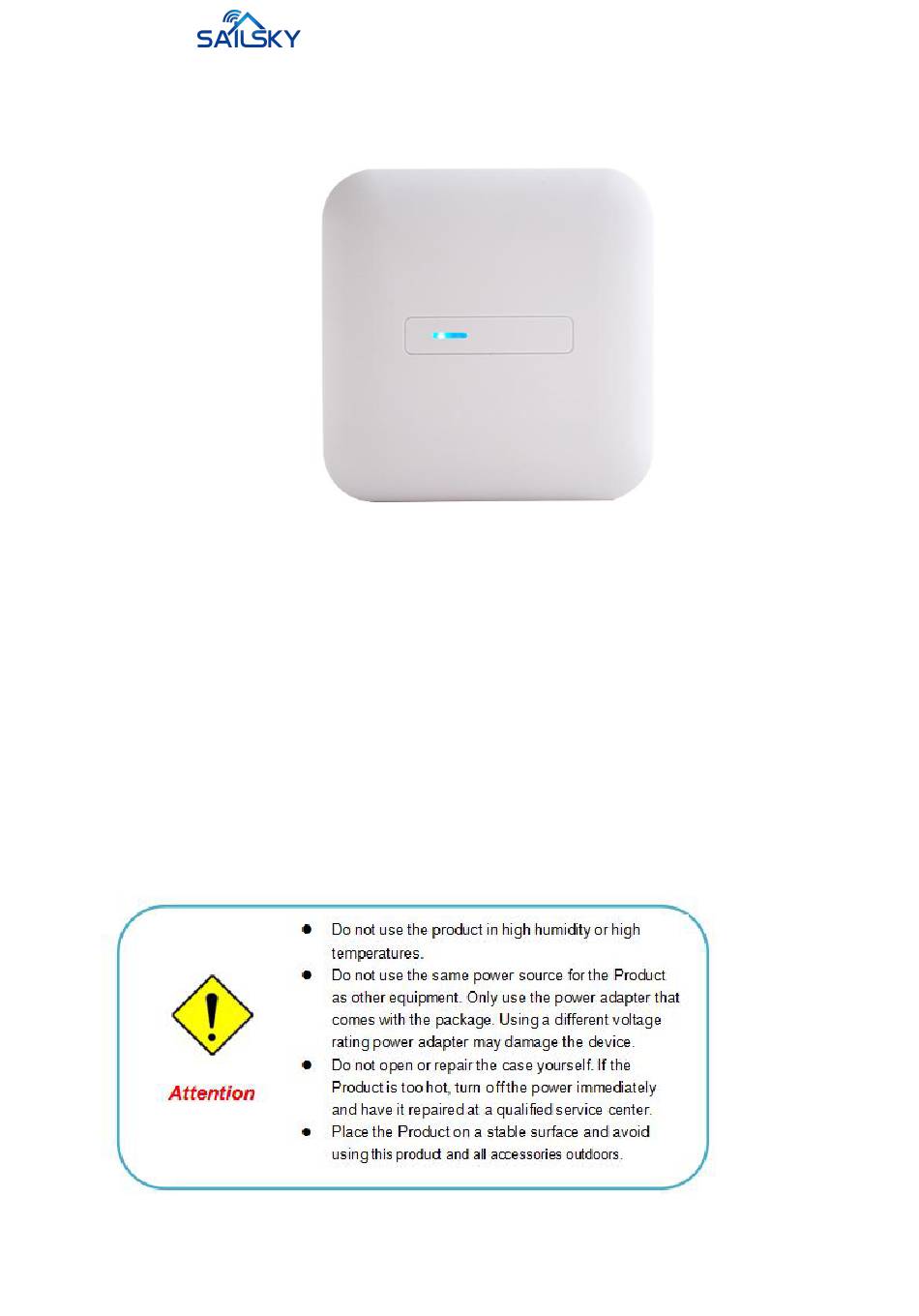

Shenzhen Shuotian Information Technology Co.,LTD
User Manual

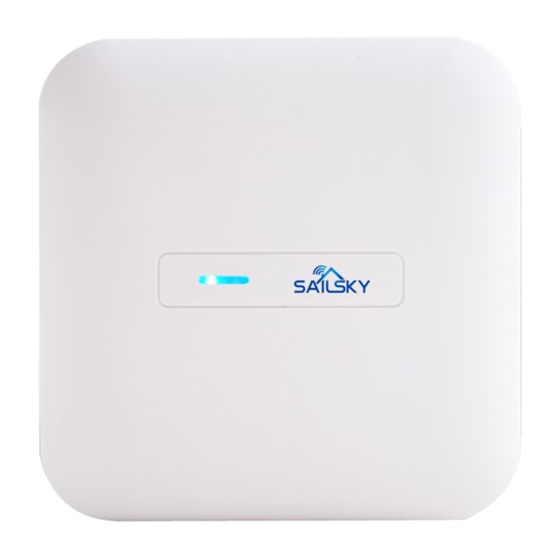

This is the user manual of 300Mbps Ceiling AP, which will approximate guide you how to set and apply the Ceiling AP,
it provide a convenient graphical interface for network construction and maintenance person, as well as a user through
a simple and accurate operation, and configuration management of the ceiling wireless access point.
Attention:
1. Check box contents:
Ceiling Wireless AP
Power adapter
LAN cable
User Manual
Setting Screws
2. Warning:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL260Q and is the answer not in the manual?

Questions and answers

Summary of Contents for Sailsky BL260Q

  • Page 1 Shenzhen Shuotian Information Technology Co.,LTD User Manual This is the user manual of 300Mbps Ceiling AP, which will approximate guide you how to set and apply the Ceiling AP, it provide a convenient graphical interface for network construction and maintenance person, as well as a user through a simple and accurate operation, and configuration management of the ceiling wireless access point.

  • Page 2: Table Of Contents

    Shenzhen Shuotian Information Technology Co.,LTD Contents 1st: Hardware and Operation mode Instruction……………..……………………..……….4 LED indicator:…………………………………………..…………………………………….4 AP Interface:………………………………………………………..…………………………4 Power Supply:……………………………………………………………..………………….4 1. PoE Adapter Power Supply:……………………………………..…………………...…..4 2. PoE Switch Power Supply…………………………........………....4 AP installation:........................5 2nd: Connect Wireless AP with PC:…………………………………………………..…..………5 3rd：Login………………………………………………………………………..……………..….6 4th : WEB GUI interface Setting:……………………..……………………………………….…9 1) Status………………………………………………..…………………………………..9 2) Wizard Configuration:…………………………………………………..……………...11 1.

  • Page 3: 1St: Hardware And Operation Mode Instruction

    Shenzhen Shuotian Information Technology Co.,LTD Hardware and Operation mode Instruction LE D in d i c a t o r : Gr e e n : Po w e r In d i c a t o r Bl u e : Wi F i In d i c a t o r AP In t e r f a c e : RST: Reset Button, it make AP revert to default data after press it 15 seconds.

  • Page 4: Poe Switch Power Supply

    Shenzhen Shuotian Information Technology Co.,LTD 2. PoE Switch Power Supply The connection diagram shows as P2, Internet cable from PoE Switch to Ceiling AP’s WAN Port, then PC access into ceiling AP wired/wireless. Pls note the PD wireless AP support 48V IEEE 802.3af standard PoE, the PoE switch should comply with 802.3af 48V PoE standard.

  • Page 5: 2Nd: Connect Wireless Ap With Pc

    Shenzhen Shuotian Information Technology Co.,LTD : Connect Wireless AP with PC: Us e ca n co n n e c t th e PC wi t h wi r e l e s s AP by Wi r e l e s s SS I D an d LA N ca b l e : Th e di a g r a m of wi r e l e s s co n n e c t i o n sh o w e d as fo l l o w : Pl s no t e : th e de f a u l t SS I D is Wi r e l e s s 2.
  • Page 6 Shenzhen Shuotian Information Technology Co.,LTD P 5 Setting of computer’s IP address 3) Input 192.168.0.254 into IE browser, then pop up the login page, the default login password: admin, then login, pls do following P6 P6 Login...

  • Page 7: 4Th : Web Gui Interface Setting

    Shenzhen Shuotian Information Technology Co.,LTD 4) After login, then P7 Device Status will be showed; This page will show the Wireless AP’s default operation mode, channel, connection status, CPU usage, Wireless settings, LAN Setting, Wireless AP’s Location, hardware/firmware version. P7: Device Status : WEB GUI interface Setting: 1) Status After login, then P8 Device Status and home page will be showed:...
  • Page 8 Shenzhen Shuotian Information Technology Co.,LTD In this page, show the AP’s default operation mode, channel, end user QTY, connection status, CPU usage status, Wireless, LAN and AP location info. Then in Wireless Setting, GUI configuration page showed as below: User can configure the SSID, password, band width, channel here, then Apply to finish. P9.

  • Page 9: Wizard Configuration

    Shenzhen Shuotian Information Technology Co.,LTD AP location setting: can mark where the AP set up, and AP name as P11: P11 AP Postion setting 2) Wizard Configuration: Wizard: It instruct users to configure wireless AP’s operation mode based on needs: there are four operation mode including gateway, repeater, WISP, Wireless AP.
  • Page 10 Shenzhen Shuotian Information Technology Co.,LTD Before Click Gateway mode, confirm your internet will be static IP, PPPoE, or DHCP: Then will pop up following picture after click it, Please choose the right WAN setting mode, then click next to continue. P13.
  • Page 11 Shenzhen Shuotian Information Technology Co.,LTD P15 Channel Analysis When click Next, then will complete the Gateway mode setting and show following picture: Complete the setting in Gateway Mode...

  • Page 12: Wifi Repeater Mode

    Shenzhen Shuotian Information Technology Co.,LTD When return to Status, will show wireless router’s SSID, internet connection, LAN connection status showed as follow: P17 Status in Gateway Mode 2. WiFi Repeater mode A. Login the Web management page, click “Wizard”, then “WiFi Repeater” B.
  • Page 13 Shenzhen Shuotian Information Technology Co.,LTD Click Return button, will back to Status, show Repeater mode data, show fail or success, and user can configure this data in this page if required. P19 Status in Repeater Mode In wifi repeater operation mode, the default is SSID disable. If want to enable SSID, then click Wireless Setting. Pls note, when click wireless relay setting, following page will pop up, you can make change from here easy: P20 Wireless Relay Setting...

  • Page 14: Wisp Operation Mode

    Shenzhen Shuotian Information Technology Co.,LTD 3. WISP Operation mode: Click WISP operation mode in Wizard, then will pop up the configure page, pls set the WISP operation mode based on the steps showed in picture: P21 WISP Mode Configure the right WAN setting in WISP operation mode, then next to complete P22 WAN setting in WISP mode...

  • Page 15: Ap Operation Mode

    Shenzhen Shuotian Information Technology Co.,LTD Then complete and back to status, will show the connection fail or success, then can configure the data based on request: P23 Status in WISP mode Remark: When click WAN Setting, will pop up following picture to ask you choose PPPoE, DHCP or Static IP P24 WAN setting in WISP mode 4.

  • Page 16: Advanced Setting

    Shenzhen Shuotian Information Technology Co.,LTD P26 LAN Setting in AP Mode P27 Status in AP Mode 3) Advanced Setting: In advanced setting, mainly for wireless AP’s device status, wireless setting, Networking setting and AP management configure. Let’s Click Advanced Setting in status page, will show return home, Setup Wizard which we showed before. Let’s shown more in Device Status, Wireless, Network and Management in following pages:...

  • Page 17: Device Status

    Shenzhen Shuotian Information Technology Co.,LTD Device Status: to show the Wireless AP’s status, Wireless Status and LAN status. In status, mainly to check the ceiling wireless AP’s firmware version, hardware version, uptime info.: P28 Device Status In wireless status, to show wireless AP’s SSID, MAC address for WiFi, Channel, Encryption, Client List info. P29 Wireless Status...
  • Page 18 Shenzhen Shuotian Information Technology Co.,LTD In LAN Status, we can check wireless AP’s IP address, Subnet Mask, LAN MAC address and other info showed in following picture. P30 LAN Status Wireless: For wireless, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID, tag VLAN, RF power adjust from Basic Setting, Virtual AP, Access control and Advanced Setting: P31 Basic Setting in Wireless...

  • Page 19: Virtual Ap

    Shenzhen Shuotian Information Technology Co.,LTD Wireless Status: On mean SSID on, Off mean SSID off. 2G Wireless Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more easy to choose the channel with less wireless AP, then to avoid the wifi interface. Band Width: 20MHz and 40MHz;...

  • Page 20: Access Control

    Shenzhen Shuotian Information Technology Co.,LTD Access Control: Allow or deny the users access into this wireless AP based on MAC address P34 MAC Access Control Advanced Settings: In this page, will show the regional, mode, RF Power, Max user access... P35 Advanced Setting...

  • Page 21: Network Setting

    Shenzhen Shuotian Information Technology Co.,LTD Network: In network, mainly to show the LAN setting and tag VLAN as follow: In LAN Settings, mainly including static IP and DHCP. P36 Network Setting In VLAN part, need an VLAN switch and make sure the multi SSID is enable, then input the VLAN ID to different SSID. P37 Tag VLAN Setting Management:...
  • Page 22 Shenzhen Shuotian Information Technology Co.,LTD In this part, show the system time, Logs, upgrade firmware, system, user info. And we show System time, how to upgrade firmware and system page to users: P38 System Time P39Firmware Upgrade...

  • Page 23: 5Th Share Internet And Obtain Ip Address Automatically

    Shenzhen Shuotian Information Technology Co.,LTD P40 System info Share Internet and Obtain IP address automatically Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will obtain the IP address from router or base station to get Internet.

  • Page 24: Trouble Shooting

    Shenzhen Shuotian Information Technology Co.,LTD Tr o u b l e Sh o o t i n g : F 1 The Failure phenomenon and solution Failure phenomenon Solution Pls make sure the PoE module connection is right. POE Port connect SYS Indicator off with AP, LAN port connect with computer Pls check the IP address of computer and Wireless AP to see whether...
