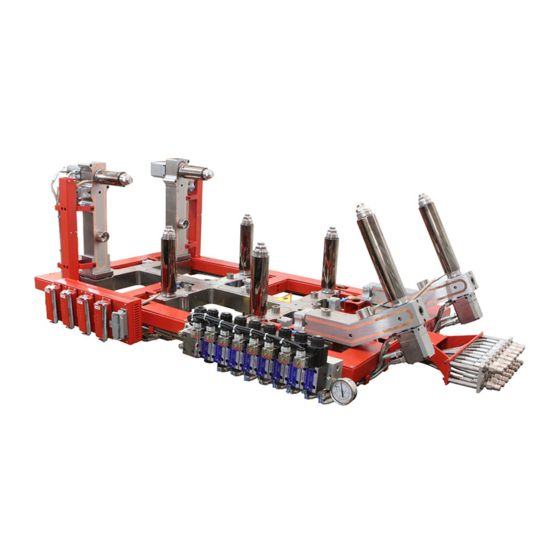

Summary of Contents for Yudo HOT RUNNER

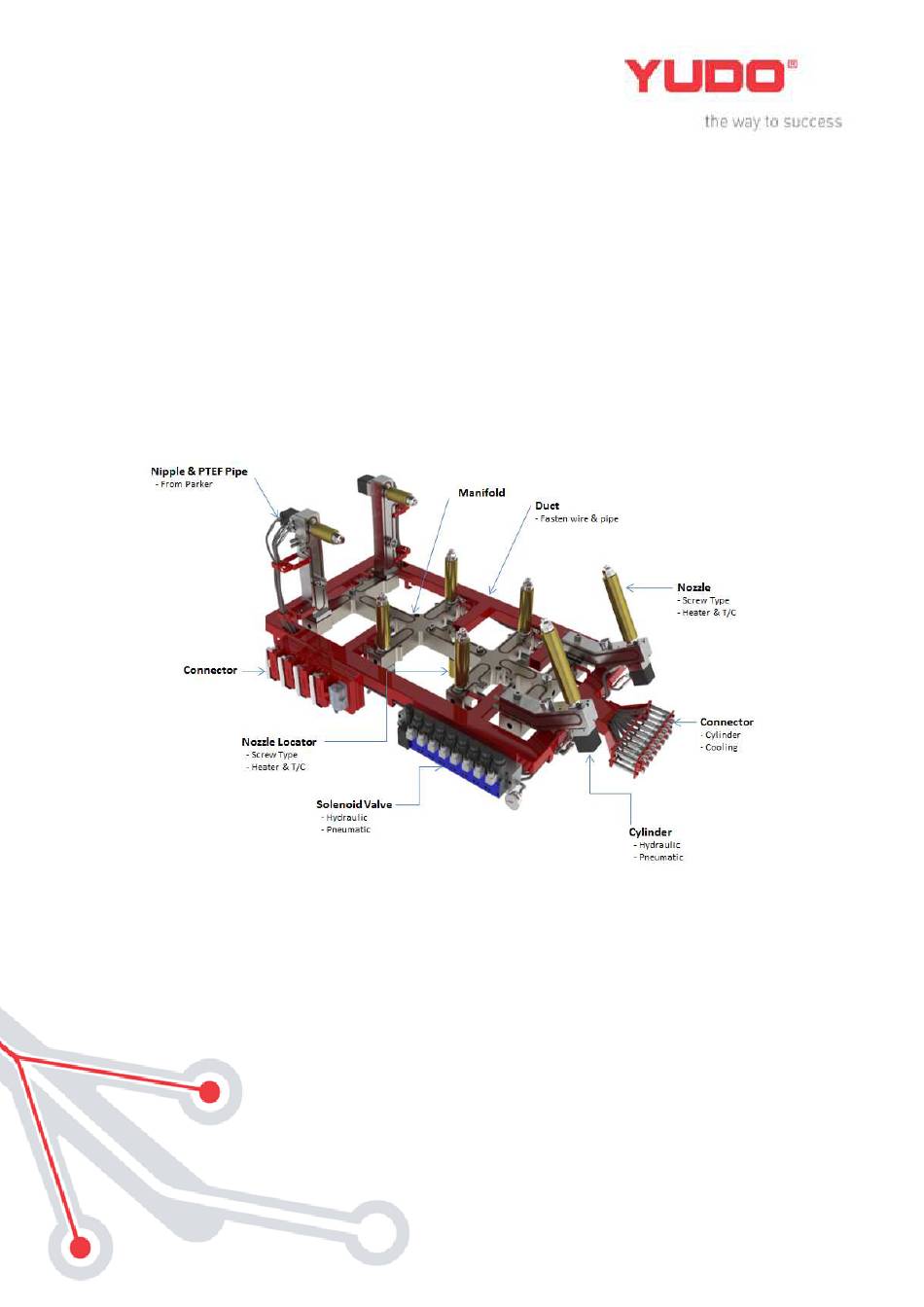

- Page 1 HOT RUNNER USER’S HANDBOOK...
- Page 2 This system is manufactured using the most modern engineering technologies and manufacturing processes, but it is absolutely necessary the compliance with the best practices for operation and maintenance, in order to offer the maximum performance and reliability. YUDO G LOBAL UH-02-Aug16-ENG...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Safety ....................................... 4 1.1. Safety Procedures ................................4 2. System Reception ..................................5 3. System Installation and Disassembly ..........................6 3.1. Preparation ................................... 6 3.2. System Handling for Installation ..........................6 3.3. Assembly and Disassembly Instructions ....................... 9 Module A - Single Nozzle Type ............................ -
Page 4: Safety
- Contact with hot nozzle can cause severe burns. Use signs in a visible place stating "DANGER" - Before performing any electrical work, check the Hot Runner System is properly connected to the earth. Failure to do so can result in a serious injury or death. -
Page 5: System Reception
Make sure the box content corresponds to the document accompanying the load (packing list). Visually inspect the system and its components. Check if it is damaged or defective, visually detectable. If you detect any anomaly relating to previous sections, report immediately to YUDO UH-02-Aug16-ENG... -
Page 6: System Installation And Disassembly
3.1.6. The radius of the sprue bush (RA) has to be adapted to the radius of the machine nozzle (RM). (RA > RM + 1); 3.1.7. After measuring the heights of all Hot Runner components, calculate the height of the frame plate according to the determined air-gap measure. - Page 7 B - Basic HR System The system is provided with the major components, manifold, nozzles, cylinders, etc., separately. The specific composition of each system is in accordance with the project drawing approved by the client. C - Pre Wired (PW) Eco Modu System The system comes pre-assembled (prewired), with rails, plugs, connections and raccords.
- Page 8 In any case the system has sensitive components which require extra care: - Electrical components - resistances, thermocouples, electrical coils - Tips and torpedoes with high thermal conductivity, but low mechanical strength. - Seals and gaskets susceptible to blows, cuts, or crushing. Identify the type of construction applicable to your system.
-
Page 9: Assembly And Disassembly Instructions
CAD file information. In case of doubt or unclear information contact YUDO. 2. Make sure the housing is in proper condition to receive the hot runner and correct position to proceed with assembling without risks for people and equipment. - Page 10 7. Place the system slowly on suitable surface. Take into account that the system has many hot spots that can be easily damaged. It is recommended that this is placed upon easels seating only the manifold. Any anomaly detected in the system must be reported to YUDO. UH-02-Aug16-ENG...
-
Page 11: Moduleb - Basic Hr System Type
CAD file information. In case of doubt or unclear information contact YUDO. 2. Make sure the housing is in proper conditions to receive the hot runner and in correct position to proceed with assembling without risks for people and equipment. - Page 12 YUDO provides hydraulic and pneumatic systems but each one only work correctly with the drive specified in the project. Do not test pneumatic systems with oil or vice versa.
-
Page 13: Module C1 - Pre Wired (Pw) Eco Modu System - Sliding Nozzles Type
CAD file information. In case of doubt or unclear information contact YUDO. 2. Make sure the housing is in proper conditions to receive the hot runner and in correct position to proceed with assembling without risks for people and equipment. - Page 14 7. Place the system slowly on suitable surface. Take into account that the system has many hot spots that can be easily damaged. It is recommended that this is placed upon easels seating only the manifold. Any anomaly detected in the system must be reported to YUDO. UH-02-Aug16-ENG...
-
Page 15: Module C2 - Pre Wired (Pw) Eco Modu System - Threaded Nozzles Type
CAD file information. In case of doubt or unclear information contact YUDO. 2. Make sure the housing is in proper conditions to receive the hot runner and I correct position to proceed with assembling without risks for people and equipment. - Page 16 YUDO provides hydraulic and pneumatic systems but each one only work correctly with the drive specified in the project. Do not test pneumatic systems with oil or vice versa.
-
Page 17: Moduled - Hot Half Modu System Type
17. Keep the system in a place free of moisture, metal chips or under possible physical shocks. Other care considered suitable will be important to keep the system in good working order. Any anomaly detected in the system must be reported to YUDO. Disassembly 1. -
Page 18: System Startup And Shutdown
Mold and barrel should have reached the recommended temperatures. Switch on the manifold of the Hot Runner system and let the humidity from the heaters dry out at a temperature between 100°C and 120°C for approx. 10 minutes. When the manifold reach his setting temperature, switch on nozzles. -
Page 19: Process Adviser
When approx. 95% of the purged material contains of natural material, increase the temperature of the Hot Runner by 30 - 50°C and continue to purge with natural material until no further improvement can be achieved. You can also increase the injection speed from 10 to 20%. -
Page 20: Preventive Maintenance
1M shots 5 years Heaters + TC 5M shots 10 years General Retrofitting (overhauling) 10M shots Regarless of the hot runner working time, preventive maintenance shall be conducted based on the shot number. CCESS AINTENANCE NSTRUCTIONS UH-02-Aug16-ENG P 20 / 21... - Page 21 APPENDIX 1 TORQUE TABLE UH-02-Aug16-ENG P 21 / 21...
