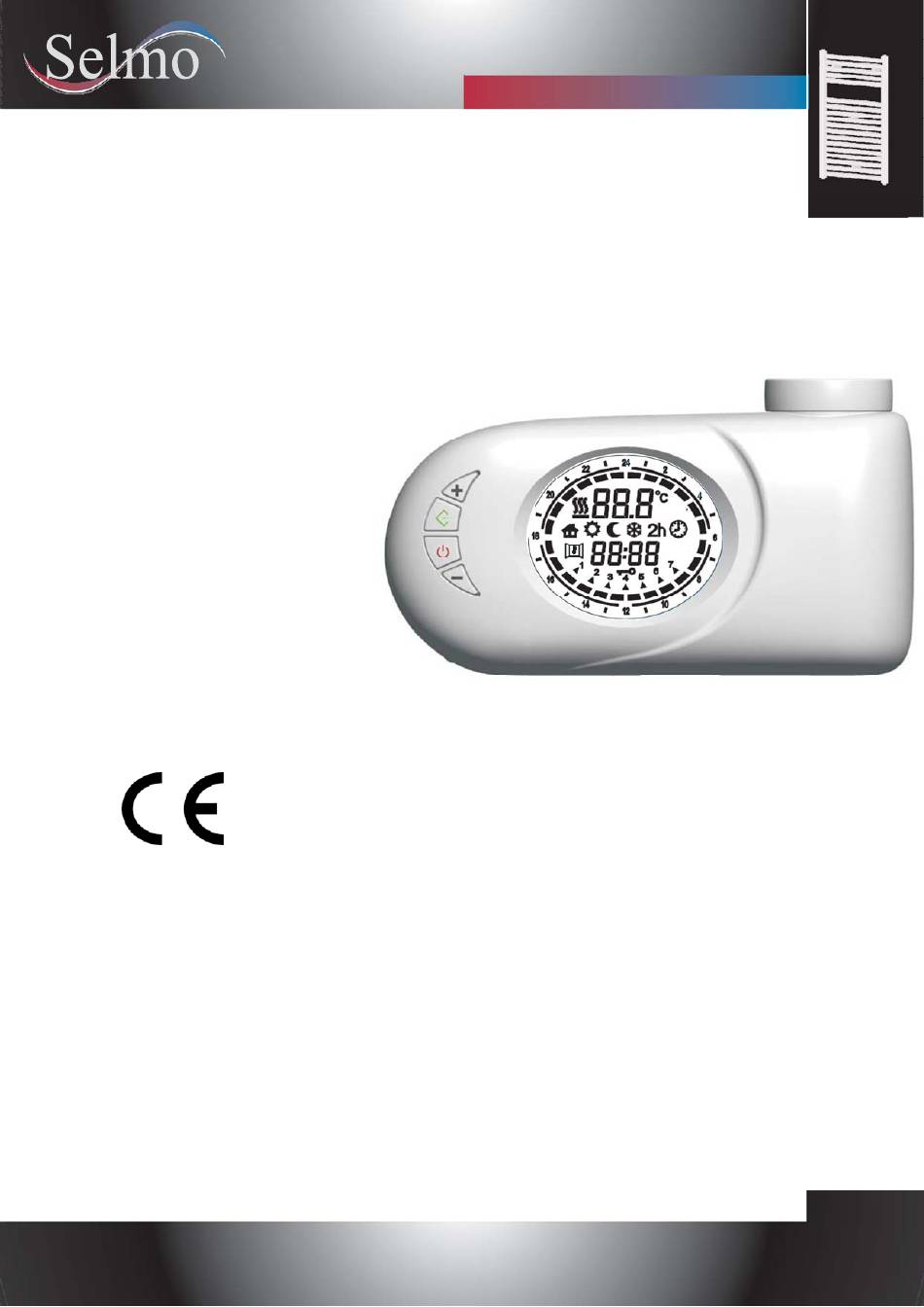

Electronic control for towel radiators

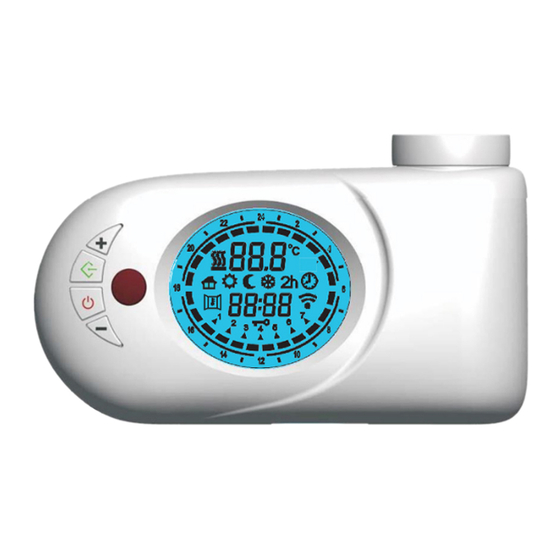

MUSA Plus Eco is a digital
chrono-thermostat for the
automatic control of electric
towel radiators.
By means of an external sensor
is capable of keeping the room
temperature at a desired value.
MUSA Plus Eco has a simple
yet modern design, suitable for
every type of furnishing and
every model of electric towel
radiator.
MUSA Plus Eco is easy to
install and it is available in
several colors.
MUSA Plus Eco is a certified
product.
MUSA Plus ECO is compliant with the following standars:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
EN 62233:2008
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + IS1:2007 + A2:2008 ===> Cat. 2
EN 61000-3-2:2014
EN 61000-3-3:201
Selmo
Electronic
Viia Pacinotti, 24 - 35030 Rubano
"MUSA Plus Eco"
(PD) Italy- Tel 049.8976761, Fax 049.8976085 -
Comfort technology division
Available colours: -White
Rev. 02 – Sept. 2017
-chrome
www.selmo.it
EN
Advertisement
Summary of Contents for Selmo Electronics MUSA Plus Eco
- Page 1 MUSA Plus Eco is a certified Available colours: -White product. -chrome MUSA Plus ECO is compliant with the following standars: -Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W). EN 62233:2008 EN 55014-1:2006 + A1:2009 + A2:2011 EN 55014-2:1997 + A1:2001 + IS1:2007 + A2:2008 ===> Cat. 2...
-
Page 2: Further Features
Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators Introduction •Seven operational modes: Comfort, Night, Antifreeze, Fil-Pilote, Chrono, Timer- 2h, Stand-by. "Comfort" mode: The thermostat keeps the room temperature at the value set by the user. "Night" mode: The electronic control keeps the room temperature to a level below the configured “Comfort”... -
Page 3: Technical Specifications
Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators Technical Specifications Product Fil-Pilote Room temperature setting Comfort, Night, Antifreeze, Stand-by, Fil-Pilote, Timer-2h, Chrono-thermostat, Open Window Detection. 7°C ÷ 32°C -10°C ÷ +40°C 2000W 230VAC 50Hz - 60Hz 113 x 73 x 42mm (H x Lx l) Connection to the heating element Faston 6.3x0.8mm Phase, neutral, tEarth (Class I) - Page 4 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators WARNING RISK OF ELECTRIC SHOCK! Disconnect power supply before proceeding with installation. Preserve with care the present instruction sheet and read carefully before using the device. •The present device has been designed for exclusive use on a towel radiator.
- Page 5 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators Installation guide For use by installer only WARNING: Disconnect the power supply before proceeding with installation. The installation has to be performed only by authorized personnel. •The electronic control must be connected to the electric resistance only by authorized personnel.
- Page 6 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators •Disconnect power supply before installation. •Only qualified personnel can connect the electronic device to the heating element. •Make sure that the power of the electric resistance does not exceed the maximum power allowed by the electronic control device.
- Page 7 Do not connect the black wire to the ground. 2. A Musa Plus ECO device without "Fil-Pilote" functionality (Class I) cannot be remotely controlled. The brown wire is the Live wire (L), the blue wire is the Neutral wire (N) and the yellow/green wire has to be connected to Earth.
- Page 8 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators User Manual Plastic cover: The part connecting to the heating element is kept hidden by this special layout, so that the thermostat fits perfectly to the towel radiator. [ + ] Button...
-
Page 9: Power On / Stand-By
Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators Indicator of active heating element Comfort/Night bar Configured temperature (Chrono mode). 24h Indicator Operating mode icons: -Fil-Pilote -Comfort -Night -Antifreeze Clock -Timer 2h -Chrono Key-lock icon Function: Day of the week Open Window Detection. -
Page 10: Operating The Device
Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators 1.OPERATING THE DEVICE Press the [PROG] button to select the desired operative mode. An icon on the display indicates the selected operating mode, according to the following table: COMFORT MODE The "Comfort"... - Page 11 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators CHRONO MODE This operating mode allows the user to configure different temperature values for each hour of each day of the week. The “Comfort” / “Night” temperatures and the related time intervals can be thus programmed.
- Page 12 Comfort technology division “MUSA Plus Eco” Electronic control for towel radiators 4. KEY LOCK It is possible to lock the buttons of the device to avoid inadvertent modifications of the settings. Press together the [PROG] buttons for 3 seconds to lock all the buttons except the [On/Stand-by] button.
