Summary of Contents for Klaus Krick Modelltechnik roMarin ro1100

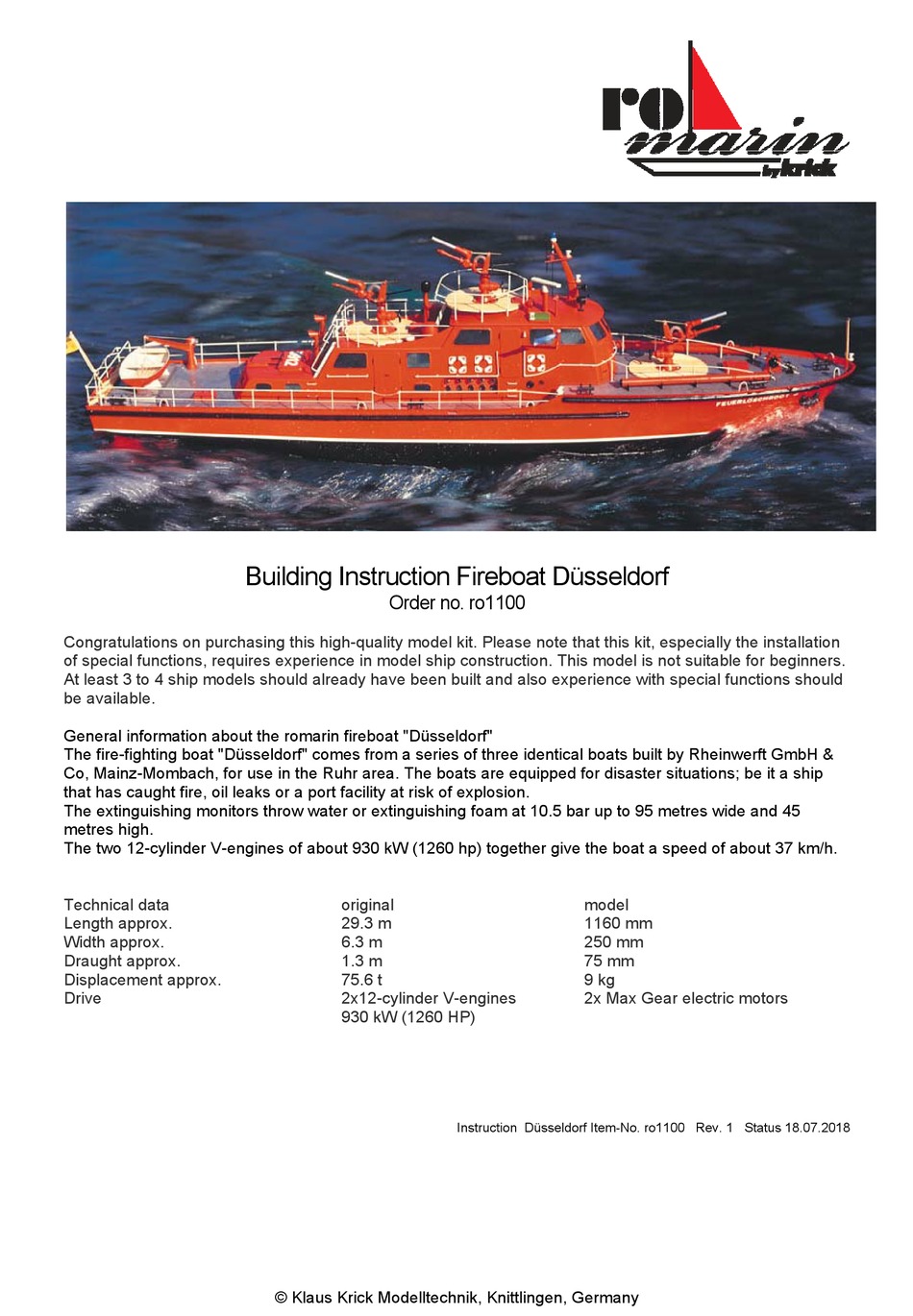

- Page 1 Building g Instruc ction Fire eboat Düs sseldorf rder no. ro11 Congratulat tions on purc chasing this h high-quality m model kit. Ple ease note th at this kit, es specially the installation of special fu unctions, req uires experie ence in mode el ship const truction.
- Page 2 Connecting a fire pump, moving the boat crane, light bulbs to illuminate all lamps on board, etc. Further accessories required for expanding the special functions can be found in the information sheet included in the kit: Please follow the instructions of the individual devices carefully! © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 3 The size and equipment of the romarin fire-fighting boat "Düsseldorf" mounting box is ideally suited for realising the many possible uses of the original also in the model. The fire monitors, crane, anchor windlass, radar, headlight, blue light, horn and siren can be designed and installed in a functional way. The thick-walled ABS fuselage is spacious enough to accommodate large drive batteries, powerful motors and numerous units for special functions.
-
Page 4: Preliminary Work
Then use a file, planer or balsa knife and sandpaper to finish the contour of the fuselage exactly to the mark so that no more bulges remain on the outside. (Section B-B, View Y). © Klaus Krick Modelltechnik, Knittlingen, Germany... - Page 5 Then holes of initially Ø 3 mm are drilled in the markings for the anchor tubes at the bow, for the stern tubes in the corrugated trousers, for the 4 rudders and only if an extinguishing pump is provided for the suction tube at the keel outlet.
-
Page 6: Drive Installation
Then place the 4 rudder levers aligned with the rudders exactly parallel and tighten them with the screws 16 on the crossbar. The rudders must now all move easily to the right and left in parallel. The steering linkage will be made later. Drive installation: © Klaus Krick Modelltechnik, Knittlingen, Germany... - Page 7 The motor bulkhead 17a with its longitudinal columns 17b is cut out of the laser plate. The motors are bolted to the bulkhead and fitted with the coupling without the fixing foot on their end faces. For the suction pipe (if a pump is mounted) a Ø...
- Page 8 (37) and the transverse edge (38). The hatch (39) and the boat hatch (40) are carefully removed and also sanded and fitted. Insert the coaming parts (37 and 38) into the deck and glue them together with cyano. © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 9 The deck is turned on its back (the hatch is then on the right in the direction of travel), the deck joists and the cross beam are fitted and primed. The hatch supports (44 a - e) for crane and boat hatches are manufactured from the 10 mm wide lasered ABS strips.
- Page 10 (42). The slats must be sawed in accordingly. Glue the frame arch (59) into the arched front part of the cabin. Finally, adjust the short frame pieces (58) and glue them in place. © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 11 Then cut out the valve housings (57) according to the marking and cleanly grind the cut edges. Place the enclosures in the cabin according to plan, cut AA, detail X and glue together. Grind the recesses in the cabin flush with the inner surfaces of the valve housings. If everything is well finished, the cabin can be pushed over the coaming with slight pressure.
- Page 12 Anchor win ndlass: The 3 winch h housing pa arts (70) are d detached fro om the laser plate and glu ued together (UHU hart). If necessary y, re-drill the Ø 2 mm hol e for the cra nk shaft (71) ) and the Ø...
- Page 13 larger slot. Suppress the gear motor (95) (reduction 400:1) and solder about 300 mm of cable. Then screw the motor (95) to the motor stand using M 1.6 screws. Ream the washers (96) and (97) with Ø 3 mm. Place one large and one small disc each on the Ø 3 mm axle (102) and glue them together to form stepped discs.
- Page 14 Rest 1 m Then cut the e strips roug hly to length h according to o the photo a and glue them m to the grat ting frames. To achieve an even dis stance betwe een the strips s, hold a 1 m m thick ABS waste piece e in between...
- Page 15 well as the tightness of the water-carrying parts. Screw the M 2 x 4 screws Mo16 into the outriggers. The transverse bearing (Mo17) from the Ø 2.5 x 8 mm brass sleeve is drilled through Ø 1.5 mm transversely. Now cut the setting lever (Mo18) from Ø1 mm brass wire to 90 mm and form the hook according to plan. Hook the setting lever onto the knee of the pipe support (Mo7) and fit the cross bearing and pipe rivet (Mo19).
- Page 16 Align the Ø 28 mm belt pulleys and screw them together. (grub screw 117) . Finally, attach the scale cord with spring (124) according to the construction plan. (See figure on plan 2: One or two full surrounds on all discs! © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 17 Set the extinguishing heads "B" and "C" so that the servo swivels them evenly and together to the left and right. Place the lift lever (138) on the servo disk of the lift servo (134) and screw in the clamping screws Ø 2.2 x 6.5 mm (129) with washers (130).
- Page 18 (154) from Ø 1 mm brass wire, drill holes in the cabin and put them on a piece of balsa wood for painting. Some of these wire parts are only needed later. © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 19 Mast: The two halves of the mast (155) are glued together and sanded down according to plan. A fine groove can be worked into the back, in which the cables for the lamps are later laid. Prime the wooden pole. Cut out the base frame (156), the small lamp shelf (157) and the large lamp shelf (158), as well as the antenna holder (159).
- Page 20 Solder the whip antenna (214) made of Ø 0.8 mm steel wire with 5 brass sleeves (75) (Ø 2 x 8 mm) and insert another sleeve Ø 2 x 3 mm (147). As base (215) the Ø 2 x 12 mm tubular rivet is soldered with 2 split © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 21 pins (100) and 2 sleeves Ø 2.5 x 3 mm (147). A wooden block glued behind the antenna ensures that it is fixed later. Drill holes Ø 1.5 mm for cotter pins (100). The ship's bell (216) is fixed as a holder (217) with a piece of Ø...
- Page 22 (262). Set up the supports. The lower rail (263) made of Ø 0.8 mm brass wire is drawn in continuously and inserted into the deck bulkhead (45). Proceed in the same way with the upper tension (264) (Ø 1 mm brass wire). © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 23 Then solder the trains and the supports. In front of the double door (67) the lower tension between the supports is removed. The upper train is cut. From the resulting ends, bend very small hooks and hang in the chains (265); with the chain rail (266) on the transom, proceed accordingly. Secure the chain additionally to the supports (261) with very thin copper wire.
- Page 24 Turn headlight (button) / free Raise/lower anchor Radar rotate / free Position lights / Anchor light headlight / drag light All information on recommended accessories is based on the technical status as of summer 2018. © Klaus Krick Modelltechnik, Knittlingen, Germany...
-
Page 25: Functional Checks
For mounting the relay module on the RC plate, 5 x 8 mm plywood strips (295) are glued on so that the relay can be fastened with 2 2.2 x 6.5 mm self-tapping screws (129). The Multi-Switch Decoder (296) is attached with adhesive tape so that the plug strip remains freely accessible. - Page 26 4 cover laser plate 4 support ring laser plate 5 deck beam plywood 5 x 8 according to plan each 1 laser plate 2 anchor tube brass Ø 7 x Ø 6 x 60 © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 27 Part-No. Description Material Dimensions in mm Pcs. Remarks cabin plastic transp. 1,5 vac forming part valve housing 1 vac forming part cabin frame plywood 5 x 8 according to plan laser plate 2 frame arch plywood laser plate 3 retaining block plywood 5 x 8 x 25 laser plate 2...
- Page 28 Ø 1,5 x 200 spacer tube brass Ø 2 x Ø 1,6 x 3 hand rail brass Ø 1,5 x 180 left / right hand rail brass Ø 1.5 x 180 left / right © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 29 Part-No. Description Material Dimensions in mm Pcs. Remarks hand rail brass Ø 1,5 x 70 Handle/Hook brass Ø 1 x 20 foot bar brass Ø 1 x 40 handhold brass Ø 1 x 30 handle bar brass Ø 1 x 50 mast half plywood laser plate 2...
- Page 30 Ø 7/3 rubbing strake Gummi 8 x 5 nach Plan rubbing strake Gummi 8 x 5 x 1000 handrail, foreship brass Ø 1,5 x 300 stanchion brass Ø 2 x Ø 1,2 x 40 © Klaus Krick Modelltechnik, Knittlingen, Germany...
- Page 31 Part-No. Description Material Dimensions in mm Pcs. Remarks C-tube plastic Ø 12 x Ø 11 x 220 pipe supports laser plate 5 255a cover plate laser plate 5 255b cover plate laser plate 4 companionway injection-moulded part spray pipe brass Ø...
- Page 32 Errors and te echnical chang ges excepted. Copyright Klau us Krick Mode elltechnik 2018 Copy and repri int, even in ex xtracts, only wi tten permissio on of Klaus Kr rick Modelltech hnik Klaus K Krick Model lltechnik ndustriestr. 438 Knittlin Germany phone: + +49 (0)704...
