PT Coupling Rolite PT3 Operator's Manual

Rolite PT3 Coupling Inserter & Remover

Safety:

∗ Warning: Use eye protection when working around equipment, compressed air
can cause injuries.
∗ Warning: Equipment has moving parts; use care when operating equipment.
∗ Caution: Never use equipment for other than inserting & removing fittings or in
a manner not intended.

Preparation:

∗ The Rolite unit is not equipped with a pressure regulator. Air supply pressure will affect
the capability of the unit to properly insert fittings. The unit should be supplied with clean
dry lubricated compressed air between 100 to 150 psi.
∗ The Rolite unit is made of heavy materials. It is designed to provide a sturdy work
platform. When using large diameter hoses, 6" and up, it is recommended that you use
caution when inserting and removing hose from the unit.

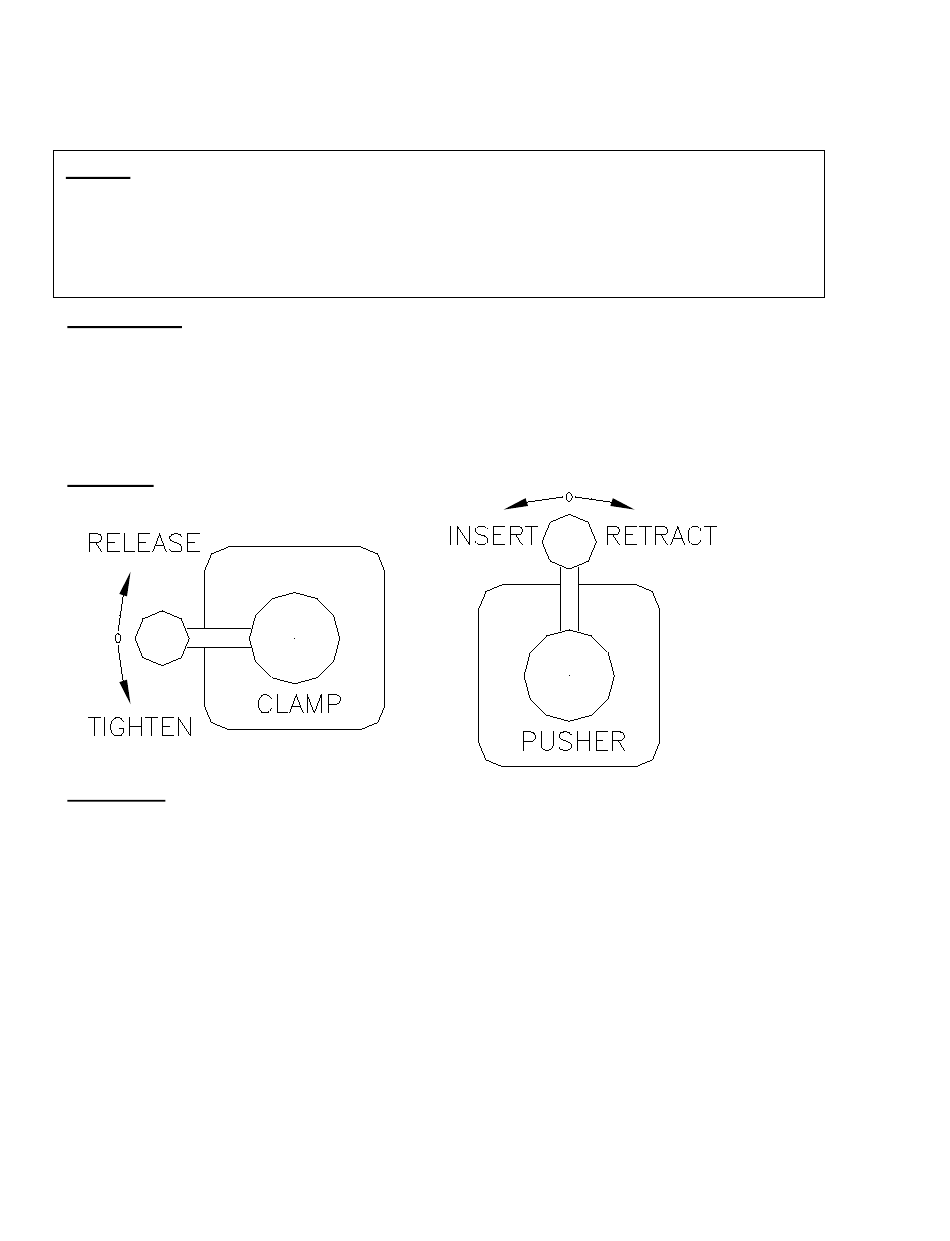

Controls:

Operation:

∗ Warning: Always return controls to neutral (center) position prior to connecting air
supply, unexpected moving parts can injure, stay clear.
1.01 Connect the air supply.
∗ Notice: All controls are proportional. The slower you move them the slower the actuated
part moves. Always move the controls slowly to maintain maximum control.
1.02 Move the belt clamp control to release position.
1.03 Release the belt hold down bar located to the left of the unit controls.
1.04 Create enough slack to insert the hose through the belt loop on top of the rollers.
1.05 Place clamps or bands if necessary on the hose and slide them down 18" onto the hose.
1.06 Insert the hose through the belt so that the end to be coupled extends 2 to 4" past the
belt.
1.07 Manually adjust the belt so that the hose and installed coupling/fitting will freely slide thru
the opening with the clamp control in the fully released position.
∗ Notice: The belt clamp mechanism will remove approximately 9" of slack from the
system.
1.08 Tighten the clamp down bar by rotating the handles against the bar.
REV. 7/12/15
PT Coupling Co.
Operator's Manual
