- Page 1 Studio Flash Trigger TR-Q6 TTL For the Rovelight RT Series Canon TR-Q6RTC Nikon TR-Q6N Sony TR-Q6S Fujifilm TR-Q6F...
- Page 2 Please read all the information contained in this user’s guide carefully, keep it in a safe place and share it with other users. The ORLIT TR-Q6 Series TTL Transmitter adds TTL function to a studio environment. When used on the camera’s hot shoe, a photographer can eas- ily adjust the exposure for Orlit Rovelight RT610 TTL and RT601 Monolights, Orlit RT600C Speedlites, and Orlit Rovelight RT600/800 AC Monolights.
- Page 3 ORLIT TR-Q6 Series TTL Transmitter are not compatible to any other brand of wireless triggering system. ORLIT TR-Q6 RTC TTL Transmitter may not be compatible with some older models of cameras. Canon cameras manufactured before 2012 have limited functionality with the TR-Q6 Series.
-
Page 4: For Your Safety

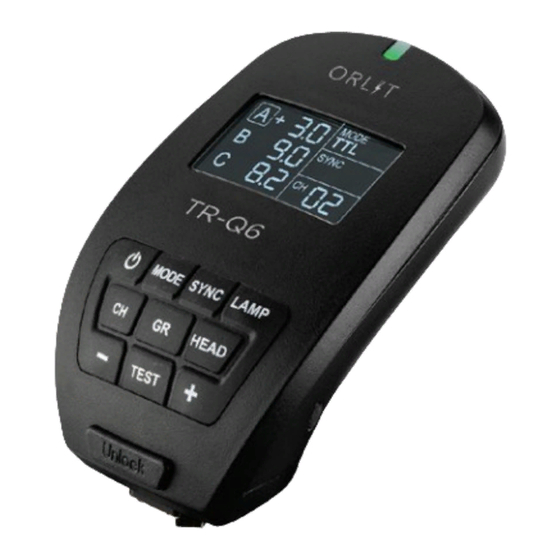

Do not touch the electrical contacts on the hotshoe foot or battery or contact them with any conductive materials. • Please don’t attempt to repair or disassemble the ORLIT TRQ6 TTL Transmitter. Should repairs become necessary, this product must be sent to an authorized maintenance center. - Page 5 WIRELESS SIGNAL INDICATOR HIGH DEFINITION WIDE-ANGLE LCD SCREEN GROUP MODE SYNC POWER MODELING LAMP CHANNEL HEAD STATUS “+” “-” TEST HOT SHOE UNLOCK BUTTON HOT SHOE USB FIRMWARE UPDATE BATTERY HOUSE 2.5mm SYNC SOCKET 2 x 1.5V AAA BATTERY...
- Page 6 Orlit TR-Q6 Screen Key Power Value M manual mode - 1.0 ~ 9.0 (minimum power output 1.0, maximum power output 9.0) TTL automatic mode --- 3.0 ~ + 3.0 (minimum exposure compensation value -3.0, maximum exposure compensation value +3.0) Group A (In the same CH channel, three GR groups can be independently con- trolled, the number of flashes in each group is not limited.)
- Page 7 : long press SYNC button for 1 second, Bluetooth will turn on or off. (With the Bluetooth function, you can control flash through the Orlit APP on an Apple / Android mobile phone) Channel : CH00 ~ CH15 totally 16 wireless channels.
- Page 8 RT speedlights, for maximum function use Orlit transmitters and strobes ONLY, in RF mode, which allows these controls. By default the Orlit TR-Q6-C will be in RF mode, for providing maximum function with Orlit monolights. BUT FOR INTEGRATING WITH SPEED- LIGHTS (FROM CANON OR ORLIT) YOU WILL NEED TO BE IN RT MODE.
- Page 9 Use the CH button to set both the channel and ID. Remember that the channel and ID must be the same on the transmitter and all units. For maximum stability, use ID 0000 (00) or 0001 (01) only. Once the unit has “linked” to the remote lights using Canon’s RT protocols, the unit will display a Radio Tower icon.
- Page 10 TR-Q6 Interface Screens TR-Q6 Smart Transmitter Interface Orlit TTL Interface Step 1: Long press POWER switch for 1 second to turn on. Step 2: Set wireless mode according to the camera brand. “Canon / Nikon / Sony / Fujifilm Step 3: Set same CH and GR on transmitter and flash.
- Page 11 Setting Up the ORLIT App iPhone: Search APP Store for ORLIT Android Smartphone: Search Play Store for ORLIT Download and install. Step 1: Long press the power switch to turn on TR-Q6. Step 2: Long press the <SYNC> to turn on the Bluetooth function,...
-
Page 12: Technical Parameters
Technical Parameters Model: TR-Q6RTC Canon, TR-Q6N Nikon, TR-Q6S Sony, TR-Q6F Fujifilm Wireless Frequency: 2.4GHz Maximum Sync Distance: 984ft/300m (Optimal 328ft/100m) CH Channel: CH00~CH15 (In the effective working range, up to 16 flash sets can be set at the same time, without interference with each other. - Page 13 Orlit may direct with a copy of the sales receipt or dated itemized receipt. Orlit may, at its option, replace your product, offer to provide a functionally equivalent product, or repair any product with new, refurbished or used parts as long as such parts are in compliance with the product’s technical speci-...
-
Page 14: Technical Support
You can always contact us at BRANDS@ADORAMA.COM for personal technical support. Our web site contains a wide range of Support and FAQ pages with valuable technical assistance. ORLIT is a registered trademark of ADORAMA CAMERA. © 2017 Adorama Camera, Corp. All Rights Reserved. - Page 16 More ORLIT Products TTL Flash Extraordinaire with Rovelight RT Rovelight RT 600AC TR-611/612 Transceivers Rovelight RT 800AC RT600-C Speedlite Rovelight RT 610 RoveLight RT 601 Rover RT ST-RT Wireless Transmitter TR-Q6 RT Studio Flash Trigger...
