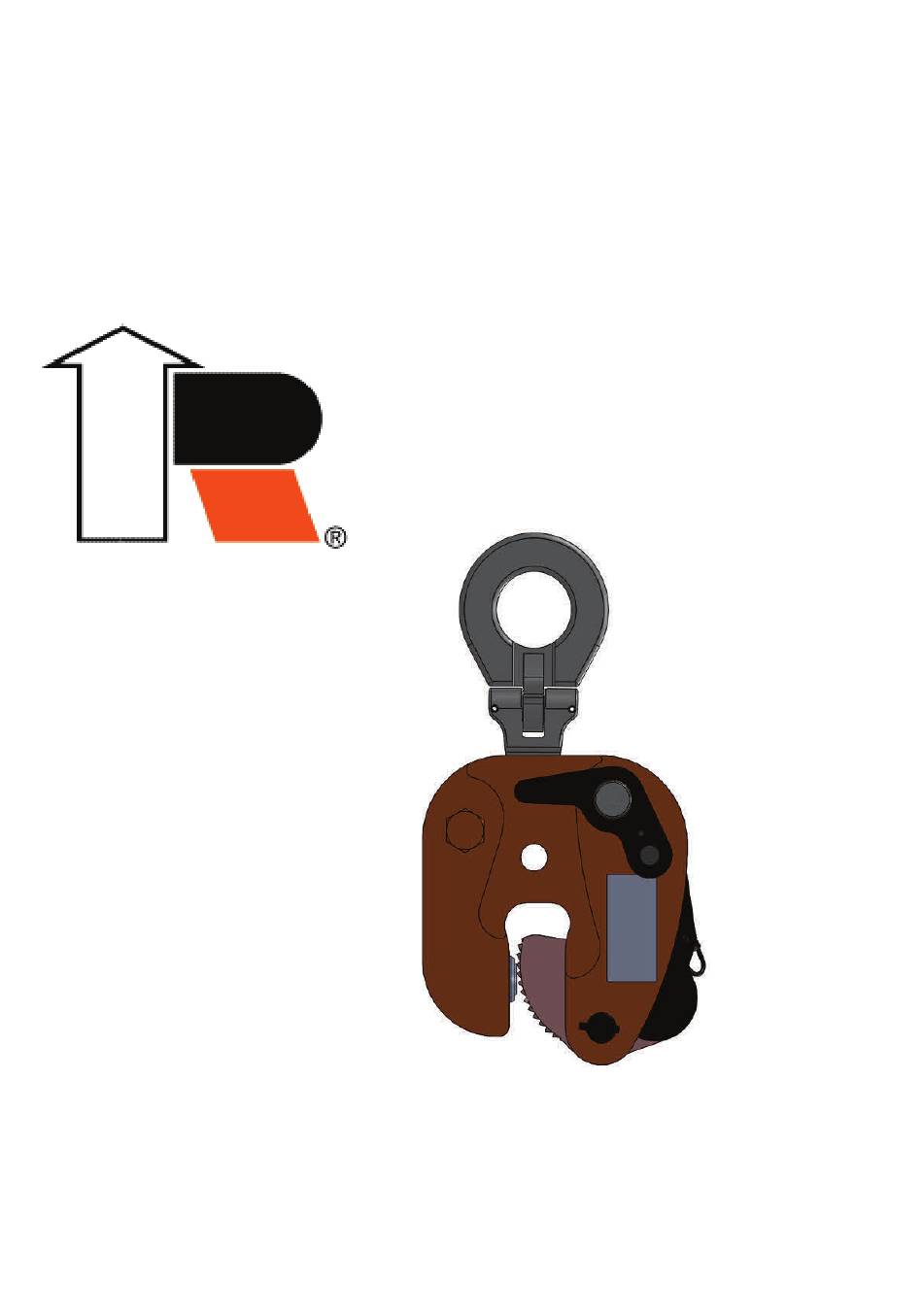

- Page 1 WARNING: Before putting tool in service, take to your immediate supervisor. RENFROE Model LPA Model LPA Clamp Application, Operation and Maintenance Manual OM LPA 115...
- Page 2 This Operator’s Manual covers the Application, Operation and Maintenance of this RENFROE product. Operator’s Manuals for other current RENFROE products are available upon request. Direct requests to J.C. Renfroe & Sons Jack- sonville, Florida 32201. J.C. RENFROE & SONS J.C. RENFROE & SONS...
- Page 3 DESCRIBED OR CONTAINED HEREIN. WARNING: Prior to selection, operation and/or maintenance of RENFROE products, read and understand the infor- mation provided in this manual. The understanding and use of the Definitions are important in determining the limitations and proper appli- cation of RENFROE products.
- Page 5 2. DO Consult Operator’s Manual or RENFROE when in doubt. 3. DON’T Lift over workmen DON’T lift over Safety Areas or personnel. 4. Do attend a factory training class for establishing proper use of Renfroe Products. 5. DO Lock clamp closed before lifting load. DON’T lift with lock in open or “Lock Open”...
- Page 6 For applications not covered by the above information, secure written rec- ommendations from RENFROE. FINISHED AND POLISHED PLATES: VERTICAL TURN/LIFT: A vertical turn/ Steel plates in this category have other lift clamp is a vertical lifting clamp spe-...
- Page 7 RATED CAPACITY: The rated capaci- WARNING: Secure written authori- ty of a RENFROE product is based on zation from RENFROE before using the product being in “new or as new” clamps in temperatures other than condition and represents the maximum shown.
- Page 8 DESIGNATED PERSON — A person selected by the employer or the em- ployer’s representative as being com- petent to perform those specific duties. QUALIFIED PERSON — A person who, by possession of a recognized degree in an applicable field or certifi- cate of professional standing, or who, by extensive knowledge, training, and experience, has successfully demon-...
- Page 9 Model LPA Application LPA The model LPA has a lock open and lock closed feature built into its design. The LPA has an auxiliary lock. The LPA clamp is recommend- ed for turning of a single steel plate from horizontal to vertical to hori- zontal through a hundred and eighty degree arc.
- Page 10 WARNING: When turning a plate from horizontal to vertical, the operator must position the clamp at the start of the turning opera- tion so that the lock handle is on the topside of the plate when the plate is in the horizontal position. It should be noted at the finish of a 180 degree turn that the lock handle will be on the underside of the plate and therefore sufficient clearance under the plate should be allowed for the lock to be disengaged.
- Page 11 “Lock Closed” position without material in the clamp. Lock Pawl must rest on body spacer sleeve. G. On the model LPA the auxiliary lock button must have a positive spring action that projects it out to engage the lock handle when the handle is moved to the “Lock Closed”...
-
Page 12: Auxiliary Lock
AUXILIARY LOCK The Auxiliary Lock Release Button is mounted in the Lock Handle. When Lock Handle is in “Lock Closed” position the Auxiliary Lock Re- lease Button is flush with the top of the Lock Handle. WARNING: Do not use clamp unless auxiliary lock is fully en- gaged and auxiliary push button is flush with top of lock handle. - Page 13 Step 4. The clamp is a component of the rigging used in lifting or transporting a plate. It is important to use safe and adequate rigging. The lock is used to hold the clamp in place until the gripping mechanism is actuat- ed by a force applied to the lifting shackle.
- Page 14 1/4” clearance. Refer to Illustration C and D, Step 5. Position clamp so direction of force applied by the crane is the capabil- ity of the lifting shackle. Model LPA refer to De-rated Capacities Chart. Step 7. Make certain the gripping surfaces of the clamp are fully in contact with the plate, and not partially on and off the edge of the plate.
- Page 15 To remove clamp: after plate is fully supported and at rest in a stable position, relax lifting force, keeping hands clear (depress auxiliary lock button on LPA) move lock handle to “Lock Open” position. Lift clamp from plate. Refer to Illustrations C and D, Step 5.
- Page 16 “Lock Closed” position without material in the clamp. Lock pawl must rest on body spacer sleeve. G. On the model lPA the auxiliary lock button must have a posi- tive spring action that projects it out to engage the lock han- dle when the handle is moved to the “Lock Closed”...
- Page 17 WARNING: Do not use the clamp if in need of repair. If, during the every lift inspection, the operator believes the clamp exhibits excessively worn parts or is damaged, the clamp should be inspected by a qualified person who will make a determination as to its fitness to make a lift.
- Page 18 Warning: If any hazardous condition is found that may cause injury to the operator or other personnel then the clamp should be subjected to a Periodic Inspection by a Qualified Person. Repair (replacement of worn parts) During regular maintenance when replacing parts that are worn a record should be made of the parts replaced.
- Page 19 (Radio Frequency Identification Device) is embedded in the clamp body or a clamp component. If the I.D. plate is missing and the RFID chip is unavailable call the Renfroe factory for instructions on returning the clamp for recertification. Refer to Exploded View for parts break down.
- Page 20 WARNING: Replace cam assemblies that have cams with worn or damaged teeth and contain fractures, and cams and cam straps with elongated pin holes. Step 6. SHACKLE PIN - LPA-3 and CAM PIN - LPA-6 Inspect all pins for: 1. Distortion 2. Surface blemishes 3.
- Page 21 Step 10. AUXILIARY LOCK HOUSING and SLEEVE LPA-14 A. Inspect sleeve for wear at position where sleeve contacts shackle. Replace if worn. B. Inspect auxiliary lock housing for distortion and wear. C. Inspect auxiliary lock button. The button must move in and out of housing without binding.
- Page 22 WARNING: All retaining pins and fasteners must be in place, in- cluding cam jaw washers where required. GENERAL RENFROE products may be returned to the factory for inspection and refurbishment in accordance with an established fee schedule. Use only RENFROE replacement parts. Refer to RENFROE catalog for instructions on ordering replacement parts.
- Page 23 Swivel Jaw Center Block LPA-10 LPA Exploded View *These parts are included in Renfroe Repair Kit.
- Page 24 PRESSED NOR IMPLIED WHICH EXTEND BE- YOND THE DESCRIPTIONS OR STATEMENTS CONTAINED IN THE FACE OR ANY PART HERE- J.C. RENFROE & SONS P.O. Box 4279 · 1926 Spearing Streeet · Jacksonville, Florida 32206 Phone: U.S.A. Toll Free (800) 874-8454 (in Florida 904/356-4181)
