ELEKON BATLOGGER WE X Manual

Hide thumbs Also See for BATLOGGER WE X:
Table of Contents

Advertisement

Quick Links

Download this manual
BATLOGGER WE X
manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATLOGGER WE X and is the answer not in the manual?

Questions and answers

Related Manuals for ELEKON BATLOGGER WE X

Summary of Contents for ELEKON BATLOGGER WE X

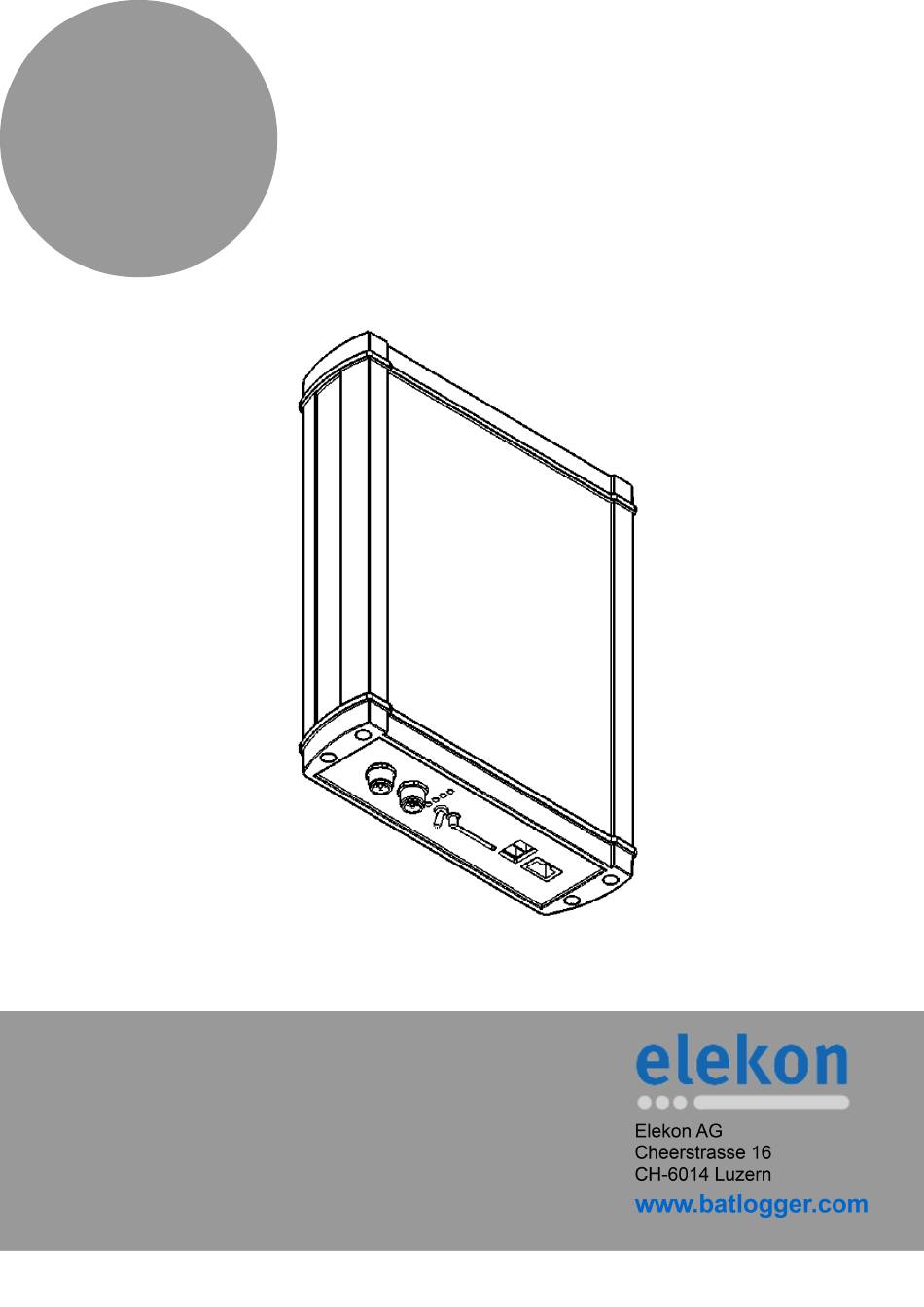

  • Page 1 BATLOGGER WE X manual...

  • Page 2: Table Of Contents

    11.4 Daily user log file.......................29 12 Getting data from the device....................30 12.1 Directly on the device via external medium...............30 12.2 Directly on the device via direct Ethernet connection............30 12.2.1 Installation FileZilla....................31 13 Troubleshooting........................31 BATLOGGER WE X Manual © 2019 Elekon AG 2/39...
  • Page 3 13.1 Checklist..........................31 13.2 One Click Firmware Update....................32 13.3 Local Firmware Update......................32 13.4 Status LED.........................34 14 Technical Specifications......................35 15 Exclusion of liability........................36 16 Service and Support........................36 17 Third-party software used......................37 BATLOGGER WE X Manual © 2019 Elekon AG 3/39...

  • Page 4: Safety Instructions And Notes

    The stored data may be destroyed or deleted by operating errors, device • malfunctions or repair measures. Therefore, it is always advisable to make a backup copy to the PC hard disk for important content. BATLOGGER WE X Manual © 2019 Elekon AG 4/39...
  • Page 5 Be careful when handling dangerous tools. Do not connect the network interfaces of the BATLOGGER WE X with the system relevant IT infrastructure of the wind turbine. For the BATLOGGER, use access to the Internet that is disconnected from the operating and system IT infrastructure.
  • Page 6 For other countries, the customer must comply with local regulations. Measuring device: The BATLOGGER WE X is a very sensitive measuring device and must be treated as such. In order to obtain usable and reproducible results, you should consider some preparatory measures and familiarize yourself with the device.

  • Page 7: Overview

    LTE antenna socket 1 Status LED Microphone connector Power switch Grounding plug socket Task button LTE antenna socket 2 SD card holder Power supply socket USB connector 2x External IO socket Ethernet-RJ45 connector BATLOGGER WE X Manual © 2019 Elekon AG 7/39...

  • Page 8: General

    In addition to the bat calls, which are saved as a so-called WAVE file, other data such as time, date, place of recording, temperature are saved in text format as an associated "*.xml" file. In order to have an overview of the use of the BATLOGGER WE X, its operating status is continuously written to a "LOG" file.

  • Page 9: Data Storage

    The ultrasonic data of the microphone are first written to the internal "Random Access Memory" (RAM) of the BATLOGGER WE X. The individual recording sequences are then automatically transferred from the RAM memory to the hard disk after each recording.

  • Page 10: Commissioning

    1. After the connections have been made, the BATLOGGER can be switched on. 2. Set the on/off switch to the "On" position. 3. The BATLOGGER starts now, which takes some time. The LEDs indicate different states (see below). BATLOGGER WE X Manual © 2019 Elekon AG 10/39...

  • Page 11: Led Indicators During The Boot Process

    Open a customer account and assign the BATLOGGER To register with BATLOGGER Connect, please open the following address in your Internet browser: https://cloud.batlogger.com/register The following window opens: BATLOGGER WE X Manual © 2019 Elekon AG 11/39...

  • Page 12: Confirmation Mail And Password Assignment

    BATLOGGER Connect Service. You will then have the option of assigning a password for your access. 5 BATLOGGER Connect Service Login To log in to the BATLOGGER Connect Service, open the following address in your Internet browser: https://my.batlogger.com/ BATLOGGER WE X Manual © 2019 Elekon AG 12/39...
  • Page 13 Enter your username and password. BATLOGGER WE X Manual © 2019 Elekon AG 13/39...

  • Page 14: Overview Page

    Overview page The overview page gives you an overview of all your BATLOGGER WE X devices. The map shows the locations of your devices, "Your Cloud Storage Access" allows you to access your recording data, "Manage your resources" allows you to add further devices or additional users and the "BLWEX devices"...

  • Page 15: Assigning Further Batloggers

    To access the recordings of the BATLOGGER, BATLOGGER Connect provides a certain amount of storage space on the BATLOGGER Cloud Storage. When synchronization is enabled for the device, the cloud storage synchronizes the files on the BATLOGGER at regular intervals. BATLOGGER WE X Manual © 2019 Elekon AG 15/39...

  • Page 16: Access To Files Via Browser

    To copy username or password, simply click on it. After successful login, you will see the following page: All devices assigned to the account have an entry here. Click on the desired device and to access the recordings and .xml files. BATLOGGER WE X Manual © 2019 Elekon AG 16/39...

  • Page 17: Access To Files Via Webdav

    In the Finder, select "Go to", "Connect to server". • GEnter your WebDav link that is displayed in BATLOGGER Connect. • Enter your user name and password, which are displayed in BATLOGGER Connect. • BATLOGGER WE X Manual © 2019 Elekon AG 17/39...

  • Page 18: Configuration Of The Batlogger

    4. Login Username: blxuser Passwort: blx!WE? This is the initial login data. It is strongly recommended that you change the password to your own access password for security reasons. BATLOGGER WE X Manual © 2019 Elekon AG 18/39...

  • Page 19: Configuring Access To The Internet

    The SIM settings are factory-set. If the settings need to be changed, this can be done as follows: Connect to the device and select "Interface Settings". • Maintain the "BL Connect" connection mode • Select the interface "LTE". • BATLOGGER WE X Manual © 2019 Elekon AG 19/39...

  • Page 20: Ethernet Configuration

    Select the interface "Ethernet". • Normally, select "DHCP" for "IP". Thus, the BATLOGGER is automatically provided with • an IP address. Otherwise, a static IP can also be configured for the BATLOGGER. BATLOGGER WE X Manual © 2019 Elekon AG 20/39...
  • Page 21 To activate the new settings, the BATLOGGER must be restarted. To do this, press • "REBOOT" in the upper right corner. The blue LED lights up if the connection of the BATLOGGER to the BATLOGGER • Connect Service was successful. BATLOGGER WE X Manual © 2019 Elekon AG 21/39...

  • Page 22: Installation In The Wtg

    Long press on button (8 seconds) can put active device to sleep. If the battery is empty, the unit switches to "PowerDown". Reactivation is then only possible with power supply unit. Push button Long press: Press for more than 8 seconds BATLOGGER WE X Manual © 2019 Elekon AG 22/39...

  • Page 23: Settings In Browser

    1. Set timezone 2. Set location 3. Set recording times 4. Set alias name 5. Set air pressure 6. Set recording event handling 7. Firmware update BATLOGGER WE X Manual © 2019 Elekon AG 23/39...

  • Page 24: Settings For Direct Connection

    Here you get an overview of the recording possibilities. Select your desired settings in the "Settings" tab, adjust the recording times in "Recording Times" and confirm the changes by clicking "Save". BATLOGGER WE X Manual © 2019 Elekon AG 24/39...
  • Page 25 In the "Status" tab, set all desired microphones in the "Enable Rec" setting to "On" and start recording. The unit will now record automatically during the set recording times. BATLOGGER WE X Manual © 2019 Elekon AG 25/39...

  • Page 26: Recordings And Files

    Recording information file ”xxxxxxxx.xml” For each "xxxxxxxxxx.wav" file stored, an additional information file "xxxxxxxxxx.xml" is stored with the same number with various metadata on recording time, date, location, temperature and device settings (parameters). BATLOGGER WE X Manual © 2019 Elekon AG 26/39...
  • Page 27 Crest factor at trigger <FFTVal>87.953 (5629, 0x15fd)</FFTVal> FFT at trigger <PeriodTrig>1</PeriodTrig> Periode trigger value at trigger <MinSoundLevel>38% (12540, 0x30fc)</MinSoundLevel> Sound level at trigger <FrameIndex>155648 (BlockIdx:152)</FrameIndex> Frame in wav file </TrgValues> </BatRecord> BATLOGGER WE X Manual © 2019 Elekon AG 27/39...

  • Page 28: Log File "Batrec.log

    SN0001 22.12.2017 02:13:52 - INFO: Successfully subscribed to TB RPC calls SN0001 22.12.2017 10:05:41 - INFO: RTC set! Time synchronized with Internet... SN0001 22.12.2017 10:05:41 - INFO: RTC (re-)set by time retrieved from internet. BATLOGGER WE X Manual © 2019 Elekon AG 28/39...

  • Page 29: Daily User Log File

    SN0001;04.01.2018 17:17:43;Recs today;3 SN0001;04.01.2018 17:17:43;Temp;Channel 1; 4.5 … SN0001;04.01.2018 17:17:43;Temp;Channel 2; 4.4 SN0001;04.01.2018 17:17:43;Environment;Hum 100.0;Airp 998.1 SN0001;04.01.2018 17:32:43;Recs today;3 SN0001;04.01.2018 17:32:43;Temp;Channel 1; 4.7 SN0001;04.01.2018 17:32:43;Temp;Channel 2; 4.7 SN0001;04.01.2018 17:32:43;Environment;Hum 100.0;Airp 998.2 BATLOGGER WE X Manual © 2019 Elekon AG 29/39...

  • Page 30: Getting Data From The Device

    12.2 Directly on the device via direct Ethernet connection If there is a direct Ethernet connection between BATLOGGER WE X and PC, the recording data can be accessed via a secure FTP (SFTP) connection. In order to use this protocol from a PC, the free program "FileZilla" is recommended as a client.

  • Page 31: Installation Filezilla

    Reason Correction Unit does not switch Power supply is not Check power supply and install correctly. installed correctly. Blue LED continues to No network connection. Check the connection. Cables? Is there BATLOGGER WE X Manual © 2019 Elekon AG 31/39...

  • Page 32: One Click Firmware Update

    SD card from your computer and remove the SD card. 4. Turn off the BATLOGGER using the ON/OFF switch. 5. Insert the SD card into the SD card holder in the BATLOGGER. BATLOGGER WE X Manual © 2019 Elekon AG 32/39...
  • Page 33 16. The firmware has been completed. You can check the update by checking the firmware version in the BATLOGGER Connect Service. 17. If you want to update several BATLOGGER, you have to copy the file back to the SD card first. BATLOGGER WE X Manual © 2019 Elekon AG 33/39...

  • Page 34: Status Led

    The LEDs on the Ethernet connector indicate the physical connection of the Ethernet cable. This can be useful to determine if the Ethernet cable to connect to the router is OK. BATLOGGER WE X Manual © 2019 Elekon AG 34/39...

  • Page 35: Technical Specifications

    USB port, FAT32 or ext4 formatted USB stick formatted via USB port, FAT32 or ext4 Software Settings and configuration Web Interface oder BATLOGGER Connect Service Analysis and Identification BatExplorer (WIN) BatScope (MAC) BATLOGGER WE X Manual © 2019 Elekon AG 35/39...

  • Page 36: Exclusion Of Liability

    16 Service and Support Please do not hesitate to contact Elekon AG if you have any questions about the product: +41 41 2504040 or batlogger@elekon.ch For more support information, see: www.batlogger.com...

  • Page 37: Third-Party Software Used

    Website License http://www.eclipse.org/paho/ https://www.eclipse.org/org/documents/edl-v10.php cJSON Copyright (c) 2009-2017 Dave Gamble and cJSON contributors Website License https://github.com/DaveGamble/cJS https://github.com/DaveGamble/cJSON/blob/master/LIC ENSE Angular JS Material Copyright (c) 2014-2016 Google, Inc. http://angularjs.org Website License https://material.angularjs.org/latest/ https://material.angularjs.org/1.1.5/license BATLOGGER WE X Manual © 2019 Elekon AG 37/39...
  • Page 38 Copyright jQuery Foundation and other contributors, https://jquery.org/ Website License https://jqueryui.com/about/ https://jquery.org/license/ BATLOGGER WE X Manual © 2019 Elekon AG 38/39...
