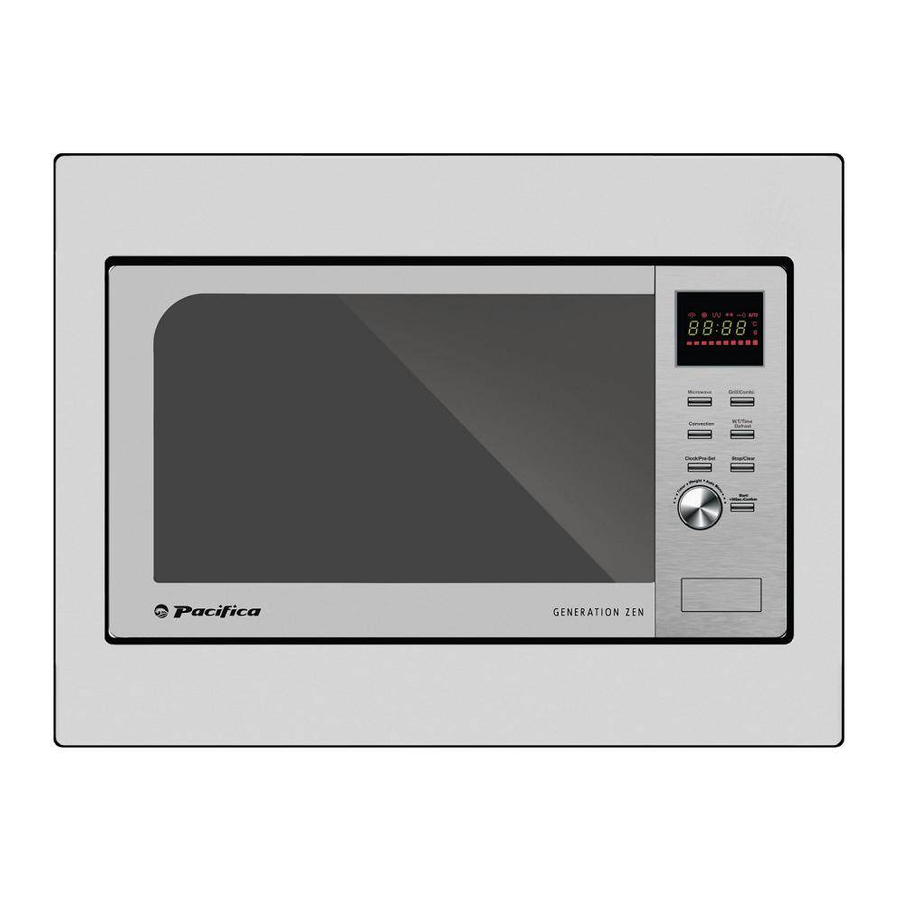

- Page 1 ACM1 Signal Built-in Microwave Oven KEEP IN A SAFETY PLACE Before operating this microwave oven, Please read the instruction carefully...
- Page 2 Welcome to the Pacifica family. Congratulations and thank you for choosing a first class product from Pacifica Appliances. Our appliances are designed to be easy to use and engineered for reliable performance for years to come. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new appliance.
- Page 3 IMPORTANT Take precautions to avoid exposure to excessive microwave energy! Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
- Page 4 When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10.
- Page 5 Electric Cord and Power Connection Make sure the electric cord has met local safety standards. Make sure the electric cord is not exposed to any heat source, chemicals or sharp objects. If the electric cord is damaged, please replace it with the same standard electric cord by an authorised or qualified professional.
- Page 6 c. The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped-over unintentionally. WARNING Do not use metallic utensils in the microwave! There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.
- Page 7 Warning: Materials that must be avoided in microwave oven: 1. Aluminum tray: May cause arcing. Transfer food into microwave-safe dish. 2. Food carton with metal handle: May cause arcing. Transfer food into microwave-safe dish. 3. Metal or metal-trimmed utensils: Metal shields the food from microwave energy.
- Page 8 All food and containers of food are always placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorised service centre. Connection This appliance is only intended for domestic use. This oven is intended for built-in use only.
- Page 9 1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet. SCREW A BOTTOM BRACKETS Preparation of the Cabinet Read the instruction on the bottom cabinet template, put the template on the bottom plane of cabinet. Make marks on the bottom plane of cabinet according to marks “a”...
- Page 10 SCREW A SCREW A ADJUST SCREW B UPPER AIR TUNNEL TRIM-KIT ADJUST SCREW B ADJUST HEIGHT OVEN FOOT...
- Page 11 SCREW INSTALLATION HOLE Operating Instructions IMPORTANT Be careful when using the appliance! The accessible surface of the oven may be hot during operation. WARNING! Electric Shock Hazard Read and follow the SAFETY AND WARNINGS outlined in this User Guide before operating this appliance Failure to do so can result in death, electric shock re or injury to persons This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.
- Page 12 Clock Setting When the microwave oven is electrified, the oven will display "0:00"; its buzzer will ring once. Press "CLOCK / PRE-SET" to choose 12-hour or 24-hour. Turn " " to adjust the hour figures, the input time should be within 0—23 (24-hour) or 1—12 (12-hour).
- Page 13 Combination Cooking Press the "GRILL / COMBI." key once, and "G-1" display. Press " GRILL / COMBI." for times or turn " " to select the grill power. Stop turning when "C-1","C-2","C-3" or "C-4" displays. Press "START / +30SEC. / CONFIRM" to confirm. Turn "...
- Page 14 Convection Cooking (without Preheating) The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. In some cases, you may choose to use your microwave for convection cooking without the option of preheating. Press the "CONVECTION "...
- Page 15 Example: If you want to cook with 80% microwave power for 7 minutes, you should take the following steps: Press "MICROWAVE" once. Turn " " to choose 80% microwave power until "P80" is displayed. Press "START / +30SEC. / CONFIRM" to confirm. Turn "...
-
Page 16: Auto Menu Chart
Auto Menu Chart Weight (g) Display Power A1 Reheat 100% 1 (about 230g) 2 (about 460g) 100% A2 Potato 3 (about 690g) Meat 100% A4 Vegetable 100% A5 Fish 50(with water 450ml) A6 Pasta 100(with water 800ml) 150(with water 1200ml) A7 Soup 100% Preheat at 180... - Page 17 Defrost by Weight Press "W.T. / TIME DEFROST" pad once; the oven will display "dEF1". " to select the weight of food. At the same time, "g" will lights, the Turn " weight should be 100-2000g. Press "START / +30SEC. / CONFIRM" key to start defrosting " "...
-
Page 18: Troubleshooting
Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. - Page 19 Pacifica Appliances undertakes to repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within 2 years of the date of purchase.
- Page 20 © 2010 Pacifica Appliances Sdn. Bhd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Pacifica Appliances Sdn.
- Page 21 Menara Lien Hoe (HQ) Lot 11.3, 11th Floor, Menara Lien Hoe, 8, Persiaran Tropicana, 47410 Petaling Jaya, Selangor.
