User Manual
PCIe8LXMCX2
PCIe 8 Lane 2 Position XMC Compatible Carrier

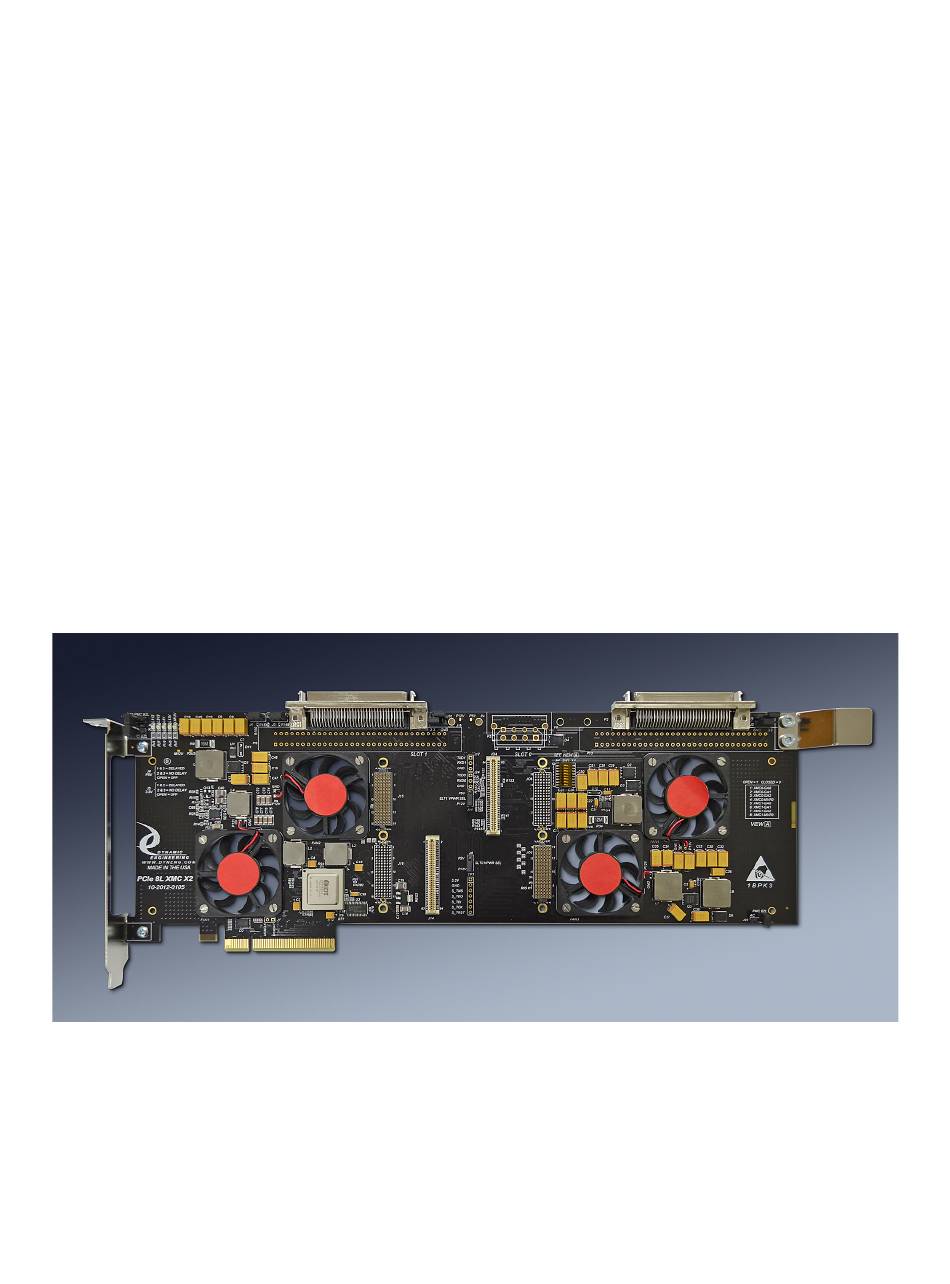

Shown With PMC/SCSI rear IO connector
Revision E3 12/28/18
Corresponding Hardware: Revision C-F
Fab number 10-2012-0106
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynamic Engineering PCIe8LXMCX2
Summary of Contents for Dynamic Engineering PCIe8LXMCX2
- Page 1 DYNAMIC ENGINEERING 150 Dubois St. Suite C, Santa Cruz, CA 95060 831-457-8891 Fax 831-457-4793 http://www.dyneng.com sales@dyneng.com Est. 1988 User Manual PCIe8LXMCX2 PCIe 8 Lane 2 Position XMC Compatible Carrier Shown With PMC/SCSI rear IO connector Revision E3 12/28/18 Corresponding Hardware: Revision C-F...
- Page 2 Dynamic Engineering has made every effort to ensure that this manual is accurate and complete. Still, the company reserves the right...
-
Page 3: Table Of Contents
Table of Contents PRODUCT DESCRIPTION Headers and TestPoints DipSwitch Settings Options XMC Module Backplane IO Interface Pin Assignment XMC Module Jn4 Ethernet and Serial Pin Assignment APPLICATIONS GUIDE Interfacing Construction and Reliability Thermal Considerations WARRANTY AND REPAIR Service Policy Out of Warranty Repairs For Service Contact: SPECIFICATIONS ORDER INFORMATION... - Page 4 List of Figures FIGURE 1 PCIE8LXMCX2 JN4/JN6 INTERFACE STANDARD FIGURE 2 PCIE8LXMCX2 JN4 ETHERNET, SERIAL Embedded Solutions Page 4...
-
Page 5: Product Description
• Optional Serial Port connectors to support XMC’s with Serial Ports • JTAG programming support • DIP switch to select global addressing on XMC’s PCIe8LXMCX2 is ready to use with the default settings. Just install the XMC onto PCIe8LXMCX2 and into the system. Embedded Solutions... -
Page 6: Headers And Testpoints
12V power to be used by the PCIe8LXMCX2. The PCIe gold fingers allow for about 60W of power to be consumed by the board across all XMC voltages including power supply losses. In many cases... -
Page 7: Dipswitch Settings
the power budget is more than sufficient. If your XMC’s require more power please request one of the optional power connectors [discrete wire, 4 wire standard PC vert or horizontal] to increase the 12V available. Both 12V entry points are diode coupled to prevent the current back-feeding when an external or other supply is added. -
Page 8: Options
In addition to the basic bridged version there are options for Ethernet, Fan, Serial ports, and minimization. The PCIe8LXMCX2 features cooling cutouts designed to support the addition of a fan in one or two positions for each XMC. On PrXMC's and other XMC’s with high thermal loads the fan option is a good idea. - Page 9 PCIe8LXMCX2. The mating part number is 120-964-455 Panduit, DIN-IDCA-64CSB- TG30 Robinson Nugent, Berg also has a part which is slightly taller. Cables and breakouts are available from Dynamic Engineering – Please see DINterm64 and DINribn64 or HDEcabl68 and HDEterm68 products from the Dynamic Engineering website.
-
Page 10: Xmc Module Backplane Io Interface Pin Assignment
The figure below gives the pin assignments for the XMC Module IO Interface – from Jn4 and/or Jn6 to the PCIe8LXMCX2 connectors. Also see the User Manual for your XMC board for more information. Please note that P2 or P13, P7 or P5 are installed not both. -
Page 11: Xmc Module Jn4 Ethernet And Serial Pin Assignment
Pn4 Slot 0 FIGURE 2 PCIE8LXMCX2 JN4 ETHERNET, SERIAL The channel number is shown then the pin number. For example on the ethernet connectors J10 and J18, there are two ports. Port 1 [J10] pin 1 is tied to Pn4 pin 1, Port 2 pin 8 is tied to pin 22 of Pn4. -
Page 12: Applications Guide
Power all system power supplies from one switch. Connecting external voltage to the PCIe8LXMCX2 when it is not powered can damage it, as well as the rest of the host system. This problem may be avoided by turning all power supplies on and off at the same time. -
Page 13: Construction And Reliability
PCIe8LXMCX2 itself, and it is smart system design when it can be achieved. Construction and Reliability PCIe8LXMCX2 is constructed out of 0.062 inch thick high temp RoHS compliant FR4 material. Cooling cutouts are designed into the product for improved air flow to the XMC sites. -
Page 14: Warranty And Repair
For service on Dynamic Engineering Products not purchased directly from Dynamic Engineering contact your reseller. Products returned to Dynamic Engineering for repair by other than the original customer will be treated as out-of-warranty. -
Page 15: Specifications
Specifications Logic Interfaces: PCIe up to 8 lanes per XMC Gen1 and Gen2 compliant switch and clock buffer. Access types: PCIe TLP transactions. MSI interrupts. CLK rates supported: Gen1 and Gen2 Software Interface: switch is auto configured and usually will not require any user intervention. -
Page 16: Order Information
Order Information ø standard temperature range -40ó85 PCIe8LXMCX2 full length PCIe card with 2 XMC positions DIN connectors installed. User VPWR selection http://www.dyneng.com/PCIe8LXMCX2.html -FAN(1,2,3,4)R [fan installed in position 1 or 2 or 3 or 4 or combinations] “R” for rear mounted higher velocity fans(~8 CFM). - Page 17 . For example 1.0.FT = 1 Ft long. 1.6Ft is 1 Foot 6”. Metric and English units are acceptable. 36” is the default length if XX.YY.ZZ is left off. All information provided is Copyright Dynamic Engineering Embedded Solutions Page 17...
